Multi apartment IP Wifi Android/IOS APP remote control unlock intercom building video intercom system

Share on (1700000488244):


Price:

Quantity:


Product Overview

Description


Video Door Phone Intercom System 7" Monitor for Multi- Apartment Video Intercom System





Product Description

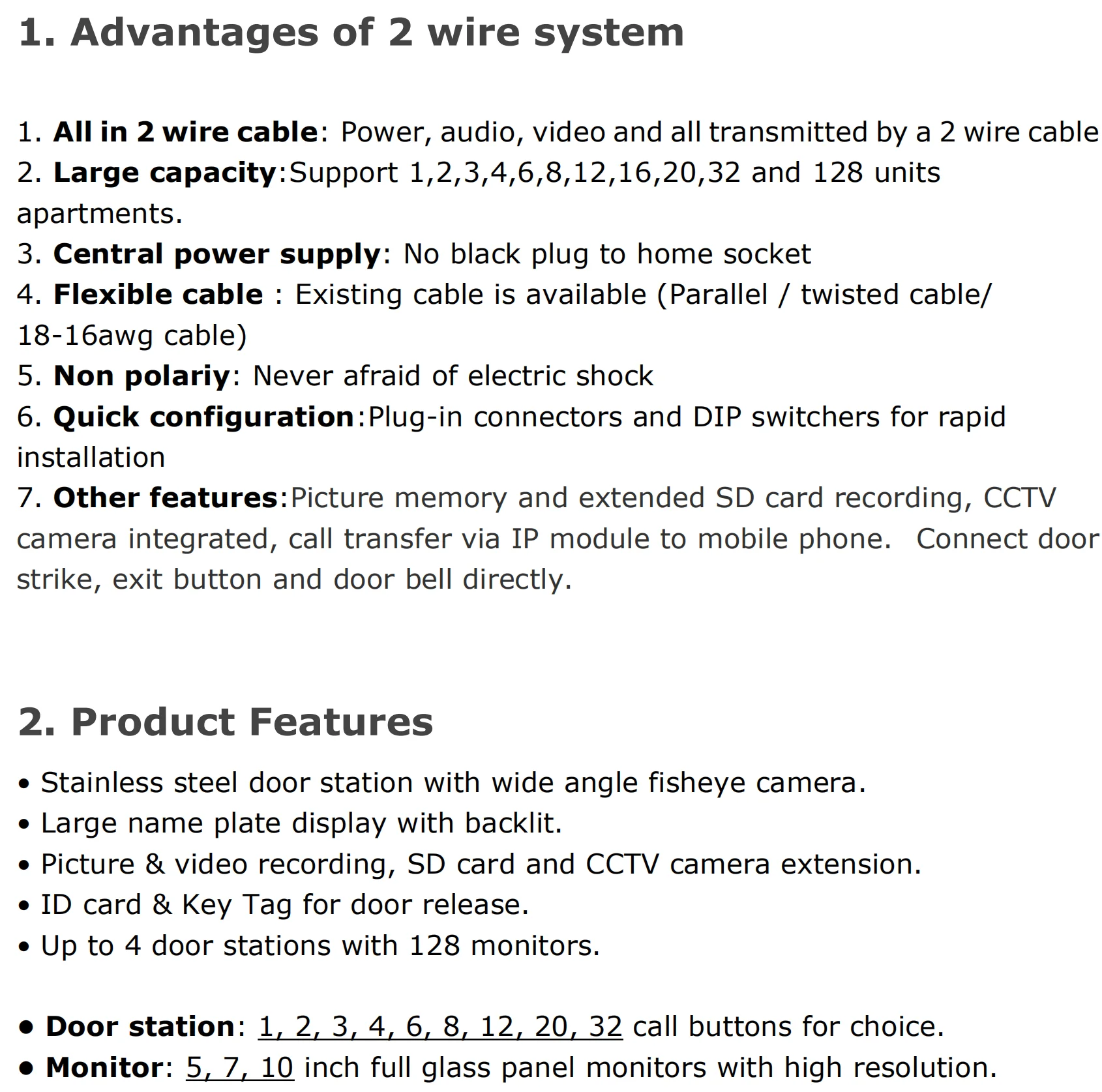

 2-WIRE GOOD

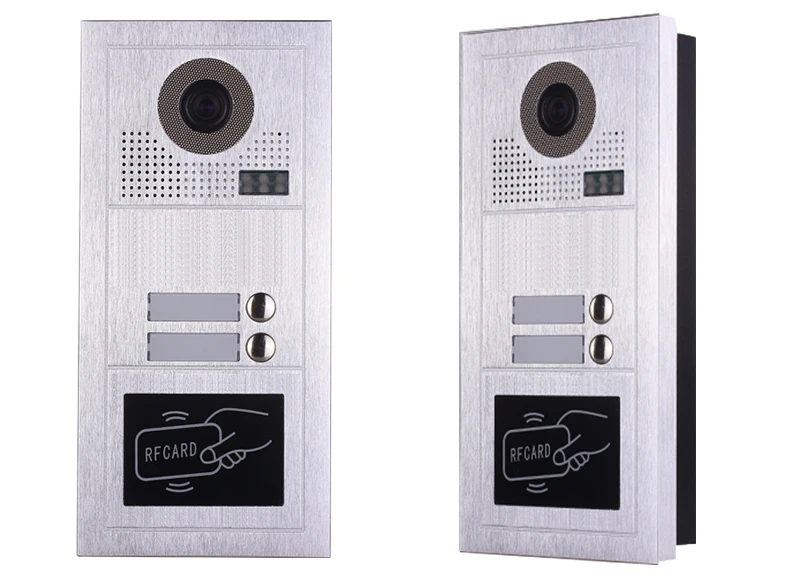

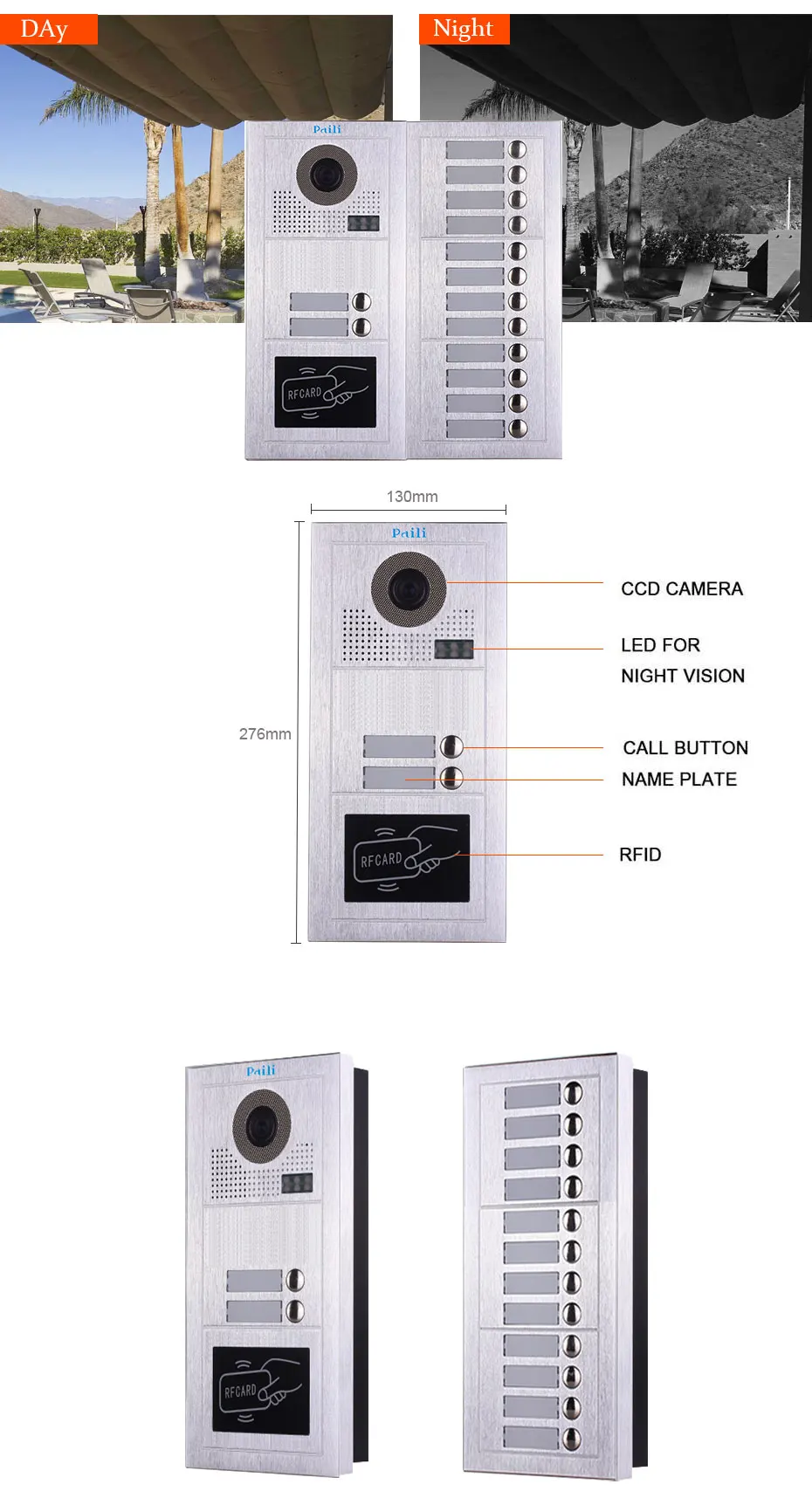

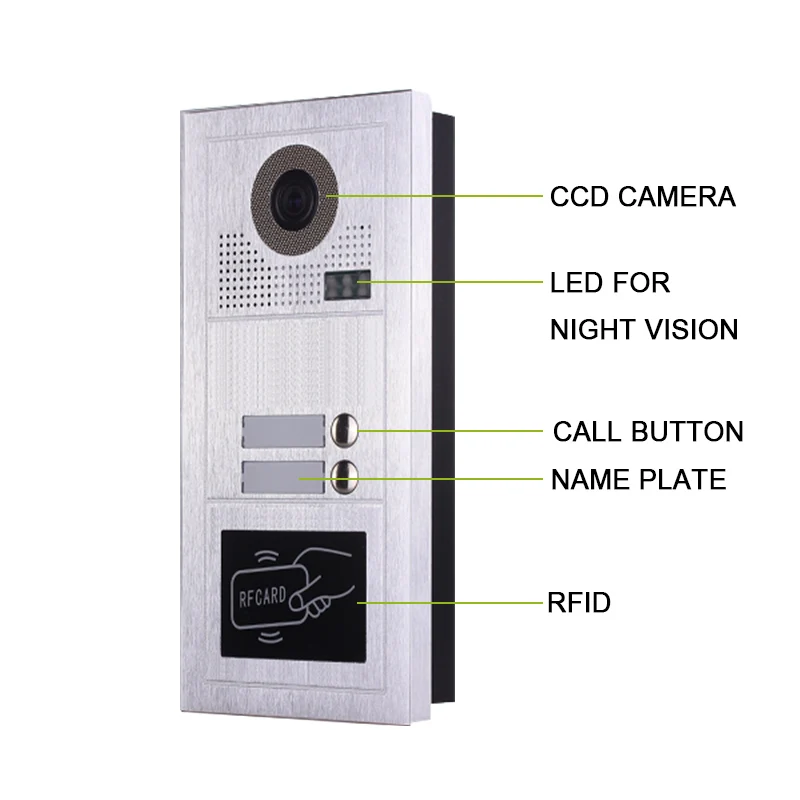

Door station






























Model


PL619D

Material


Waterproof & Vandalproof Aluminium Alloy

Power supply


DC 24V

Power consumption


Standby 20mA, working 110mA

Camera


CMOS wide angle fisheye lens

Visual angle


110º

Button


1/2/3/4/8/12/16/32

Unlock power output


DC 12V, 300mA(Internal power)

Protection


IP 54

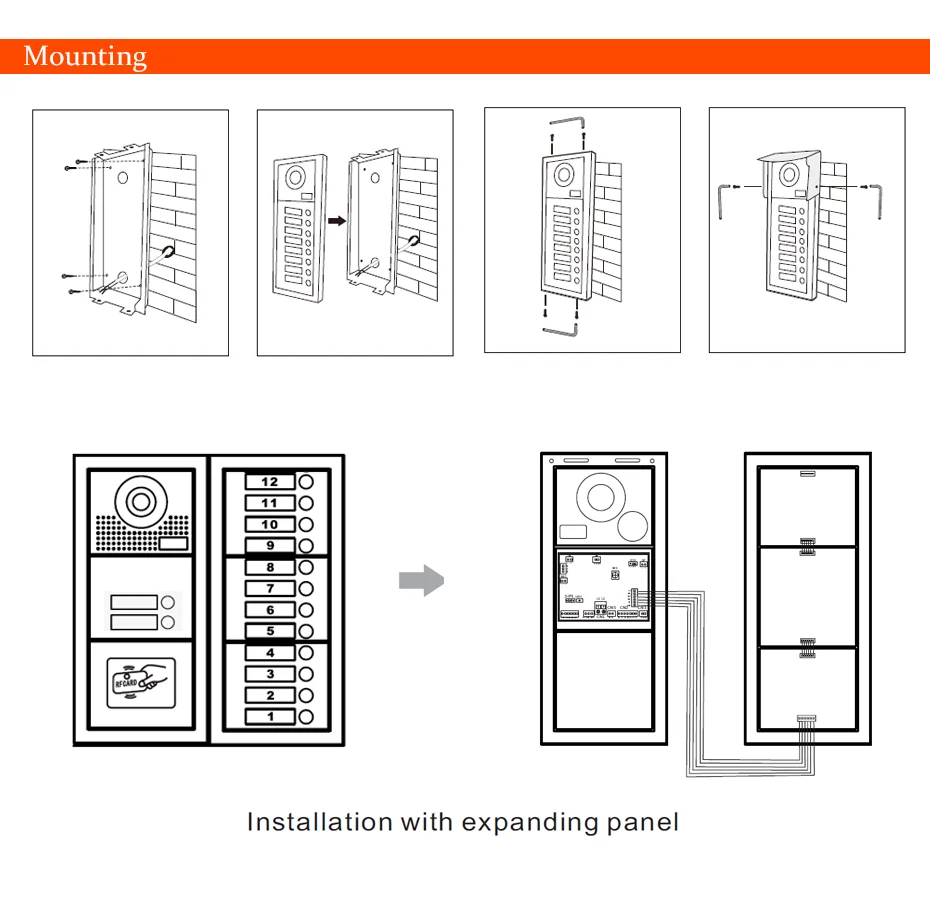

Installation


Surface mounting
Working temperature-25°C~55°C
Wiring2 wire (Non-polarity)
Dimension276*130*52mm

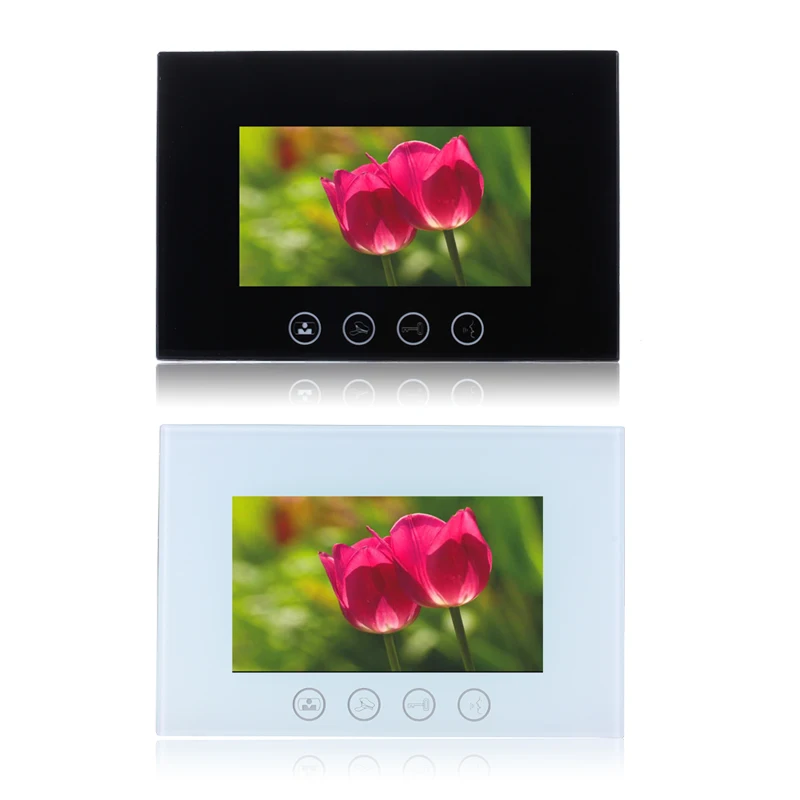

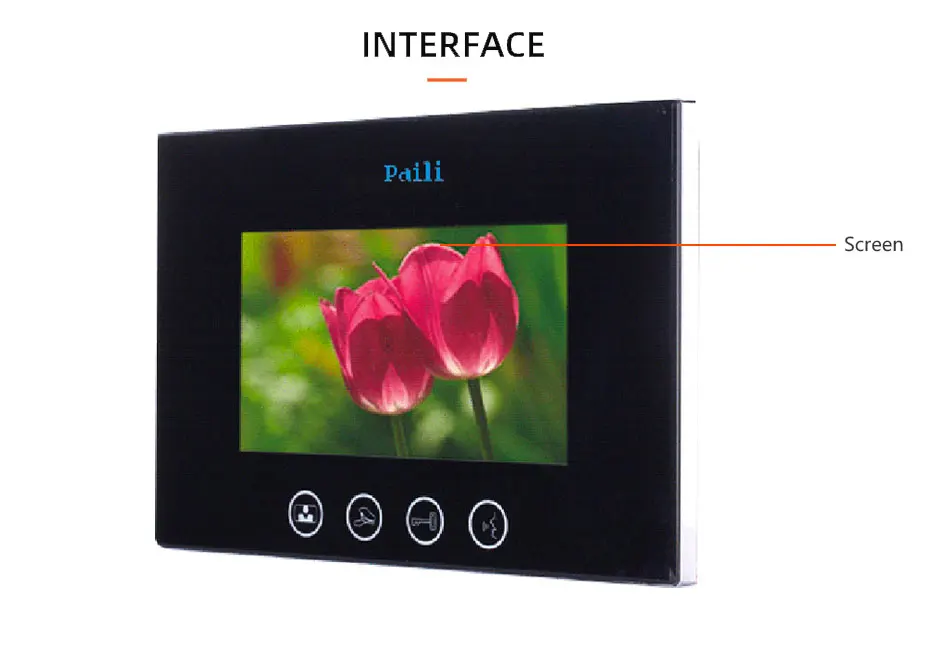

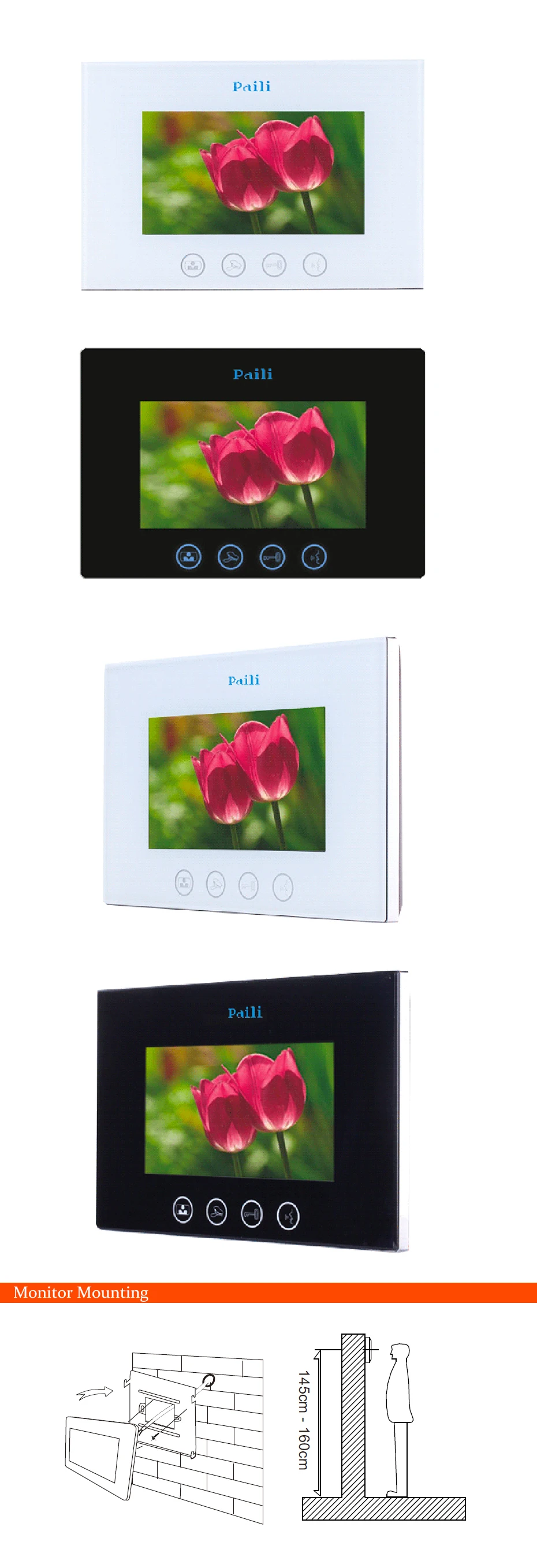

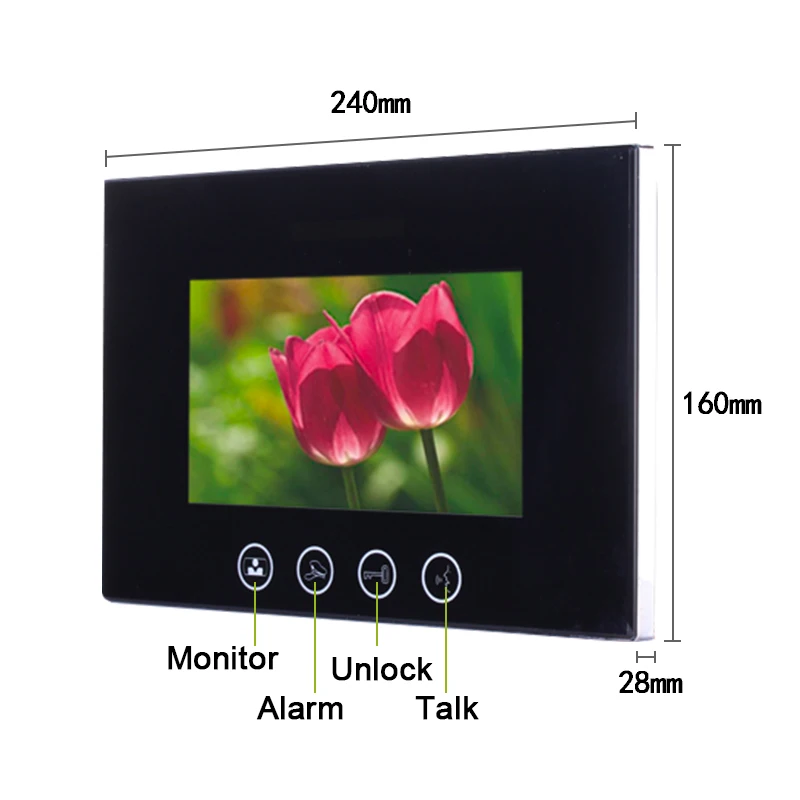

Monitor



























Model


PL828

Screen


7 inch color digital TFT screen

Resolution


800 * 480 pixels

Power supply


DC 24V

Power consumption


Standby 15mA, working 400mA

Working temperature


-10°C~45°C

Wiring


2 wire (Non-polarity)
InstallationSurface mounting
SD card NO

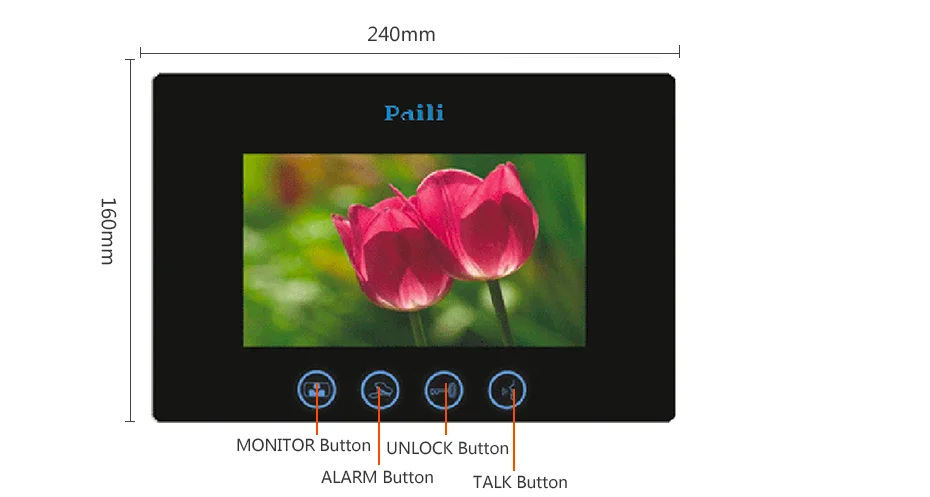

Dimension


240*160*28mm

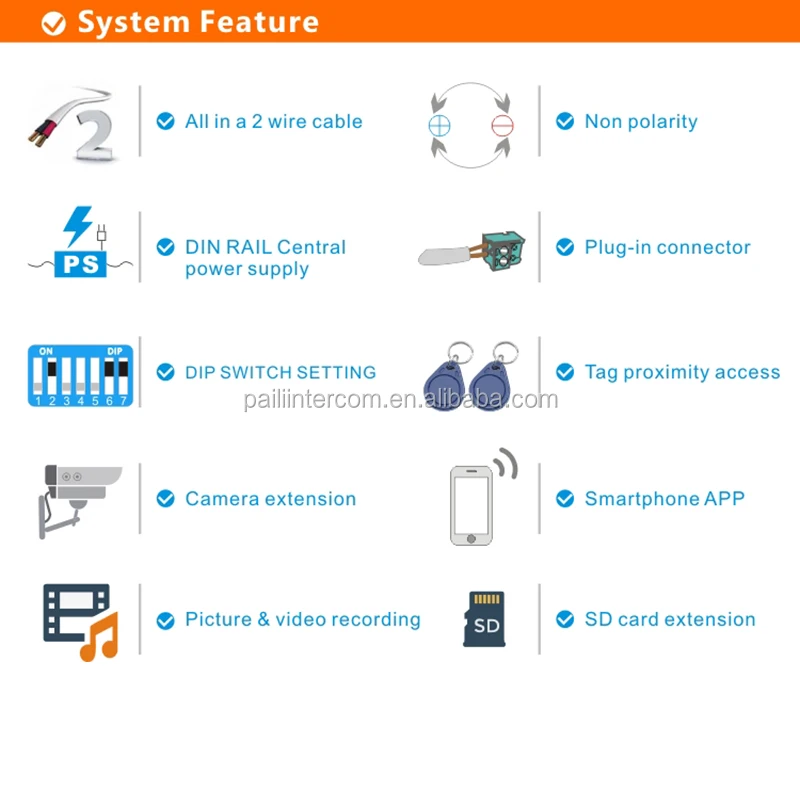

12

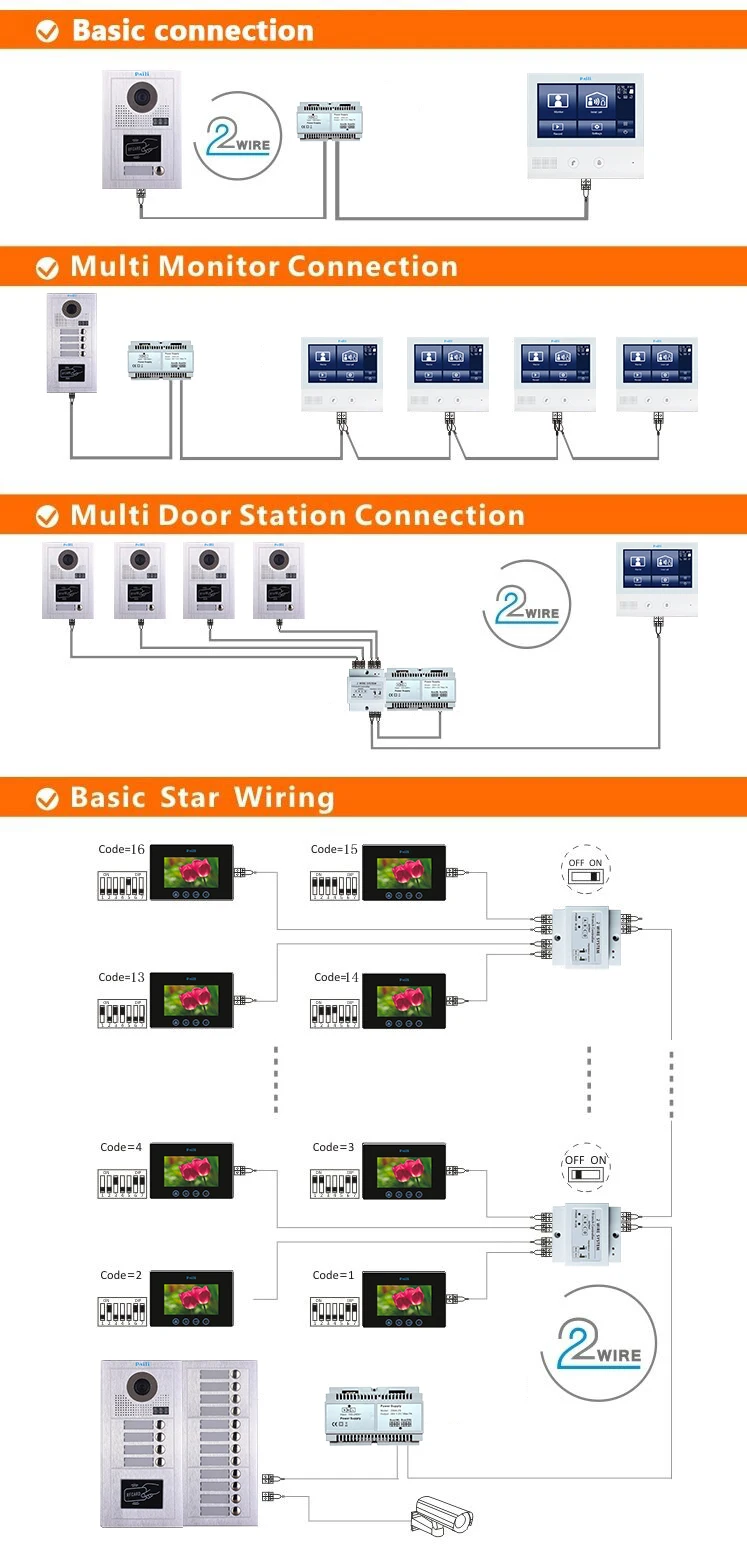

1-11

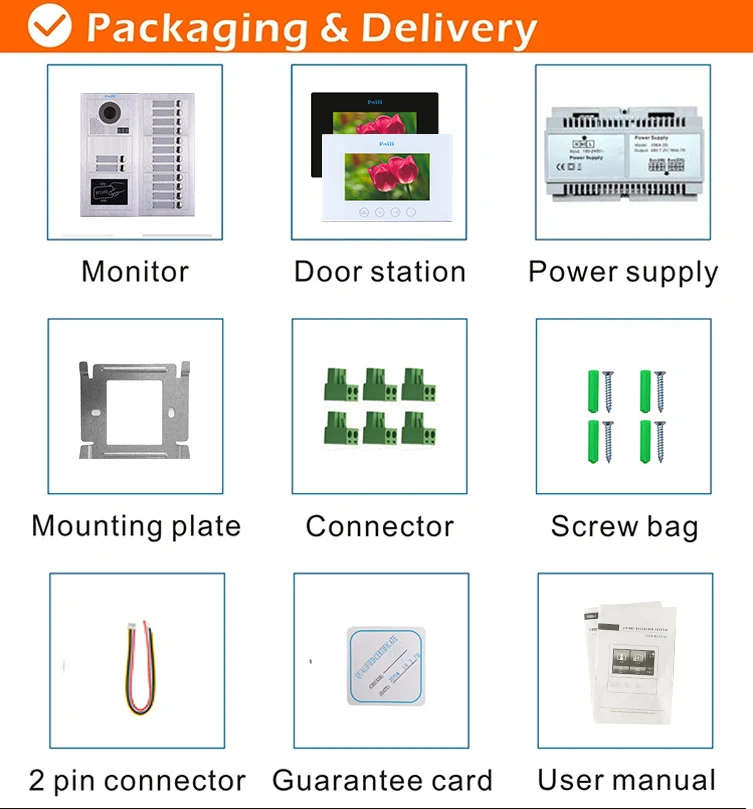

Packaging & Shipping












Company Information


 23








FAQ





Q: What is the Minimum Order Quantity (MOQ)?


A: No MOQ for sample order.





Q: Could you put my brand name (logo) on the products?


A: Yes, of course. We have 9 years of OEM manufacturing experience.





Q: Payment


A:  PayPal, T/T, Alibaba Trade Assurance, Western Union etc..





Q: Lead time


Sample order: 1~3 days


Regular order: 5~10 days


Mass productions: 10~30 days (Depend on the quantities)





Q: How will you deliver my goods to me?


A: We always ship sample order and MOQ order by Express ( Door To Door), such as DHL,UPS.





Q: How long do I need to wait before my goods arrive?


A: 5-7 days for air freight, 3-5 days for international express. 20-40 days for sea transportation.





Q: Product quality warranty


We provide one year factory quality warranty.





Q: What’s the furthest distance from door station to monitor?


For single family kit, the furthest distance is 160 meters. (Parallel cable 2 x 1.0 mm)





Q: Could I connect an extra camera on the door panel?


Yes, each door panel could connect with an analog camera.





Q: How many monitors could be connected in the system?


The 2 wire system could support maximum 4 door panels (With 4 extra cameras) with 32 monitors.





Q: What if I have 2 entrances with 8 apartments?


The 2 wire system could support maximum 4 door panels with 32 monitors. For this case, you could choose two 8 button door panels with 8 monitors. All the door panels and monitors are compatible.
