l Help instantly replace old 2G10 fluorescent 36W DULUX F bulb
l Function with HF ballast in existing fixture.
l Suitable for lots of DALI dimming ECG ballast
l Off-the-shelf LED driver compatibility to help replace ECG in the future
l Save more on energy consumption and installation
l Better color consistency quality of light
l Higher lumen efficiency
l Longer service time up to 50000 hours
l CE and RoHS compliant
l Note: Not allow to connect with AC mains (85V~265V) or conventional control gear(CCG).
Product Description
Ballast Compatible ECGsmart 2G10 18W LED DULUX F
Descriptions
Value
Direct Replacement Target
4 pin 2G10 36W DULUX F bulb
Driver Compatibility
Electronic ballast, LED driver
Ballast Driving Voltage
Upon ballast output
CC LED Driver Output Voltage
48V DC
CC LED Driver Output Current
370mA DC
Wattage
18W
Conventional Wattage Equivalent
36W DULUX F bulb
Base Cap
4 pin 2G10
Life Time (Hours)
50000 hrs
Beam Angle (Degrees)
140
Lumen Efficacy
150 lm/W
Lumen output
2700 lm
Housing material
Aluminum or plastic
PC cover
Clear / Milky

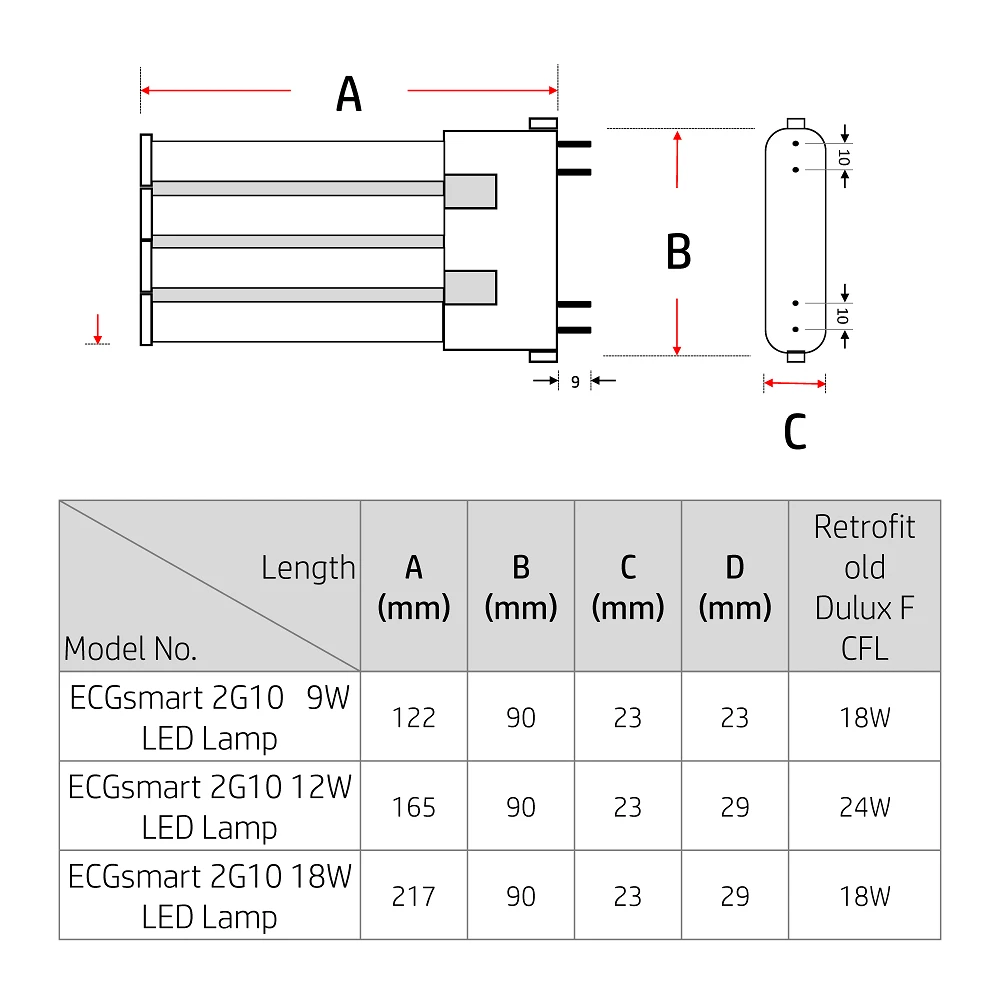

Length
217 mm
CRI
> 82
CCT
2700K ~ 6500K

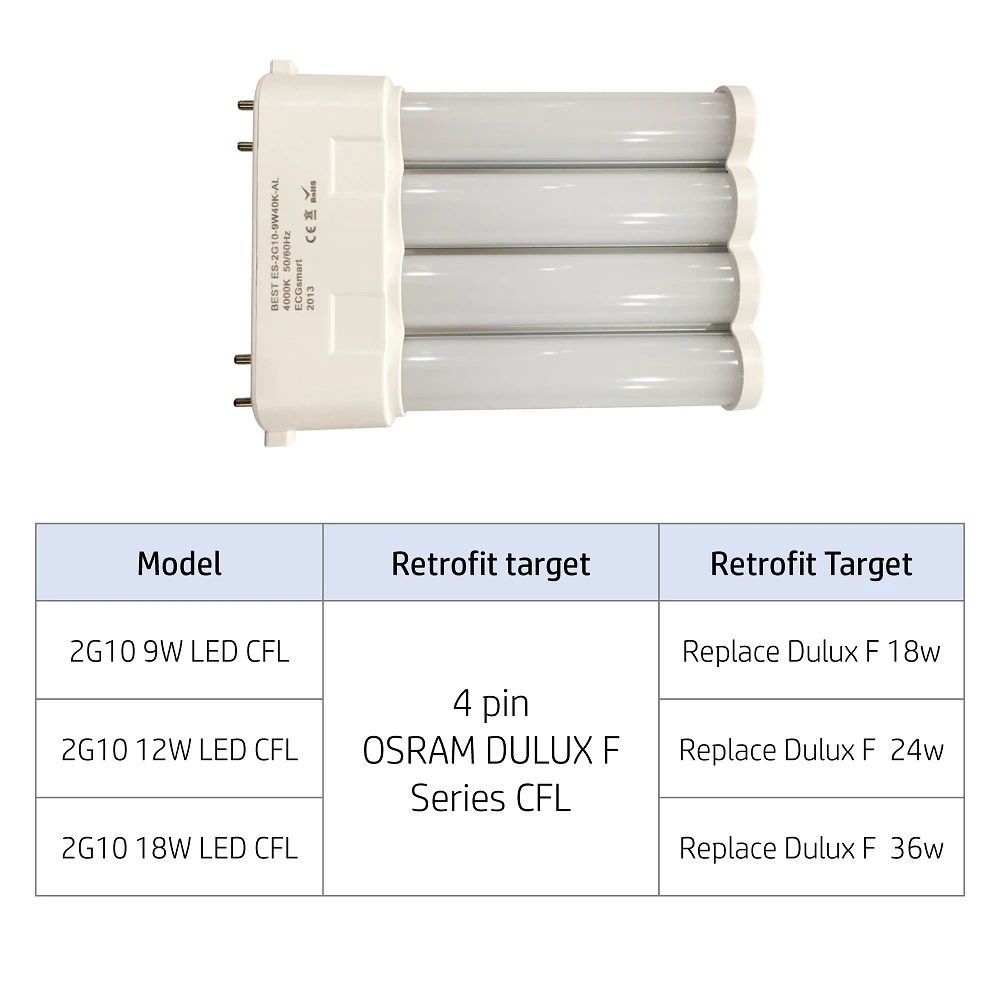

Product Model: ECGsmart 2G10 18W LED lamp
Order number
Direct Retrofit Target
ES-2G10-18W27K-AL
old CFL 2G10 36W 2700K DULUX F bulb
ES-2G10-18W30K-AL
old CFL 2G10 36W 3000K DULUX F bulb
ES-2G10-18W40K-AL
old CFL 2G10 36W 4000K DULUX F bulb
ES-2G10-18W50K-AL
old CFL 2G10 36W 5000K DULUX F bulb
ES-2G10-18W60K-AL
old CFL 2G10 36W 6000K DULUX F bulb
ES-2G10-18W65K-AL
old CFL 2G10 36W 6500K DULUX F bulb
Electronic ballast compatibility. No rewiring or bypass in fixture. Single-ended four-pin plug-in 2G10 18W LED bulb can help directly replace fluorescent 36W DULUX F bulb. With built-in fuses installed in place, the installation can be safer, simpler, easier. Perfect LED replacement towards access lighting fixtures in various applications of general lighting.

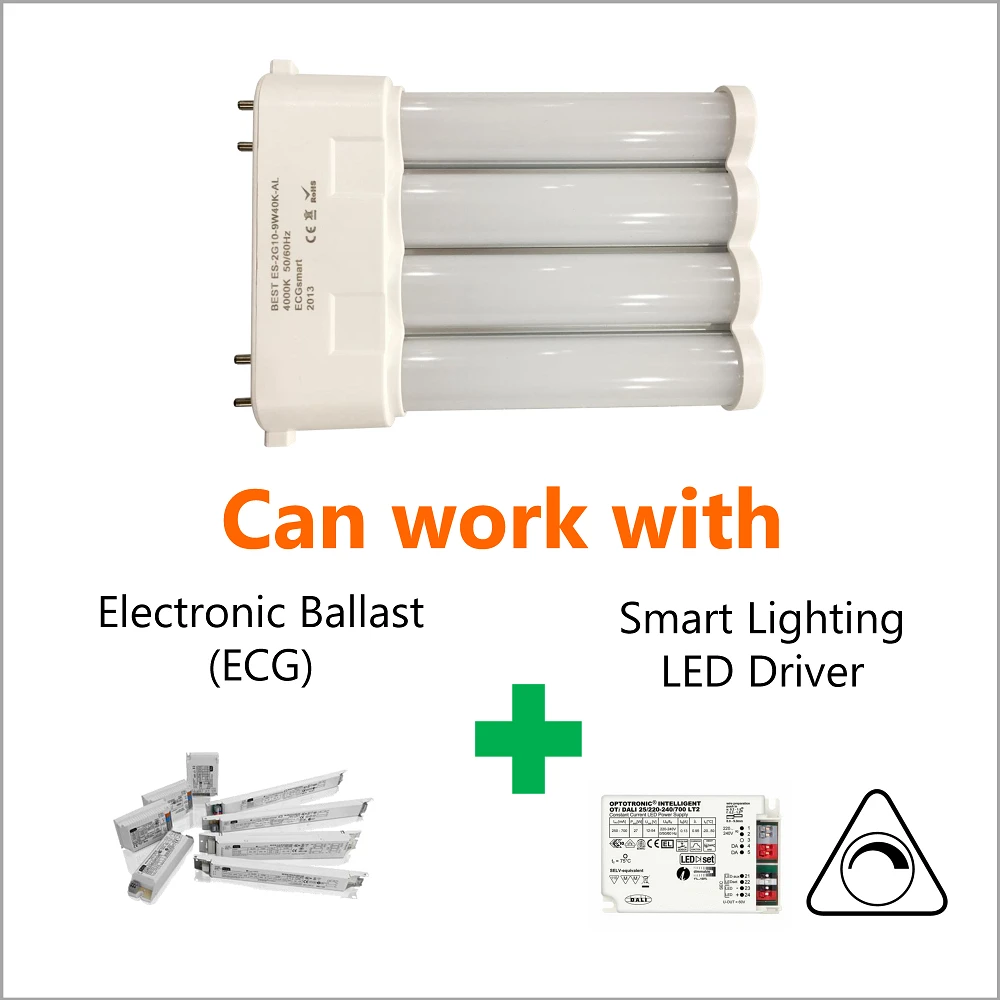

ECGsmart 2G10 series LED lamps can operate with electronic control gear, and can function with constant current non-dimmable LED driver or dimmable LED driver. In other words, when the ballasts come to the end of life, you can just replace them with new LED drivers from off-the-shelf market. The functionality of 0/1-10V, DALI or TRIAC dimming can be upgraded. Everything just functions like the old days. You can replace LED bulb or drivers separately can don’t have to worry about their availability. The application is allowed for many places, such as shops, restaurants, hotels, apartments homes, or more.
My company focuses on lighting trends and their requirements and provide series of LED products, especially in electronic ballast compatible arena. Our product portfolio is driven to be perfect so as to meet the demands from application requirements. Welcome to contact with our lighting specialist to know more about our electronic ballast compatible LED solutions and more.
Company Information
Benson Energy Saving Technology ( BEST) is an original design manufacturer located in Taiwan. We design the innovative T5, T8, G24 and 2G11 LED retrofit products just like fluorescent ones. In other words, our retrofit products have exact the same parameters as FL, just with better LED light engine and without LED driver inside.
The BEST owns unique patents for LED retrofit products which can directly replace traditional ones, especially in low pressure discharge lamps. Our approach is simple and easy to help people reuse existing usable light fittings and keep on the track of circular economy.
The product strategy is based on the core technology of electronic ballast (ECG) compatibility to develop two major series of LED lamps: ECGsmart series and ECGall series. ECGsmart series , including T5,T8,G24,2G11 LED lamps, not only work with ECG, but also function with external dimmable LED driver so as to meet the needs of future smart lighting. The transition between ECG and LED driver is seamless and painless as well as follow the trend of circular economy. ECGall series, also covering T5,T8,G24,2G11 LED lamps, have multi-functional compatibilities. Except the ECG compatible, ECGall can function with CCG( T8 only), direct AC main power or external non-dimmable LED driver to meet users’ different application needs.
