Bursting Strength Tester is a testing equipment for testing the bursting-resistance strength of paper and corrugated boards,independently developed and produced by our company. It can realize curve display and data query comparison function without external computer. In addition to the international unit KPa, the test machine also sets the foreign unit Lb/in2; After the test is completed, the instrument will automatically convert and display the bursting-resistance index result of paper.
Items
Specifications
QD-3005B Type
Measuring Range
(250～5600)kPa
Resolution
1kPa
Indication error
±0.5%F
Indication Volatility
≤0.5%
Speed of Pressure(oil)
(175±15)ml/min
Size of clamp ring
GB1539
Rise high
10mm
Resistance value
（170～220）KPa
Rise high
18mm
Resistance value
（250～350）KPa
Clamp pressure
＞690KPa（justable）
Tightness
Pressure reduction in 1min＜10%Pmax
weight
55kg
Pressure gauge
（1～10）Kg/cm2

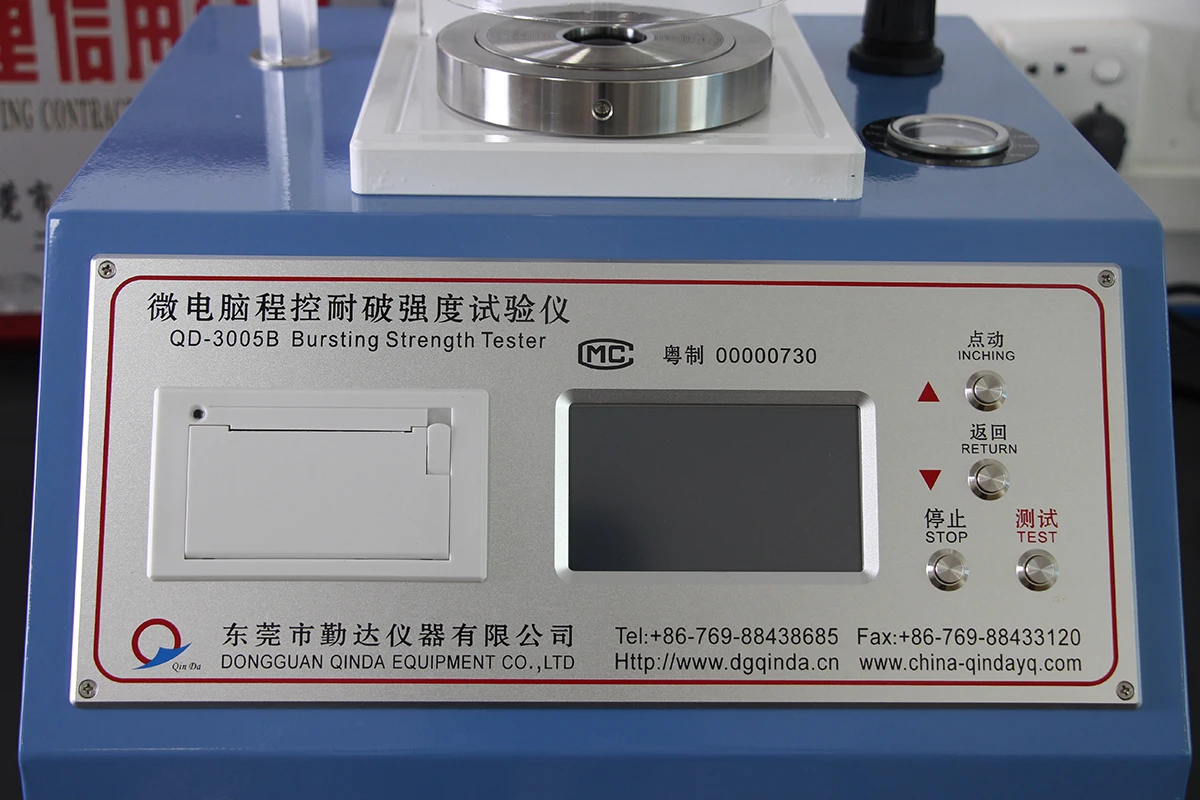

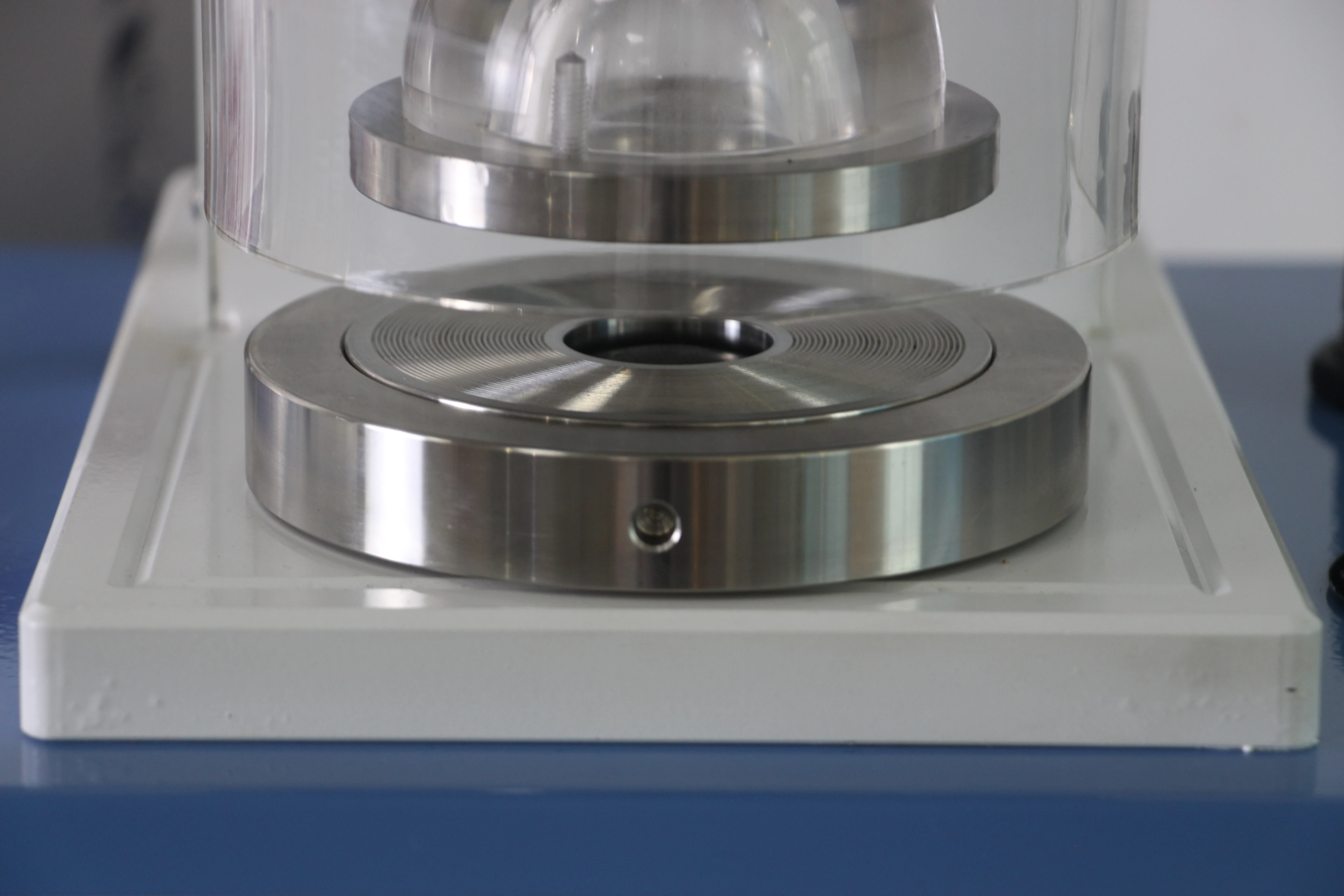

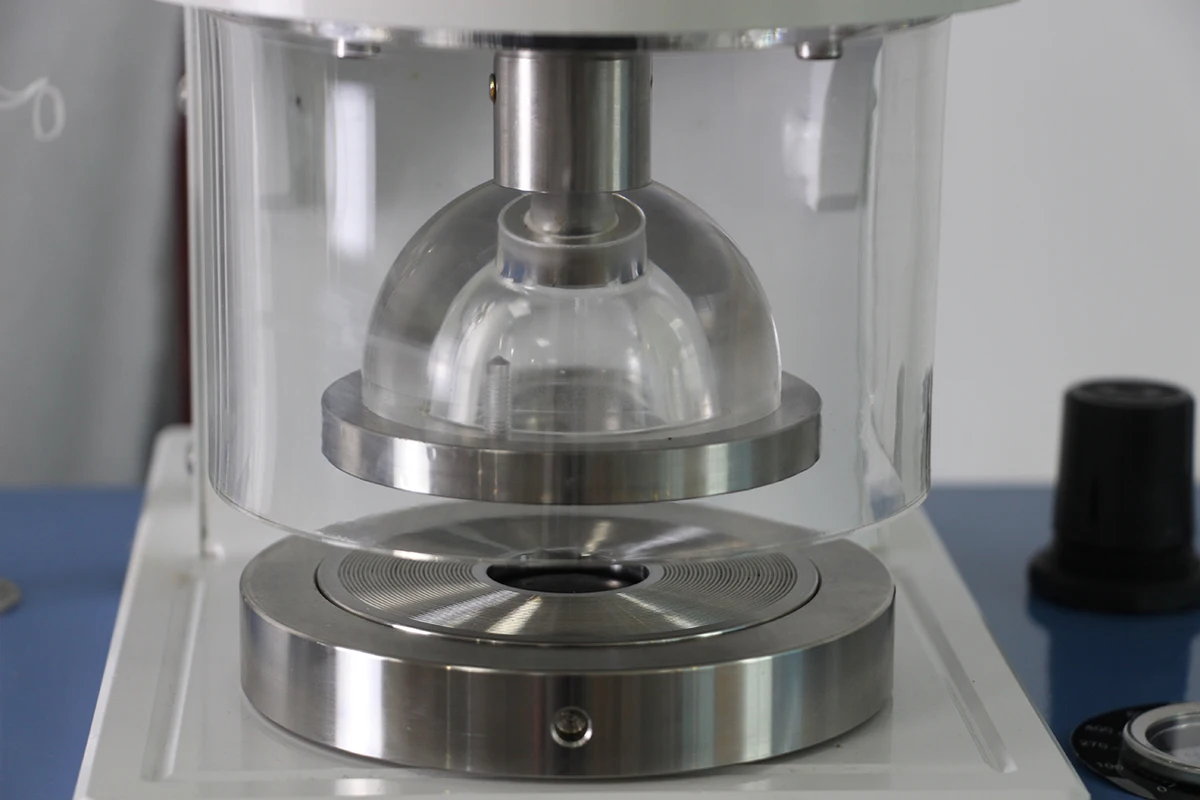

Detailed Images
More product information
Standards
ISO2759 GB/T1539 ISO2758 GB/T454
S
M
L
XL
Packing list
1 machine, 1 power cord, 1 oil cup, 1 bottle of silicone oil (250ml), 2 rolls of thermal printing paper,1 air pipe(φ8mm), 1 special wrench, 3 rubber film, 10 aluminum foil,1 manual(including certificate, warranty card)
26
27.9
29.9
31.9
Features
1. It is applicable to test bursting strength for paperboard. 2. Advanced micro computer controller and digital processor ensure result precise. 3. Printer facility and fully detailed test reports. 4. Results of the tests are stored for viewing or for printing out as required. 5. User-friendly menu interface. 6. Power protection ensure automatic record when power cut off.
15.3
15.9
16.5
17.1
