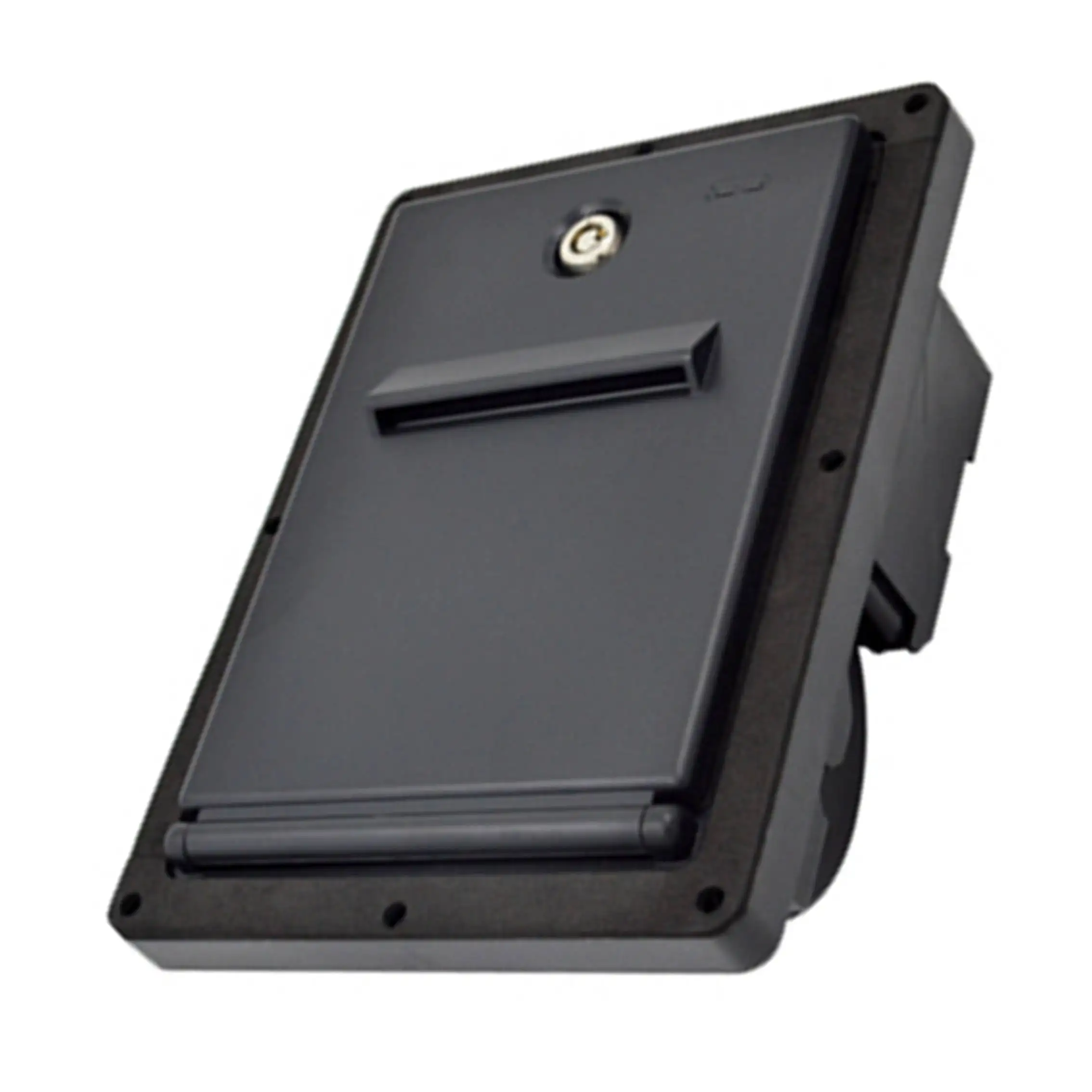

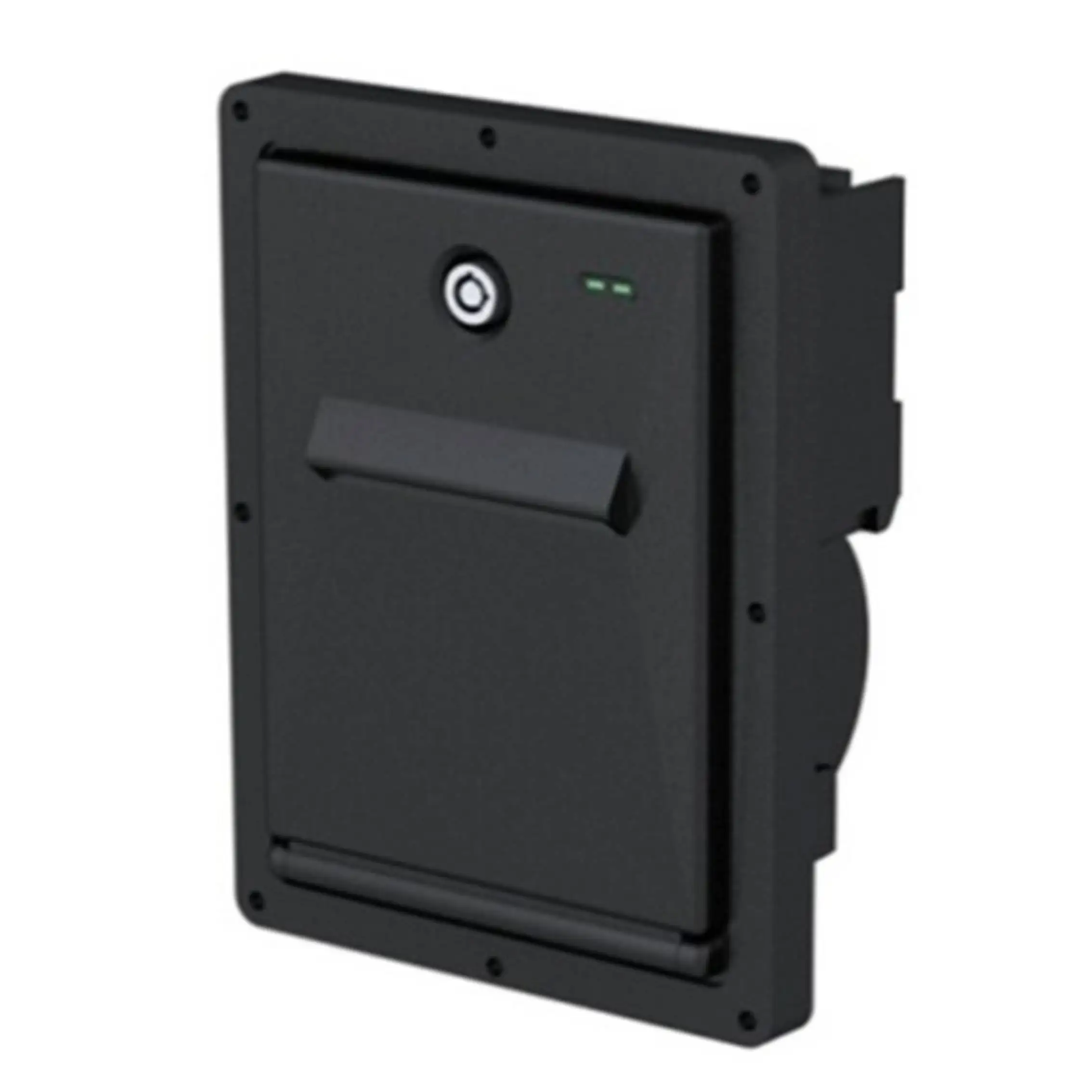

80mm Thermal Panel Printer with Auto Cutter and Key Lock

Product Overview

Description

Features:

• Stylish, delicate and elegant appearance


• Paper end sensors and self-motion memory printing function


• Very silent printing thru direct thermal printing method


• Abundant figure/ curves/ characters print function


• Compatible with ESC/POS instruction set


• Interface: Serial RS-232C / TTL / Parallel / USB


• Enclosure with Key Lock Panel


• Easy paper loading




Specification:



Item	Specification
Printing method	Direct thermal line printing
Print out detection	Paper end sensors function
Paper loading way	Easy paper loading
Paper width	80mm  (3 inch)
Print width	72mm
Resolution ration	203DPI (576 dots/line)
Life of printing head	50km
Printing speed	100mm/s
Character	8*16dots, 12*24dots

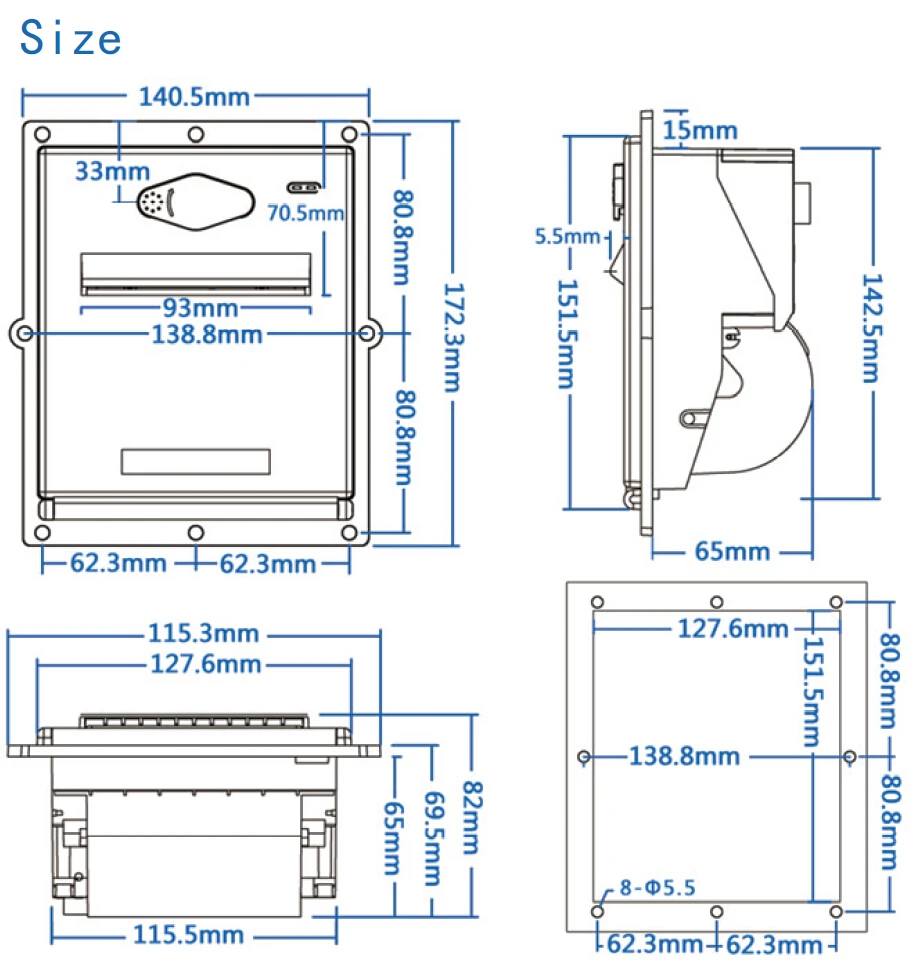

Outline dimension	140.5mm*172.3mm*82mm
Installation dimension	127.6mm*151.5mm (WxH)
Paper supplied	Thermal roll paper (80mm, 60ø Max.)
Interface	Serial RS-232 / TTL / Parallel / USB
Input power	DC 9-24V, 30W
Operating temperature	0℃ ~ 50℃
Storage temperature	-10℃ ~ 60℃
Operating humidity	35% ~ 85%
Storage humidity	35% ~ 90%
