Pipe Fitting is the general name of components in piping system that connect, control, change direction, divert, support and so on.
Specification
Bellows Material : SUS316(Standard), SUS304, customer's request
Flange Type : NW Type(standard), ISO, TAP(option)
Flange Material : SUS304(standard), customer's request
Working Pressure : 0.1 Mpa - Ultra Hyper Vacuum
Features
1.International standard with ISO certificate.
2.Simple system, safe and easy operation.
3.Year of experience with all types of Pipe Fittings.
4.Capable of installation anywhere in the world.
5.In house engineering for custom fit applications.
6.Proven design.

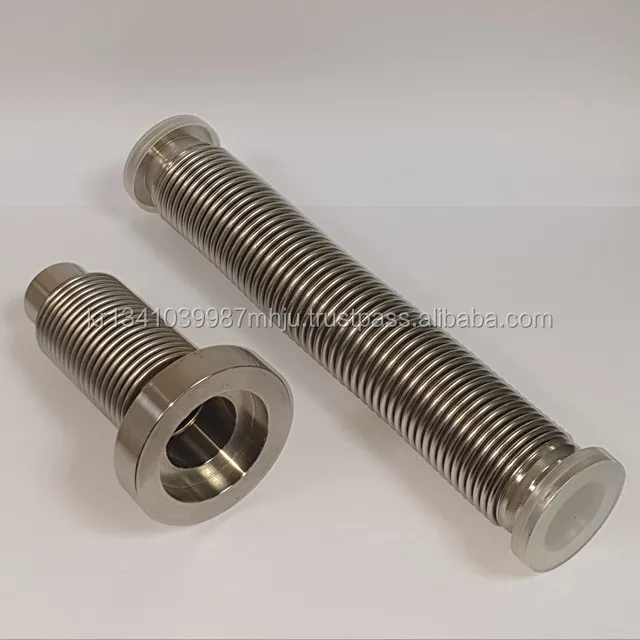

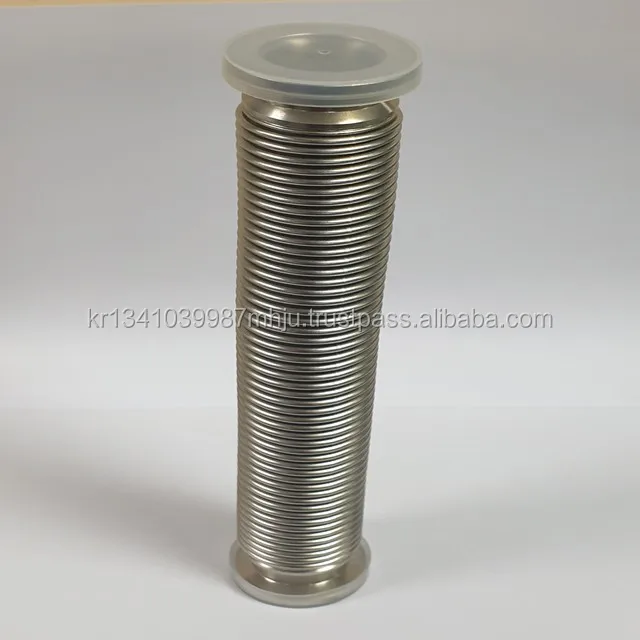

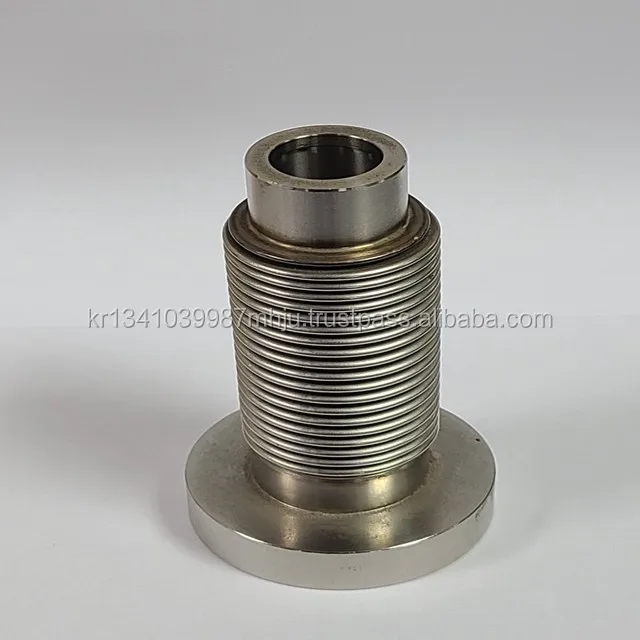

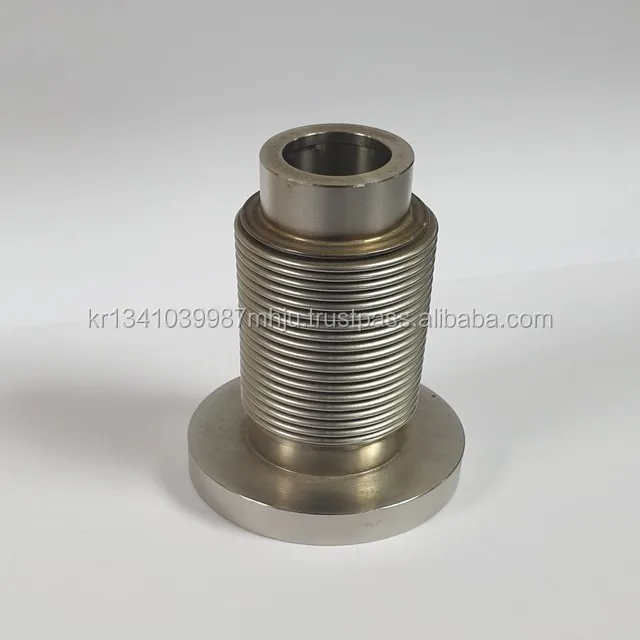

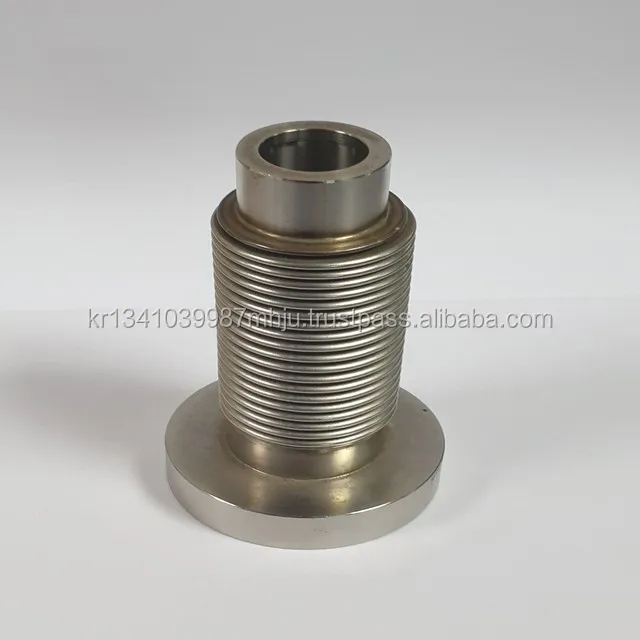

Detailed Images
No axial contraction for vacuum piping and excellent internal deformation.
High vacuum absorbnance and Long life span

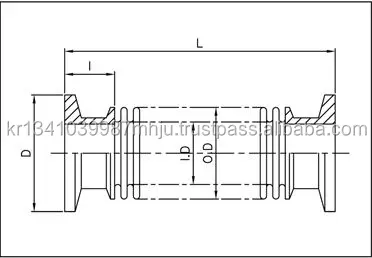

Standard
I.D(mm)
O.D(mm)
D(mm)
I(mm)
Thickness(mm)
L(mm)
16
16.5
24.5
30
15
0.15
100~1000
25
25.1
35.5
40
15
0.15
100~1000
40
39.2
55.5
55
15
0.15
100~1000
50
49.5
67
75
15
0.15
100~1000
65
63.4
85.5
87
20
0.2
100~1000
80
76.2
101.5
114
20
0.2
100~1000
100
99.2
125.5
134
20
0.2
100~1000
