Product Overview
Description
Micro-precision parts
for medical devices
Long | Short | ||
Part name | Forceps for surgery (disposable medical device) | ||
Materials | Stainless steel (SUS304L) | ||
Size | 8.5(10.0) x 2.5 x 1.5 | 7.0(8.5) x 2.5 x 1.5 | |
Weight | 0.044 g | 0.037 g | |
Tolerance | ±0.01mm (when 5mm or less) | ||
Advantage | Chucking is difficult and very expensive when producing by machining. | ||
These forceps are used as disposable parts of endoscope system. Forceps are used to clip pieces of tissue, e.g. blood vessels, intestine, nerves. Depending on the application, it may be categorised as gripping forceps, cutting forceps etc. - used in wide ranging
surgical scenarios.
Generally, the forceps for endoscope is very small with special complicated design,
therefore it must re-use due to its production limitation.
When you try to manufacture such forceps with CNC machining, chucking becomes more difficult. On
the other hand, with MIM technology no chucking is required, thus it leads to stable mass production.
However, conventional MIM is not capable to realise the tight tolerance requirement in medical forceps.
Our μ-MIM® technology is often used for endoscopic and surgical device components mass
production as we can meet demands of high precision, complex design. μ-MIM® technology is capable
to mass produce different material including nickel-free stainless steel material with quality assurance
according to ISO13485.
production as we can meet demands of high precision, complex design. μ-MIM® technology is capable
to mass produce different material including nickel-free stainless steel material with quality assurance
according to ISO13485.

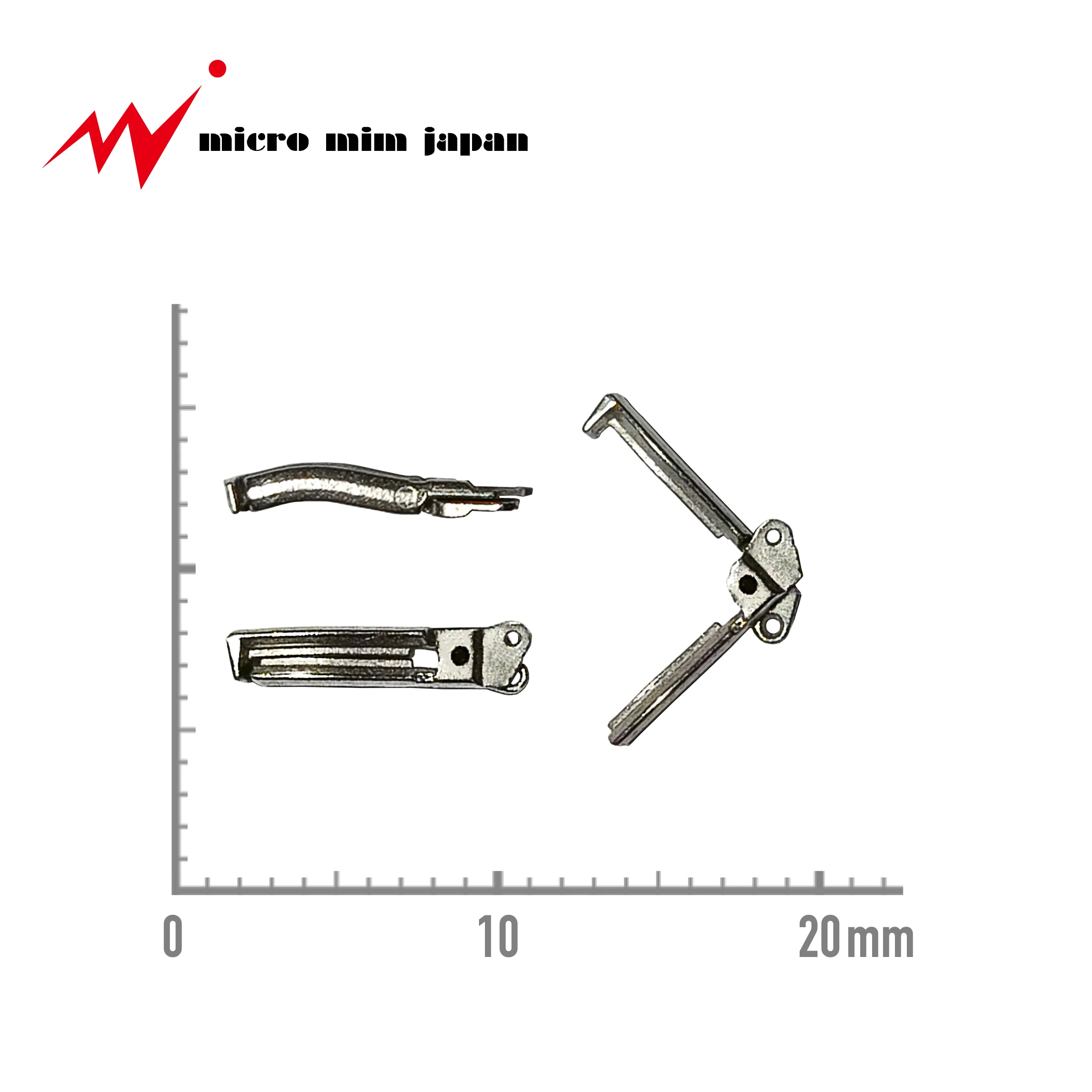

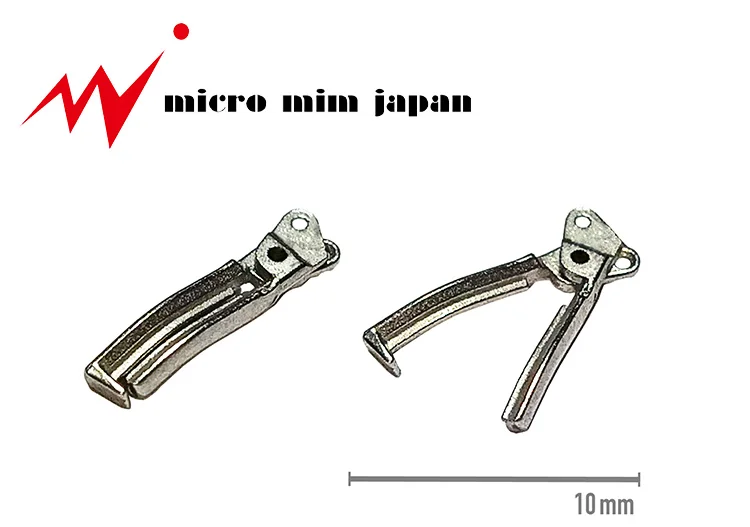

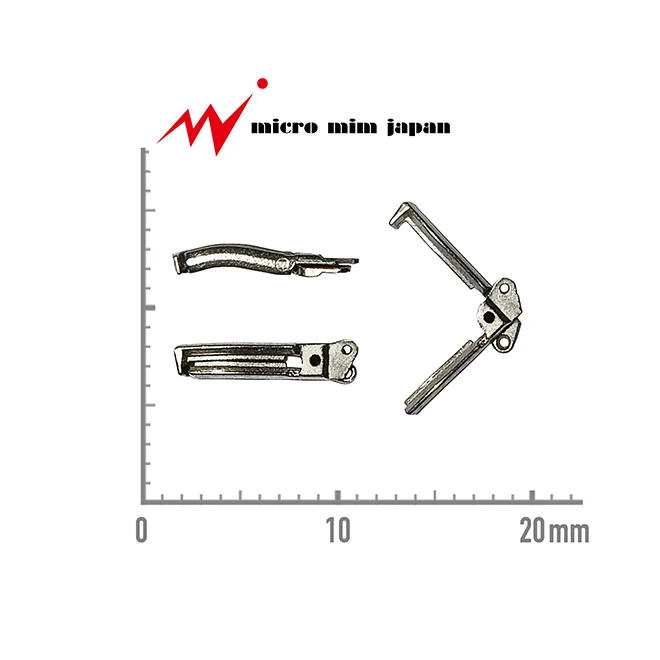

These picture forceps are made of stainless steel 304L.
The required tolerance is ±0.01mm on the 0.5 mm diameter hole. The size is 10 x 2.5 x 1.5mm.
The weight is 0.04g. Smallest part thickness is 50 μm.
The required tolerance is ±0.01mm on the 0.5 mm diameter hole. The size is 10 x 2.5 x 1.5mm.
The weight is 0.04g. Smallest part thickness is 50 μm.
