Tablet Capsule Dissolution Testing Equipment For Detecting Pharmic Dissolution
- Category: >>>
- Supplier: NINGBO DSCIENTZ TECHNOLOGY CO. LTD
Share on (1700001407556):
Product Overview
Description
Product Description
ZRS-8GS intelligent dissolution apparatus has 8 cups and 6 rods, with a speed regulating range of 25,300 rpm, a constant temperature water bath, a built-in temperature sensor and a single chip microcomputer temperature measurement and control mode, which makes the heating speed rise quickly and the temperature control precision high.
The speed control adopts advanced control technology with high precision, stable operation and low noise.

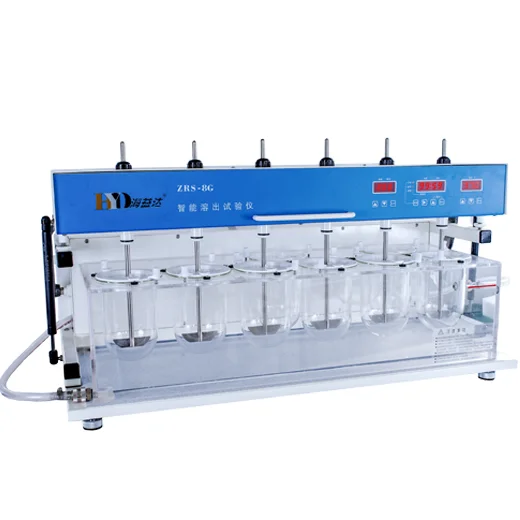

Product Photo
Product Paramenters
Rotation index of paddle (basket) rod | ||
Speed control range | 25300 rpm | |
Rotational speed resolution | 1 rpm | |
Rotational speed error | ≤ 4% | |
Paddle swing amplitude | ≤±0.5mm | |
Oscillation range of basket | ≤±0.8mm | |
Coaxiality of rotary rod and dissolution cup | ≤2mm | |
Water bath temperature control index | ||
Temperature adjustment range | room temperature 45.0℃ | |
Temperature resolution | 0.1℃ | |
Temperature error | ≤ 0.3℃ | |
Time control index | ||
Accumulated working hours | the longest time is 99 hours and 59 minutes, with positive timing | |
Number of sampling cycles | up to 9 different sampling cycles | |
Sampling cycle time | up to 9 hours and 59 minutes per cycle, counting down | |
Timed on/off time | up to 99 hours and 59 minutes, countdown | |
Other | ||
Operating noise | ＜60dB | |
Continuous working hours | 48 hours | |
Safety performance | it meets the national professional standard JB/T20076-2005, and has the functions of self-inspection and automatic protection | |
Power supply | AC 220 V 10%, 50Hz, 1350W | |
Environmental conditions | environmental temperature 535℃, relative humidity ≤80% | |
Volume and weight | 102 * 55 * 1300px, about 60Kg | |
Features
The performance indexes fully meet the requirements of Pharmacopoeia of the People's Republic of China.
With time, temperature and speed display window, the operation is simple and convenient.
The constant temperature water bath adopts circulation mode, and the built-in temperature sensor and single chip microcomputer temperature measurement and control mode make the heating speed fast and the temperature control precision high, and the temperature deviation can be corrected by software.
With time, temperature and speed display window, the operation is simple and convenient.
The constant temperature water bath adopts circulation mode, and the built-in temperature sensor and single chip microcomputer temperature measurement and control mode make the heating speed fast and the temperature control precision high, and the temperature deviation can be corrected by software.
Speed control adopts advanced control technology with high precision, stable operation and low noise.
Professional dissolution cups, paddle rods, basket rods and net baskets made of high-quality stainless steel materials meet the requirements of Chinese and foreign pharmacopoeia.
Timekeeping function.
The preset working parameters and working state are automatically stored, and it is not necessary to set them again at the next startup.
8-cup constant temperature water bath box is convenient for continuous test and rehydration. The water bath box is equipped with a self-closing quick connector for easy drainage and cleaning.
With self-checking and automatic protection functions, it can automatically give a variety of fault alarm signals.
Small cup accessories can be selected (the third method of dissolution determination).
Professional dissolution cups, paddle rods, basket rods and net baskets made of high-quality stainless steel materials meet the requirements of Chinese and foreign pharmacopoeia.
Timekeeping function.
The preset working parameters and working state are automatically stored, and it is not necessary to set them again at the next startup.
8-cup constant temperature water bath box is convenient for continuous test and rehydration. The water bath box is equipped with a self-closing quick connector for easy drainage and cleaning.
With self-checking and automatic protection functions, it can automatically give a variety of fault alarm signals.
Small cup accessories can be selected (the third method of dissolution determination).
Company Profile
FAQ
Q1:Are you trading company or manufacturer?
A: We are a trading company that owning mature factories and had set up offices and service centers in many cities in China.
Q2: Why choose your company?
A: Scientz is China's largest laboratory and production base of freeze dryer.
A: We are a trading company that owning mature factories and had set up offices and service centers in many cities in China.
Q2: Why choose your company?
A: Scientz is China's largest laboratory and production base of freeze dryer.
Providing high-quality products first-class service and customizable design to meet different client requirements. Scientz devoted to the field of technological innovation and has more than 60 patents, more than 10 issued patents. Keeping an eye on cutting-edge technology innovation.
Q3: Can you send me the video to show the machine works?
A: Certainly, we have made video of our machines and processing lines.
Q4: Where is your factory? How can I visit your factory?
A: Our factory is located in the beautiful port city Ningbo , it is near to Shanghai and Yiwu. We are warmly welcome you visit our factory.
Q5: Could you do customized for us?
A: We can provide all kinds of customized services to meet different requirements.
Q3: Can you send me the video to show the machine works?
A: Certainly, we have made video of our machines and processing lines.
Q4: Where is your factory? How can I visit your factory?
A: Our factory is located in the beautiful port city Ningbo , it is near to Shanghai and Yiwu. We are warmly welcome you visit our factory.
Q5: Could you do customized for us?
A: We can provide all kinds of customized services to meet different requirements.
