Product Overview
Description
Product Description
Our VOTESEN STC-1000 is good temperature control and the monitoring device. There are 2 relays centigrade thermostat that can switch the modes between cool and heat. The bright digital tube is clearly displayed, and it can be clearly read whether it is used during the day or at night. It is your side temperature control housekeeper.
This Digital Temperature Controller adopts with ABS flame retardant plastic shell, which is safer to use. It is equipped with NTC Sensor for convenient usage, the line length is about 1 meter. The large and clear digital display shows measuring temperature, high accuracy of temperature measuring, and controlling.
Our VOTESEN STC-1000 Accuracy is very good to improve it by 0.1°C step calibration. STC-1000 has added alarm function and relay delay in minutes. This temperature controller can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and other temperature control applications. It also can apply for chicken incubation, seedling heat, home brewing, and accelerating germination.
Specification
Product Name | Digital Temperature Controller Thermostat |
Brand Name | VOTESEN |
Product Model | STC 1000 |
Usage | Household, Industrial, Outdoor, Indoor |
Style | Standing and Wall Hanging |
Theory | Temperature Controller |
Display Type | Digital |
Screen Display | LCD Display |
Housing Material | Gray ABS Flame Retardant Plastic Shell Surgical Materials |
Output Capacity | 10A |
Power Supply Voltage | DC 12V、DC 24V、AC 110~220V (Three Voltage Options) |
Temperature Measuring Range | -50℃~99℃ |
Resolution | 0.1℃ |
Temperature Measurement Accuracy | ±1℃ |
Sensor Error Delay | 1 Minute |
Machine Power Consumption | <3W |

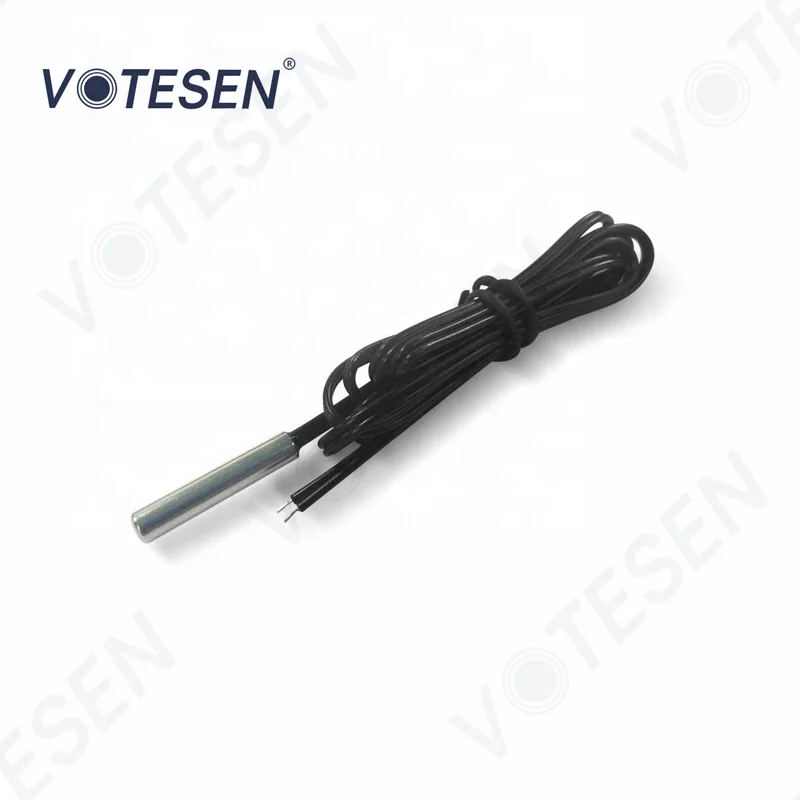

Sensor | 1*NTC Sensor |
Sensor Cable Length | 1 Meter |
Relay Contact Capacity | Cool (10A/240VAC); Heat (10A/240VAC) |
Ambient Temperature | 0~60°C |
Storage Temperature | -30~75°C |
Relative Humidity | 20-85%(No Condensate) |
Item Weight | 106g (DC 12V/24V) 120g (AC 110V~220V) |
Machine Overall Size | 75mm*85mm*35mm |
Installation Opening | Approx. 71*29mm |
Applicable Scenarios | Refrigerator, Coffee maker, Aquarium, Water Tank, Kiln, Furnace, Greenhouse, Incubator, Hatching, Aquaculture, Greenhouse Cultivation, Brewing, etc. |
Machine Overall Size Diagram
● 1 Temperature Controller + 1 NTC Temperature Sensor
● Front Panel Size: 75x34.5mm
● Mounting Size: 71x29mm
● Product Size: 75x34.5x85mm
● Sensor Length: 1 Meter (include the probe).
Product Function and Feature
1. Cool or Heat Easy Control
There are 2 relays centigrade thermostat that can switch the modes between cool and heat. Control temperature by setting the temperature set value and different values. Dual heating and cooling function. Automatic over-temperature alarm.
There are 2 relays centigrade thermostat that can switch the modes between cool and heat. Control temperature by setting the temperature set value and different values. Dual heating and cooling function. Automatic over-temperature alarm.
2. Easy Use
No tool required, and easier to open back cover than other controllers, the thermostat controller can retain settings after a power failure. No need to repeatedly operate and very convenience. With a large and clear LCD display for better readability, simple operating panel for easy use, programmable controller, can choose a heating or cooling control.
No tool required, and easier to open back cover than other controllers, the thermostat controller can retain settings after a power failure. No need to repeatedly operate and very convenience. With a large and clear LCD display for better readability, simple operating panel for easy use, programmable controller, can choose a heating or cooling control.
3. Precision Control
This digital temperature controller can measure and control the temperature from -50℃ to 99℃. Fully utilize the microcomputer and NTC probe to have this controller has great accuracy up to 0.1℃.
This digital temperature controller can measure and control the temperature from -50℃ to 99℃. Fully utilize the microcomputer and NTC probe to have this controller has great accuracy up to 0.1℃.
4. Safe and Reliable
High-quality ABS anti-flamming plastic shell, which well protects the component from damage. Alarm, when the temperature exceeds the temperature limit, protects the product for long time use.
High-quality ABS anti-flamming plastic shell, which well protects the component from damage. Alarm, when the temperature exceeds the temperature limit, protects the product for long time use.
5. Wide Application
This temperature controller can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and other temperature control applications. It also can apply for chicken incubation, seedling heat, home brewing, and accelerating germination.
This temperature controller can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and other temperature control applications. It also can apply for chicken incubation, seedling heat, home brewing, and accelerating germination.

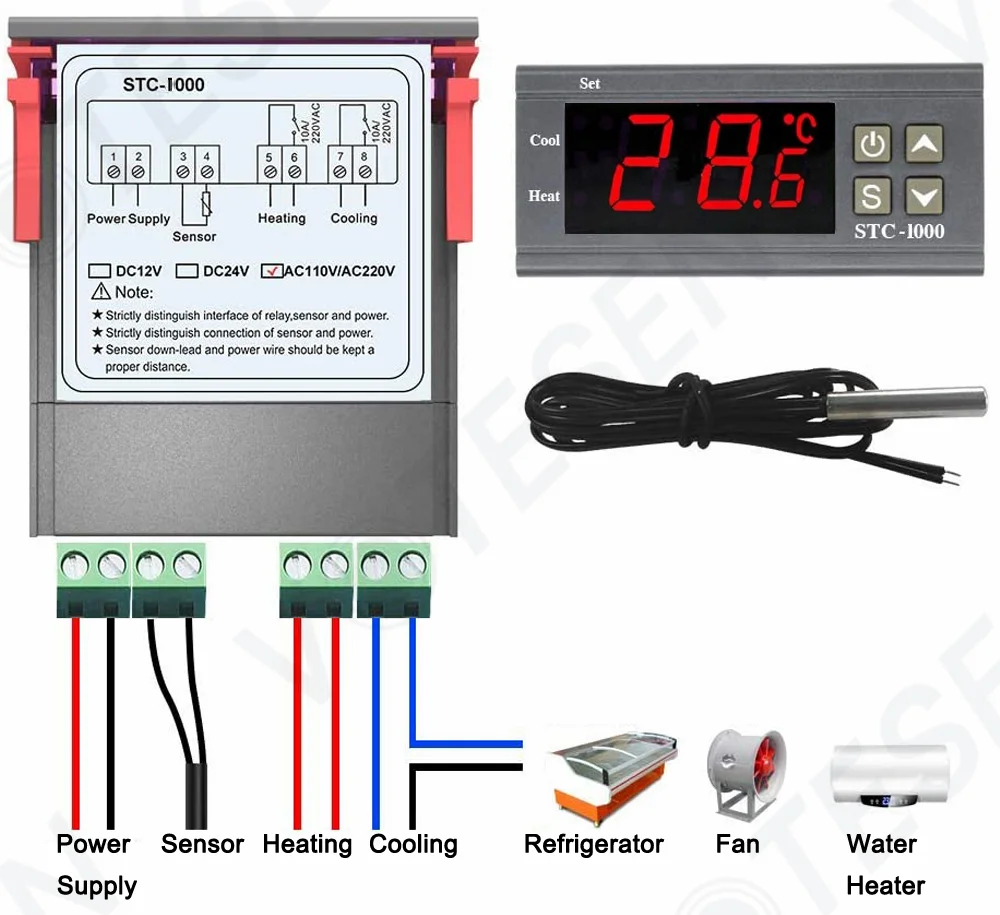

Wiring Diagram
Temperature Setting Steps

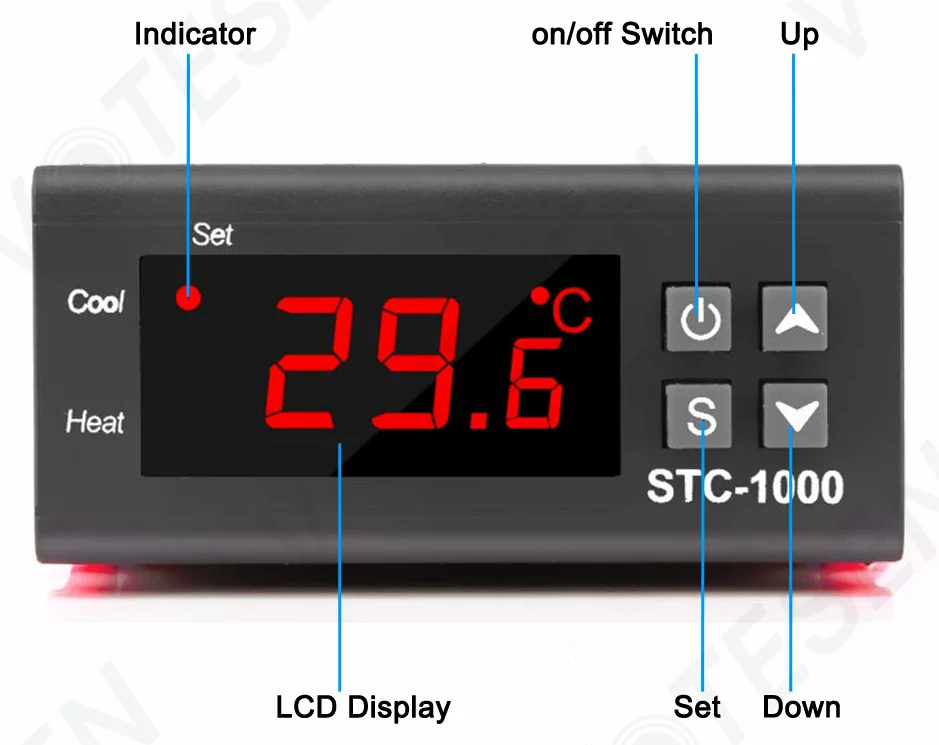

Panel Introduction
As shown below, there are 4 buttons in the right of the screen:
1. on/off Switch
Hold for 3 seconds to turn the unit "on" or "off". It also acts as a 'finalize' button to confirm settings.
2.▲
The "Up" button used for changing settings.
The "Up" button used for changing settings.
3. ▼
The "Down" button used for changing settings.
The "Down" button used for changing settings.
4. S
The "Set" button. Hold for 3 seconds to get into the Functions Menu.
Code Instruction
The STC 1000 has 4 functions as below：
Code | Function | Set range | Default |
F1 | Temperature Set Value | -50～99℃ | 10℃ |
F2 | Difference Set Value | 0.3～10℃ | 0.5℃ |
F3 | Compressor Delay Time | 1～10 Minutes | 3 Minutes |
F4 | Temperature Calibration Value | -10℃～10℃ | 0℃ |
1. F1-Temperature Set Value
Pretty simple. Your target temperature. If you want to change it, press SET again with the up or down arrow (whether or not you want to increase or decrease the temperature).
Pretty simple. Your target temperature. If you want to change it, press SET again with the up or down arrow (whether or not you want to increase or decrease the temperature).
2. F2-Difference Set Value
The acceptable temperature difference before hot/cold is powered. It is a gap when the booth relay turns off.
The acceptable temperature difference before hot/cold is powered. It is a gap when the booth relay turns off.
3. F3-Compressor Time Delay
Time for wait after reach goal temperature, if you set 3 min temperature controller wait 3 min, after 3 min turn on the relay.
Time for wait after reach goal temperature, if you set 3 min temperature controller wait 3 min, after 3 min turn on the relay.
4. F4-Temperature Calibration Value
To calibrate the temperature reading if it's incorrect. You can make the STC-1000 very accurate, just compare the temperatures with a verified thermometer (best compare at the target temperature) you can increase or decrease the temperature after 0.1℃ steps.
To calibrate the temperature reading if it's incorrect. You can make the STC-1000 very accurate, just compare the temperatures with a verified thermometer (best compare at the target temperature) you can increase or decrease the temperature after 0.1℃ steps.
Temperature Setting
Hold down the 'S' button for 3 seconds to get to the functions, once you see 'F1' on the screen, release the button and use the up/down keys to scroll through F1/F2/F3/F4.
Once you are on the function you want, press and hold the 'S' button and use up/down to change the value.
When the value is set, release the 'S' button and hit the on/off button to finalize it.
Product Applications
1. Refrigeration Temperature Control
Our STC-1000 widely used in all kinds of low-temperature cold storage, freezer, operation console refrigeration temperature control.
Our STC-1000 widely used in all kinds of low-temperature cold storage, freezer, operation console refrigeration temperature control.
2. Farm Industry Temperature Control
Our STC-1000 widely used by large-scale breeding users. The large-scale farm industry has quite high requirements for ambient temperature control.
Our STC-1000 widely used by large-scale breeding users. The large-scale farm industry has quite high requirements for ambient temperature control.
3. Aquaculture Temperature Control
Aquaculture has quite high requirements for ambient temperature control. Our STC-1000 widely used by aquaculture farmers to control the water temperature of aquaculture.
Aquaculture has quite high requirements for ambient temperature control. Our STC-1000 widely used by aquaculture farmers to control the water temperature of aquaculture.
4. Incubation Farmed Temperature Control
Our STC-1000 widely used by incubation farmers to control the ambient temperature of hatching.
Our STC-1000 widely used by incubation farmers to control the ambient temperature of hatching.
5. Greenhouse Cultivation Temperature Control
Greenhouse vegetables and greenhouse flowers have quite high requirements for ambient temperature control.
STC-1000 Over-Temperature and Over-Limit Alarm functions widely used in greenhouse cultivation temperature control.
Greenhouse vegetables and greenhouse flowers have quite high requirements for ambient temperature control.
STC-1000 Over-Temperature and Over-Limit Alarm functions widely used in greenhouse cultivation temperature control.
6. Pet and Fish Tank
A lot of Pets and Fish feeding have quite high requirements for ambient temperature control. Our STC-1000 can help you more precise control of their living environment temperature.
A lot of Pets and Fish feeding have quite high requirements for ambient temperature control. Our STC-1000 can help you more precise control of their living environment temperature.
7. Smart Home Temperature Control
STC-1000 can set High-Temperature Start and Low-Temperature Start functions to help you enjoy your smart home life temperature control.
STC-1000 can set High-Temperature Start and Low-Temperature Start functions to help you enjoy your smart home life temperature control.
8. Scientific Research
Scientific research projects and laboratories need to have strict temperature standards. Our STC-1000 can set the temperature control parameters, which is suitable for projects with strict temperature standards and temperature control in the laboratory to avoid misoperation by non-professionals.
Scientific research projects and laboratories need to have strict temperature standards. Our STC-1000 can set the temperature control parameters, which is suitable for projects with strict temperature standards and temperature control in the laboratory to avoid misoperation by non-professionals.
