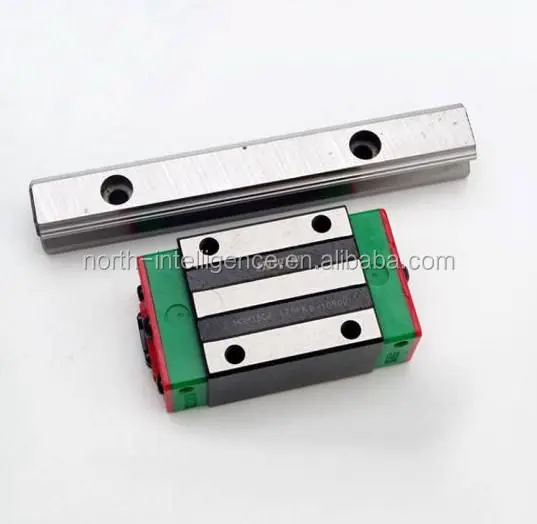

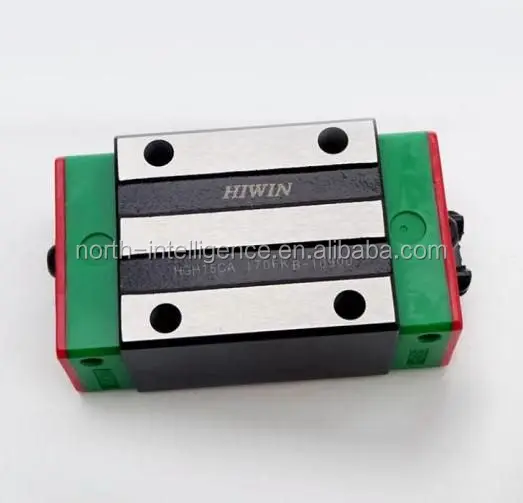

hiwin hgh 15 ca hgh 15ca guide rail hgh15ca linear guide 1000mm
- Category: >>>
- Supplier: North Intelligence (Tianjin) Technology Co. Ltd.
Share on (1700001691729):
Product Overview
Description
Product Description
hiwin hgh 15 ca hgh 15ca guide rail hgh15ca linear guide 1000mm overview
groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc
groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.

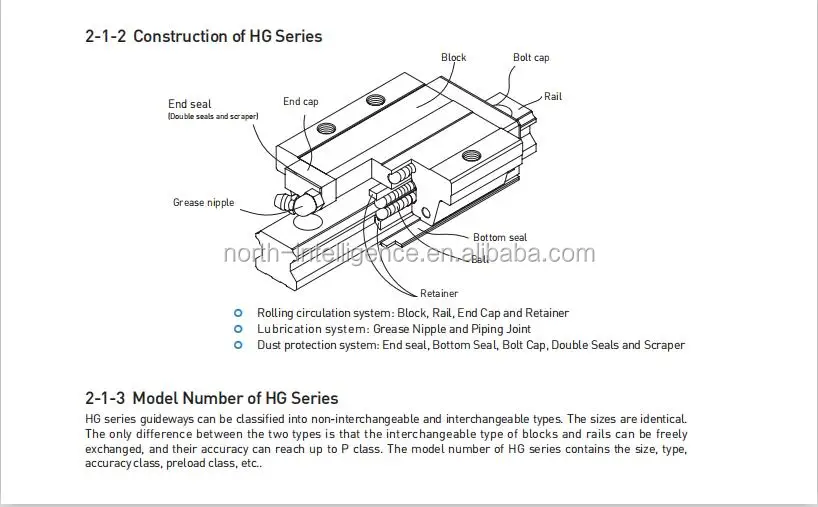

Features of HG Series
1.Self-aligning capability
1.Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.
2.Interchangeability
2.Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
3.High rigidity in all four directions
3.High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral
directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.
directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.
DATA SHEET
Product name | hiwin hgh 15 ca hgh 15ca guide rail hgh15ca linear guide 1000mm |
Brand Name | hiwin |
Material | bearing steel |
Accuracy | C,H,P |
Place of Origin | China |
Type | linear guide rail |
Application | automation equipment, Machinery Repair Shops,transportation system, automatic door rail, welding equipment, cutting equipment, painting equipment, etc. |

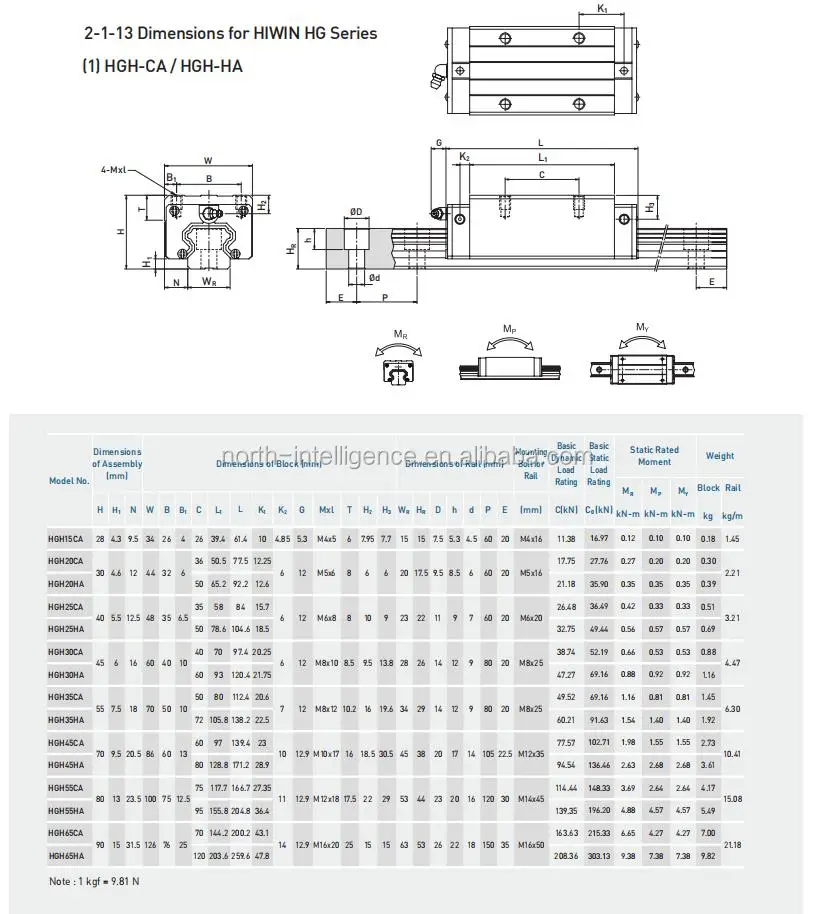

Technique Parameters
Company Introduction
Packing&Shipping
Packaging Detailslinear guide hgh15ca
1.The original color box packaging
2.Commercial packing (block): 1pc/Plastic bag + Color Box + Carton + Plywood Pallets/Plastic Pallets
3.Commercial packing (rail): 1pc/Plastic bag + Carton + Plywood Pallets/Plastic Pallets
4. As Your Requirement
1.The original color box packaging
2.Commercial packing (block): 1pc/Plastic bag + Color Box + Carton + Plywood Pallets/Plastic Pallets
3.Commercial packing (rail): 1pc/Plastic bag + Carton + Plywood Pallets/Plastic Pallets
4. As Your Requirement
FAQ
Q: Are you trading company or manufacturer ?
A: Manufacture
Q: How long is your delivery time?
A: 2 days
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Welcome contact me if any questions about linear guide hgh15ca
A: Manufacture
Q: How long is your delivery time?
A: 2 days
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Welcome contact me if any questions about linear guide hgh15ca
