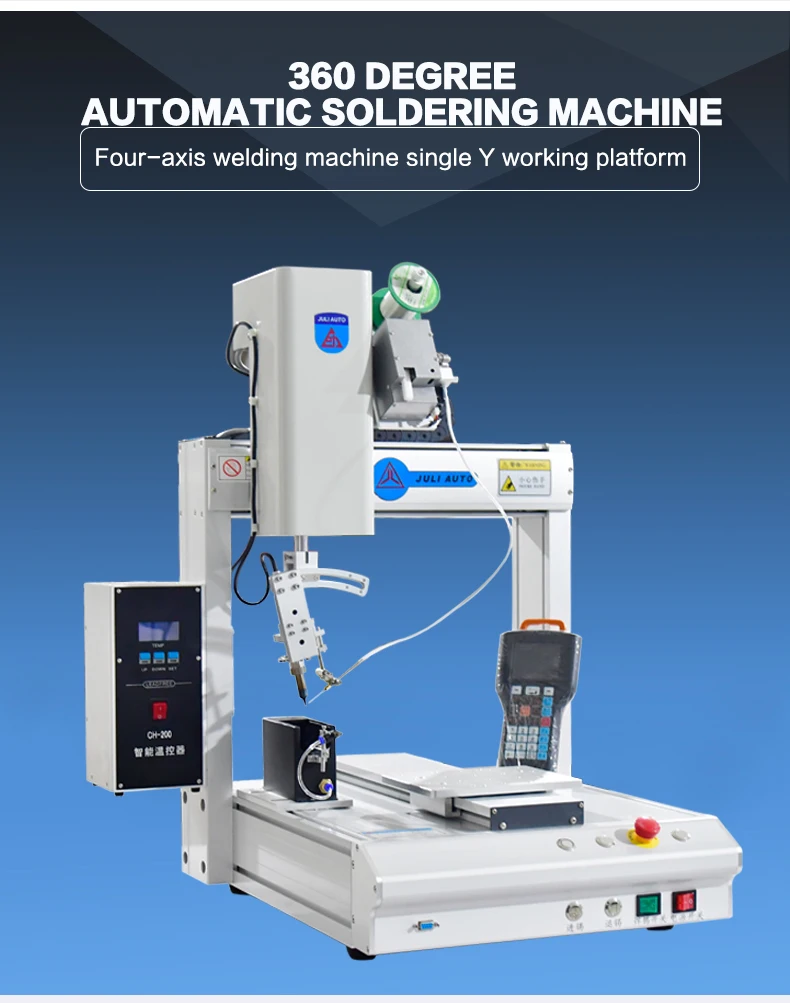

production 3 axis 4 axis Tin soldering machine H331R automatic electric soldering machine robot
- Category: >>>
- Supplier: Shenzhen Juli Brothers Machinery Co. Ltd.Shenzhen Ltd.
Share on (1700001864863):
Product Overview
Description
Product Description
一、parameter: | ||||||||||||
MODEL | JL-H331R | JL-H441R | JL-H551R | JL-H4331R | JL-H5331R | |||||||
Number of controlled axes | three axis | 四轴 | ||||||||||
Effective travel | X axis | 300mm | 400mm | 500mm | 400mm | 500mm | ||||||
Y1 axis | 300mm | 400mm | 500mm | 300mm | 300mm | |||||||
Y2 axis | 300mm | 300mm | ||||||||||
Z axis | 100mm | 100mm | 100mm | 100mm | 100mm | |||||||
R axis | ∠359° | ∠359° | ∠359° | ∠359° | ∠359° | |||||||
Transmission mode | Double-track timing belt | |||||||||||
Power source | Stepper motor | |||||||||||
Top speed | X、Yaxis 500mm/sec，Z axis300mm/sec | |||||||||||
Repeat accuracy | ±0.05mm | |||||||||||
Maximum load | X/Y/Z-5kg/5kg/3kg | |||||||||||
Control System | Hand-held three-axis control system | |||||||||||
File storage space | 400 sets of processing files, up to 9999 points in a single file. | |||||||||||
Power | AC110-250V 50-60HZ 350W | |||||||||||
Heating power | 150W | |||||||||||
Temperature range | 50-500 degree | |||||||||||
size | L | 650mm | 750mm | 850mm | 740.5mm | 840.5mm | ||||||
W | 660mm | 760mm | 860mm | 585mm | 585mm | |||||||
H | 850mm | 850mm | 850mm | 801mm | 801mm | |||||||
Features

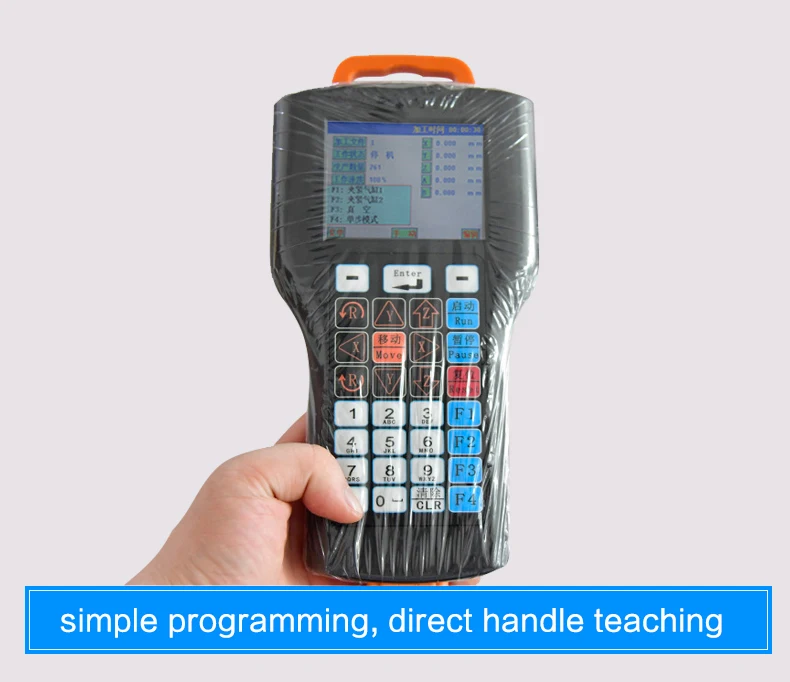

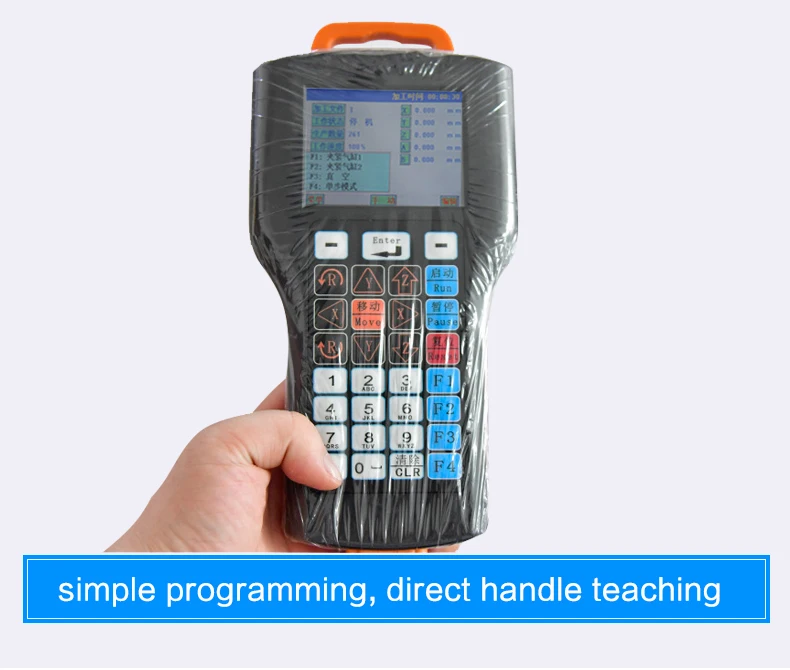

1, contains BASIC interpreter, simple programming, direct handle teaching, you can directly enter the welding point coordinates, but also teach welding position, can reproduce the welding position coordinates.
2, Using multi-axis robots and advanced motion control algorithms for linkage to simulate the action of human hand plus tin, effectively improving the positioning accuracy of the iron head.
3, The program has built-in multi-dimension soldering method, spot welding and drag welding. All process parameters can be set by the user. It can simulate various difficult and micro soldering processes of human hands.
4, With manual control of tin
1, contains BASIC interpreter, simple programming, direct handle teaching, you can directly enter the welding point coordinates, but also teach welding position, can reproduce the welding position coordinates.
2, Using multi-axis robots and advanced motion control algorithms for linkage to simulate the action of human hand plus tin, effectively improving the positioning accuracy of the iron head.
3, The program has built-in multi-dimension soldering method, spot welding and drag welding. All process parameters can be set by the user. It can simulate various difficult and micro soldering processes of human hands.
4, With manual control of tin

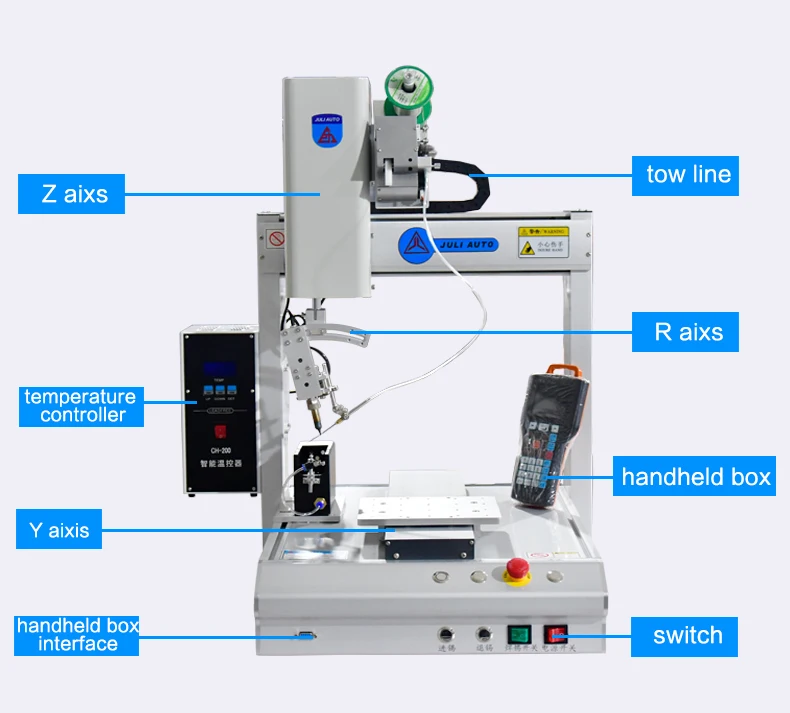

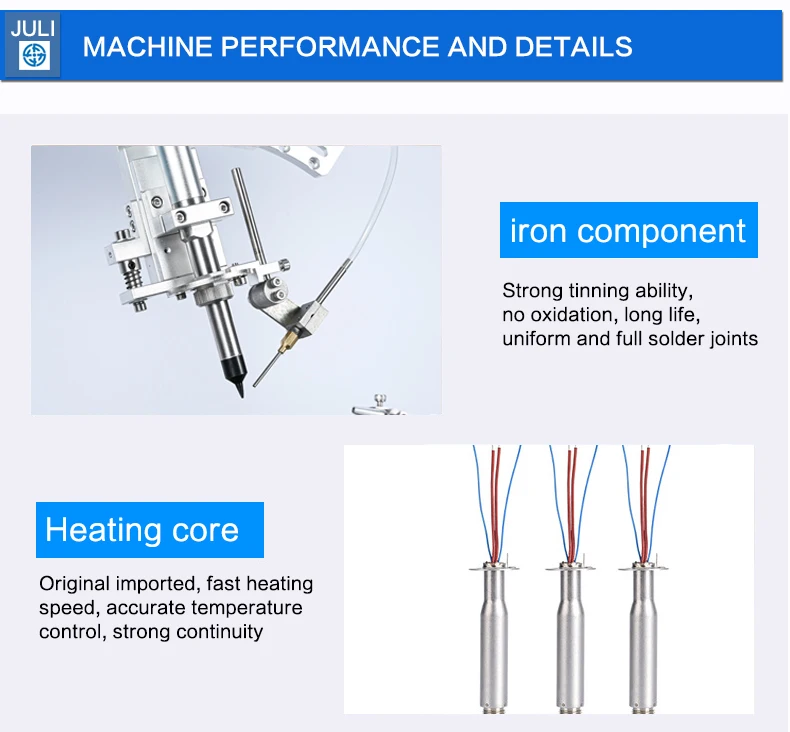

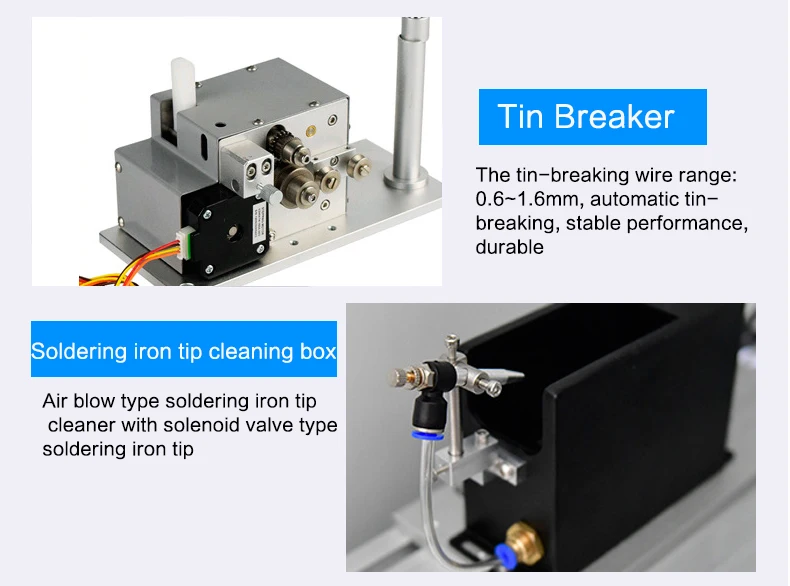

Details Images
Related Products
Packing&Shipping
Packing
Size: 670*620*810mm
Weight: 89

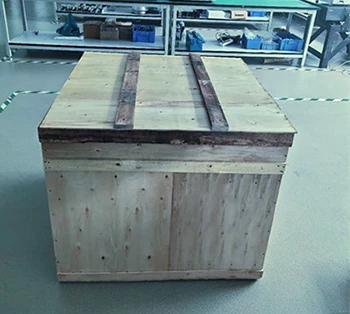

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.Our Service
Before Sales Service
The company's equipment supports product proofing, if you have any questions, you can contact our customer service online
After Sales Service
The whole machine is guaranteed for one year, if you have any questions, you can contact our customer service online
How To Make A Oder
Contact our online customer service, they will guide you online to place an order
