Product Overview
Description
Product Description

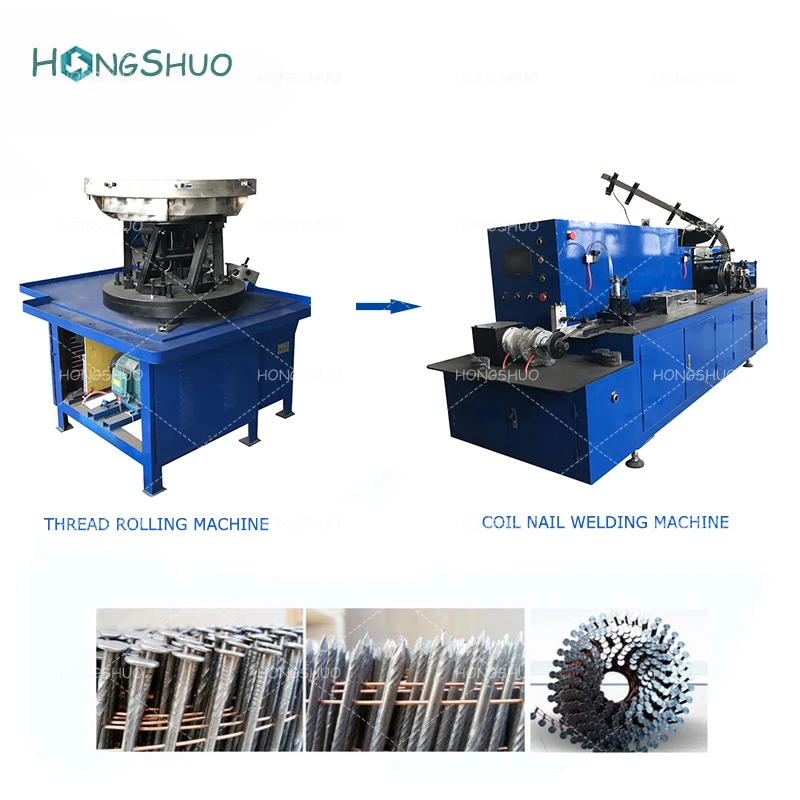

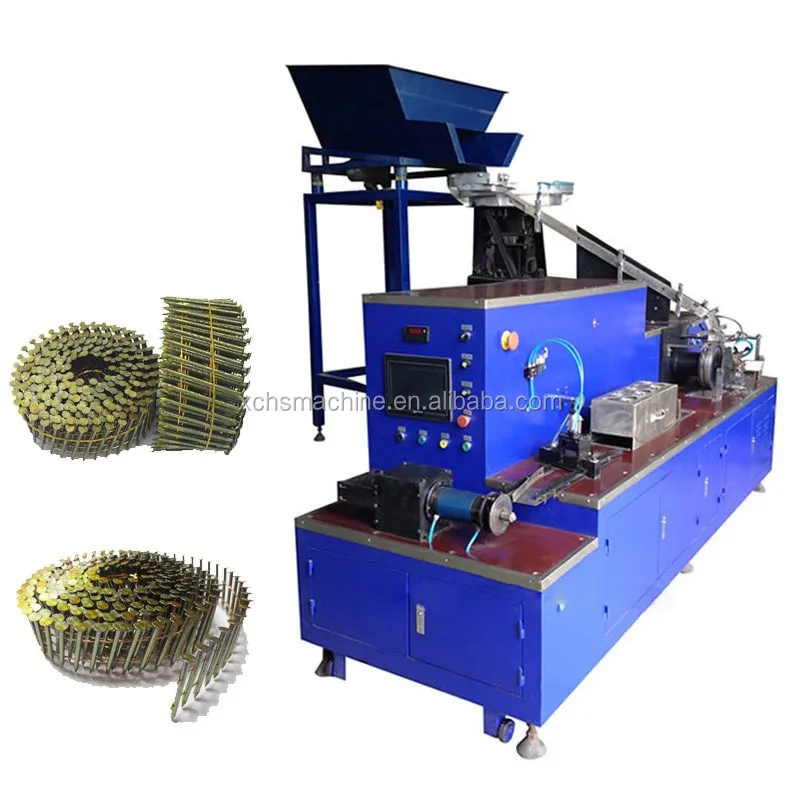

Automatic Steel Wire Coil Nail Welding Machine Coil Nail Thread Rolling Machine
The coil nail welding machine is automatic welding equipment. Put the nails to vibrating disk, the nails will get in welding wheel by feeding tracks in order, weld by two coppered wire, and then through oiled to anti-rusting automatically, drying and counting device, roll it into a dish, cutting off according to the setting quantity of per dish, finally fixed the dish by rubber ring and packing.
Feature
*Brand: HONGSHUO
*Model: JD-100 Coil nail welding machine
*Rated Power: 15kw
*Size: 2900*1500*1800mm
Model | JD-100 Coil nail welding machine |
Wire Dia. | Below 4.5mm |
Nail Length | Below 130mm |
vibration disk power | 3kw, 380v |
Rated Power | 15kw |
Coil nail specification | Angle:15°/16° |
Quantity per roll:120~1200pcs/roll | |
Welding wire for coil nails: | |
0.6mm,0.7mm,0.8mm | |
Working area | 2700*850 |
Production speed | 1000-2800pcs/minute |
Dimension | 2900*1500*1800mm |
Weight | 1500kgs |

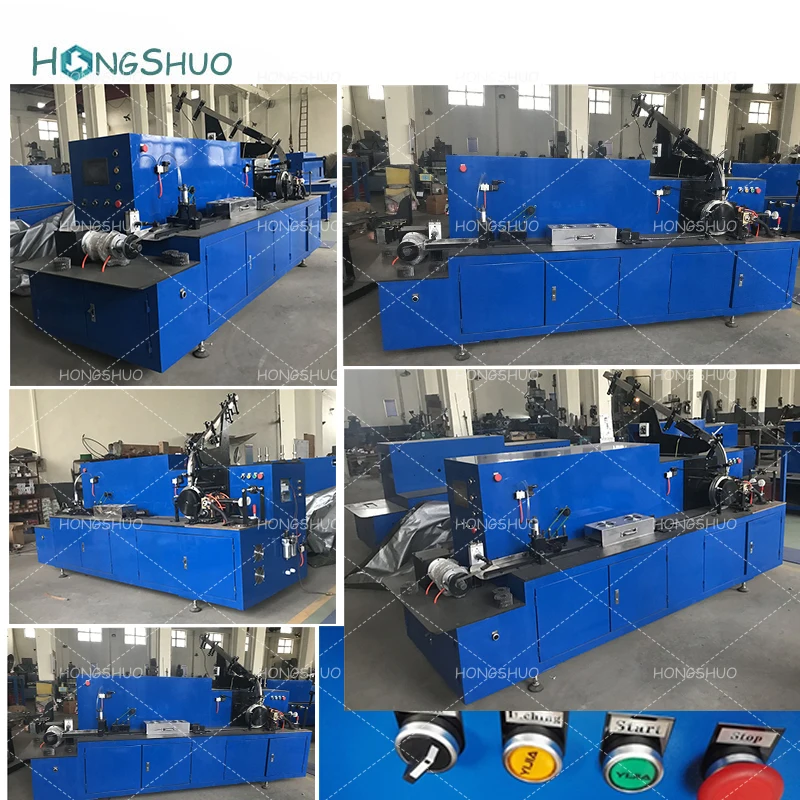

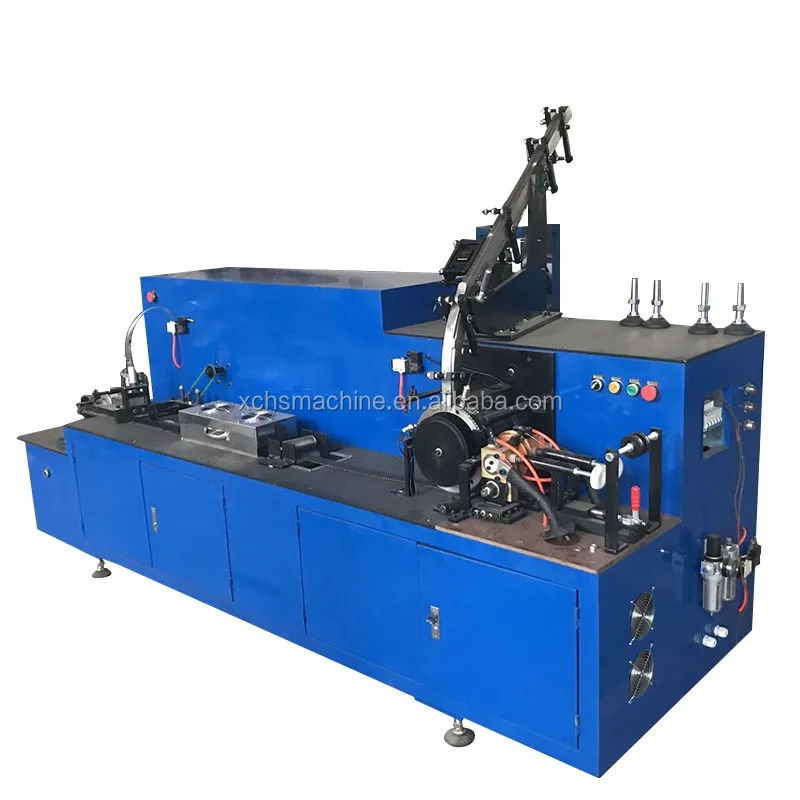

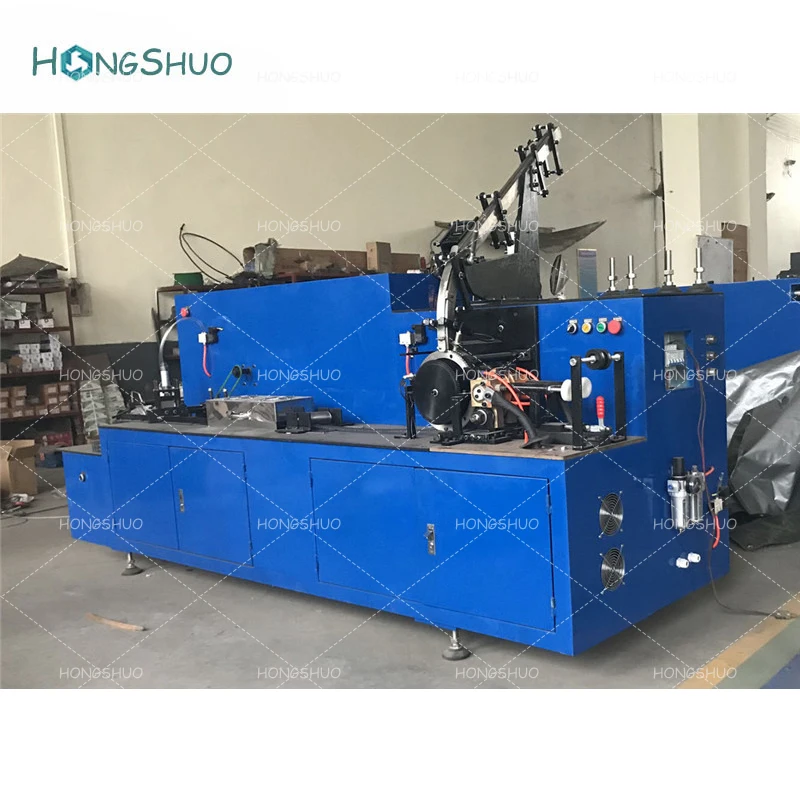

Machine Photos

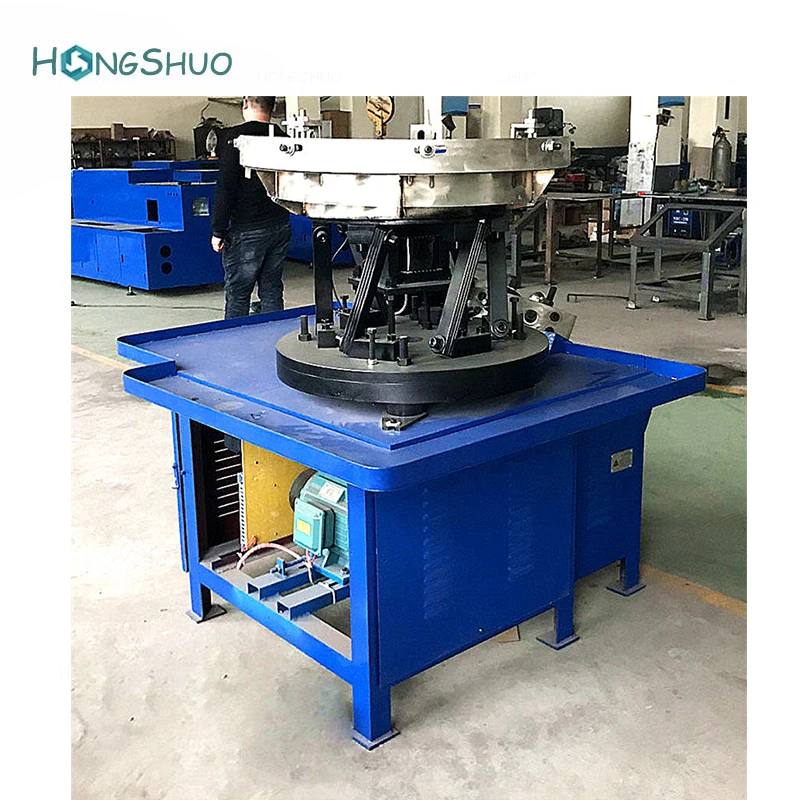

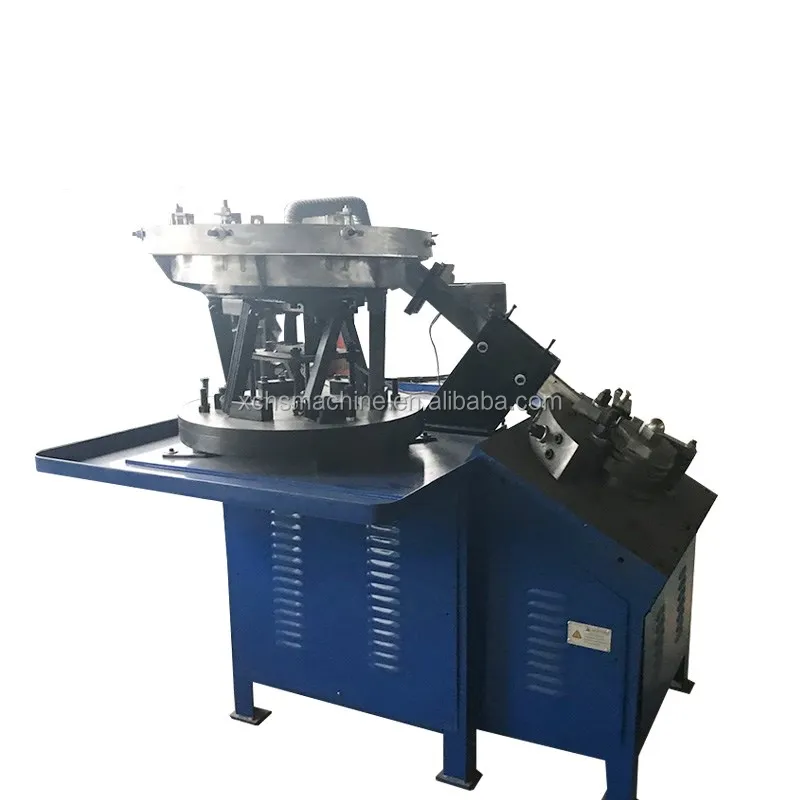

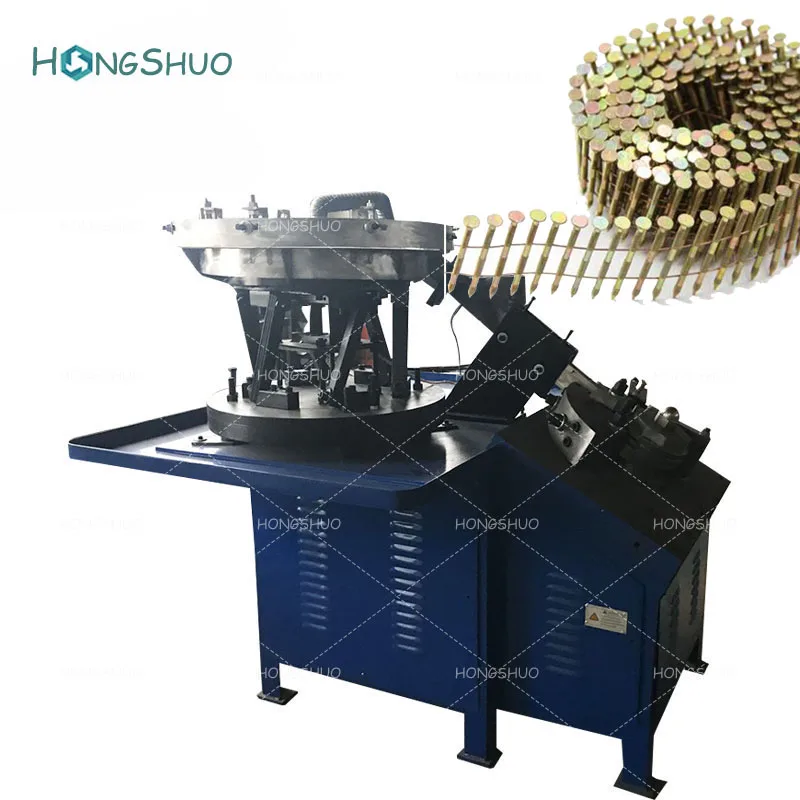

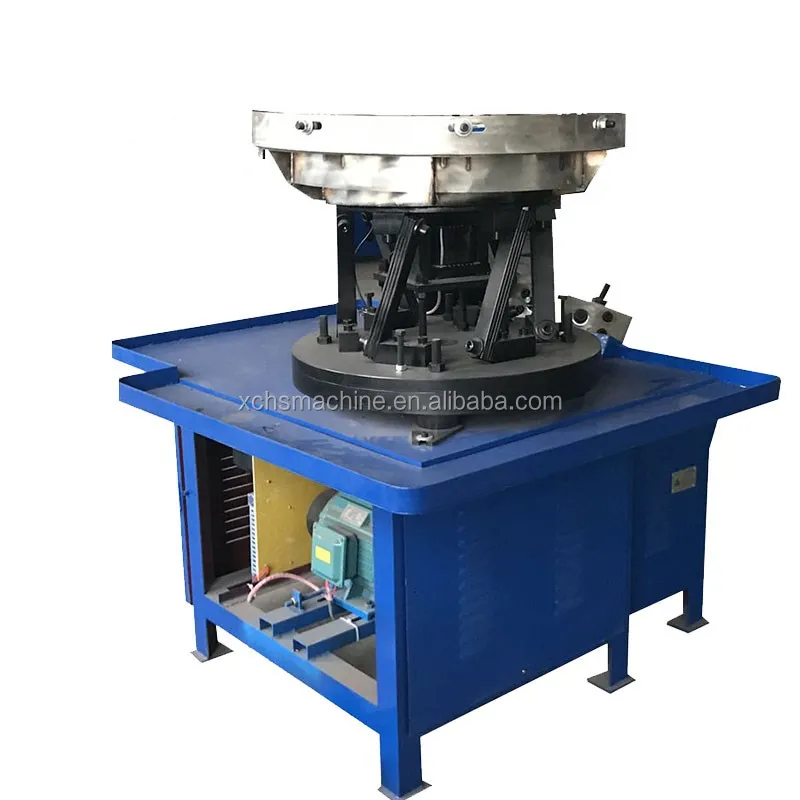

GS-100 High Speed Thread Rolling Machine
Model | GS-100 high speed thread rolling machine |
Diameter range | 1.8-4.2mm |
Length range | 25-100mm |
Capacity | 600-1000 |
Weight | 1500kg |
L*W*H | 1420*1400*1450mm |
Power | 7.5kw |

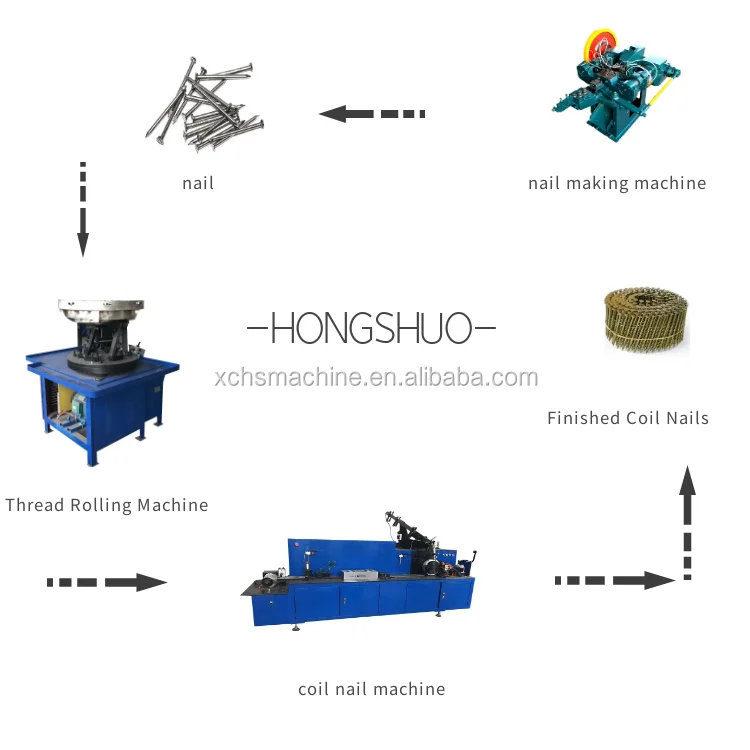

Process Flow
The whole process of nails production line:
wire drawing --- nails making ---polish --- threading nails--welding nails into rolls-- packing
1. Wire drawing machine -- to draw the 6.5mm/5.5mm wire diameter to the smaller wire size diameter to make nails as your required such as 4.1mm, 3.4mm, 3.1mm, 2.5mm etc. wire diameter
2.Automatic wire nail making machine --- feed the drawn wire into nail making machine to make nails.
3. Polishing machine -- to polish finished nails to remove the thron and dust and make nails more black and shiny.
4. Threading nails--- thead nails into different type, such as ring type, screw type, thread type, etc.
5.welding nails into roll--- welding nails into rolls , then it can put into nails gun.
6 wire nails Packaging--- pack the nails in cartons.

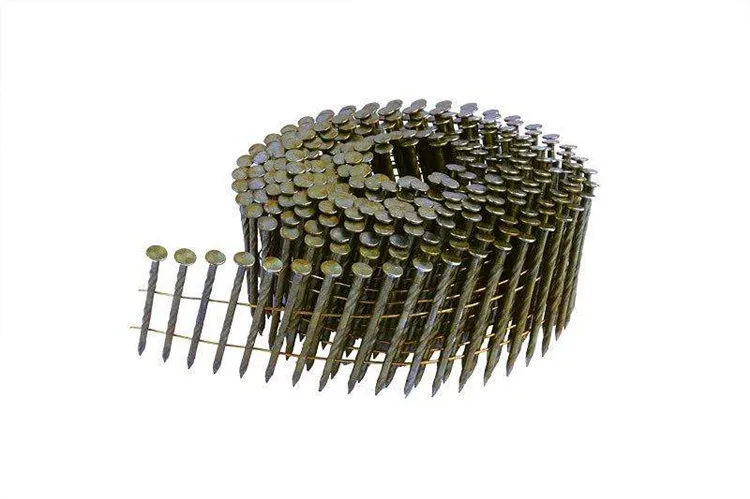

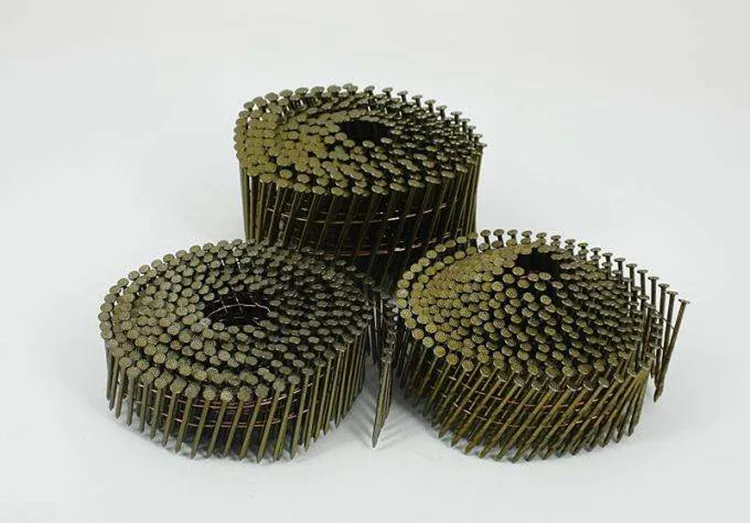

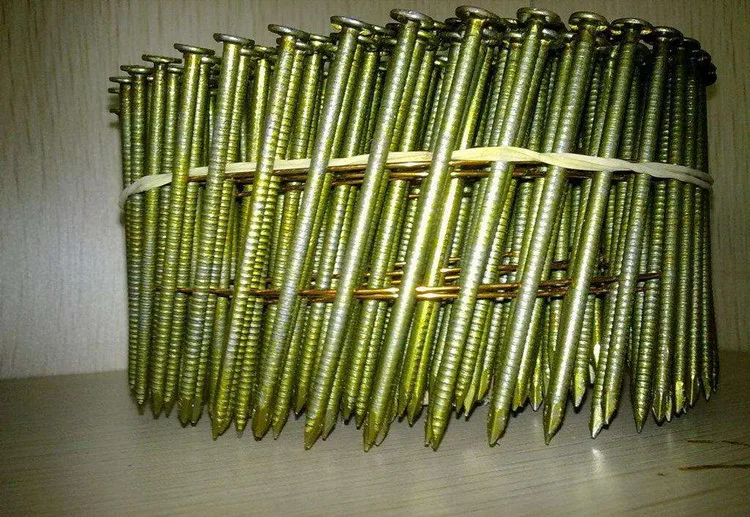

Finished Products
Product Application

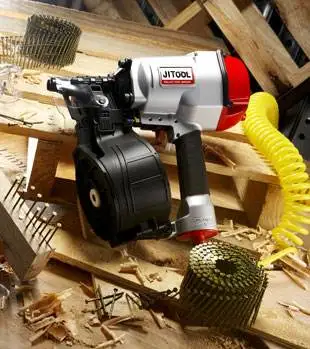

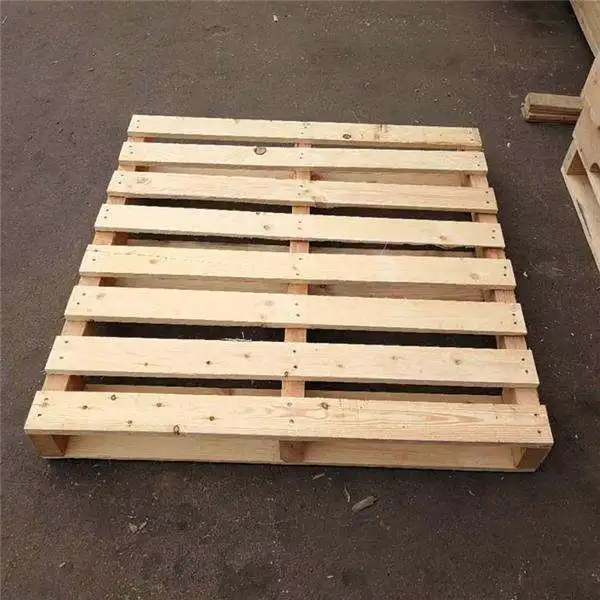

The coil nails can be used for container trays, large wooden box manufacturing fence, housing wooden structure connection, export wooden crates, wooden pallets, crates, frames, wooden furniture, wooden houses and other wooden structure of the connection. Staples quickly, saving labor. This type of coil gun can be putted around 300pcs per roll coil nail, loading nails conveniently, saving working time, and improve efficiency greatly.
FAQ
Question1: Are you a factory or trading company?
Answer: We are a manufacturer with 30 years experience,you could get factory price from us.
Question 2 :Can you customize the machine for us?
Answer: Yes ,we are factory ,we can customize the machine depend your request .
Question 3 :what is your payment terms?
Answer: Generally,35% deposit by T/T, 65% balance should be paid before shipment.
Question 4 :How long is the warranty?
Answer: Warranty 24 months .In period of warranty ,we change the new parts for
broken parts for free . we provide technical support for long-life.
broken parts for free . we provide technical support for long-life.
Question 5 :If the machine has a problem, how long will it get a reply?
Answer: We will provide solutions within 24 hours.
