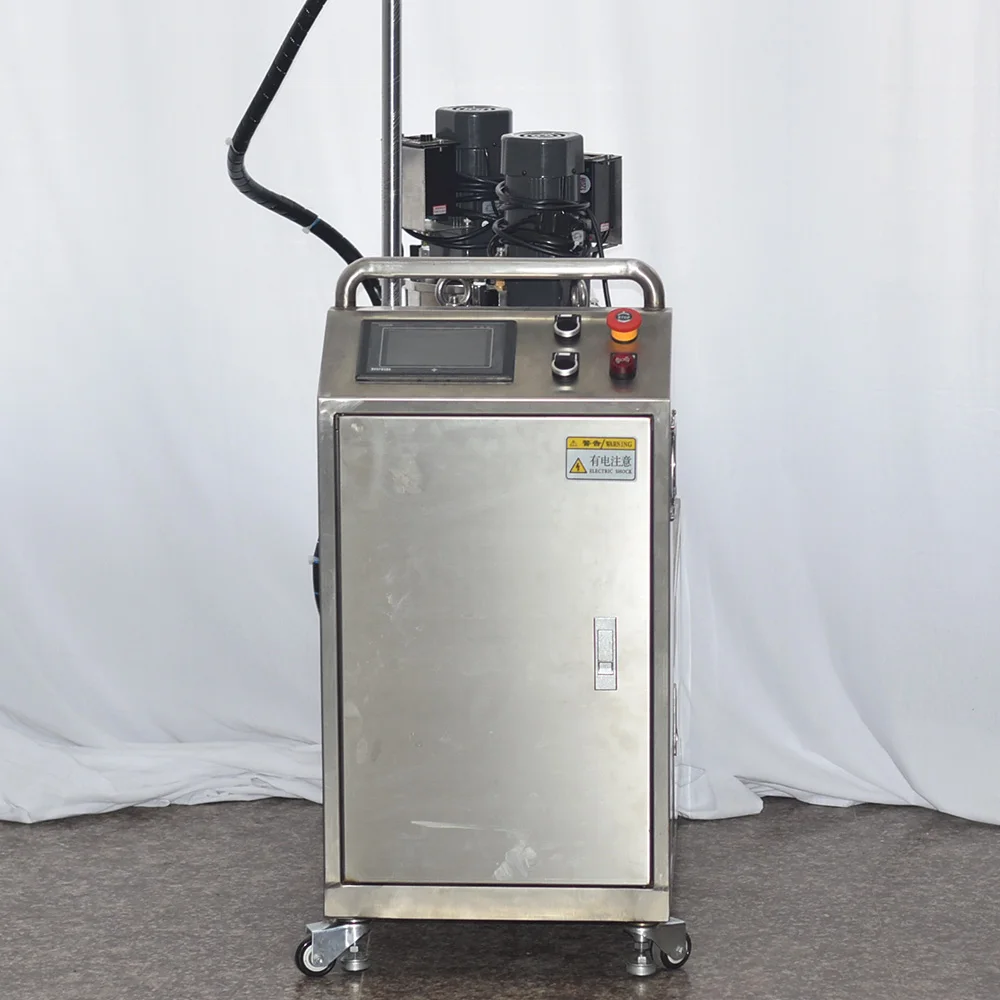

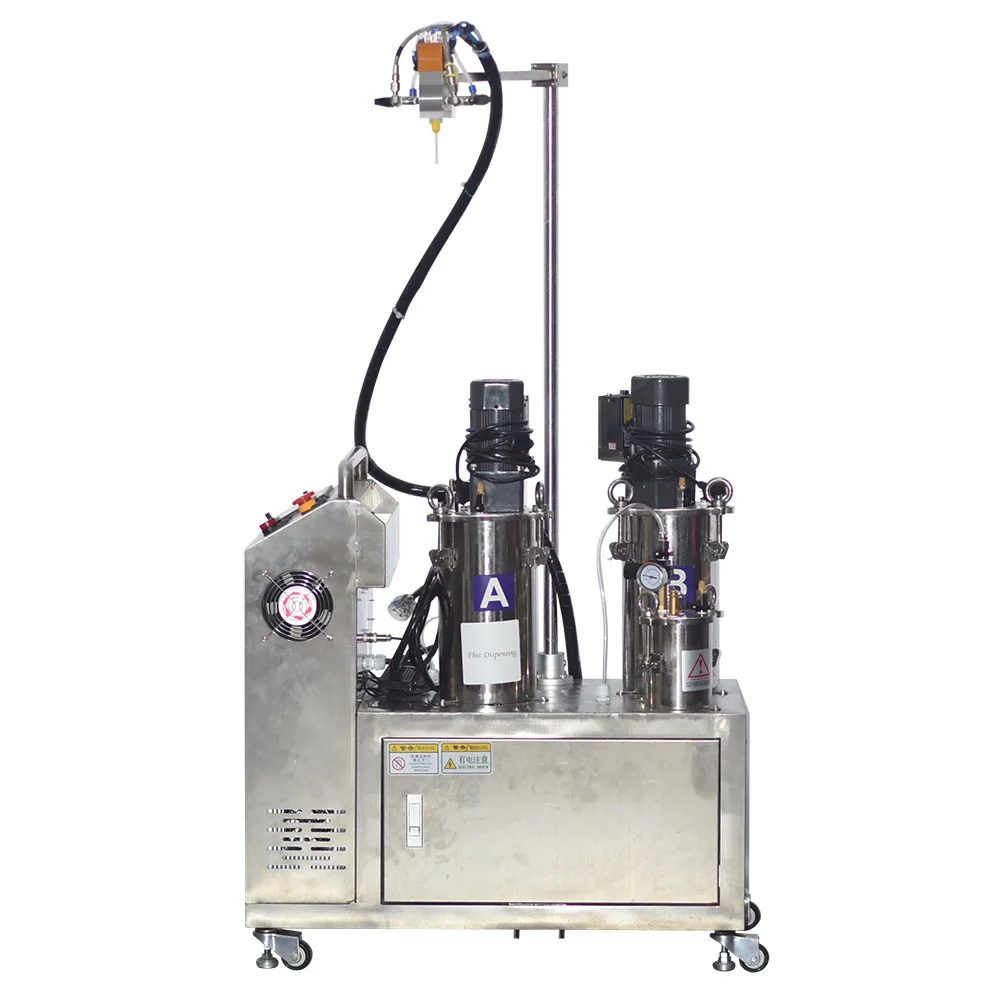

Epoxy Resin Two Component Glue Gun AB Glue Dynamic Electric Stirring Mixing Dispensing Valve Filling Valve Dispensing Equipment
- Category: >>>
- Supplier: Taizhou Fhis Electronic Co. Ltd.
Share on (1700001900283):
Product Overview
Description
Brand : Fhis Dispensing
Taizhou Fhis Electronic Co.,Ltd. is one of the main supplier for automatic liquid dispenser, dispensing valve, peristaltic pumps,rotary tables, industrial robots, syringes & consumables including needles, barrel and tips. Our precision dispensing system that apply accurate, consistent amount of the adhesives, sealants, lubricants and other assembly fluids used in virtually every manufacturing process. For the details, please visit our website.
Taizhou Fhis Electronic Co.,Ltd. is one of the main supplier for automatic liquid dispenser, dispensing valve, peristaltic pumps,rotary tables, industrial robots, syringes & consumables including needles, barrel and tips. Our precision dispensing system that apply accurate, consistent amount of the adhesives, sealants, lubricants and other assembly fluids used in virtually every manufacturing process. For the details, please visit our website.
Product Description
Model | FD1001 | Proportioning Accuracy | ±2% |
Overall Size | Long80/Wide40/High143 | Measurement Accuracy | ±2% |
Total Weight | 160KG | Spit Accuracy | ±2% |

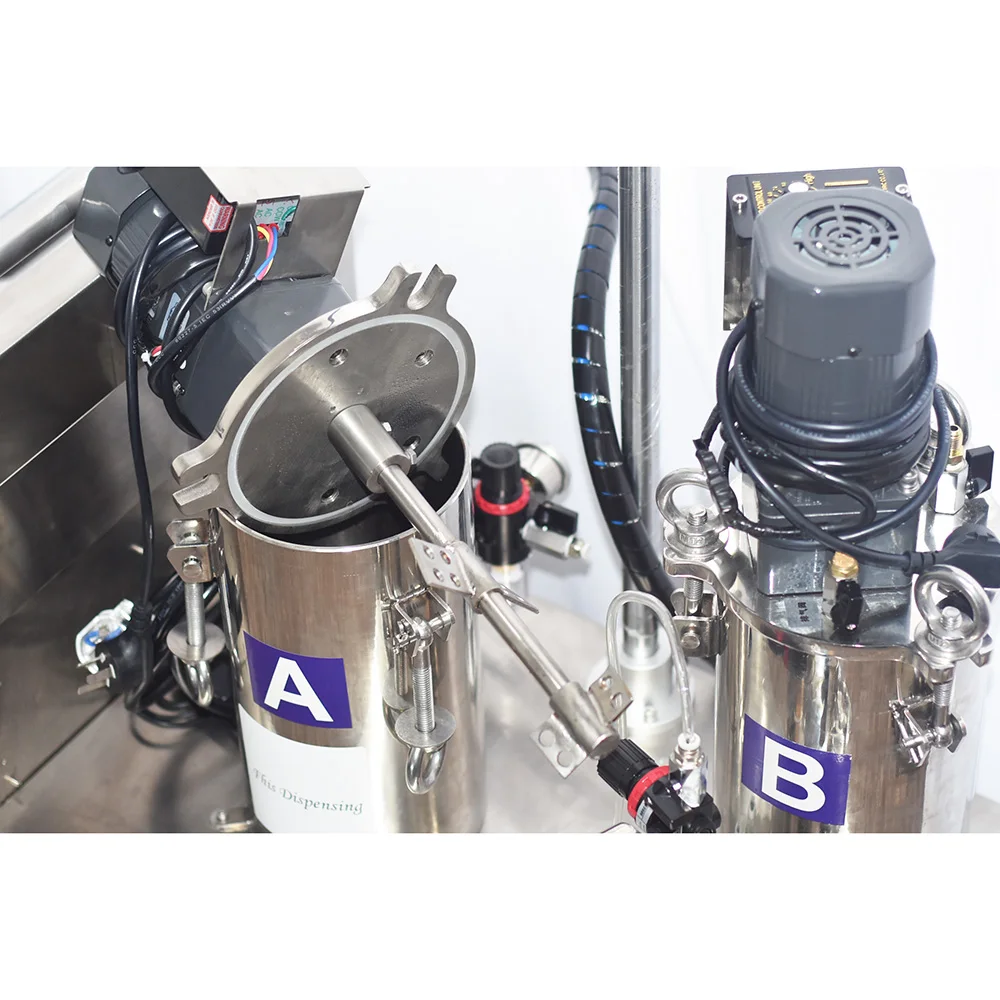

Capacity of Rubber Barrel | A Barrel 10L/B Barrel 5L/Customizable Capacity | Glue Filling Speed | 1g/s-9.99g/sDigital Setting |
Cleaning Bucket | 1L Capacity | Glue Proportion | 1:1-10:1 Optional |
Working Voltage | AC220V/50Hz0.5kw | Spit Out Speed | 0.5-15g/s |

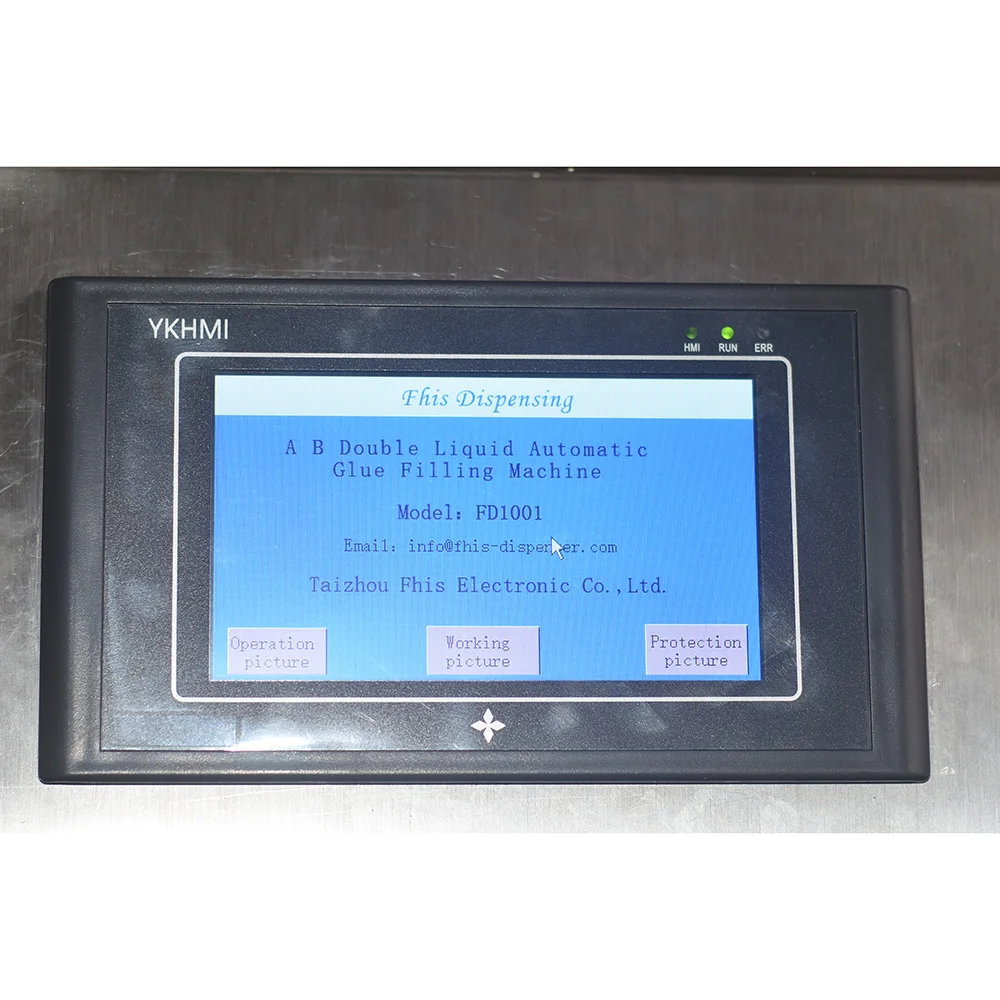

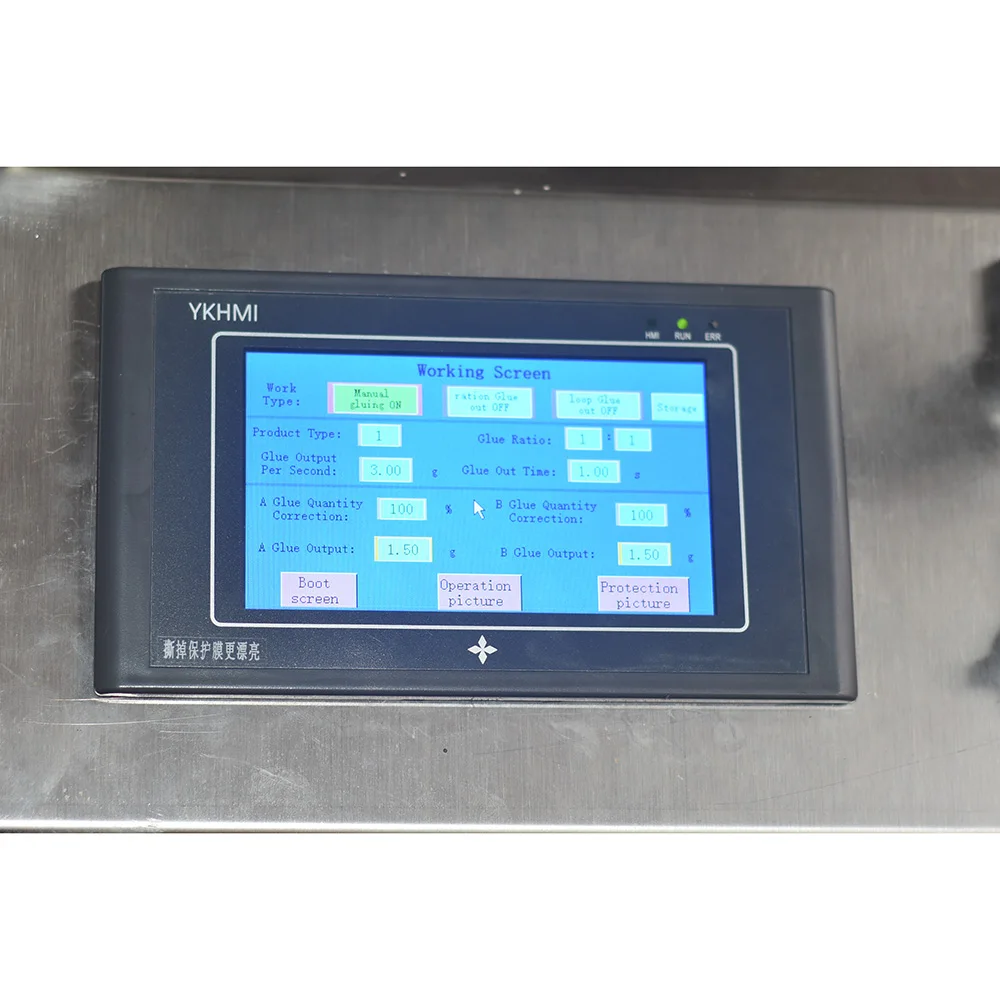

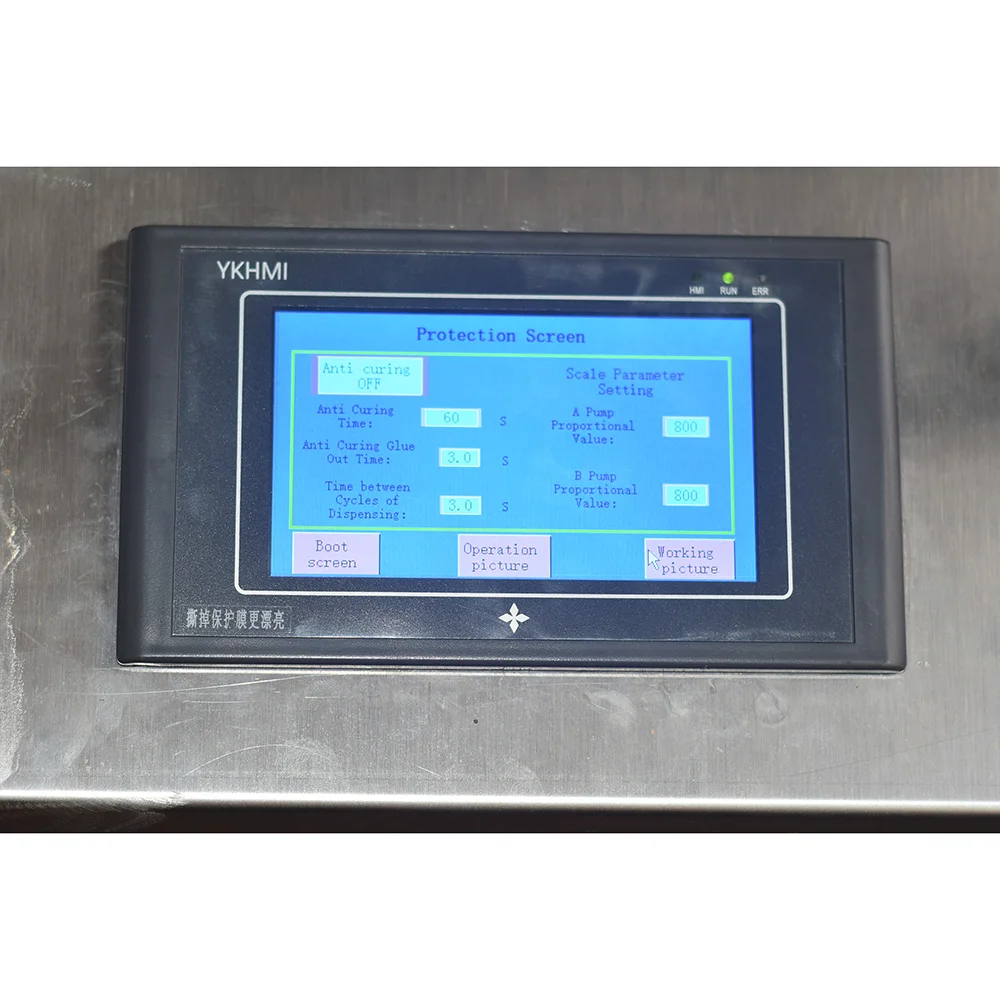

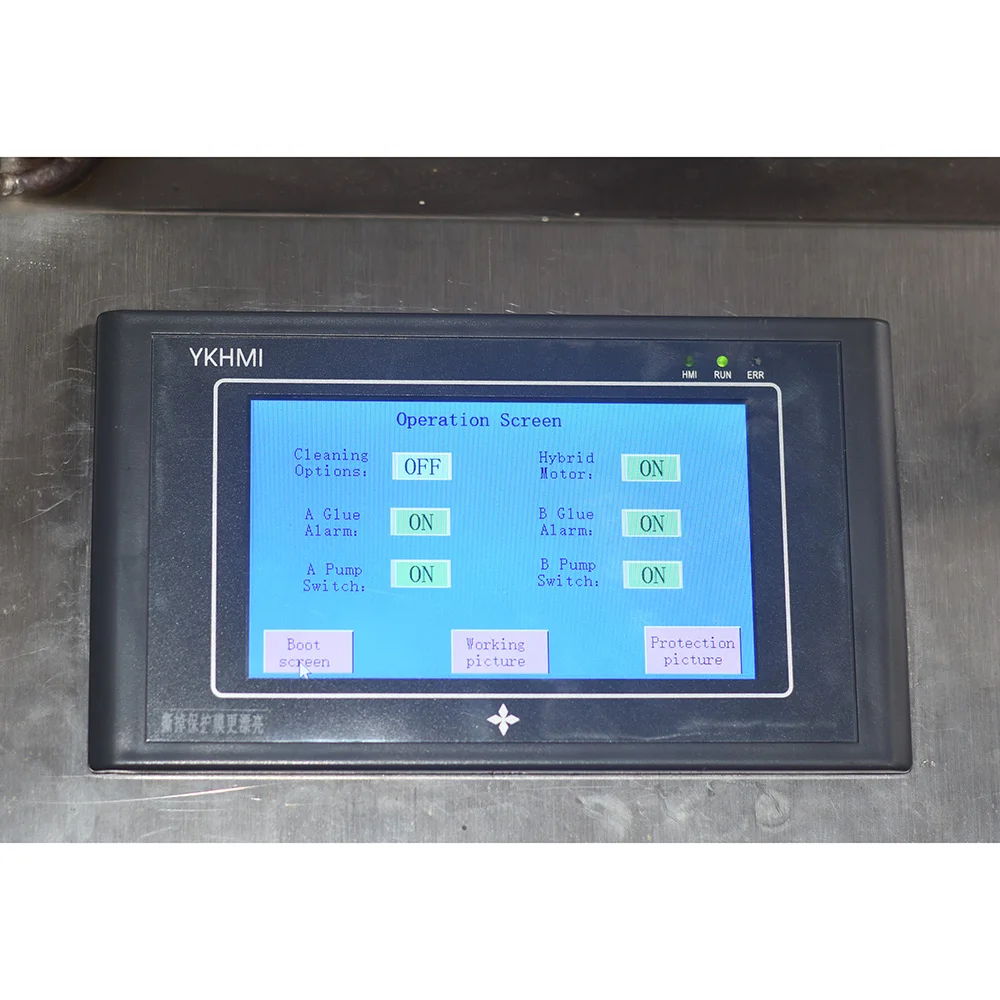

Equipment Power | 1000W | Control Mode | PLC Touch Screen |
Use Gas Source | 0.5-0.6mpa | Glue Supply Mode | Gear Pump/Screw Pump Optional |
Mobile Mode | Wheel Drive | Measurement Method | Gear Pump/Screw Pump Optional |
Working Temperature | 5-40℃ | Mixed Mode | Electric Stir Valve+Dynamic Mixing Tube |
Working Humidity | 20-90% | Delivery Mode | Fixed Delivery on Wooden Frame |

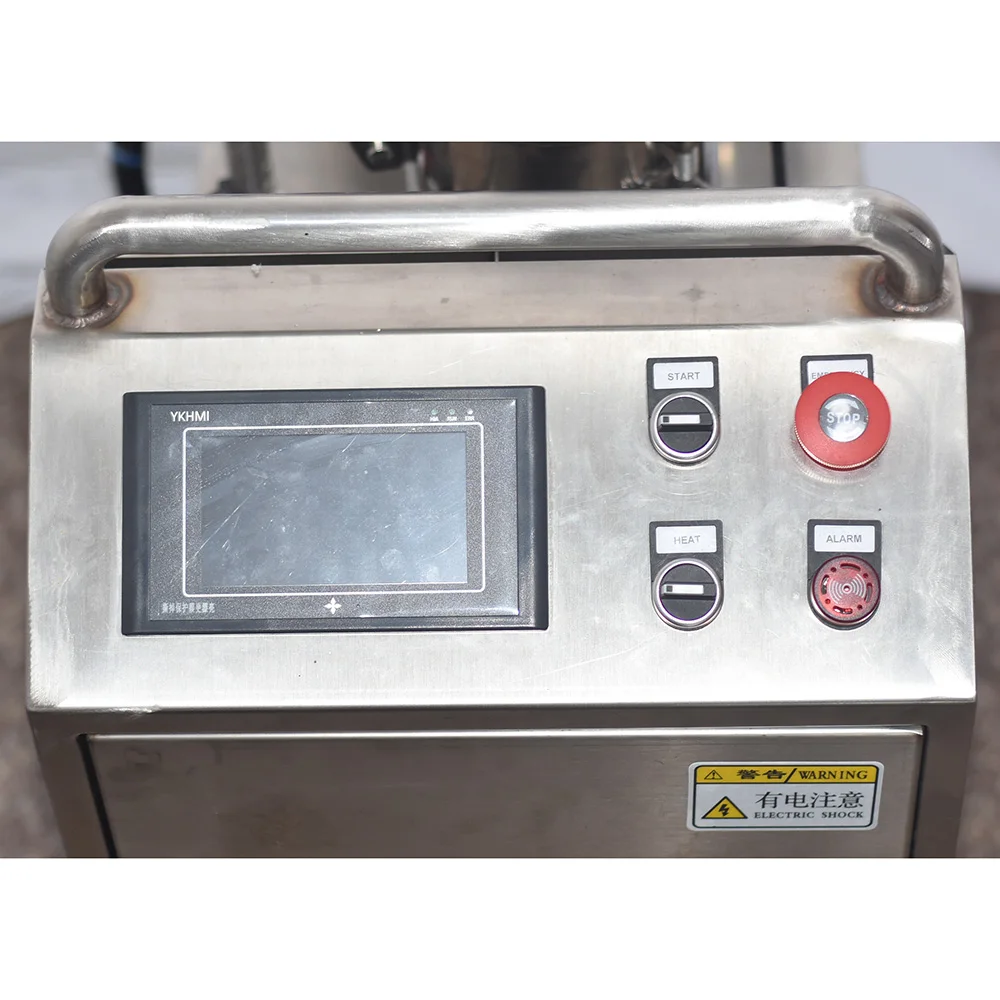

Equipment Control | Excellent Control PLC+Touch Screen | Software System | Independent Research and Development |
Power Part | Precision Stepping Motor | Pneumatic Components | AirTAC |

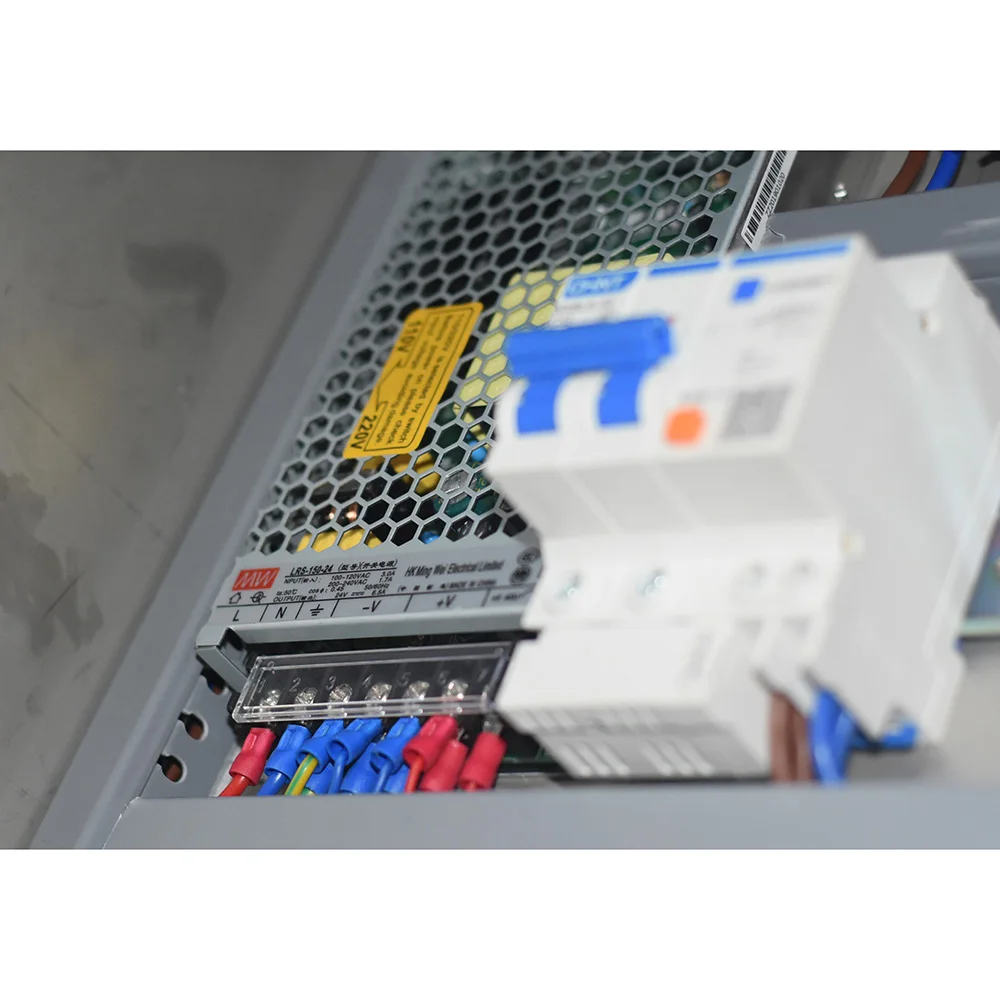

Power Switch | MingWei LRS-350-24 | Relay | OMRON |

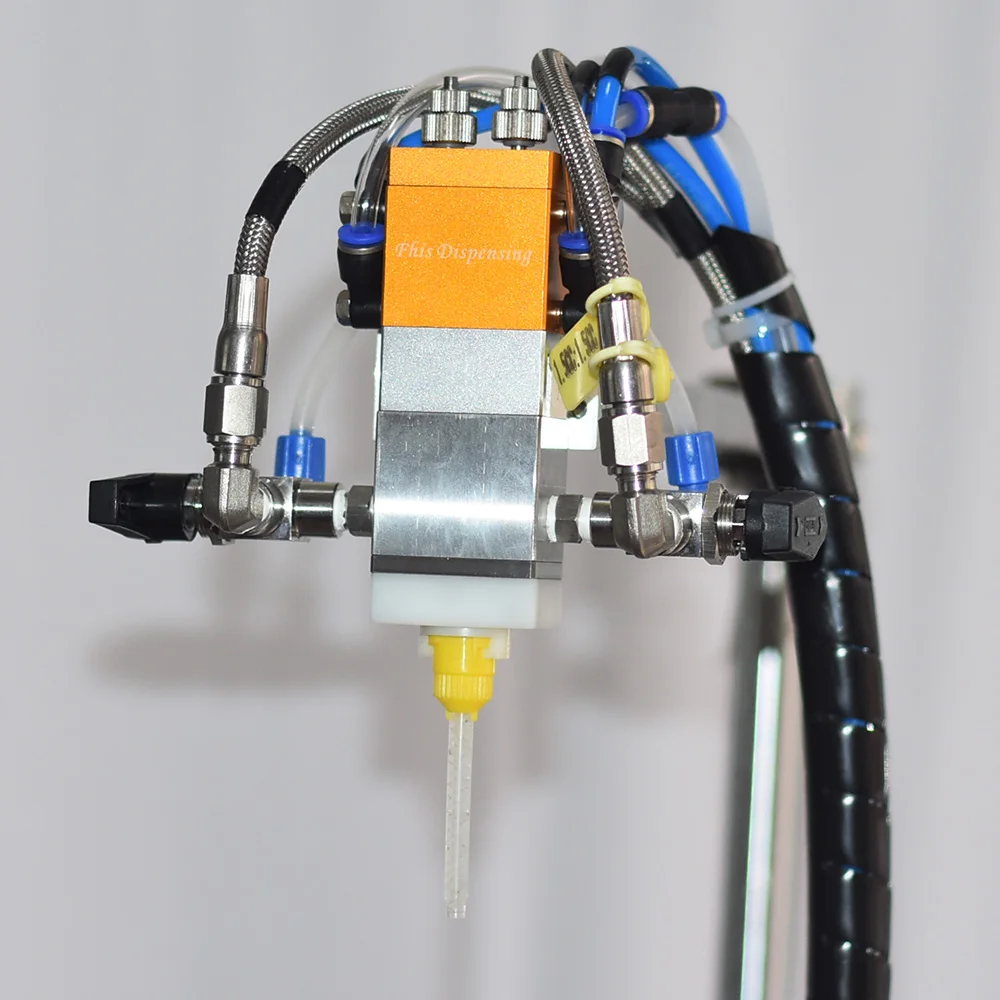

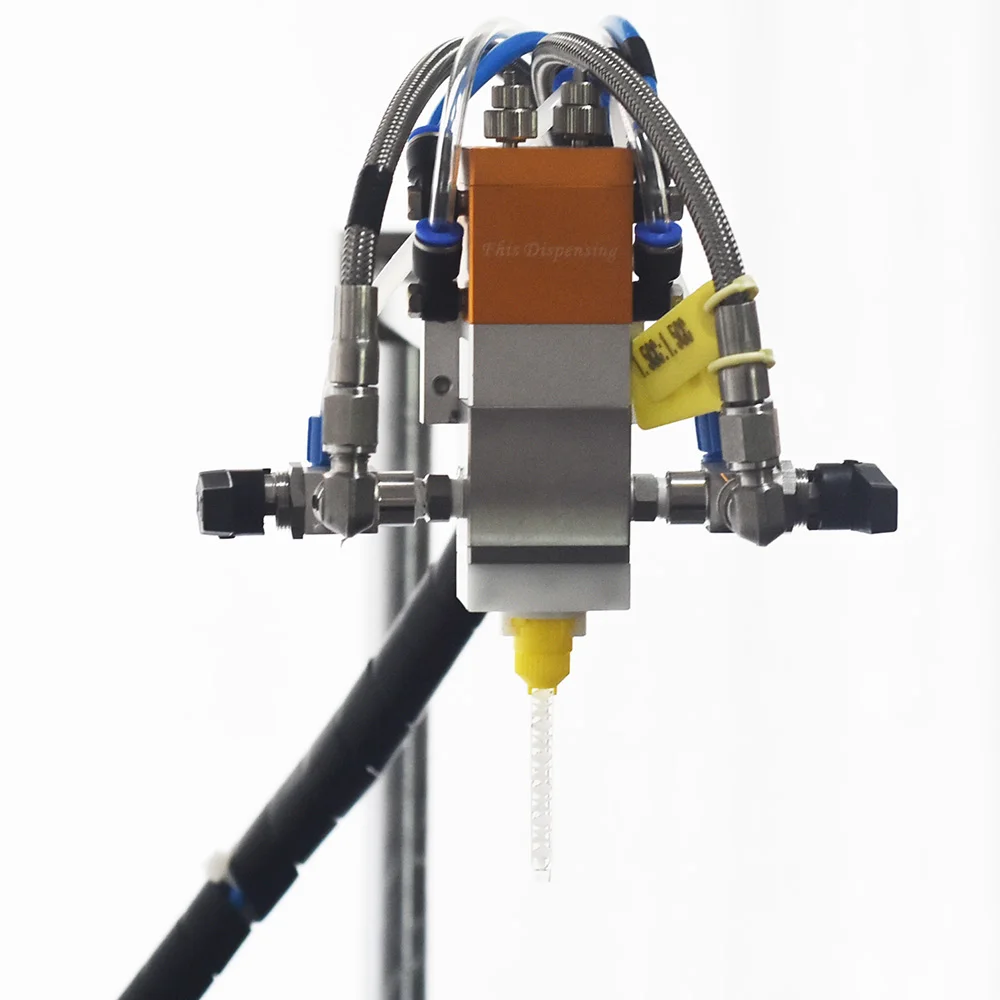

Dispensing valve | Precision Suction Double Liquid Valve | Cooling Fan | Industrial Specialized Use Exhaust Fan |
Glue Valve Electric Machinery | Direct Electric Machinery(1440 Turn) | Equipment Enclosure | Stainless Steel Plate |
Pump Body | Gear Pump/Screw Pump | Material Barrel Material | 304 High Quality Stainless Steel |
Material Barrel Electric Machinery | Stepless Speed Regulation DC Electric Machinery | Moving Wheels | Wear Resistant Rubber Wheel |
Conveying Hose | Explosion Proof Teflon High Pressure Conveying Hose | Heating System | Digital Temperature Control Heating Package |

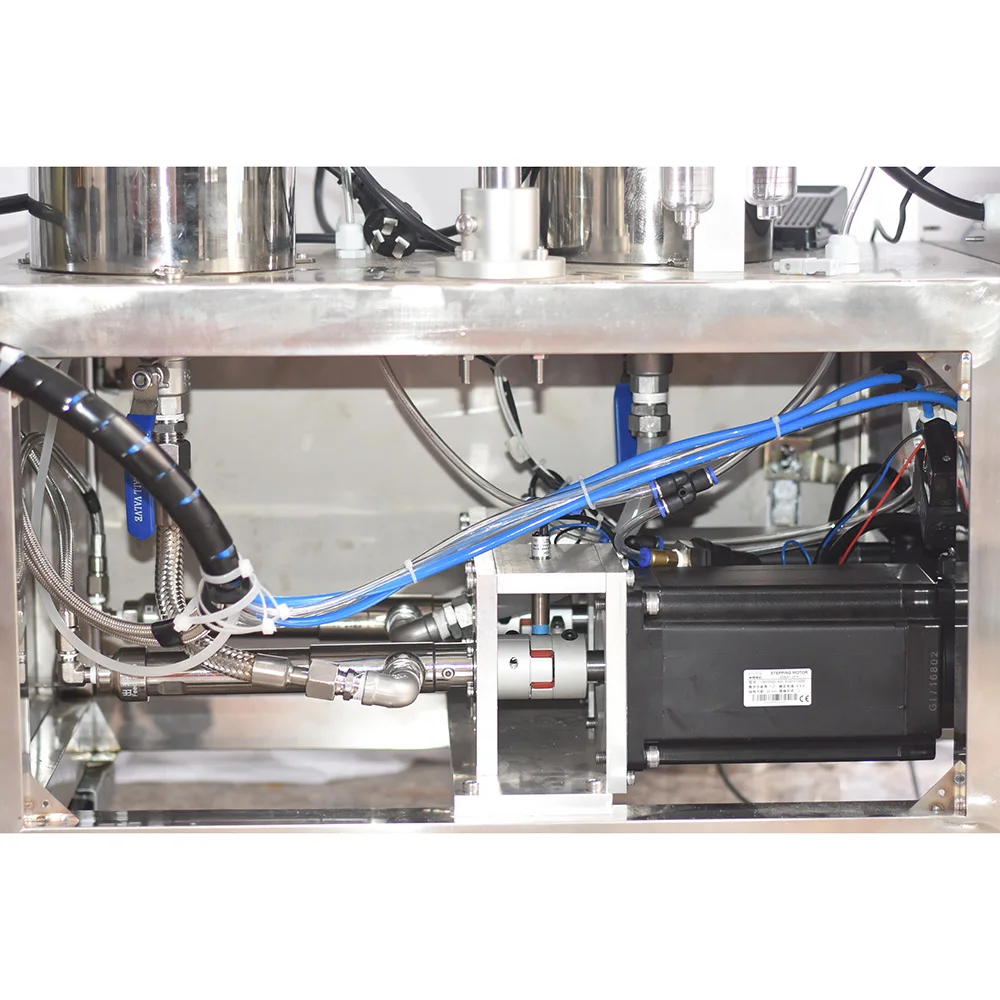

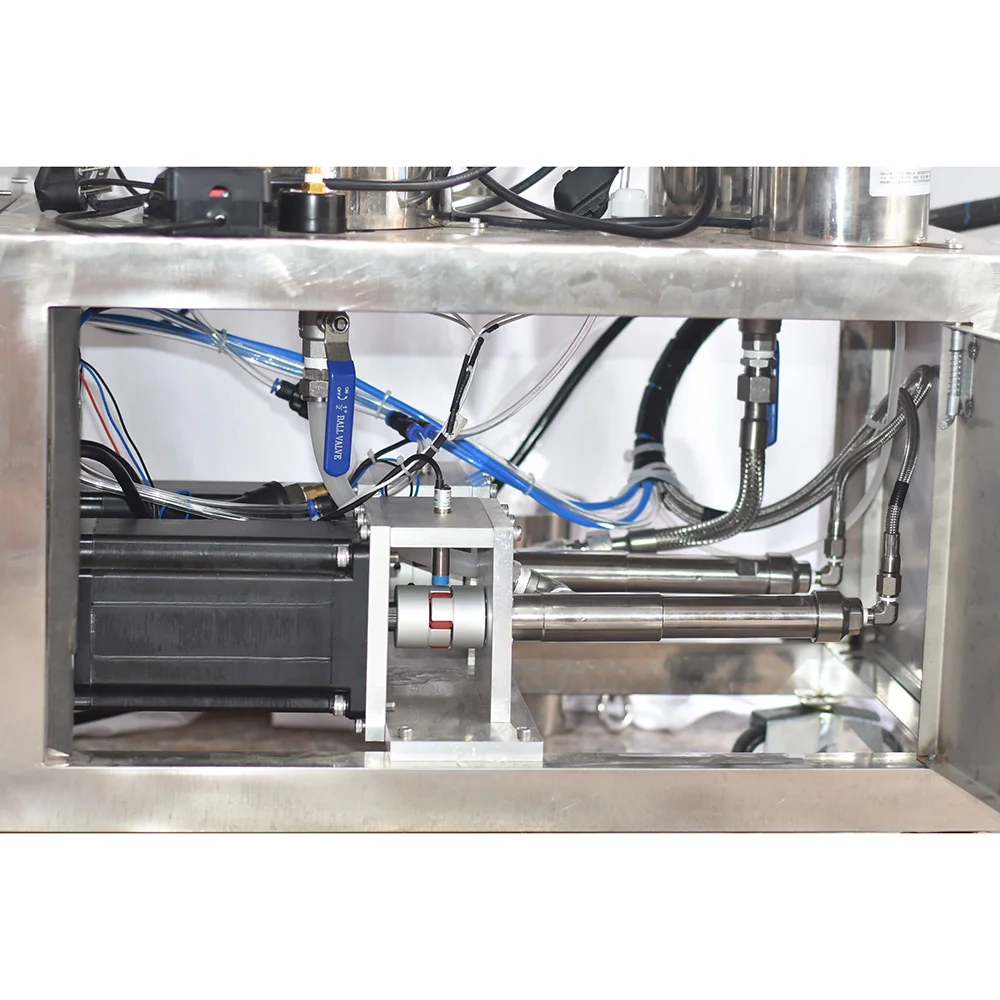

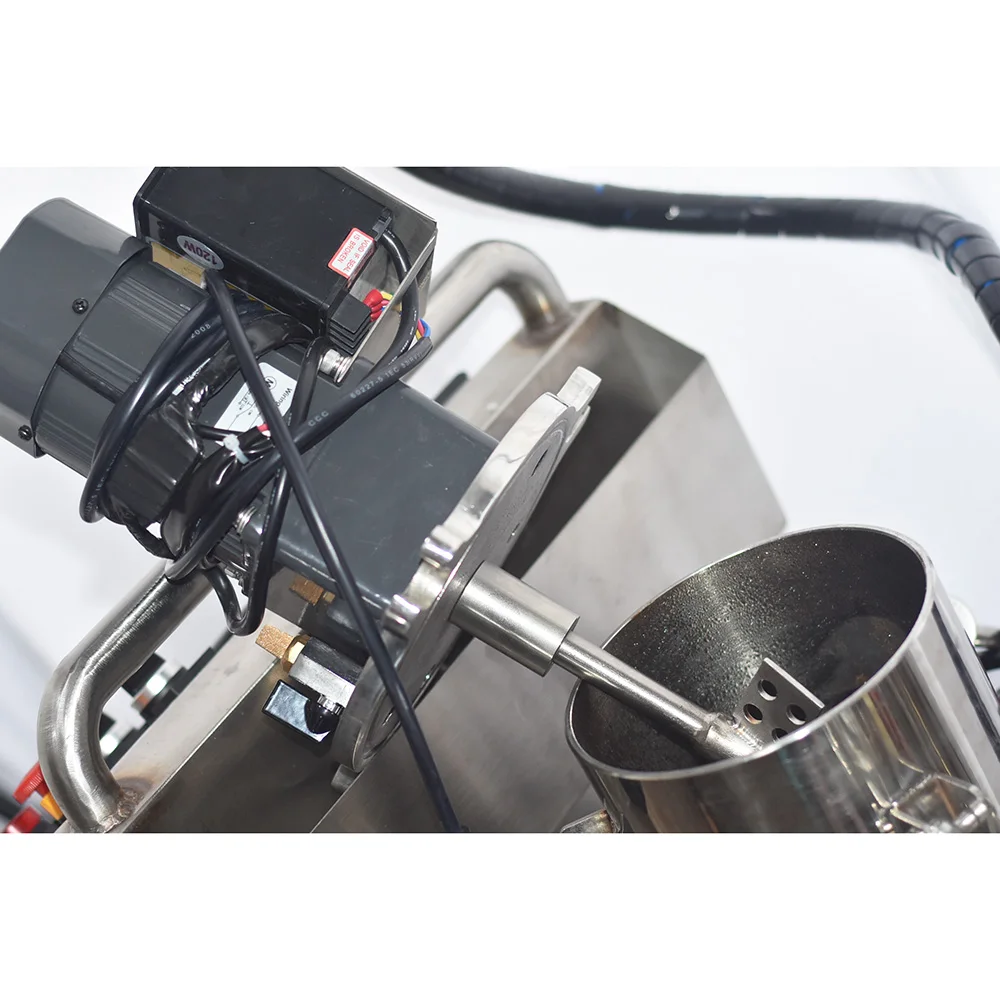

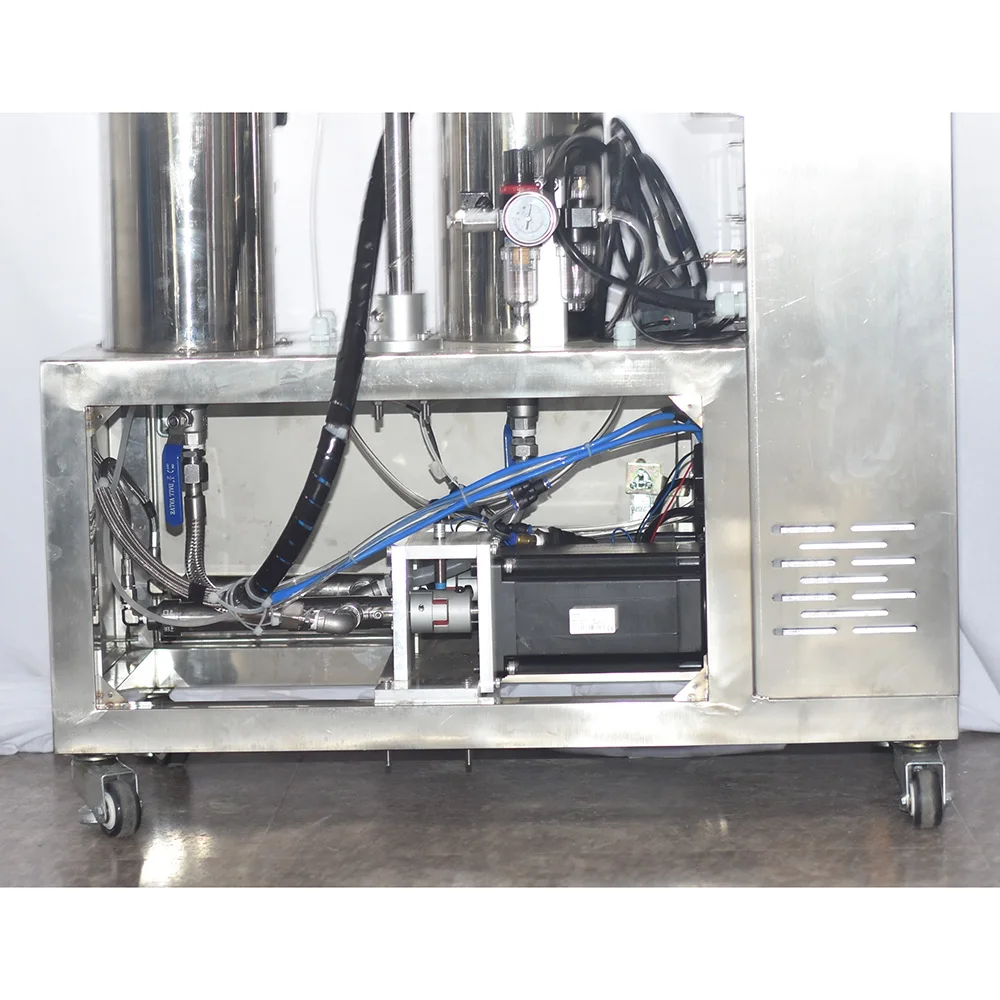

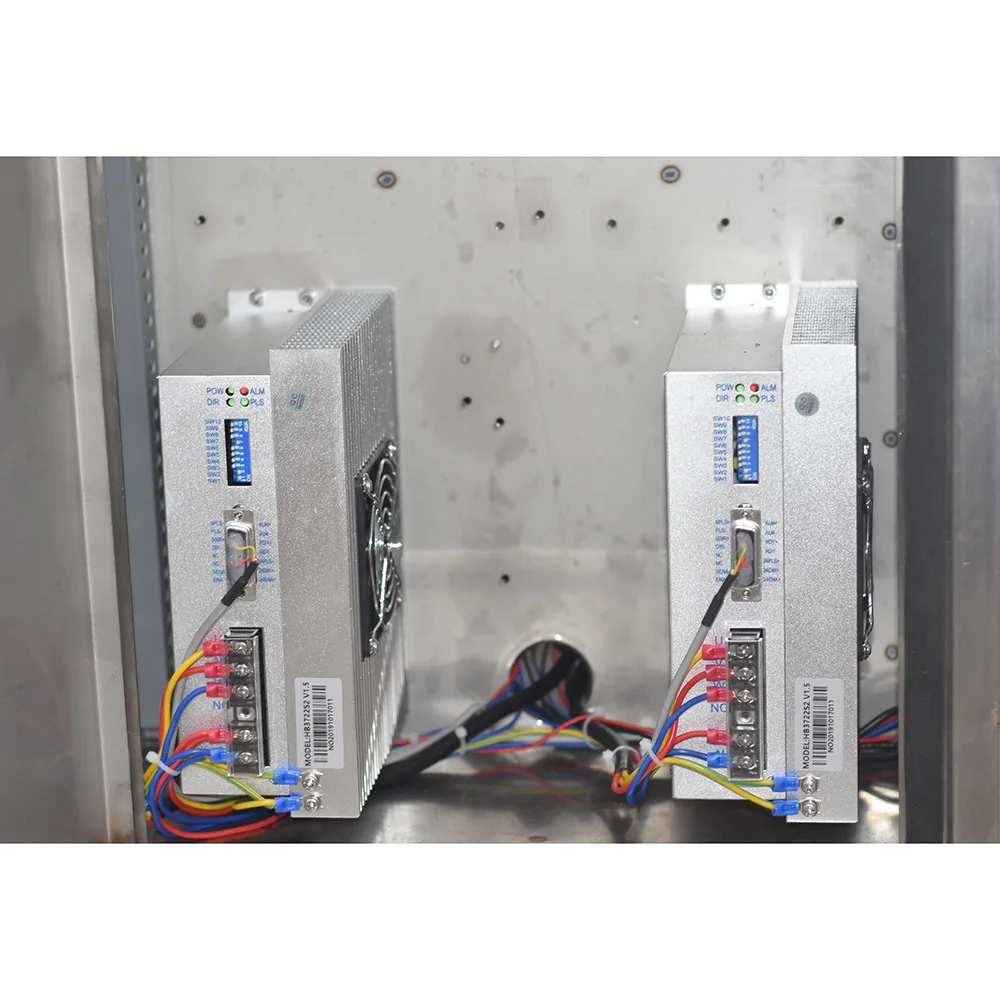

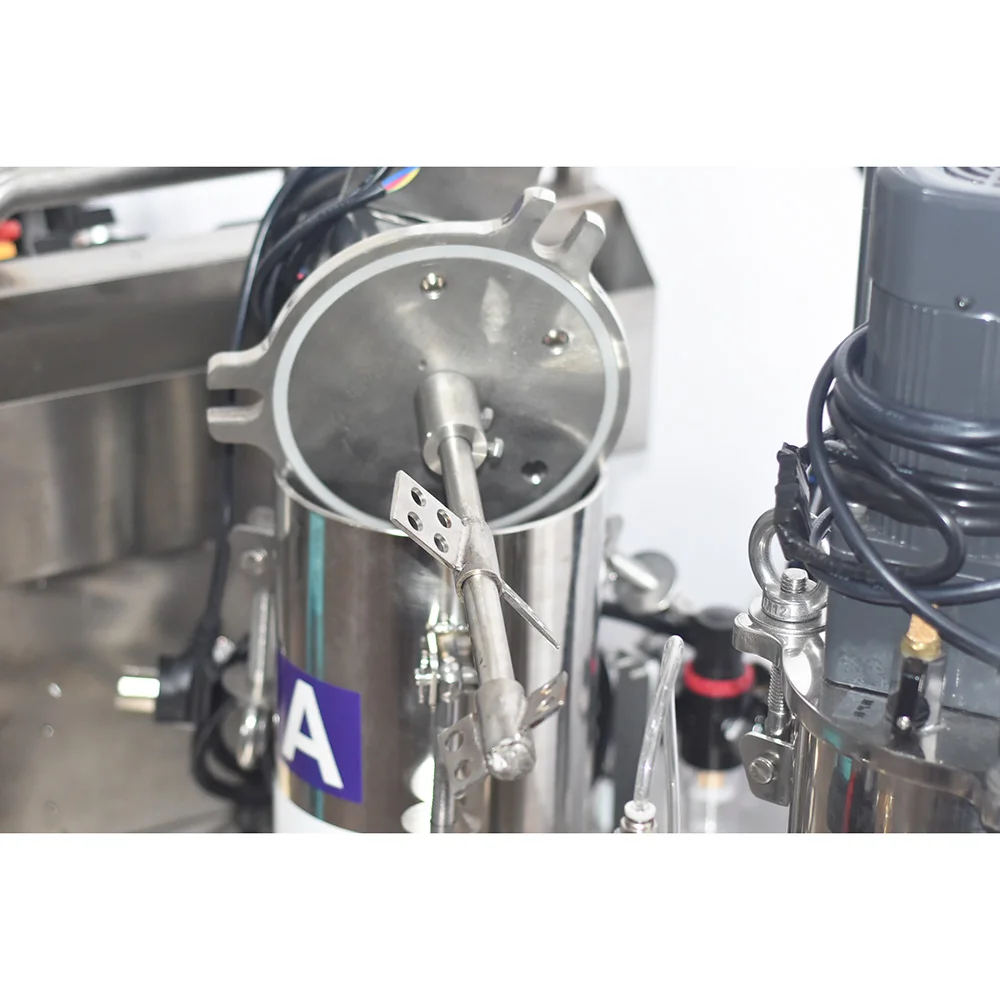

Detailed Images
Product Name:
Epoxy Resin Two Component Glue Gun AB Glue Dynamic Electric Stirring Mixing Dispensing Valve Filling Valve Dispensing Equipment
Function:
No glue leaks, and the glue is uniform and clean.
Application:
Suitable for glues with high consistency and poor fluidity, such as silicone, black rubber, epoxy resin, etc, to perform glue dispensing to the syringe for poor fluidity and highly viscous liquids, which solves the problem of no pressure or uneven pressure.
Production Process
Our Company
About Us
Company was registered 2.8 million yuan RMB in Yuhuan City China.
Professional production team and the R&D team have a number of innovations.
Main business is manufacturing glue tools and glue.
R & D, manufacturing, sales, after-sales are strictly enforced based on the complete company's system.
Products are widely acclaimed in the international.
We will work tirelessly to make better products.
Philosophy: quality, service, innovation.
Slogan: never stop moving forward!
Professional production team and the R&D team have a number of innovations.
Main business is manufacturing glue tools and glue.
R & D, manufacturing, sales, after-sales are strictly enforced based on the complete company's system.
Products are widely acclaimed in the international.
We will work tirelessly to make better products.
Philosophy: quality, service, innovation.
Slogan: never stop moving forward!
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer small value sample for free charge but do not pay the cost of freight.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer small value sample for free charge but do not pay the cost of freight.
