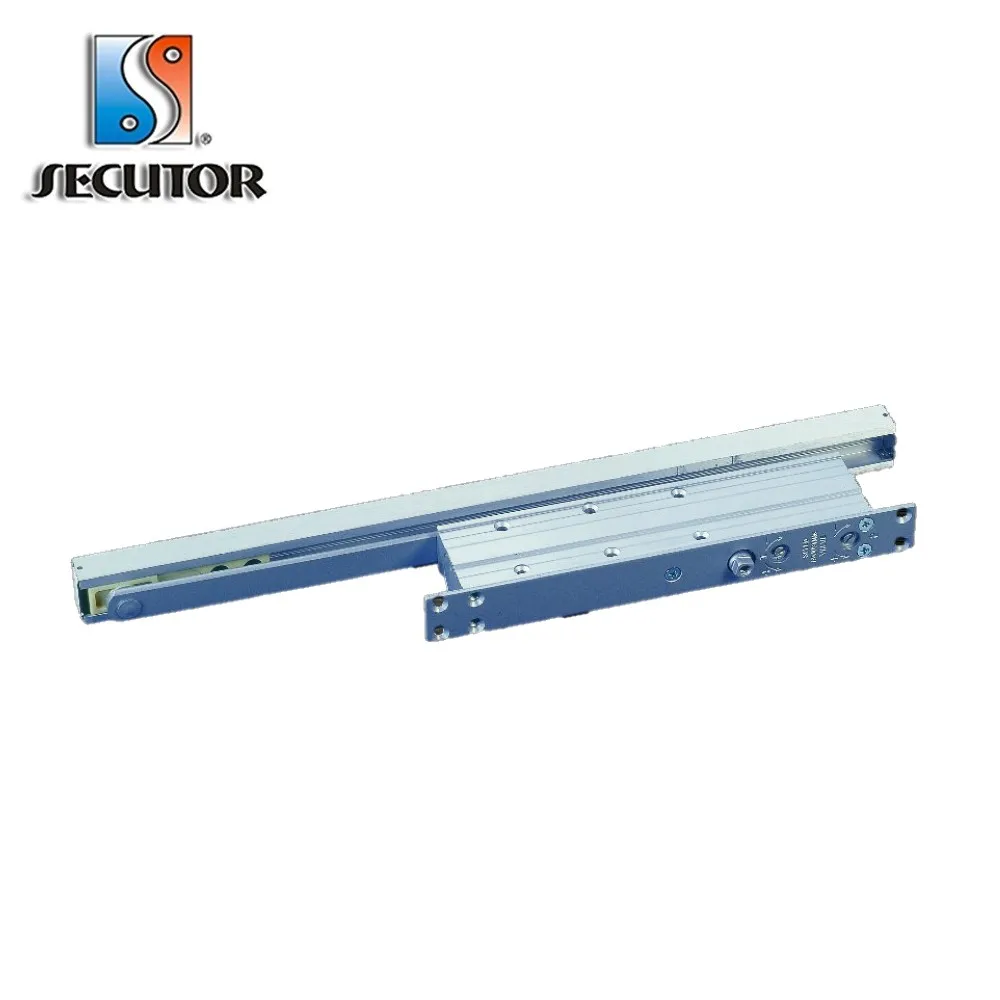

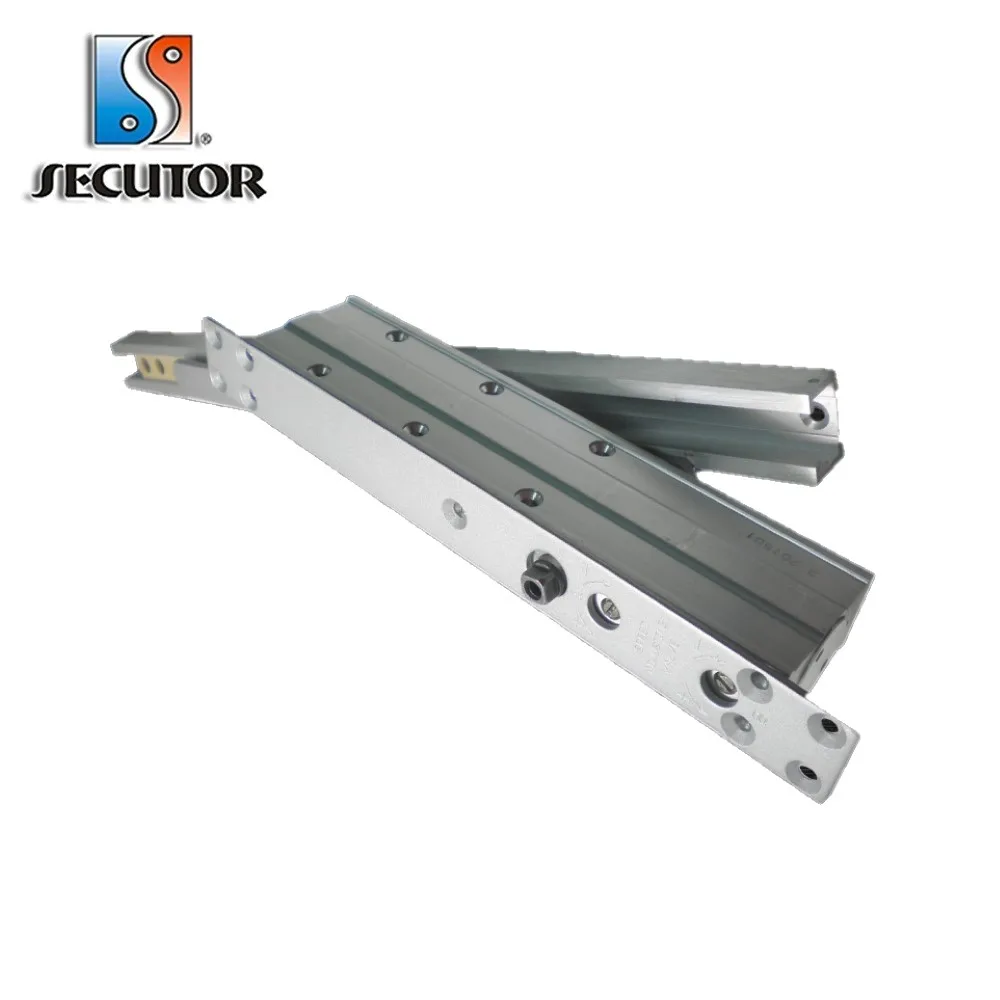

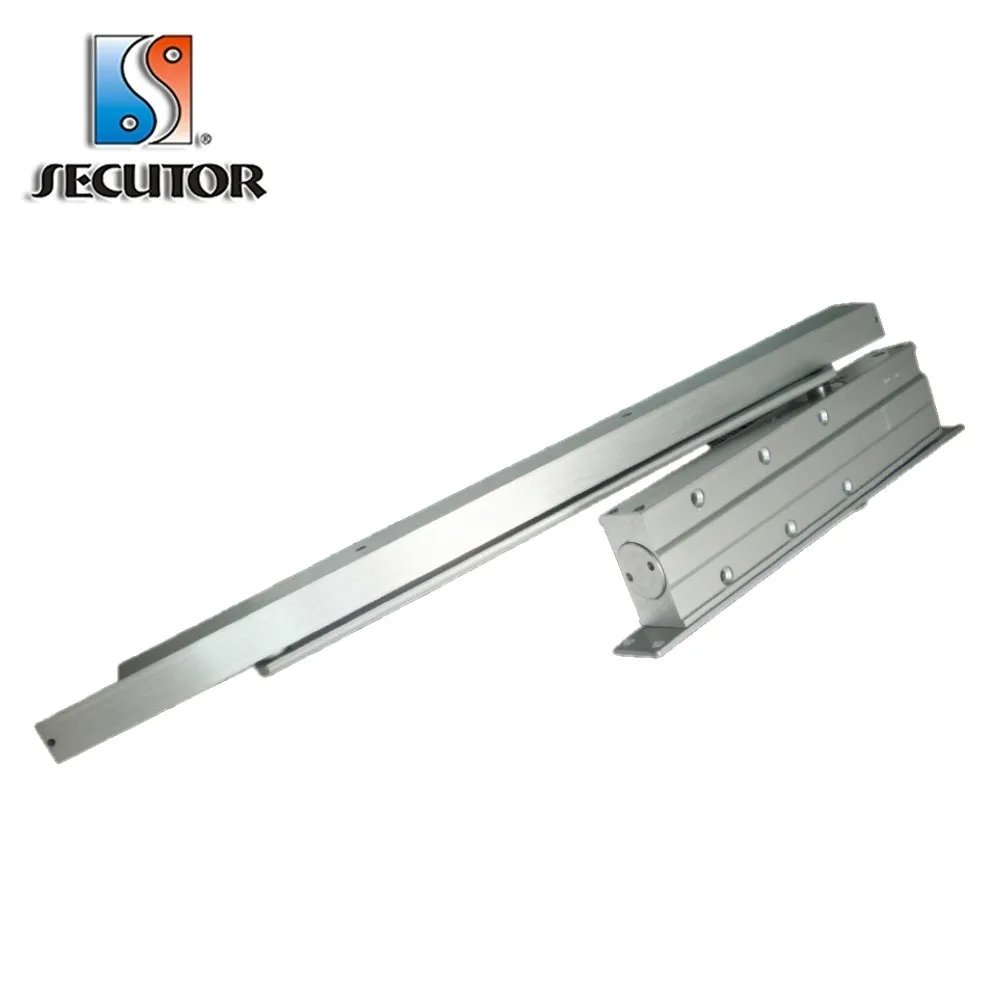

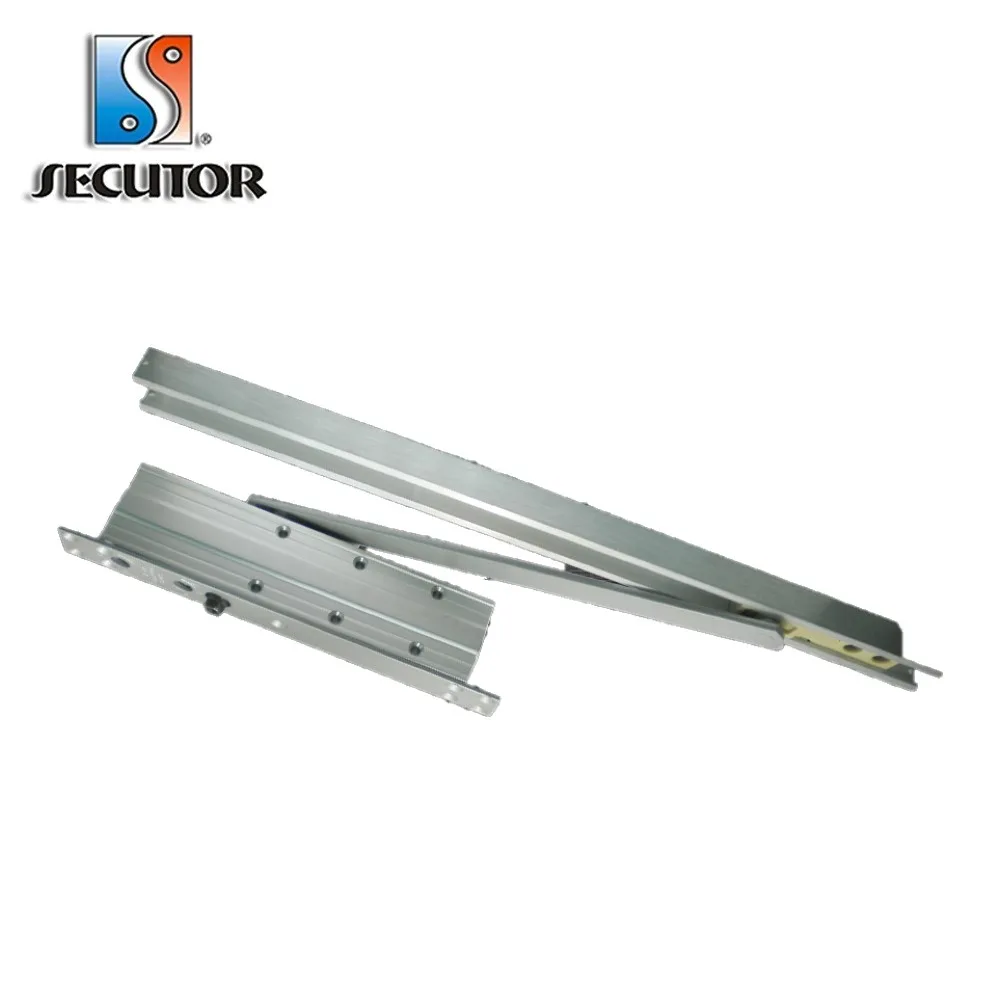

Concealed Cam Action Hydraulic Door Closer

Product Overview

Description











FUNCTION	DESCRIPTION
Hold Open	Is the ability of the door closer to hold the door in the open position. When the hold open arm is fitted with the door closer, your door will remain open at a preset angle until it is closed manually.











         280 Series Sliding Arm Door Closer



MODEL	Max. Door Width (mm)	Max. Door Weight (kgs)
282	800	30
283	900	50
284	1000	65
285	1100	80
28V2-5	1100	80

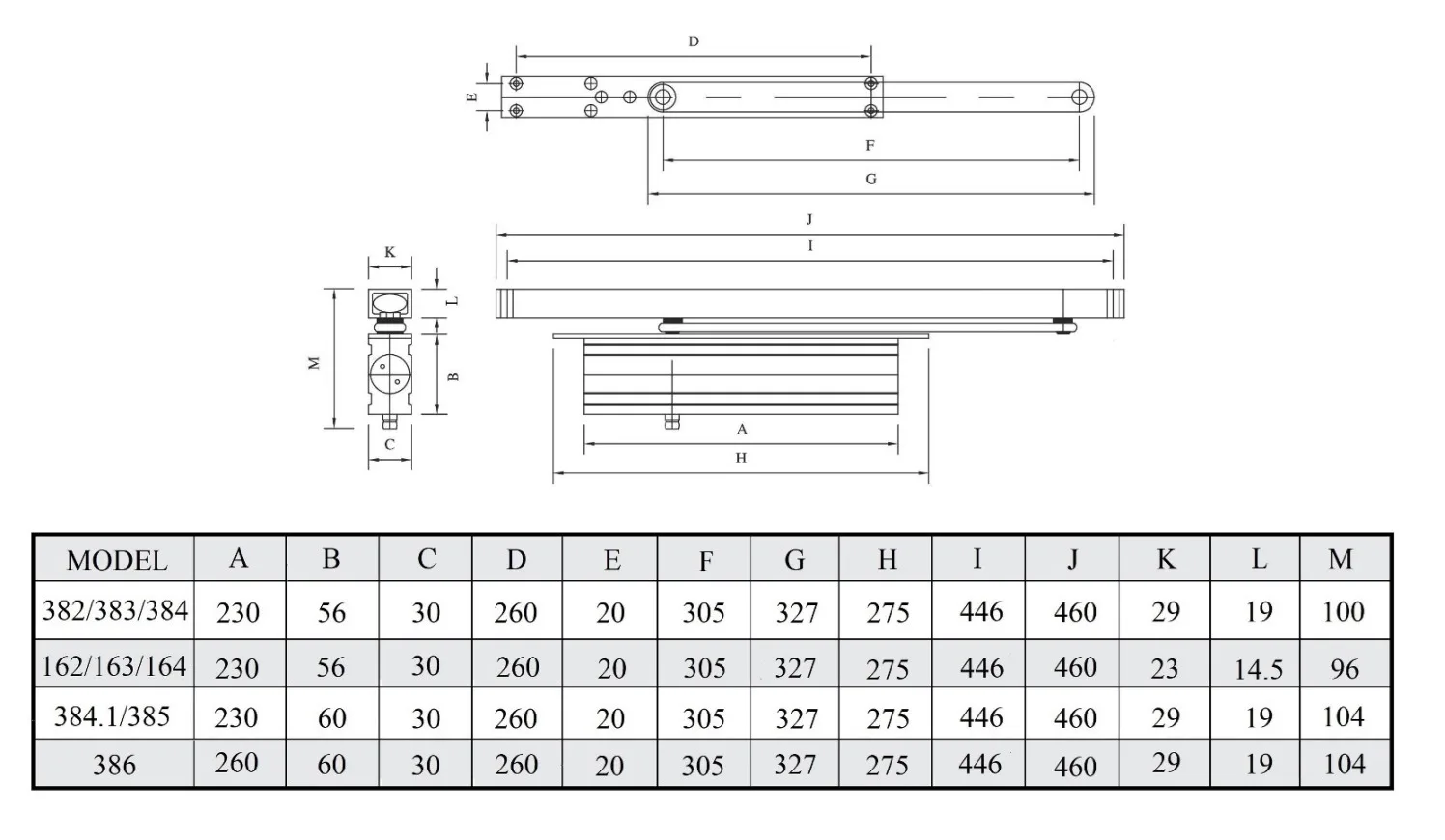

      160 & 380 Series Concealed Door Closer



MODEL	Max. Door Dim (mm)	Max. Door Weight (kgs)
382 / 162	850 x 2100	45
383 / 163	950 x 2100	65
384 / 164	1050 x 2100	85
384.1	1100 x 2100	85
385	1250 x 2100	105
386	1400 x 2100	125





Shipping of  Concealed Cam Action Hydraulic Door Closer

* By sea / air / courier express. (FOB Taiwan)

* Courier express includes DHL, FedEx, TNT, UPS, EMS, SF, etc.
