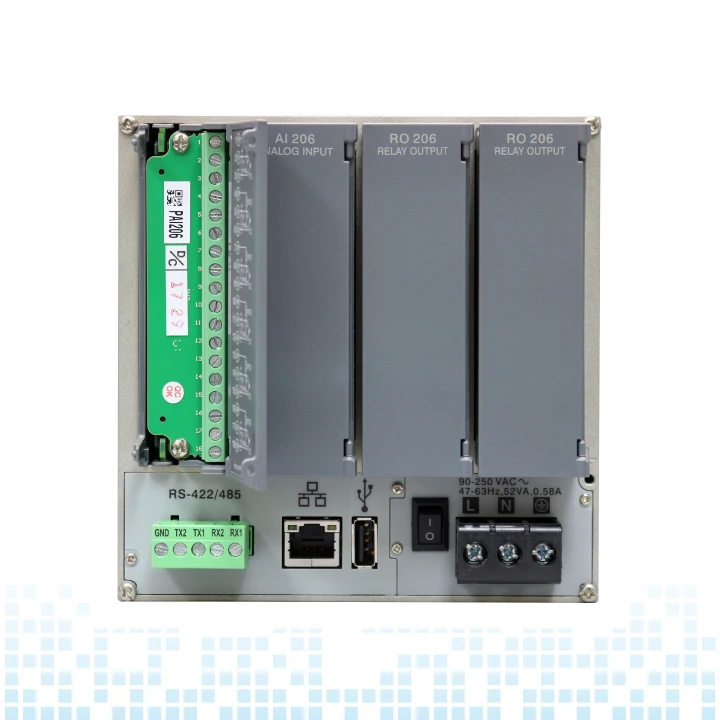

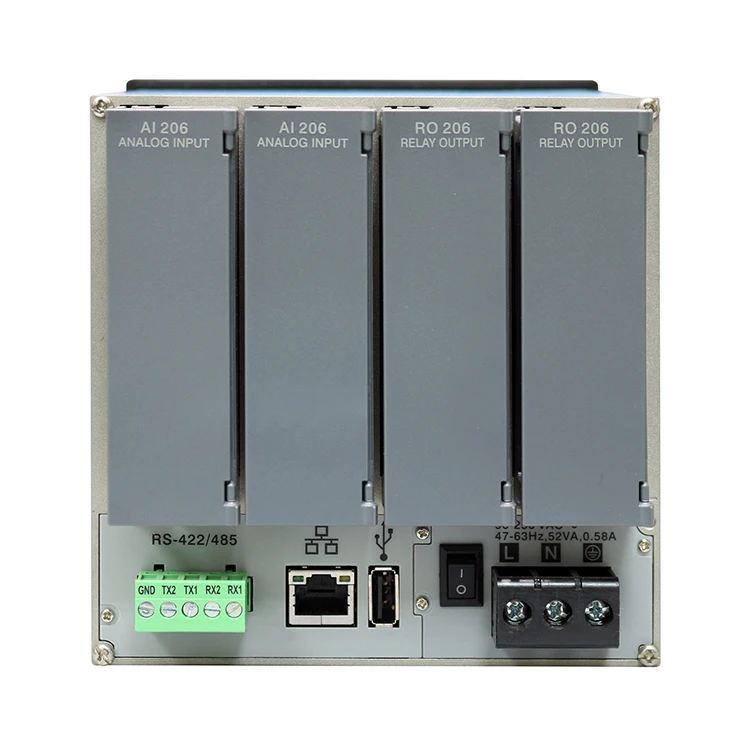

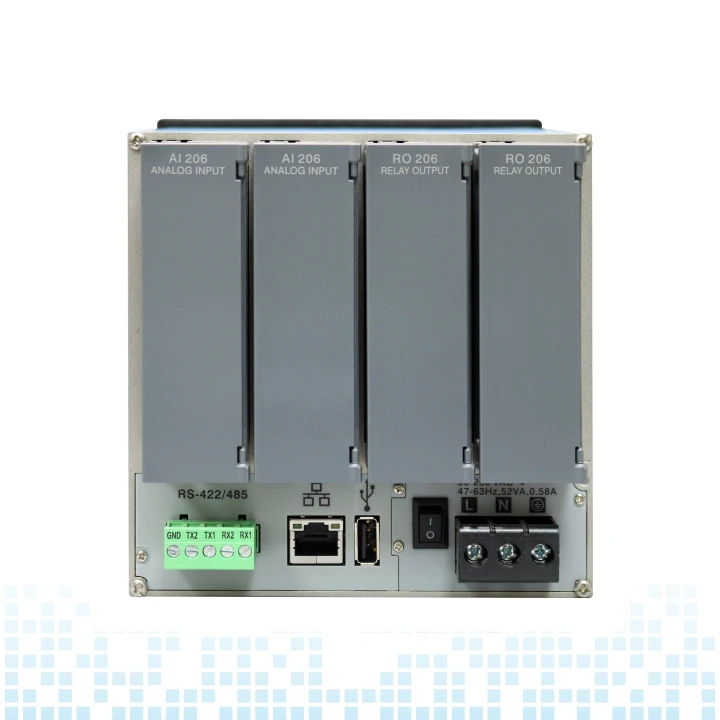

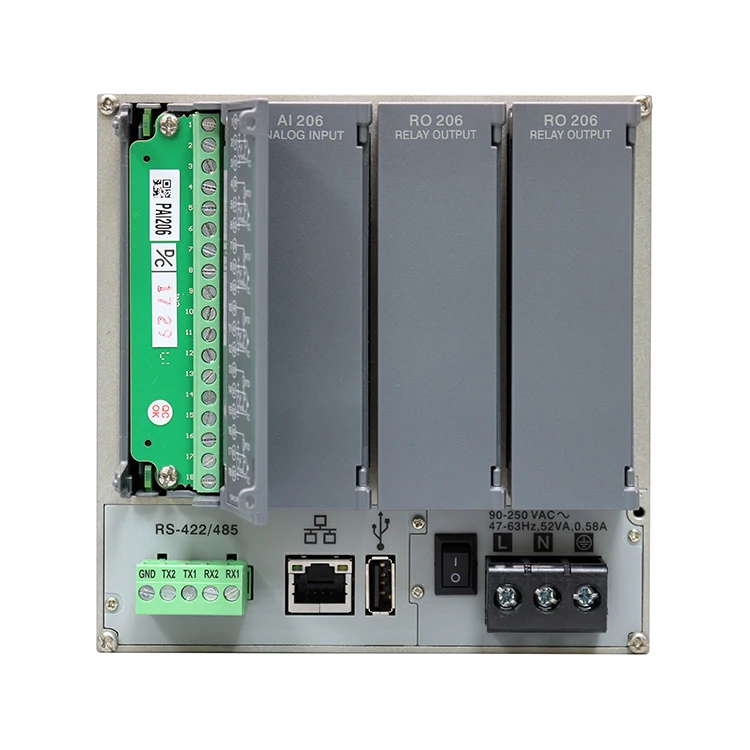

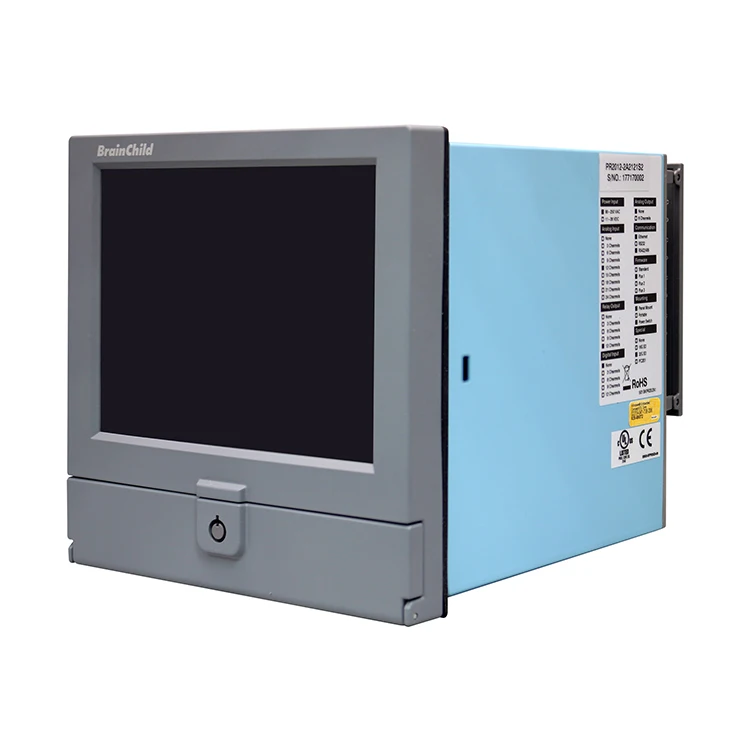

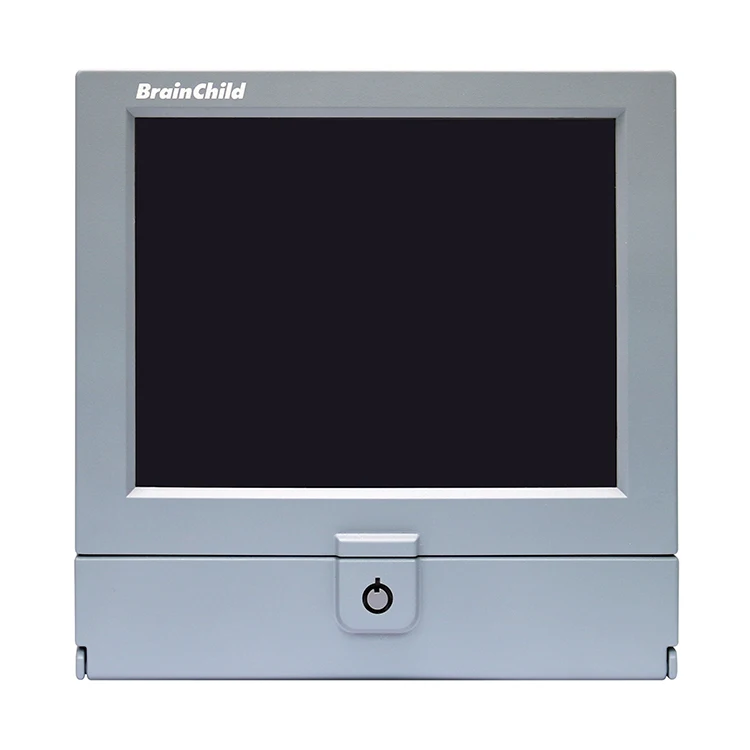

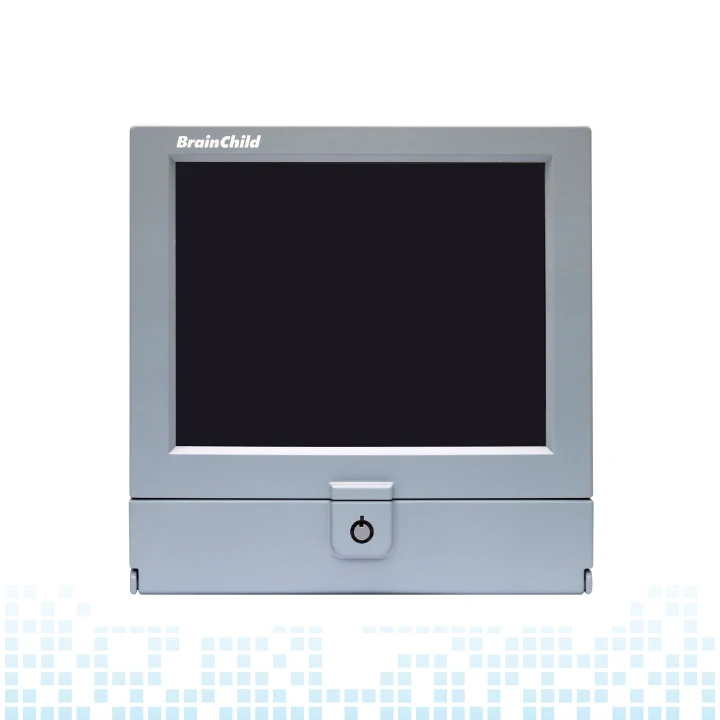

The PR series paperless recorders are launched in full product range with outstanding specifications and features. PR20 Recorder has 5.6” display size, 100 msec. sampling rate, handwriting messages, SD slot, 2 USBs, optional pulse input, field calibration, Web Server, email, 19 languages, IP65, and yet in shorter depth 167mm.
CPU
ARM Cortex-A8, 1Ghz
Standard
Ethernet, SD slot & USB
Option
RS232/422/485 & Pulse input
Product position Medium size and powerful one, input numbers up to the highest 24 channels Input numbers 6 channels True universal inputs Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Cu10 (α=0.00427), Cu50, Cu100(α=0.00426, 0.00428), Ni100, Ni200, Ni500, JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV The fastest sampling rate To reach 100 msec/dot, default setting at 1 sec/dot
Feature
Data acquisition, monitoring, recording and controlling can be met in PR20 temperature data logger. Touch Screen, TFT, 65K color 100 msec. scan rate
Pulse input for flow applications Direct printer connectivity Webserver & Email directly from Recorder Virtual channels Modbus RTU and TCP protocols 19 international languages Multilingual Convenient for local users by offering 19 languages including English, Japanese, Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese (simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable PC software historical viewer+ configuration Standard Extensive software data acquisition studio Optional real-time

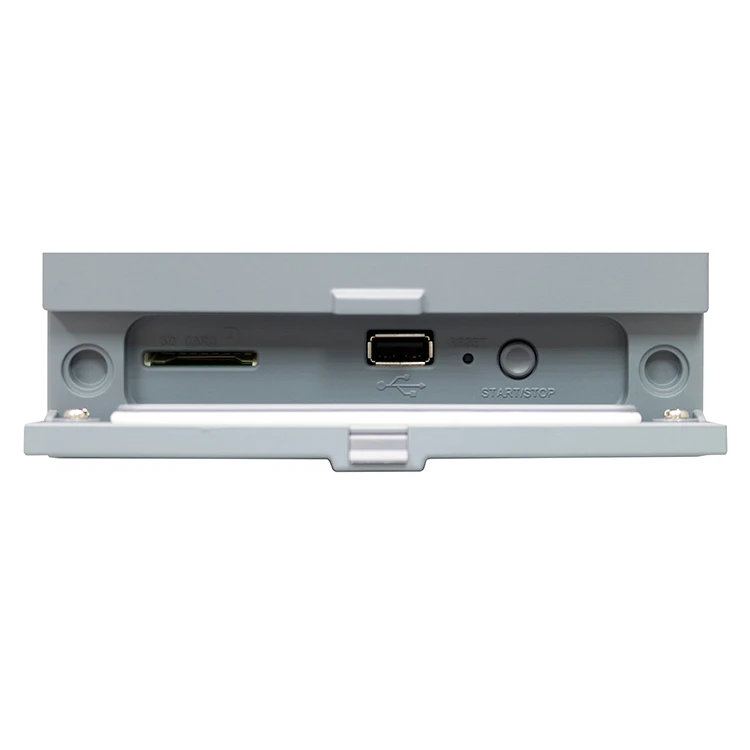

Math, channels. Math in standard version, others in Plus versions Display 5.6"" TFT wide touch screen Resolution 640 x 480 MTFB backlight at 25°C 30,000 hrs Backlight LED Screen saver, Email Yes A faster CPU ARM Cortex-A8, 1Ghz Internal flash memory 256 MB RAM 256 MB RS-232/422/485 Optional RS-232 or RS-422/485 Modbus RTU SD card slot, USB host x 2 Standard, one USB in the front, another USB in the back Pulse input Optional DI card offering either logic or high-frequency pulse counter Process control PID, Ramp& dwell START / STOP key To start/stop record and to turn off the display only, not the recorder itself so that a quick start possible Calibration correction On-site calibration possible, or using handy features of Offset and Gain for correction
