Side View 1204 smd RGB LED with IC
- Category: >>>
- Supplier: SUPER BRITE LTD.SUPER LTD.
Share on (1700002364052):
Product Overview
Description
Specification
Side View 1204 RGB LED with IC
SV3210TC-05LURGB4AA-A
Product Description
Features
•Support signal reshaping to pass control waveforms to next adjacent driver
•Cascading port transmission by a single data line•Built-in current regulator, three-way drive
•Optional maximal drive current: 5mA
•256-step gray-scale output to allow 16,777,216 color display
•Built-in oscillator 20MHz
•LED driver port maximum withstand Voltage 6.5V
•Built-in power-on-reset (2.6V) (@VDD=5V)
•Operating voltage 4.5~5.5V
Chip Materials
•LED point light source, LED pixel screen.
•LED Phantom running Horse Lamp, LED Phantom Color guardrail Tube.
•LED Phantom Module Lamp, LED Phantom Lamp string.

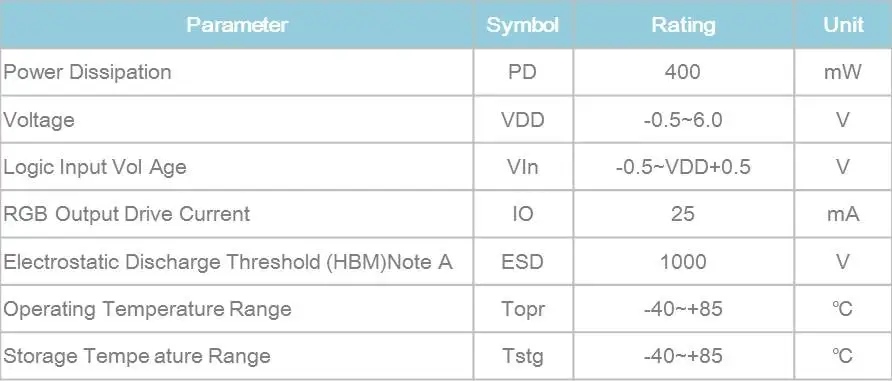

Absolute Maximum Ratings (Ta=25℃)

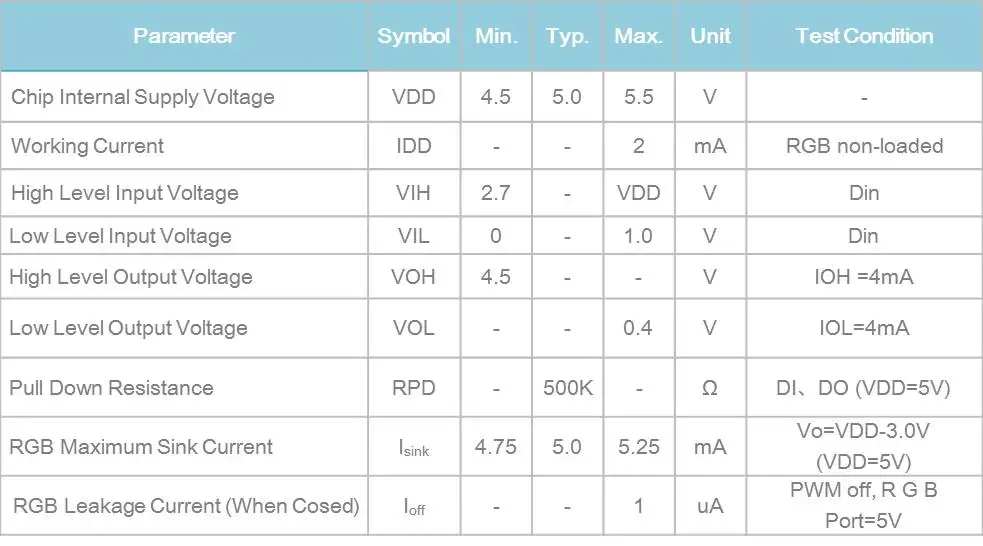

Electro-Optical Characteristics (Ta=25℃)
RGB LED Photoelectric Parameter
Package Outline Dimensions

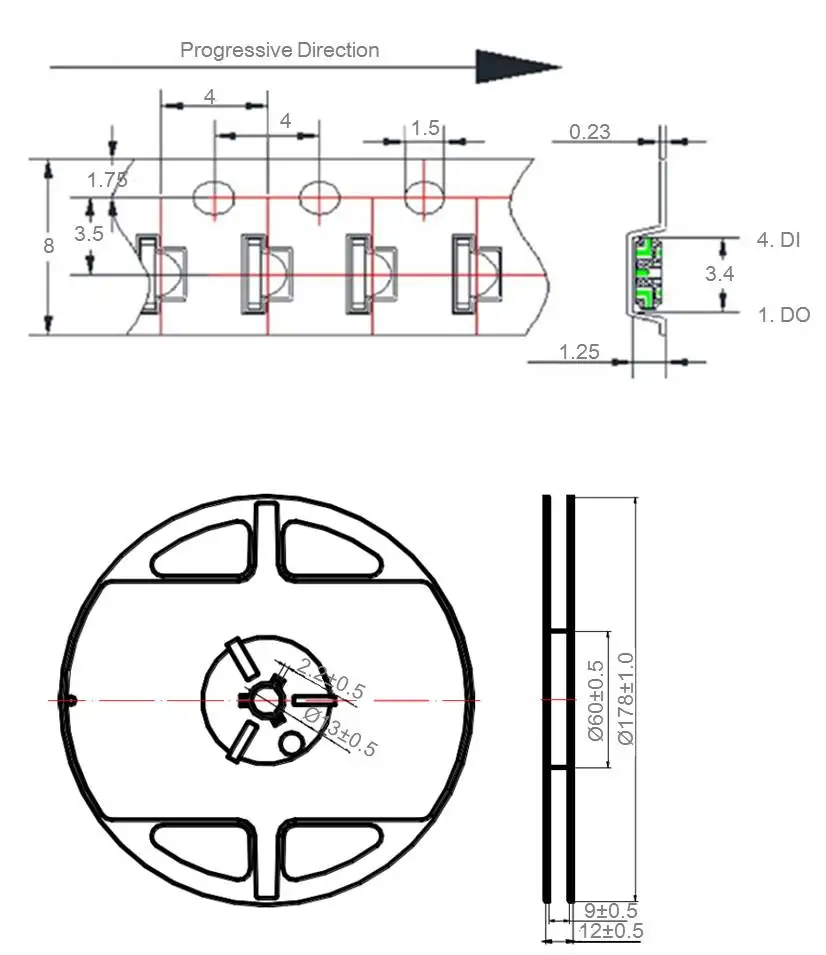

Package Dimensions Of Tape And Reel
