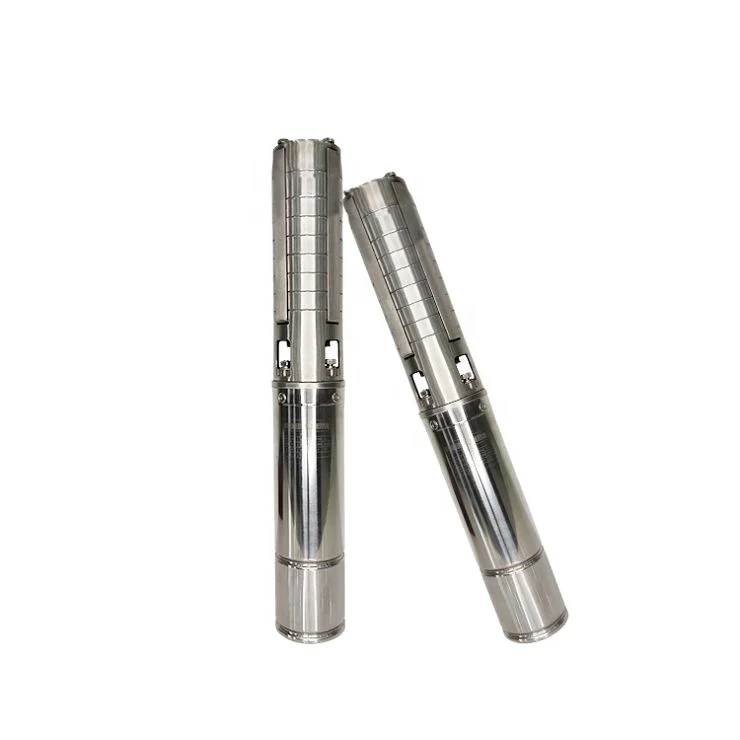

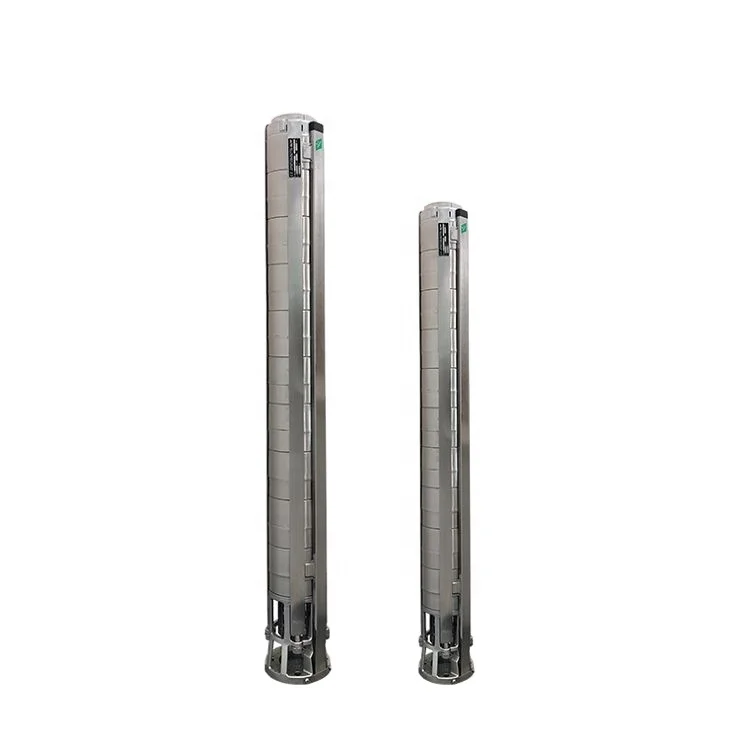

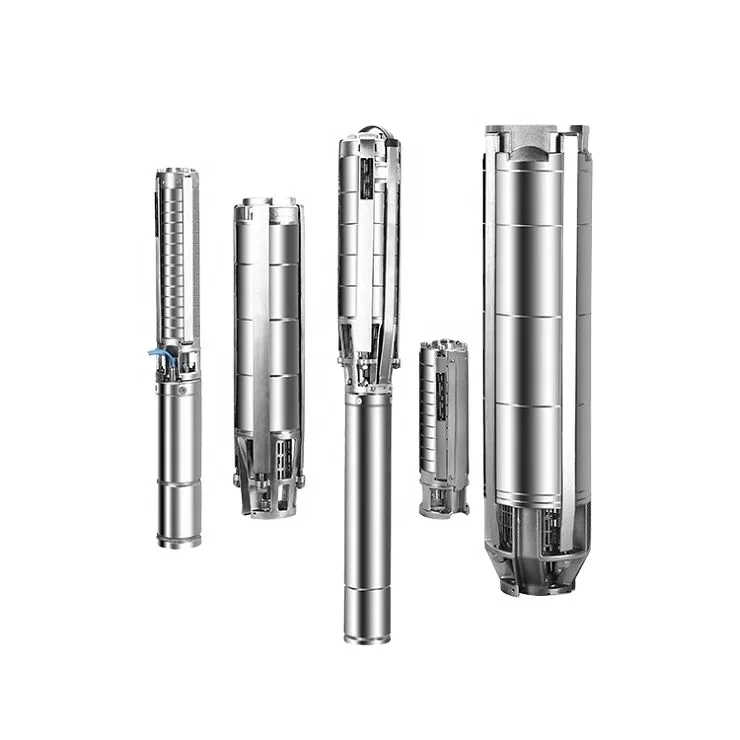

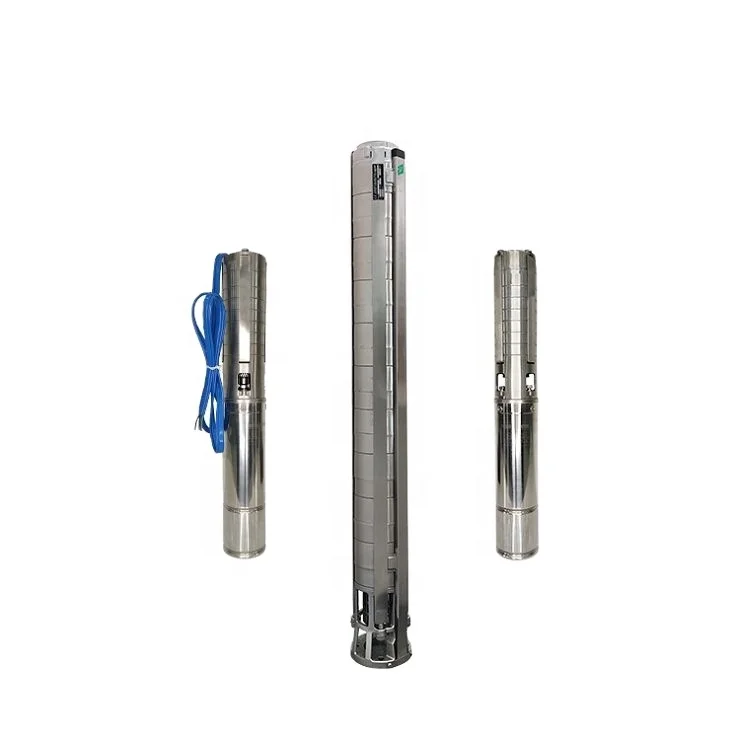

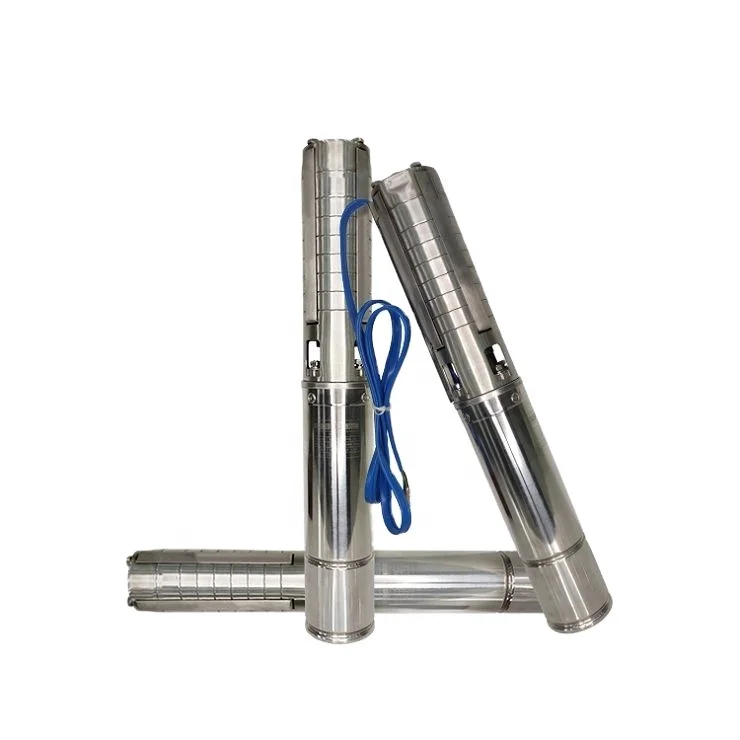

Manufacturer CNP SJ17 60HZ High Pressure Stainless Steel Electric Multistage Deep Well Submersible Water Pump
- Category: >>>
- Supplier: Tiger (hangzhou) Flow Systems Co. Ltd.
Share on (1700002385244):
Product Overview
Description
Recommend Products
Product Description
Product name | Manufacturer CNP SJ17 60HZ High Pressure Stainless Steel Electric Multistage Deep Well Submersible Water Pump |
Material | Stainless Steel(Except Flow Passage Components) |
Packaging | Wooden case or carton box will be provided. |
Product Description
Operation conditions
Clean, thin, non-corrosive liquid without grain or fiber.
Maximum liquid temperature: 25℃
Maximum working pressure: 38bar
pH: 6.5~8.5
Maximum diving depth: ≤70m
For the sake of pump running safely and reliably, user shall install the correct motor protector.
NEMA Motor
4”Motor Stainless steel(there is bronze flange or ss flange), oil-filled motor(transformer oil is standard configuration)
Single phase: 0.37kW~2.2kW
Three phase: 0.37kW~7.5kW
6”Motor Cast iron(Standard), Stainless steel(If required, need to specify)Three phase: 4kW-37kW
8”Motor Cast iron(Standard), Stainless steel(If required, need to specify)Three phase 5.5kW~110kW

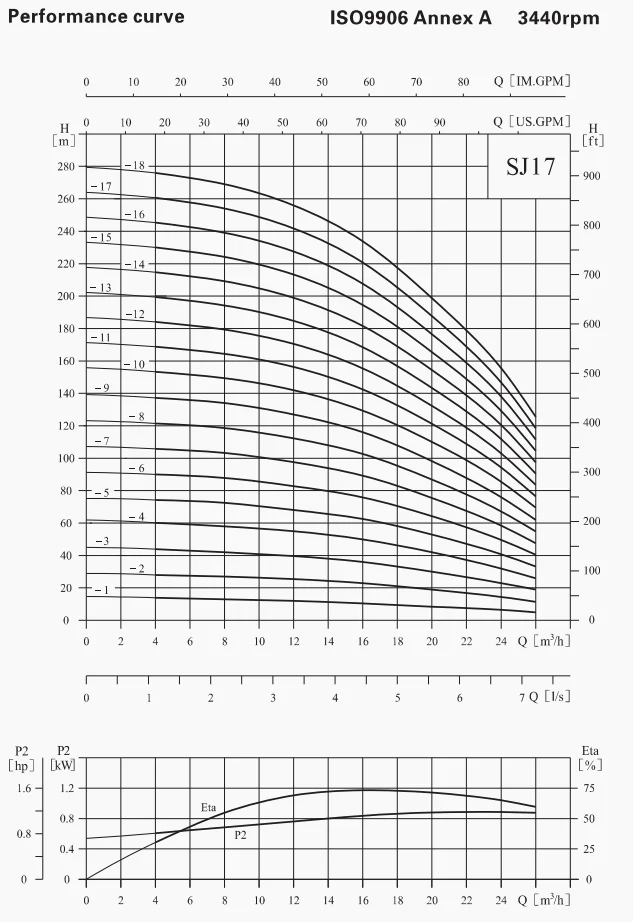

Curve conditions
Curve tolerance inconformity to ISO9906: 2012Grade3B.
All curves are based on the measured values of 60Hz: constant motor speed 3440r/minor 3500r/min.
All measurements are carried out with gas-free water of temperature 20℃. The curve is applicable to kinematical viscosity 1mm-/s.
In case density of the liquid conveyed by the pump is higher than that of water, it is necessary to use corresponding motor of higher output power.
The bold part of the curve means the recommended performance scope.
The performance curve includes loss caused by check valve etc.
Clean, thin, non-corrosive liquid without grain or fiber.
Maximum liquid temperature: 25℃
Maximum working pressure: 38bar
pH: 6.5~8.5
Maximum diving depth: ≤70m
For the sake of pump running safely and reliably, user shall install the correct motor protector.
NEMA Motor
4”Motor Stainless steel(there is bronze flange or ss flange), oil-filled motor(transformer oil is standard configuration)
Single phase: 0.37kW~2.2kW
Three phase: 0.37kW~7.5kW
6”Motor Cast iron(Standard), Stainless steel(If required, need to specify)Three phase: 4kW-37kW
8”Motor Cast iron(Standard), Stainless steel(If required, need to specify)Three phase 5.5kW~110kW
Curve conditions
Curve tolerance inconformity to ISO9906: 2012Grade3B.
All curves are based on the measured values of 60Hz: constant motor speed 3440r/minor 3500r/min.
All measurements are carried out with gas-free water of temperature 20℃. The curve is applicable to kinematical viscosity 1mm-/s.
In case density of the liquid conveyed by the pump is higher than that of water, it is necessary to use corresponding motor of higher output power.
The bold part of the curve means the recommended performance scope.
The performance curve includes loss caused by check valve etc.
Material
NO | Name | Material | ANSI |
1 | Discharge head | SS304 | AISI 304 |
2 | Valve cap | SS304 | AISI 304 |
3 | Discharge diffuser | SS304 | AISI 304 |
4 | Impeller nut | SS304 | AISI 304 |
5 | Impeller | SS304 | AISI 304 |
6 | Impeller cone | SS304 | AISI 304 |
7 | Diffuser | SS304 | AISI 304 |
8 | Straps | SS304 | AISI 304 |
9 | Inducer | SS304 | AISI 304 |
10 | Pump shaft | SS304/420/431 | AISI 304/420/ 431 |
11 | Suction Inter connector | SS304 | AISI 304 |
12 | Neck ring | PBT/NBR | |
13 | Cable guard | SS304 | AISI 304 |
14 | Submersible motor | ||
15 | Inlet spacer | Carbon | |
16 | Connecting sleeve | SS304 | AISI 304 |

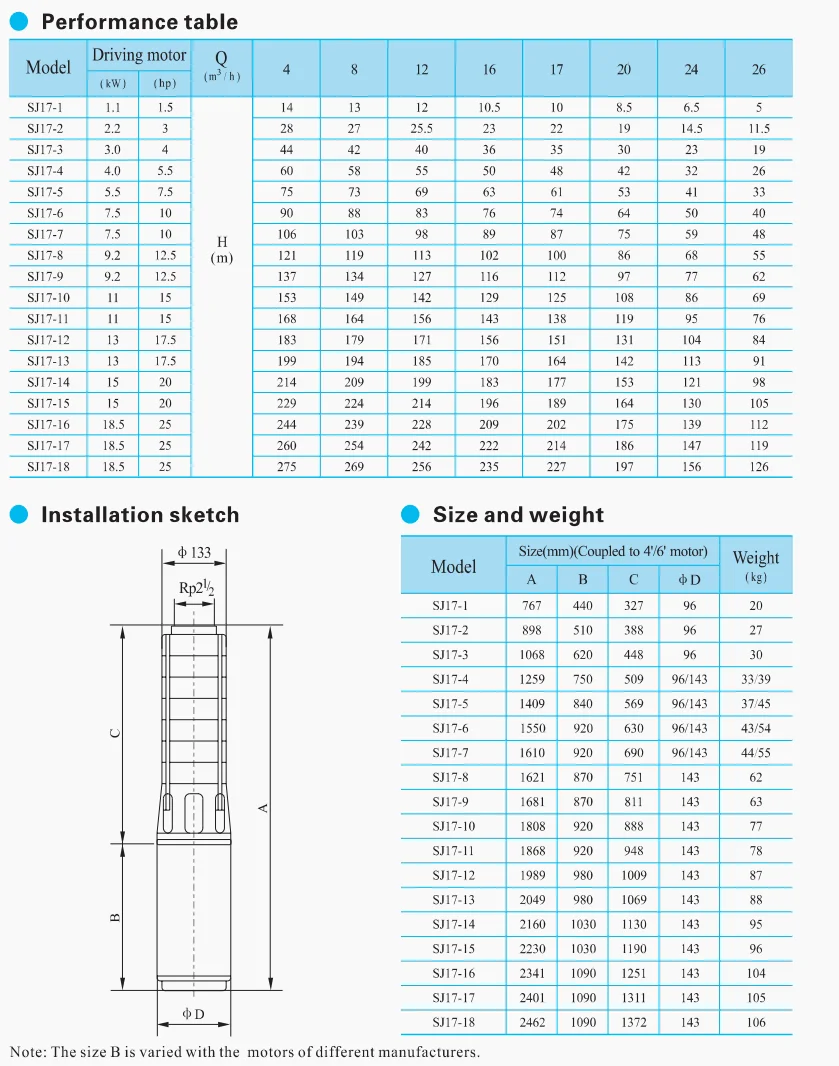

Performance Table
