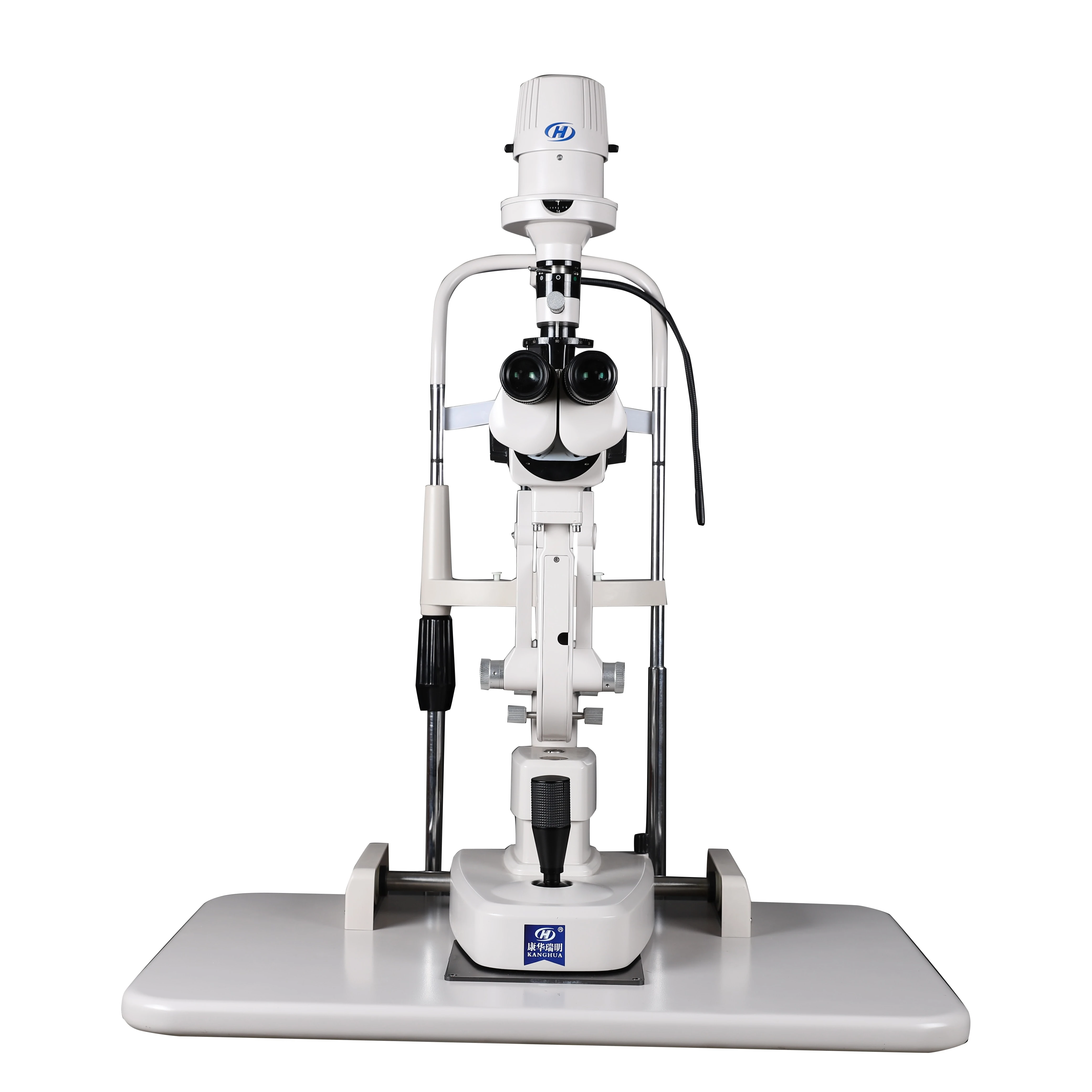

Model | SLM-2ER | |
Microscope Type | Galileo Parallel | |
Magnifications change way | Drum Five Magnifications | |
Eyepiece Magnification | 12.5x | |
Total Magnifications | 6X 10X 16X 25X 40X | |
Diopter Adjustment | -5D ~ +5D | |
Illumination | Three Steps (Stepless Optional) | |
Slit Width | 0-14mm Continuous | |
Slit Height | 1-14mm Continuous | |
Slit Angle | 0°-180° Adjustable | |
Slit Inclination Angle | 5° 10° 15° 20° | |
Light Source | ||
Light Spot Diameter | 0.2mm,1mm,2mm,5mm,10mm,14mm | |
Filter | Heat Absorption;Grey;Redfree;Cobalt Blue | |
Fixation | Red LED | |
Electrical | ||
Illumination Bulb | German Osram Halogen Tungsten Lamp Led Lamp (Optional) | |
Input Voltage | 110V/220V(±10%) | |
Input Power | 60VA | |
Diffuse Lens | Yes | |
Preset Lens | Yes | |
Laser Interface | Optional | |
Applanation Tonometer Interface | Yes | |
Base Movement | X: 100mm ± 3 Y: 75mm ± 3 Z: 30mm ± 3 |
