China factory supply Split set Friction Bolts Used in Mining Support for Bolting Roof Split Sets tunnel Support System
- Category: >>>
- Supplier: HENAN ZHONGXIANG MATERIAL TRADING CO. LTD.
Share on (1700002602191):
Product Overview
Description
Products Description

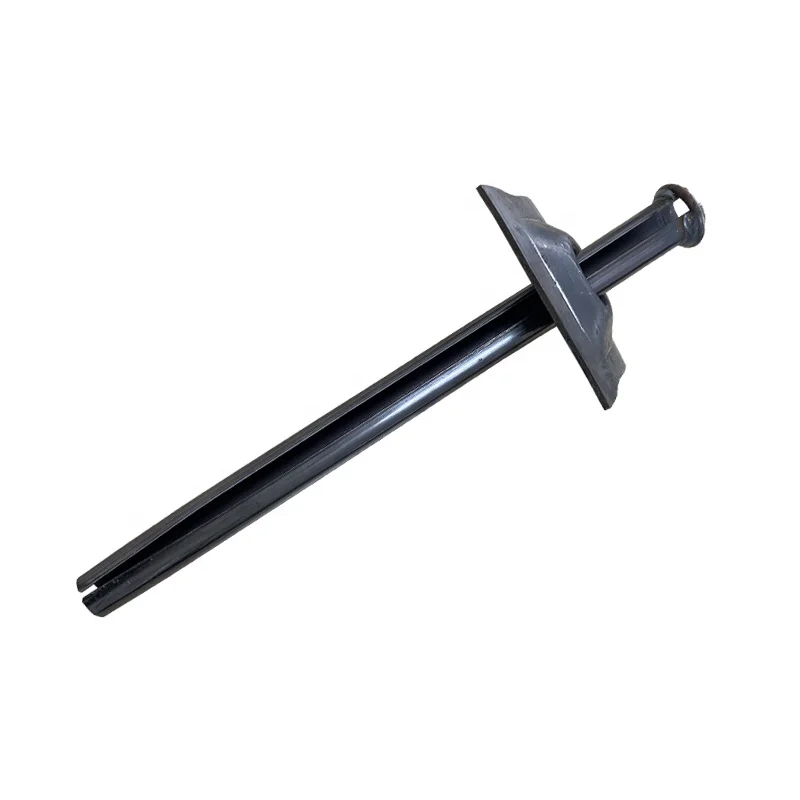

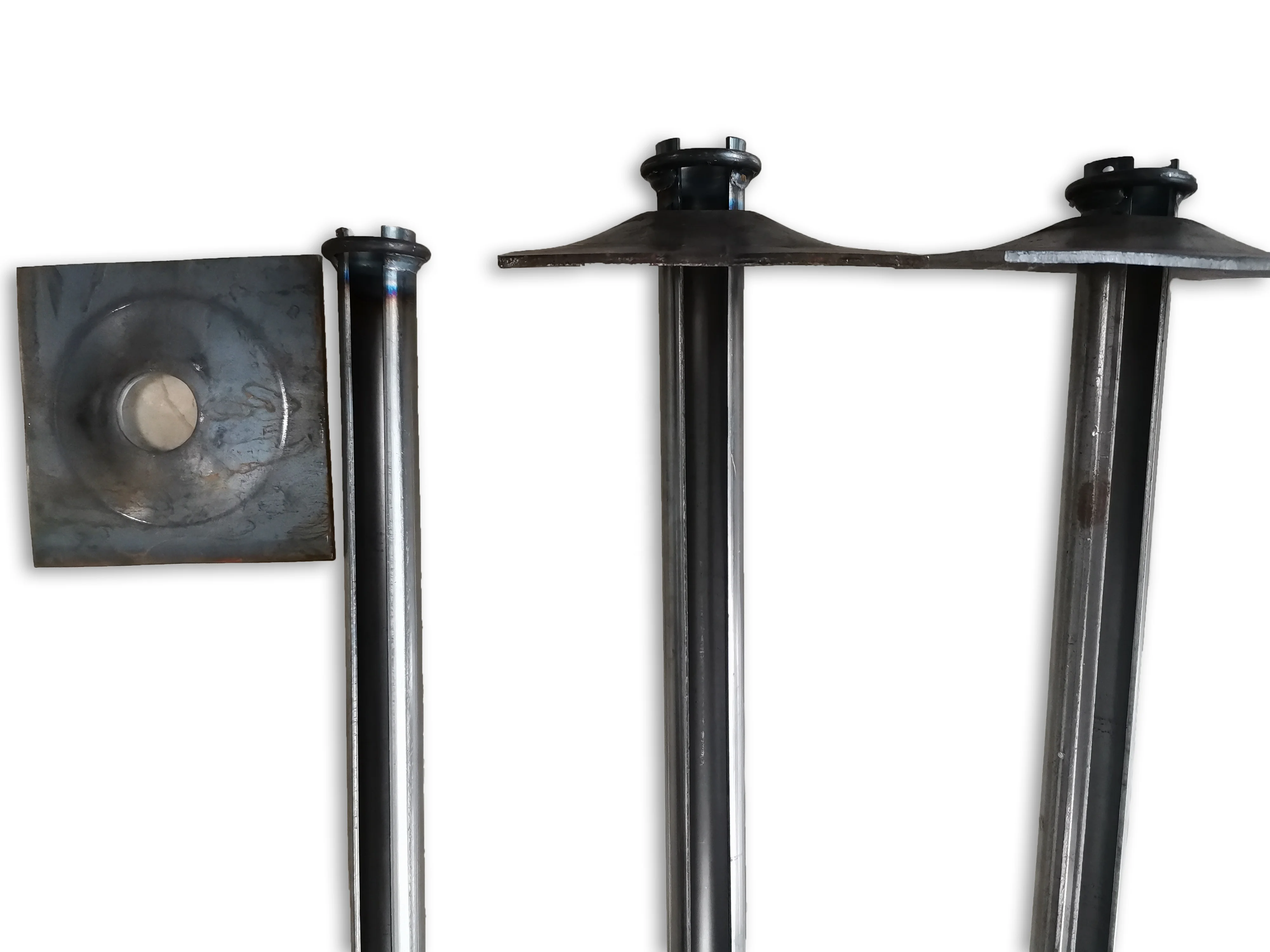

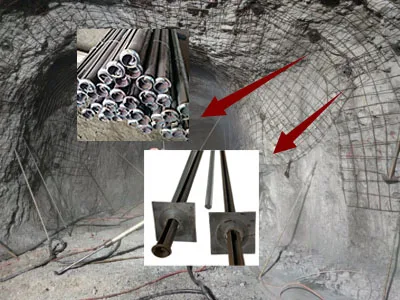

Split Set
The split bolt is a new type of anchor that fully anchors the rock and actively strengthens the surrounding rock, its three-dimensional part is a longitudinally slit high-strength steel pipe.
Features & Advantages
1. Made from high strength steel band
2. Immediate frictional support in axial and radial
3. Independent support without plate
4. Easy for installation
5. Simple design, cost saving
6. Available in black, cold galvanized or hot dip galvanized
1. Made from high strength steel band
2. Immediate frictional support in axial and radial
3. Independent support without plate
4. Easy for installation
5. Simple design, cost saving
6. Available in black, cold galvanized or hot dip galvanized

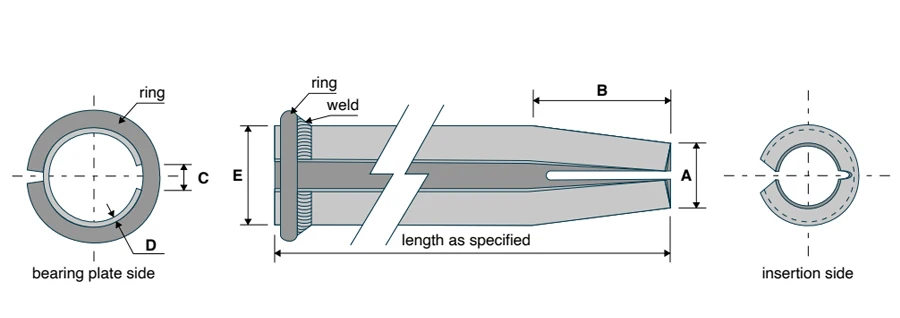

SS-33(mm) | SS-39(mm) | SS-42(mm) | SS-47(mm) | |
A | Taper Diameter | 28 | 30 | 34 |
B | Taper Length | 60 | 65 | 75 |
C | Slot Width | 12 | 16 | 20 |
D | Steel Thickness | 2.3 | 2.3 | 3 |
E | Bolt Size | 33 | 39 | 42 |
Dia. | 33mm | 39mm | 42mm | 47mm | |||||
Thickness | 1.8-3.2mm(or as per customer requirements) | ||||||||
Slot Size | 6-8mm(or as per customer requirements) | ||||||||
Elongaion | >16% | ||||||||
Anchoring | 3-16 Tons | ||||||||
Min. Yield Strendth | 78kn | 88kn | 95kn | 124kn | |||||
Min. Breaking Strength | 103kn | 116kn | 123kn | 160kn | |||||
Max. Breaking Strength | 117kn | 132kn | 140kn | 186kn | |||||

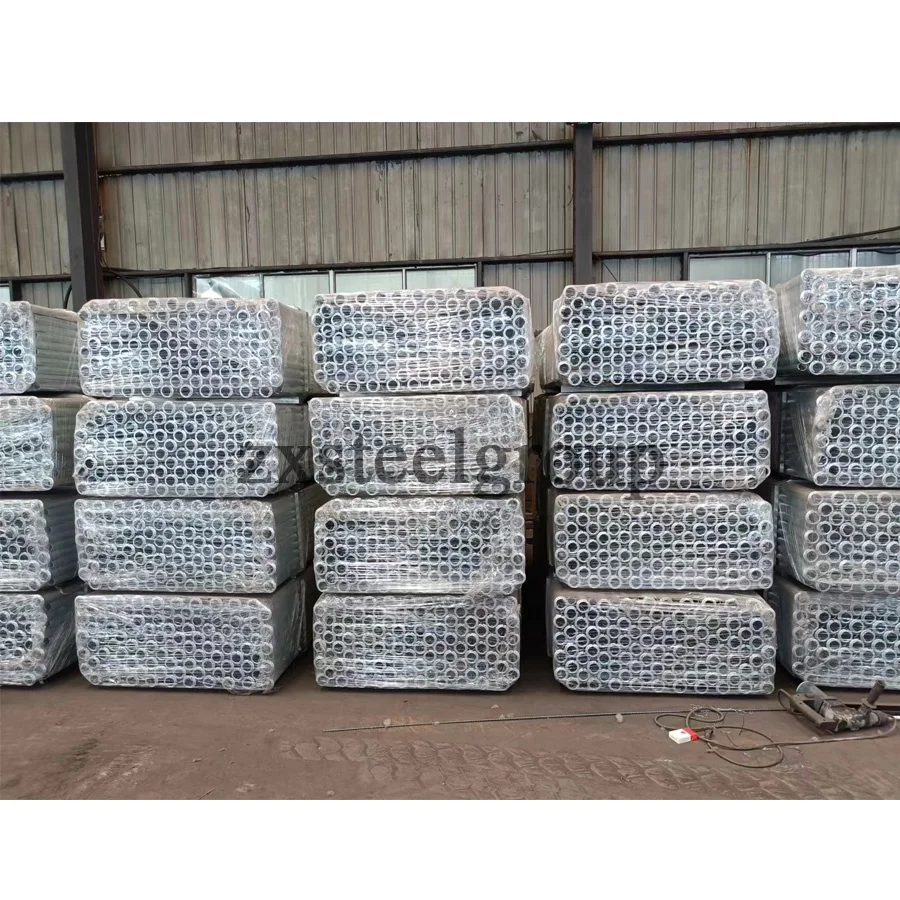

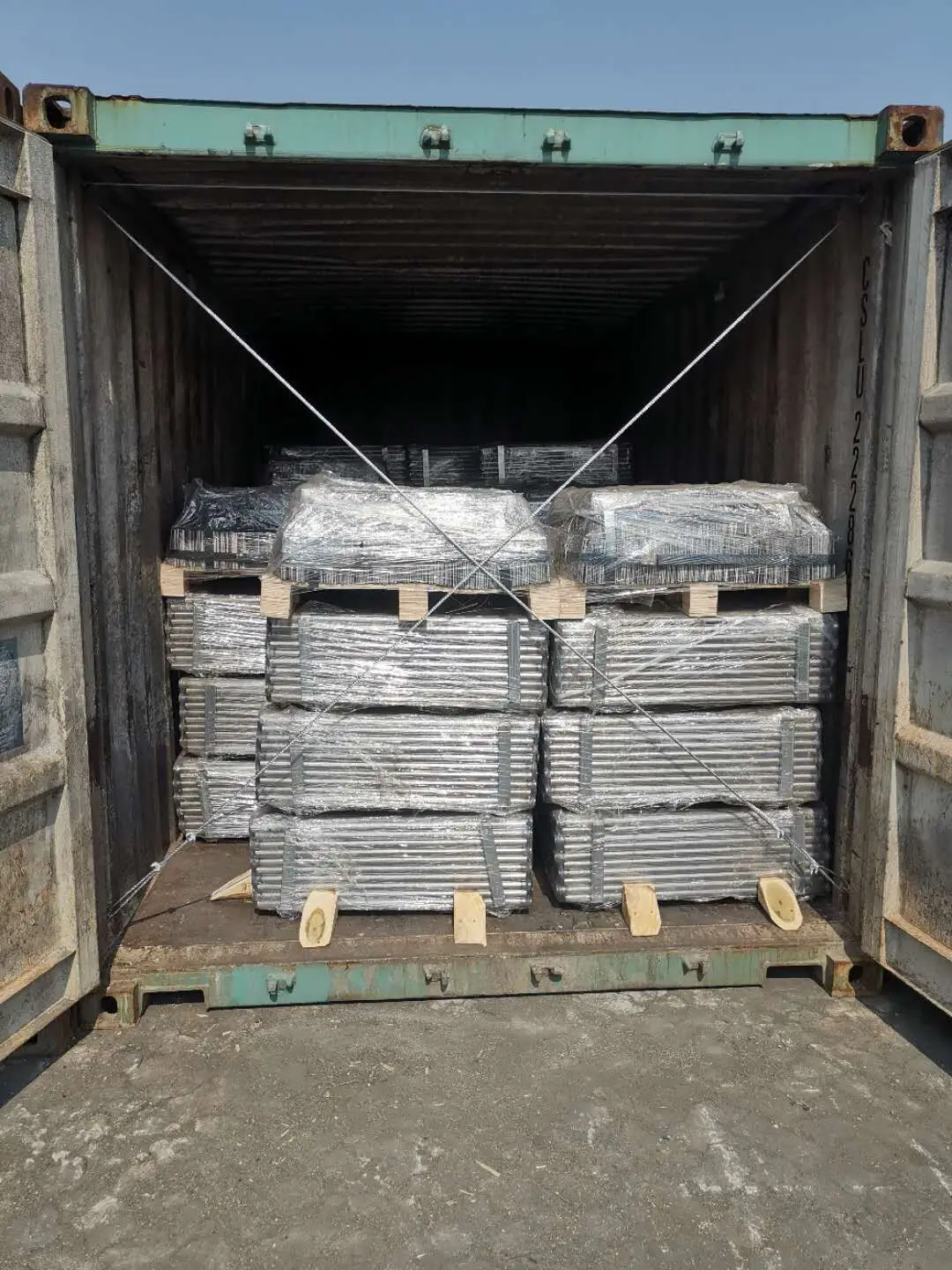

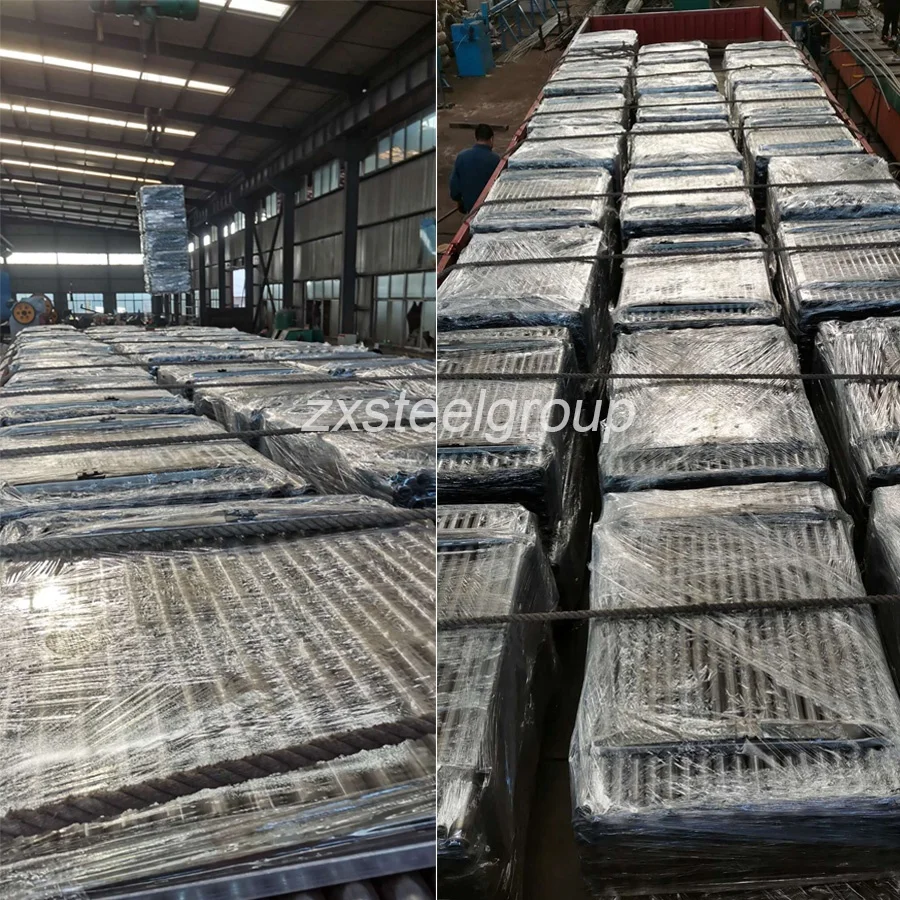

Packaging and Shipping
Packaging Details: packed in bundle with iron wire or as your request
Delivery Details: Within 15-21 workdays after receiving your payment
Delivery Details: Within 15-21 workdays after receiving your payment
Our products are shipped to all parts of the world, and will be shipped as soon as possible after receiving your order, and we will promptly tell you about all the movements of the products.

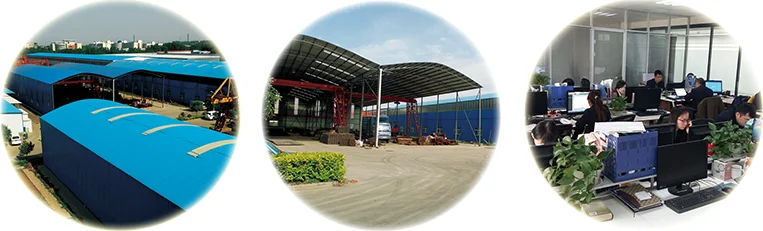

Company Profile
Henan Zhongxiang Heavy Industry Import & Export Co., Ltd
large inventory,factory direct sales,high processing capacity,quick response around the clock
ZX Steel Group has been engaged in steel trade plate processing nearly 20 years. We establish branch companies and processing plants in Shanghai, Henan, Hebei, Guizhou.We strive to provide customers with more convenient, thoughtful, high quality service.And our products have been exported to countries and regions over the world, like Russia, India, Pakistan, Thailand, Korea,Brazil, South Asia and so on.We have inventory, resources, and experience to meet your needs.
Large inventory
Trade show
Certification
We adhere to ISO9001-2008 quality control system. We have also obtained the production license of railway products from The Ministry of Railways of China.
Customer Photo
Contact us
Contact Person | Ethan Xie |
Mobile | +86-199 3712 3680 |
wechat /whatsapp | +86-199 3712 3680 |
ADD | No. 2206, Flat A, Zensun International Plaza, Weilai Road, Hanghai Road, Zhengzhou, Henan, China |
Email | zxminesupport@zxsteelgroup.com |
Related Products

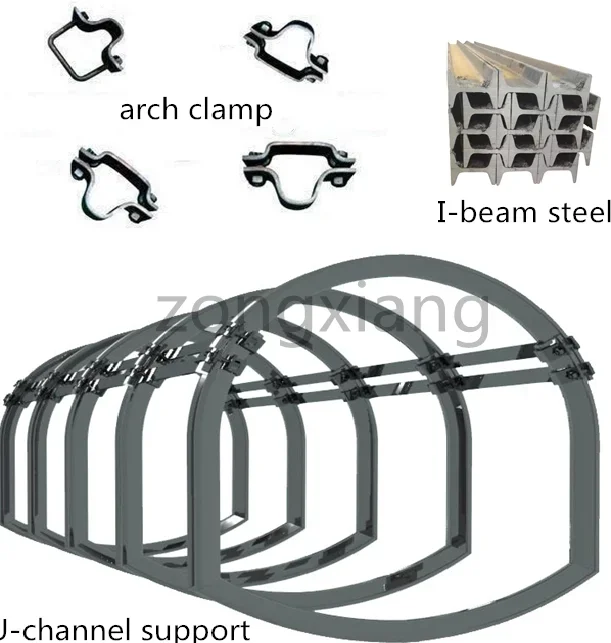

In addition to steel rail, our company also have accessories of steel rail(bolts and nuts, fishplate, rail base plate, rail clip, rail spike, turnout and so on.) and u-channel support, arch clamp, i-beam steel.
