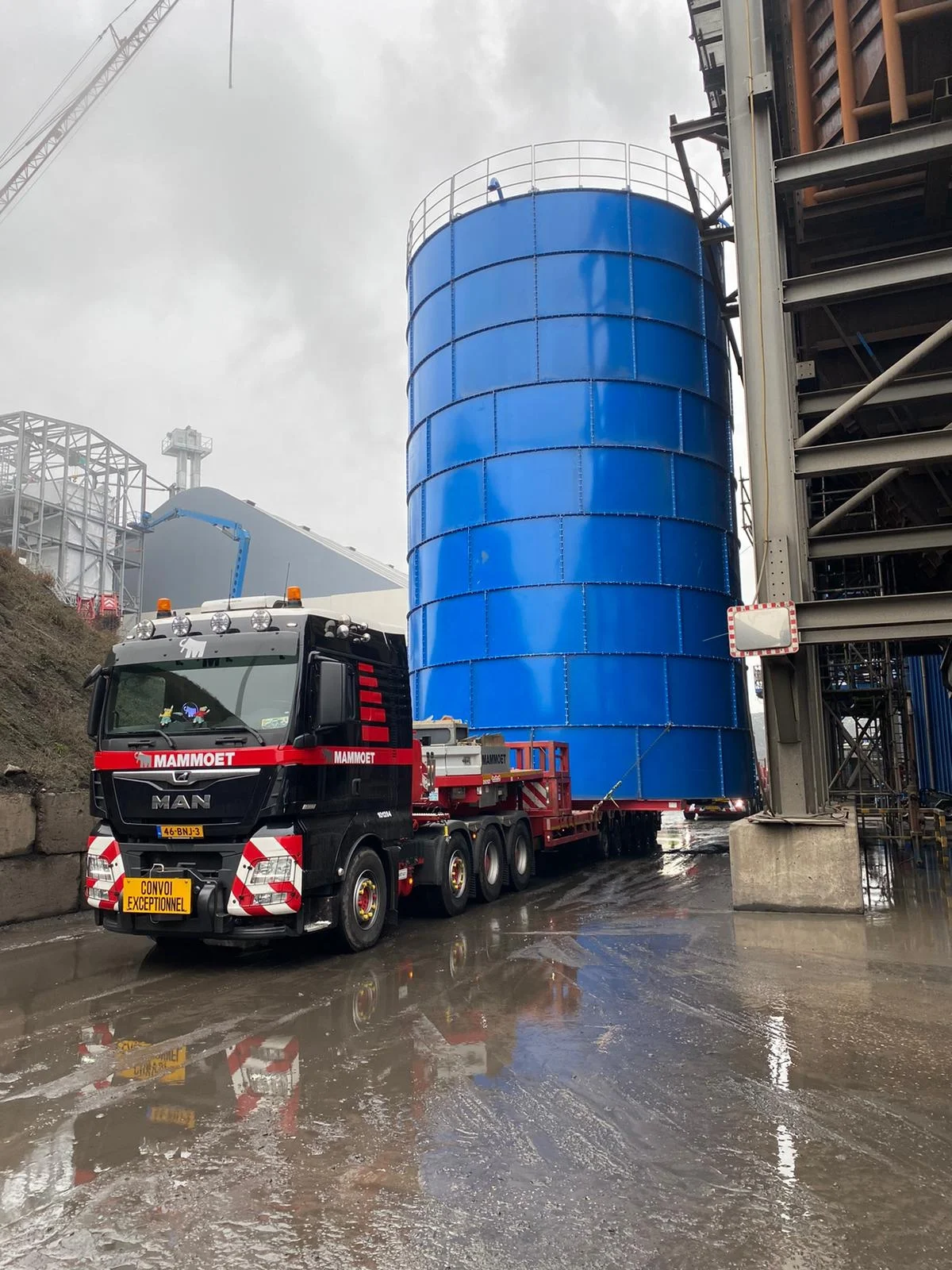

1000 ton Capacity CEMENT SILO, TRUCK LOAD TERMINAL

CONSTMACH manufactures cement silos which has stock capacity from 30 to 3000 tons as welded and bolted types.

Parts of bolted type cement silos are manufactured by sensitive laser cutting and drilling methods. In jobsite, parts of cement silos can be assembled easily and sensitively.
Our cement silos includes all necessary accessories such electronic filter, filling pipe, butterfly valve, level indicator, safety valve, airjet pulse, manhole etc.

Parts of bolted type cement silos are manufactured by sensitive laser cutting and drilling methods. In jobsite, parts of cement silos can be assembled easily and sensitively.
Our cement silos includes all necessary accessories such electronic filter, filling pipe, butterfly valve, level indicator, safety valve, airjet pulse, manhole etc.

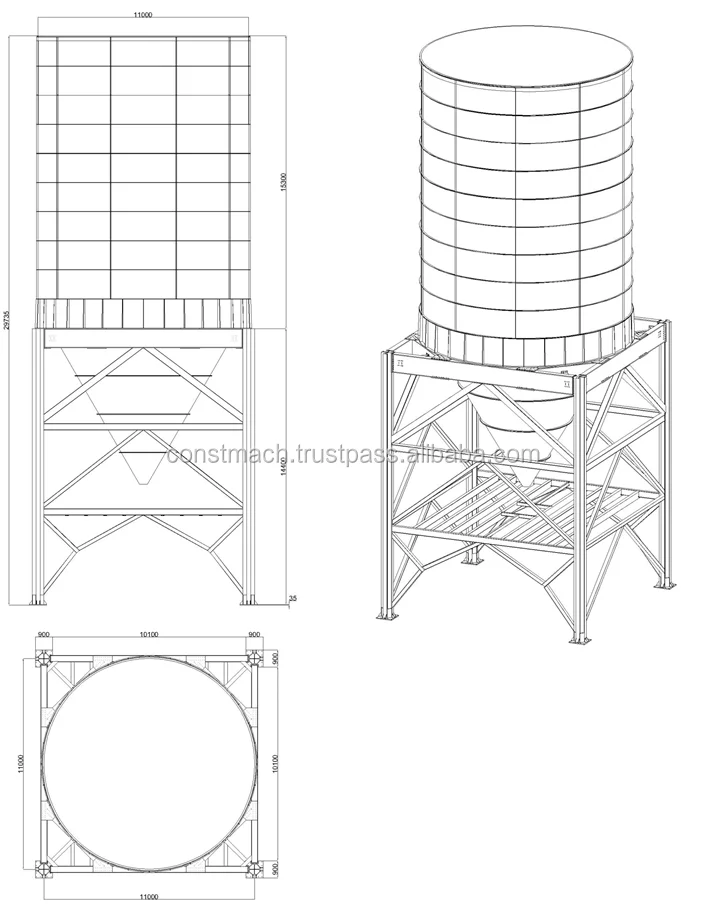

1. SILO CAPACITY : 1000 TONS
2. SILO HEIGHT: 20840 mm
3. SILO DIAMETER: Ø 8250 mm
4. QUANTITY OF SILO LEGS: 8
5. SILO OUTPUT DIAMETER : Ø 300 mm
6. NUMBER OF COMPONENTS : 191
7. SILO WEIGHT : 72000 kg

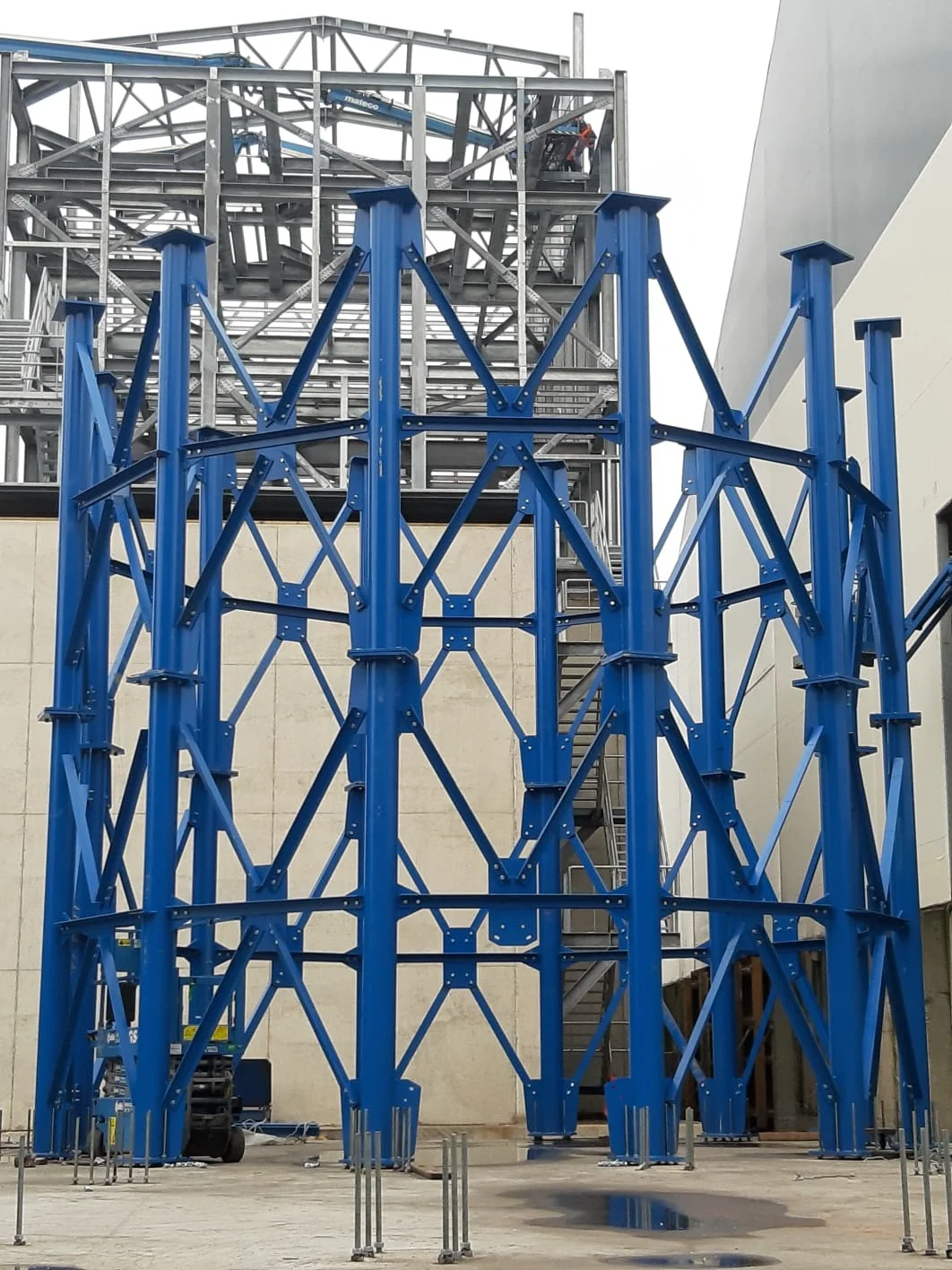

8. MATERIAL OF SILO LEGS : Ø273 x 10 mm STEEL PIPE
9. SUPPORT OF SILO LEGS : 100 mm C CHANNEL
10. SHEET METALS OF SILO LEG : 25-30 mm

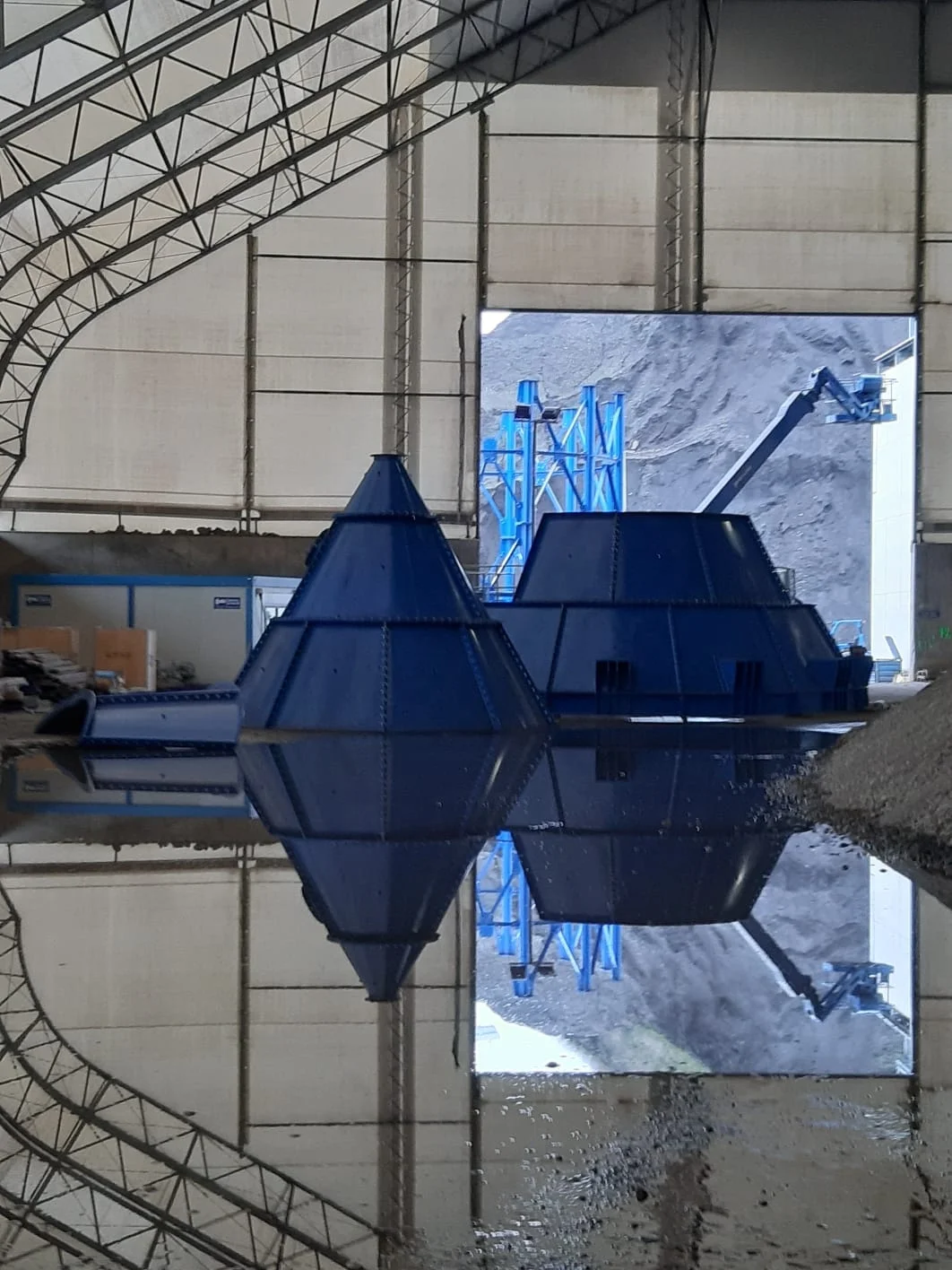

11. CONICAL PART SUPPORT MATERIAL : 160 mm STEEL C CHANNEL.
12. CONICAL PART MATERIAL : ST- 37, 10 mm SHEET METAL
13. SILO BODY MATERIAL : ST -37, 15 - 8 - 6 mm SHEET METAL
14. TOP COVER MATERIAL OF SILO : ST -37, 5 mm SHEET METAL.
15. INNER MAN HOLE IS INCLUDED.
16. OUTER MAN HOLE IS INCLUDED.
17. SILO ROOF INCLUDES PAREPETS.
18. MAINTENANCE PLATFORM IS INCLUDED.
19. CHARGING PIPE : 4’’ PIPE UP TO SILO LEG.
20. STRUCTURAL ANALYSIS IS MADE FOR THE SILOS AND MANUFACTURING PROCESS DEPENDS ON APPROVED PROJECTS.

Assembly & Training

- Assembly
- Commissioning of the plant
- 7 days free training & test production.

After-Sales Service

* 2 YEARS WARRANTY
* Engineers available to service machinery overseas.
* 10 YEARS SPARE PARTS WARRANTY
