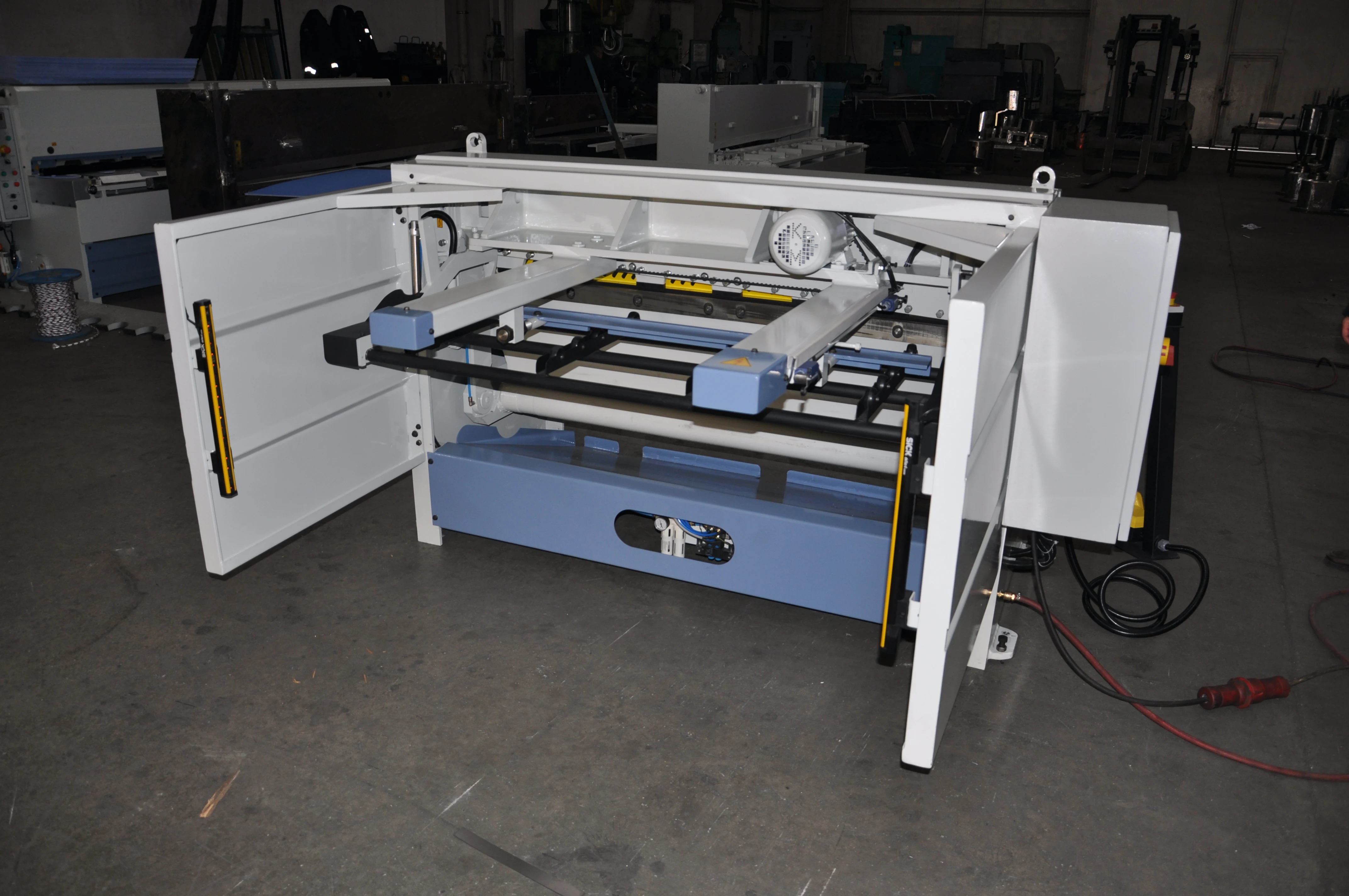

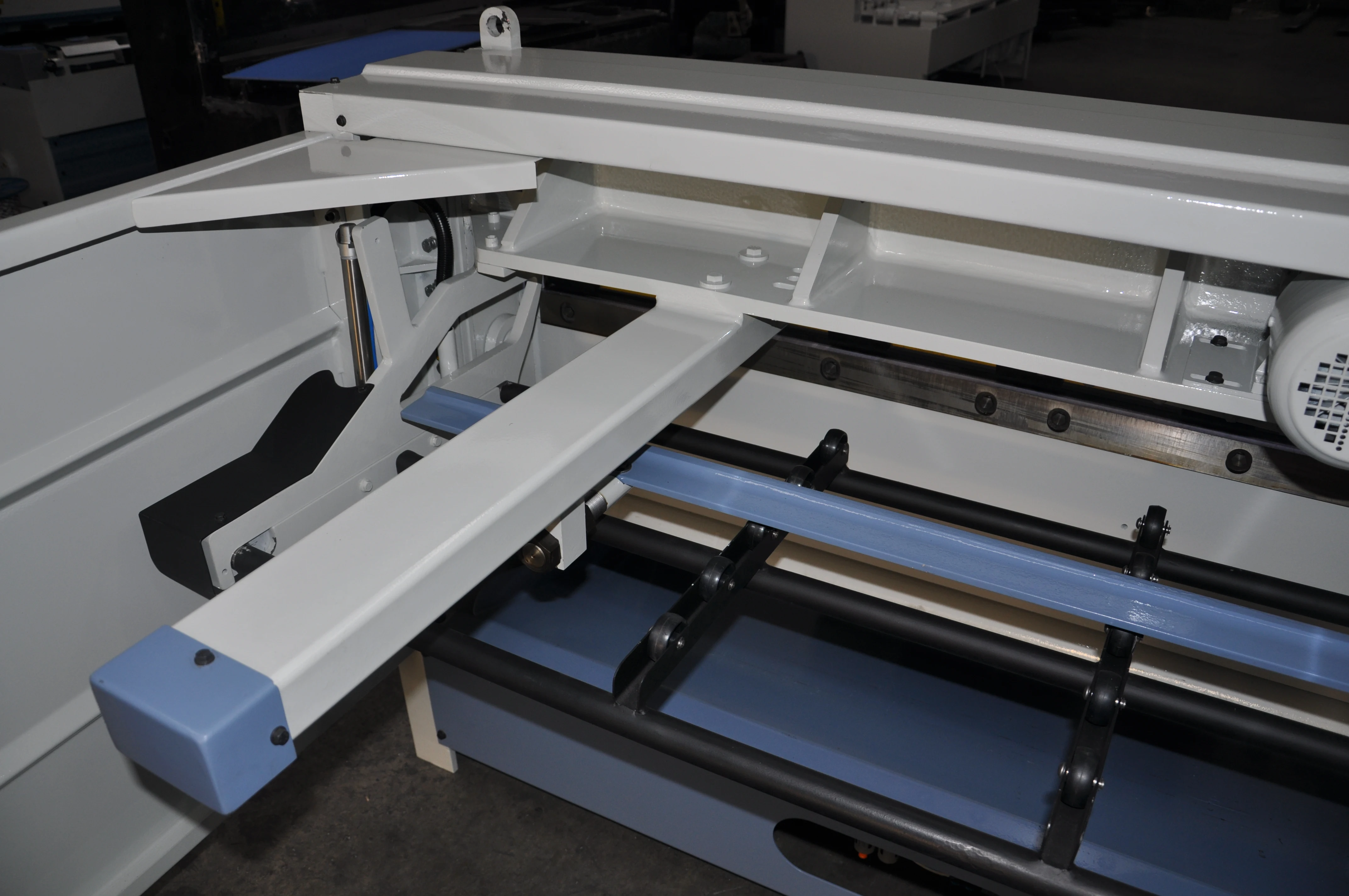

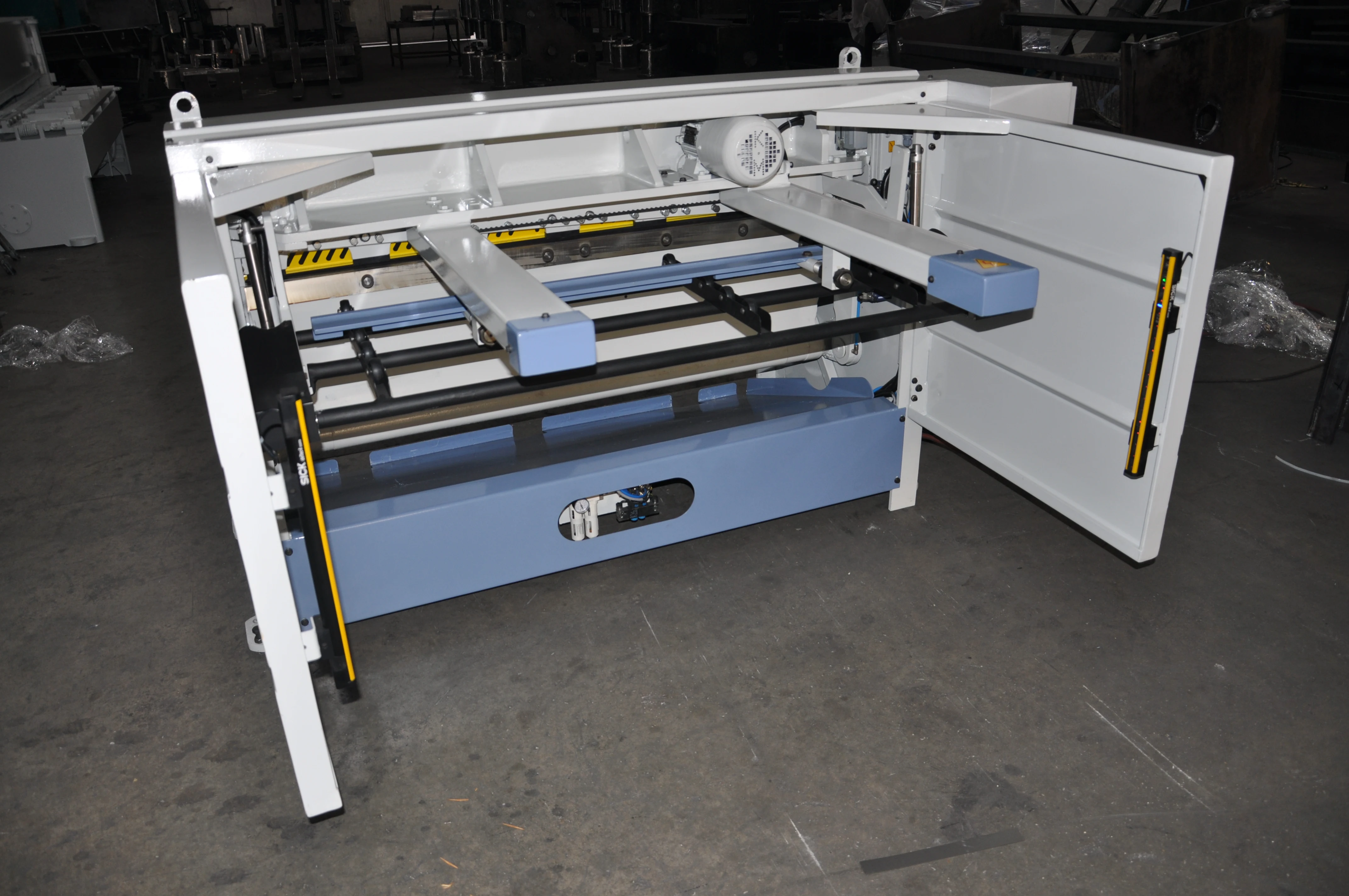

DIRECT GEAR MOTORISED GUILLOTINES (FRONT DROP)
- Category: >>>
- Supplier: EBR METAL MAKINE IC VE DIS TICARET LIMITED SIRKETI
Share on (1700002727328):
Product Overview
Description
Product Description
· Welded steel construction
· High carbon/high chrome, two edged top, four edged bottom blades.
· Cutting beam working in perfectly sliding, durable teflon slideways
· Easy blade gap adjustment in front
· Mechanical sheet clamping system
STANDARD EQUIPMENTS
· Manual backgauge with 750 mm stroke
· Return to sender feature up to 400 mm
· Squaring arm with T slot, stoper and ruler
· Foot pedal
· Cutting Unit Counter
· Front sheet holding arms
· Finger protection cages
· Rear protection cages with photocell
· Table with ball transfer
· Cutting line illumination
OPTIONAL EQUIPMENTS
· NC controlled backgauge with 750 mm stroke
· NC controlled backgauge with 1000 mm stroke
· Pneumatic sheet support system with return to sender & return to rear feature
· Rear protection cages with light barrier
· 0-180 º angular cutting device
· Cutting line illumination with shadow wire
· Elgo NC Control unit
· Touchscreen control unit
· Longer squaring arm and front sheet holding arms up to 3000 mm
· Front operated manual backgauge with ball screw
· High carbon/high chrome, two edged top, four edged bottom blades.
· Cutting beam working in perfectly sliding, durable teflon slideways
· Easy blade gap adjustment in front
· Mechanical sheet clamping system
· NC controlled backgauge with 1000 mm stroke
· Pneumatic sheet support system with return to sender & return to rear feature
· Rear protection cages with light barrier
· 0-180 º angular cutting device
· Cutting line illumination with shadow wire
· Elgo NC Control unit
· Touchscreen control unit
· Longer squaring arm and front sheet holding arms up to 3000 mm
· Front operated manual backgauge with ball screw
MODEL | GMRL-R 2060 | GMRL-R 2560 | GMRL-R 3060 | |
Shearing Capacity | 4 | 4 | 4 | mm |
Max. Shearing Length | 2060 | 2560 | 3060 | mm |
Strokes Per Minute | 31 | 31 | 31 | |
Motor Power | 7,5 | 7,5 | 11 | kw |
Table Height | 800 | 800 | 800 | mm |
Table Width | 455 | 455 | 455 | mm |
Back Gague Distance | 750 | 750 | 750 | mm |
Width | 2250 | 2250 | 2250 | mm |
Length | 2600 | 3100 | 3600 | mm |
Height | 1400 | 1400 | 1400 | mm |
Apporoximate Weight | 3150 | 3650 | 4150 | kg |
Company Profile
EBR METAL has been producing sheet metal working machines with its production experience accumulated for many years.
Our company started production in 2002 with sheet metal working machines and our production portfolio has expanded at a short notice and our products have started to be sold domestically and abroad.
Our products are sold under the EBR METAL brand, which we derived from engineering, bending and rolling solutions. Our company has determined the concepts of trust, solution creation, problem solving, customer satisfaction, innovation as the strategy of EBR METAL brand.
EBR METAL has chosen to make our high quality products easily accessible for everyone. EBR METAL does not compromise on innovation, ethical behavior, reliability, on-time delivery, high quality and low cost principles to achieve this goal.
Our products are sold to 25 countries in 5 continentals for now and our numbers are growing every year.
We produce:
Sheet metal folding machines
Sheet metal cutting machines
Sheet metal bending machines
Steelworkers and punching machines
