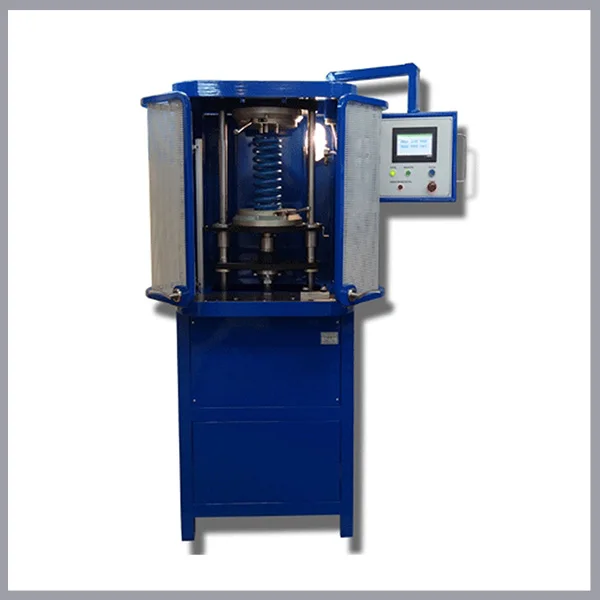

TEST BENCH FOR TESTING SPRINGS, SPTE 100

The equipment is designed for accurate measurement of springs stretching, compression and twisting, analysis of their quality.



The equipment is a test bench for placing and fixing the tested spring where the article diameter and positioning are adjusted. There are also testing sensors (strain rate control) installed on the fixing cross-beams. Testing parameters are set from a control panel.



The process of tests carried out and their results are recorded in a digital format and may be copied to a digital medium (memory stick).



Options	Value
Range of controlled loads	5... 10,000 kg
Range of exterior diameters	25... 300 mm
The height of the springs tested	50... 500 mm
highest marginal load	100 KN
Workspace width	350mm
active traverse	0... 550mm
Type of measuring systems	Electronic
discreteness of line movement report	0.01 mm
Absolute-type sensor (magnetostction), working range	0… 550 mm
Error of measurements	±0,25 mm
discrete weight-measuring system	0.1 kg
Sensor accuracy class	C3
Measurement error (on verification)	±2%(100-10000 kg) ±15% (5-100 kg)
Type of drive	Electromechanical, precision
Size, mm	1450x965x2085
Power supply	220/380V 50Hz
Engine power, kW	2,2



The CJSC Enterprise “Special Technologies” is a developer and a manufacturer of the equipment offered for delivery, the equipment is produced in the manufacturing area and on the machine-tool equipment owned by the CJSC Enterprise “Special Technologies”. The product will undergo the factory acceptance test in accordance with normative and technical documentation, manufacturer’s manuals and additional requirements specified by the Parties.
