High Quality Bulletproof Glass for Armored Brand Hilux Pickup
- Category: >>>
- Supplier: DYNAMIC DEFENSE SOLUTIONS FZE
Share on (1700002846637):
Product Overview
Description
Product Description

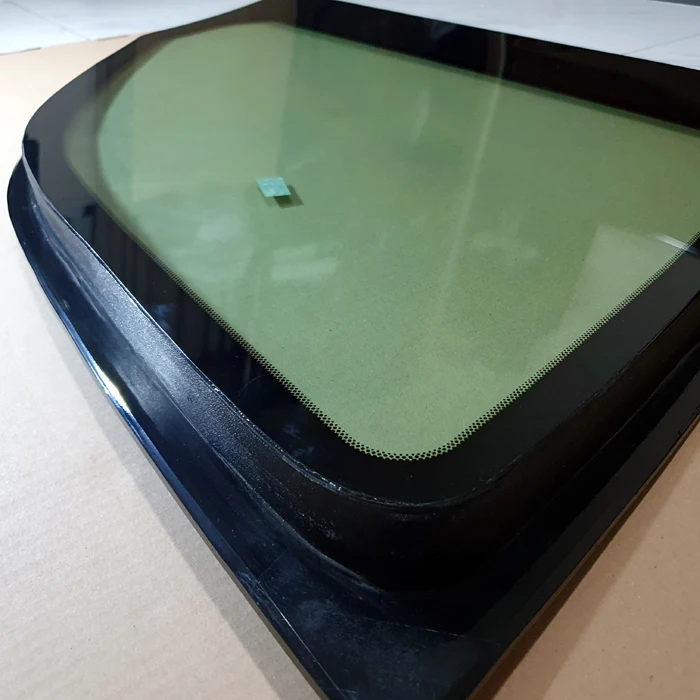

Dynamic Defense Solutions supplies Premium Quality Armored Toyota Hilux Pickup 4×4 Truck Bulletproof Glass. It is Designed to protect from projectiles penetration so it gives high level protection. It is composed of several layers of glass bonded with PVB and PU layers.
Transparent armor is a strong clear material that is resistant to penetration. Like any other material, it is not completely impossible to pass through. It is made from a combination of two or more types of glass, one hard and one soft. The softer layer makes the glass more elastic, so it can flex instead of shatter. The index of refraction for both of the glasses used in the layers must be almost the same to keep the glass transparent and allow a clear view through the glass.
Bullet-resistant glass is constructed using layers of laminated glass. The more layers there are, the more protection the Laminated Glass offers.We pay Special attention to index of refraction for instance, so the final product provides un distorted view. As a result the optical clarity and quality of our glass is second to none.
We have ready designs for Sedan Cars, SUV, Trucks and Buses. Solutions also available for Civil and Military Applications APC, MRAP, Guard Rooms, Safe Houses.
We have vision of Delivering high performance products for Armored Cars. Our hard work and dedication to supply premium quality solutions have saved countless lives.
https://www.dynamicdefensesolutions.com/contacts.html
THREAT LEVELS – ARMORING PROTECTION LEVEL FOR Bulletproof Glass Toyota Hilux Pickup 4×4 Truck
Armoring Protection Level Standards EN 1063, or CEN 1063, is a security glazing standard created by the European Committee for Standardization for measuring the protective strength of bullet-resistant glass. It is commonly used in conjunction with EN 1522 (Euronorm standard for Bullet Resistance in Windows, Doors, Shutters and Blinds) to form a ballistic classification system by which armored vehicles and structures are tested and rated. A similar classification system primarily used in the United States is NIJ Standard 0108, the U.S. National Institute of Justice’s Standard for Ballistic Resistant Protective Materials which includes glass and armor plate.
The protective strength of a glazed shielding is rated based on the type of munitions, or threat level, it is capable of withstanding. There are 7 main standard threat levels: BR1-BR7 (also written as B1-B7), each corresponding to a different type of small arms fire. Additionally, there are two other threat levels (SG1 & SG2) corresponding to shotgun munitions.
To be given a particular rating, the glazing must stop the bullet for the specified number of strikes, with multiple strikes placed within 120mm of each other. The glazing should also be shatterproof and produce no spalls after each strike. Lastly, the classification levels are numbered in order of increasing protective strength. Thus any sample complying with the requirements of one class also complies with the requirements of previous classes. However, the SG (shotgun) classes do not necessarily comply with BR classes.
The precise test requirements and bullet types used for Armoring Protection Level Standards are as follows:
| Class | Weapon | Caliber | Type | Weight (g) | Range (m) | Velocity (m/s) | Impact Energy | Shots |
| BR1 | Handgun/Rifle | .22 LR | LB/RN | 2,6 ± 0,1 | 10,00 ± 0,5 | 360 ± 10 | 170 J | 3 |
| BR2 | Handgun | 9×19mm Parabellum | FJ/RN/SC | 8,0 ± 0,1 | 5,00 ± 0,5 | 400 ± 10 | 640 J | 3 |
| BR3 | Handgun | .357 Magnum | FJ/CB/SC | 10,2 ± 0,1 | 5,00 ± 0,5 | 430 ± 10 | 940 J | 3 |
| BR4 | Handgun | .44 Magnum | FJ/FN/SC | 15,6 ± 0,1 | 5,00 ± 0,5 | 440 ± 10 | 1510 J | 3 |
| BR5 | Rifle | 5.56×45mm NATO | FJ/PB/SCP | 4,0 ± 0,1 | 10,00 ± 0,5 | 950 ± 10 | 1800 J | 3 |
| BR6 | Rifle | 7.62×51mm NATO | FJ/PB/SC | 9,5 ± 0,1 | 10,00 ± 0,5 | 830 ± 10 | 3270 J | 3 |
| BR7 | Rifle | 7.62×51mm NATO | FJ/PB/HC | 9,8 ± 0,1 | 10,00 ± 0,5 | 820 ± 10 | 3290 J | 3 |
LB – Lead Bullet
FJ – Full Metal Jacket
FN – Flat Nose
RN – Round Nose
CB – Cone Bullet
PB – Pointed Bullet
SC – Soft Core (lead)
SCP – Soft Core (lead) & Steel Penetrator
HC – Hard core, steel hardness
