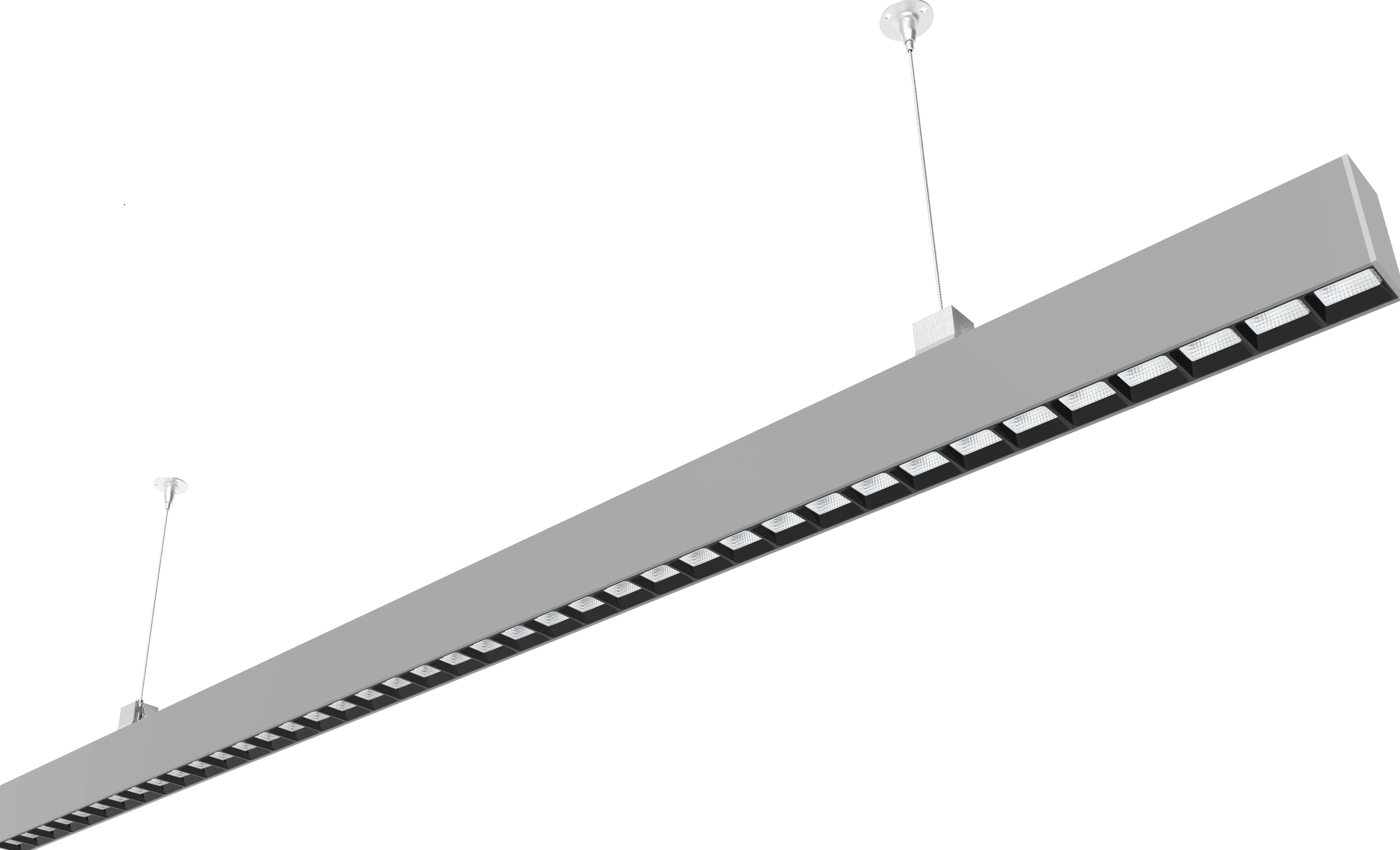

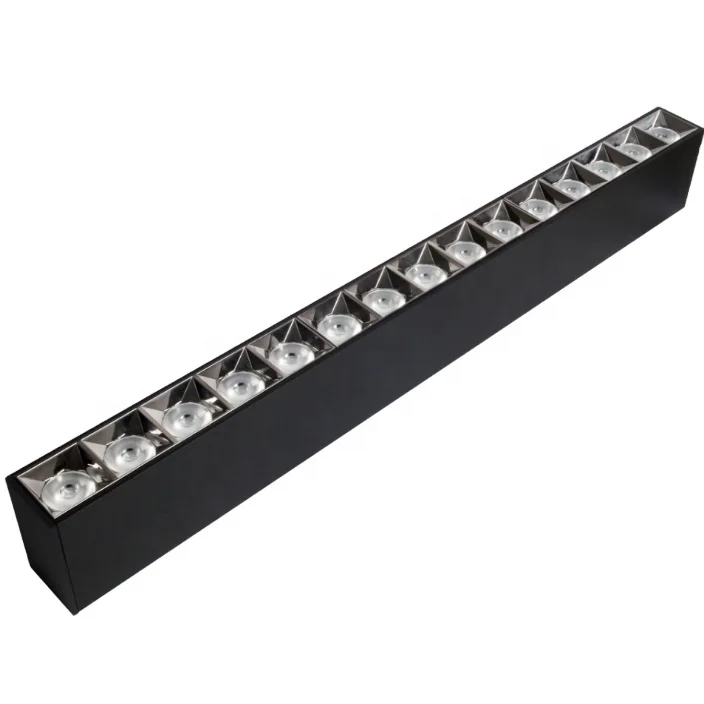

china manufactory viewline slim linear lights 28W direct version 115lm/w UGR<16 visual comfort seamled connection
- Category: Grille Lamps >>>
- Supplier: Sundopt LED Lighting Co. Ltd.
Share on (1700002870632):
Product Overview
Description
Product Description
Products specifications | ||||||

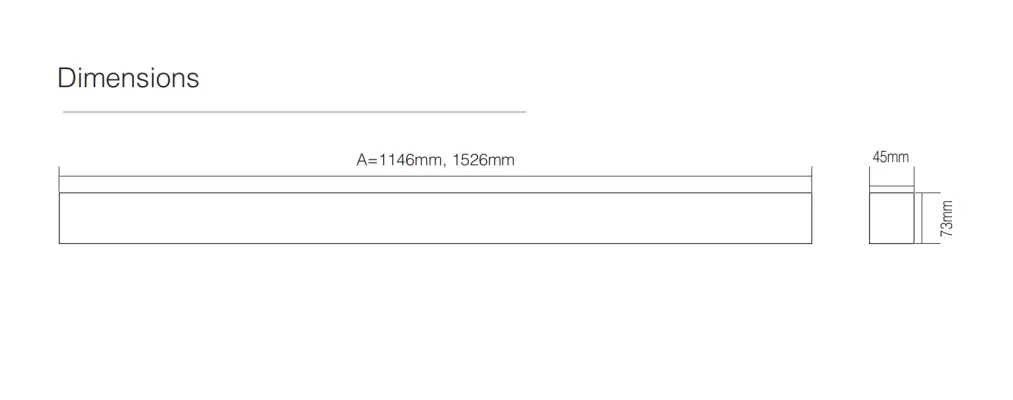

Size | L:1200mm/1500mm/3000mm & W:45mm & H:73mm | CCT | 3000K /4000K /3000-6500K tunable | |||
voltage | 220-240V | frequency | 50/60HZ | |||
angle | 15°/24°/38°/50°/70° | CRI | >80Ra / >90Ra | |||
warranty | 5 years | IP Protection | IP20 | |||
SDCM | <3 | operating | -35℃-45℃ | |||
Color | black,white | lifespan | 50000H （L90 Tc=55℃) | |||
Part Number | Optional functions | Length | Lumen | Watt |
VLFS-D120-032X | On/Off DALI dimmable 2.4G RF dimmable CCT tunable | 1200mm | 3200lm /2400lm | 23-29W |
VLFS-D150-040X | 1500mm | 4000lm /3000lm | 28-36w | |
VLFS-D300-080X | 3000mm | 8000lm /6000lm | 55-72W | |
VLFS-I120-048X | 1200mm | 4000lm (1600lm ↑+2400lm ↓) | 36W | |
VLFS-I150-050X | 1500mm | 5000lm (2000lm ↑+3000lm ↓) | 45W | |
VLFS-I300-100X | 3000mm | 10000lm (4000lm ↑+6000lm ↓) | 90W |
Product Detail
Product Feature

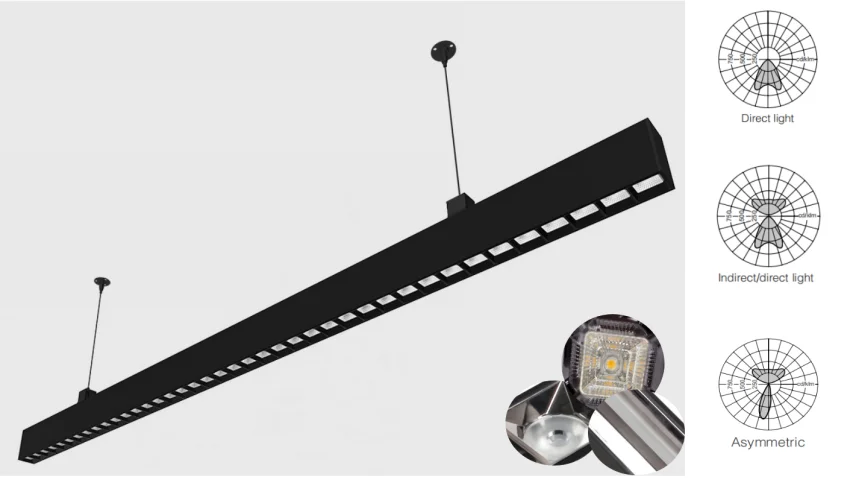

1.Optimal glare control
Grille design composed of lenses and louver units can anti glare better.
Indirect&Direct light:UGR<13
Direct light:UGR<16

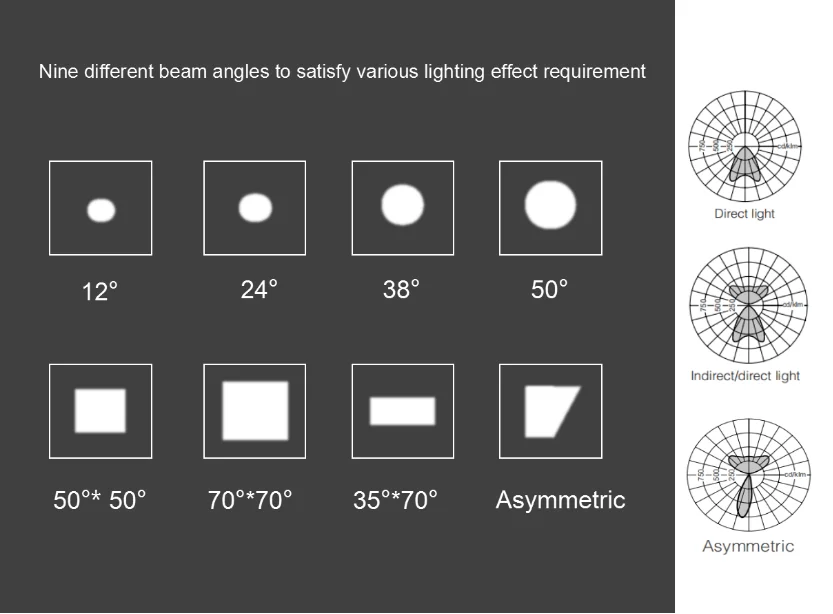

2.Multi-angle lens
3.Long life:High standard makes high quality.

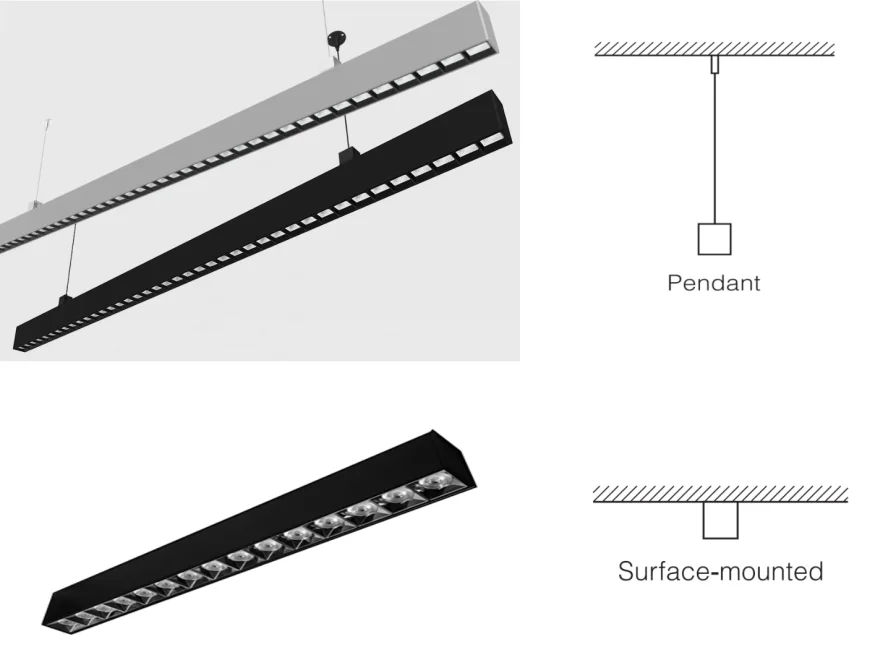

Installation Instructions
Product Application
Applications:office 、meeting room、communication areas etc.
