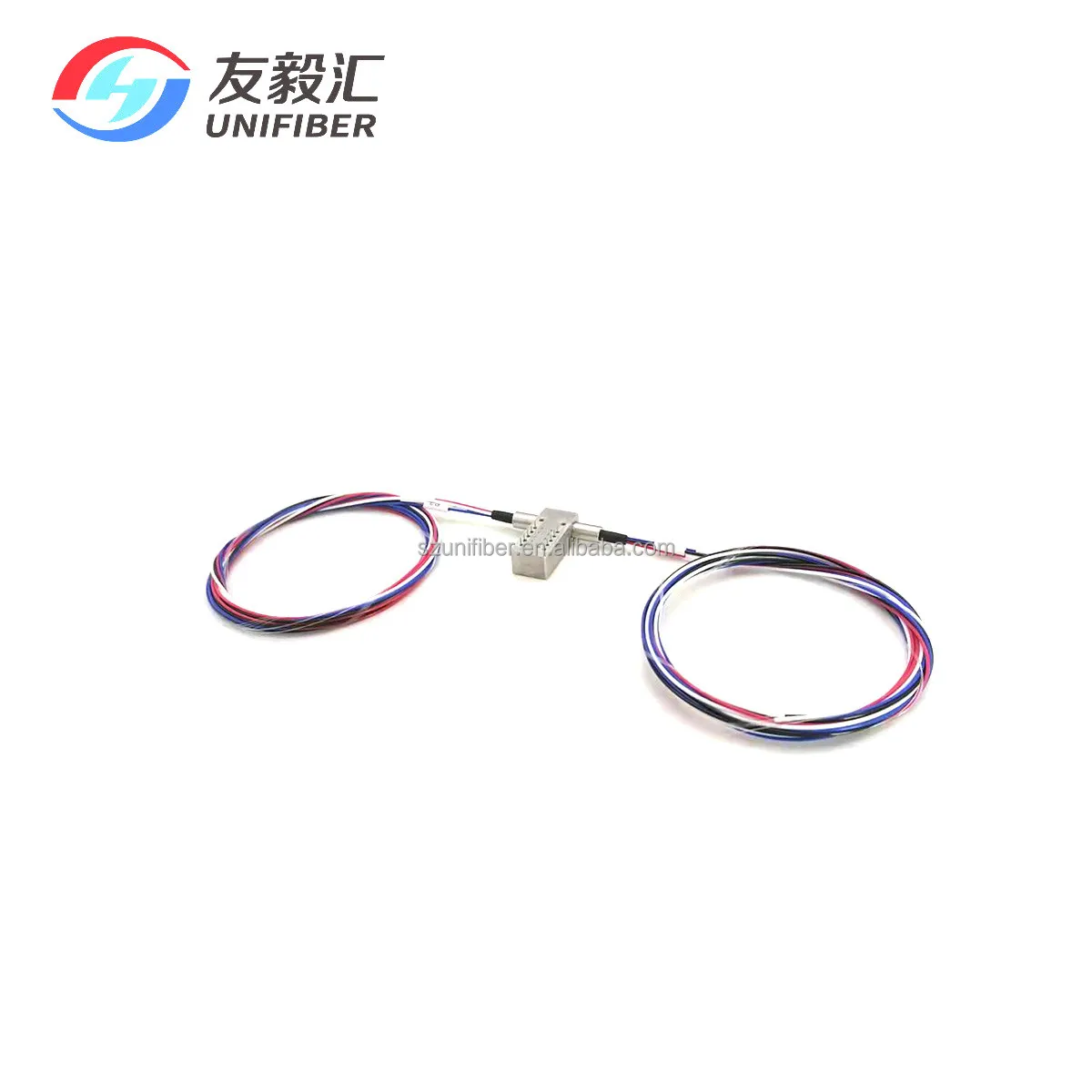

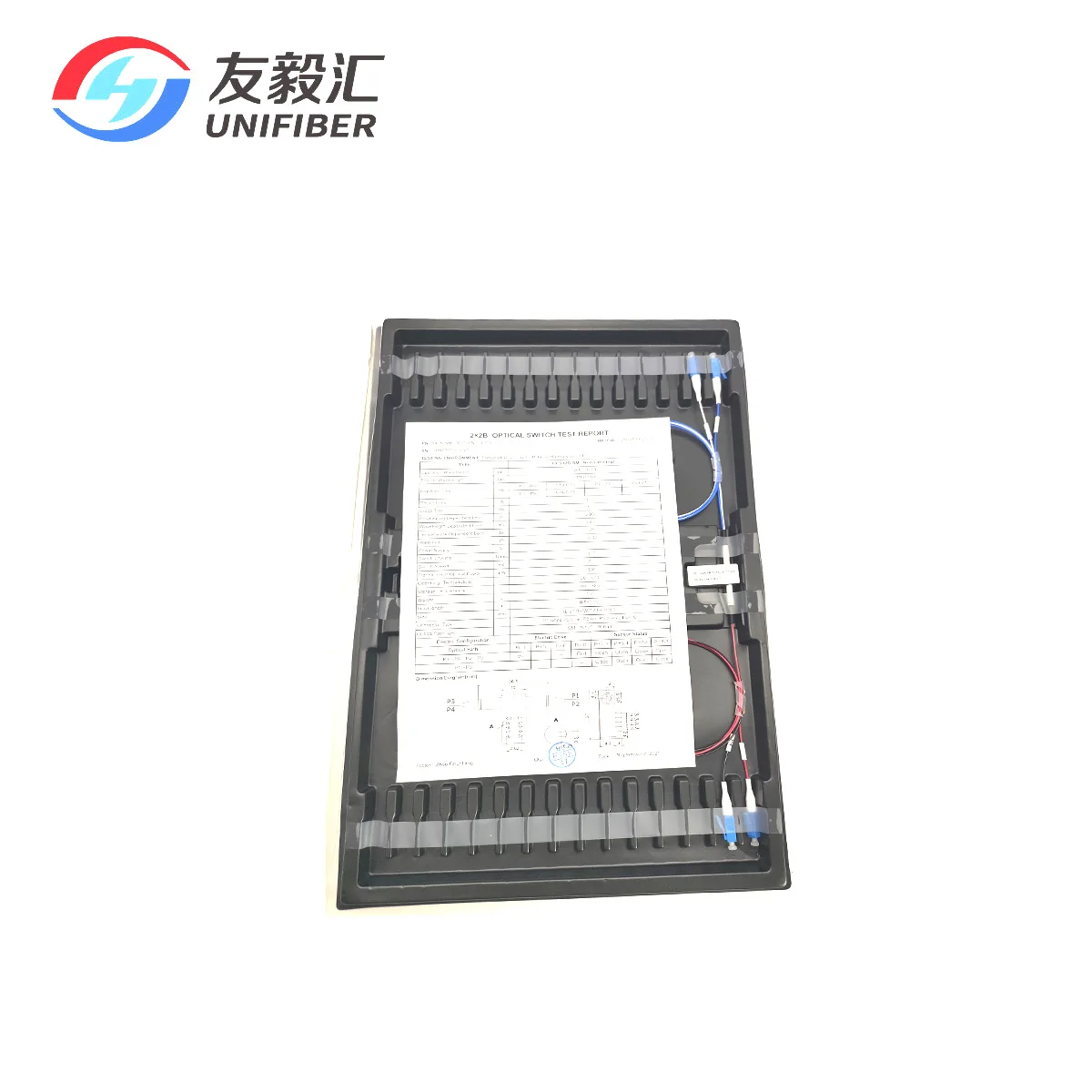

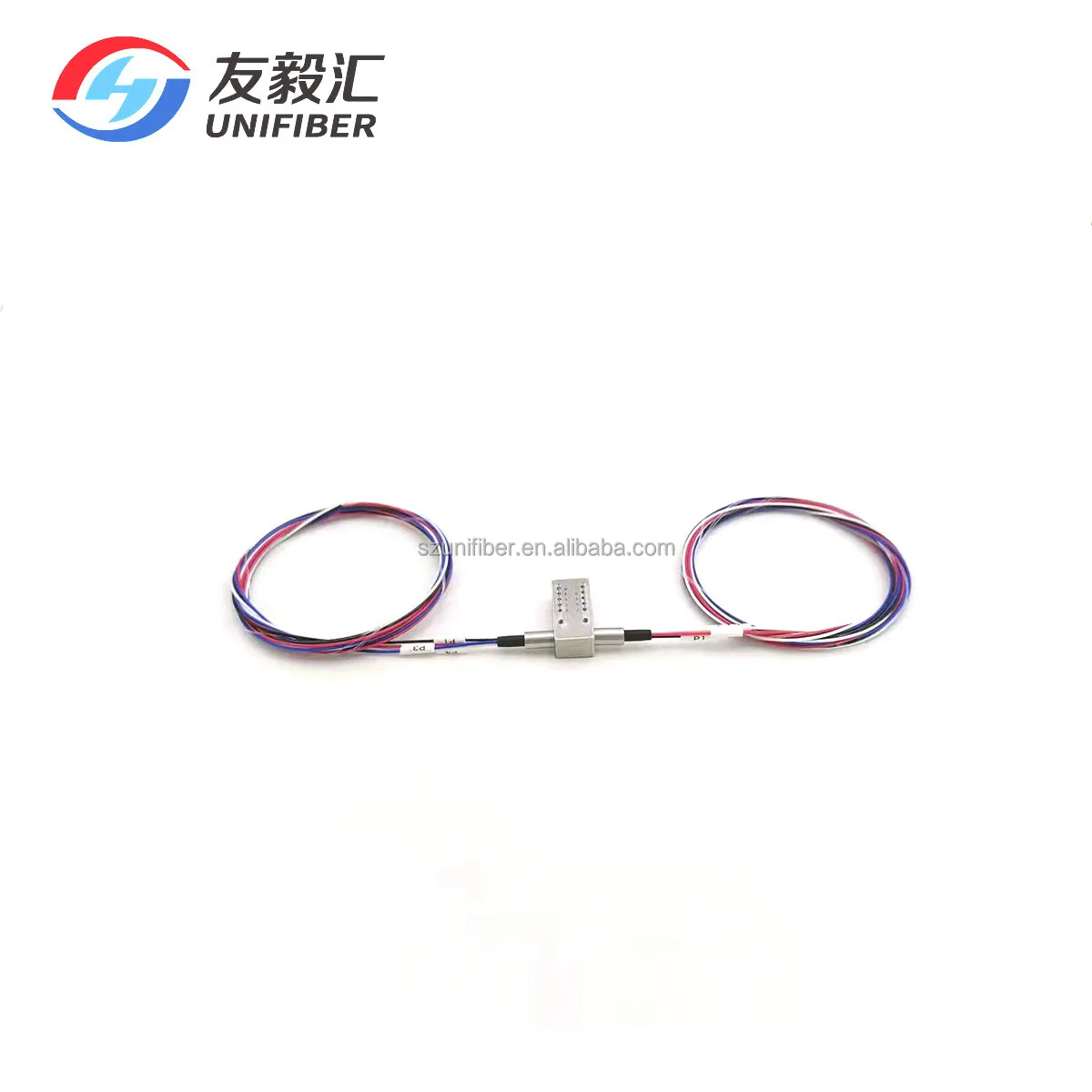

Single Mode 2x2F Mechanical Optical Fiber Switch 5V Non Latching 1310/1550nm
- Category: >>>
- Supplier: Shenzhen Unifiber Technology Co. Ltd.
Share on (1700002888902):
Product Overview
Description
Product Description
2x2F Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 2x2F Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
Features
Highly Stable & Reliable
Short switching time
Compact design, Miniature size
Low Insertion Loss
Wide operating wavelength Range
Fail-Safe Latching and Non-latching
Single mode or Multimode optional
Short switching time
Compact design, Miniature size
Low Insertion Loss
Wide operating wavelength Range
Fail-Safe Latching and Non-latching
Single mode or Multimode optional
Application
System Monitor
Configurable OADM
Metropolitan Area Network
R&D in Laboratory
Configurable OADM
Metropolitan Area Network
R&D in Laboratory
Specification
Parameter | 2×2B-MM/SM Mechanical Optical Fiber Switch | ||
Wavelength Range（nm） | 850±40 | 1260~1650 | |
Operating Wavelength | 850 | 1310/1490/1550/1625/1650 | |
Insertion Loss（dB） | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 | |
Return Loss（dB） | MM≥30?SM≥50 | ||
Crosstalk（dB） | MM≥45?SM≥55 | ||
Polarization Dependent Loss（dB） | ≤0.05 | ||
WaveLength Dependent Loss（dB） | ≤0.25 | ||
Temperature Dependent Loss（dB） | ≤0.25 | ||
Repeatability（dB） | ≤±0.02 | ||
Power Supply（V） | 3.0 or 5.0 | ||
Lifetime（time） | ≥10^7 | ||
Switch Time（ms） | ≤8 | ||
Transmission Power（mW） | ≤500 | ||
Operating Temperature(℃) | -20~+70 | ||
Storage Temperature(℃) | -40~+85 | ||
Weight(g) | 16 | ||
Dimension（mm） | （L）27.0×（W）12.0×(H)8.2 | ||
