980/1550nm WDM Isolator Hybrid Components For EDFA
- Category: >>>
- Supplier: Shenzhen Unifiber Technology Co. Ltd.
Share on (1700002930440):
Product Overview
Description
Product Description
Polarization Maintaining (PM) Product include In-Line Polarizer, PM Isolator, Polarization Beam Combiner/Splitter, PM Filter Coupler, PM Circulator, PM FWDM and PM Patch cord.

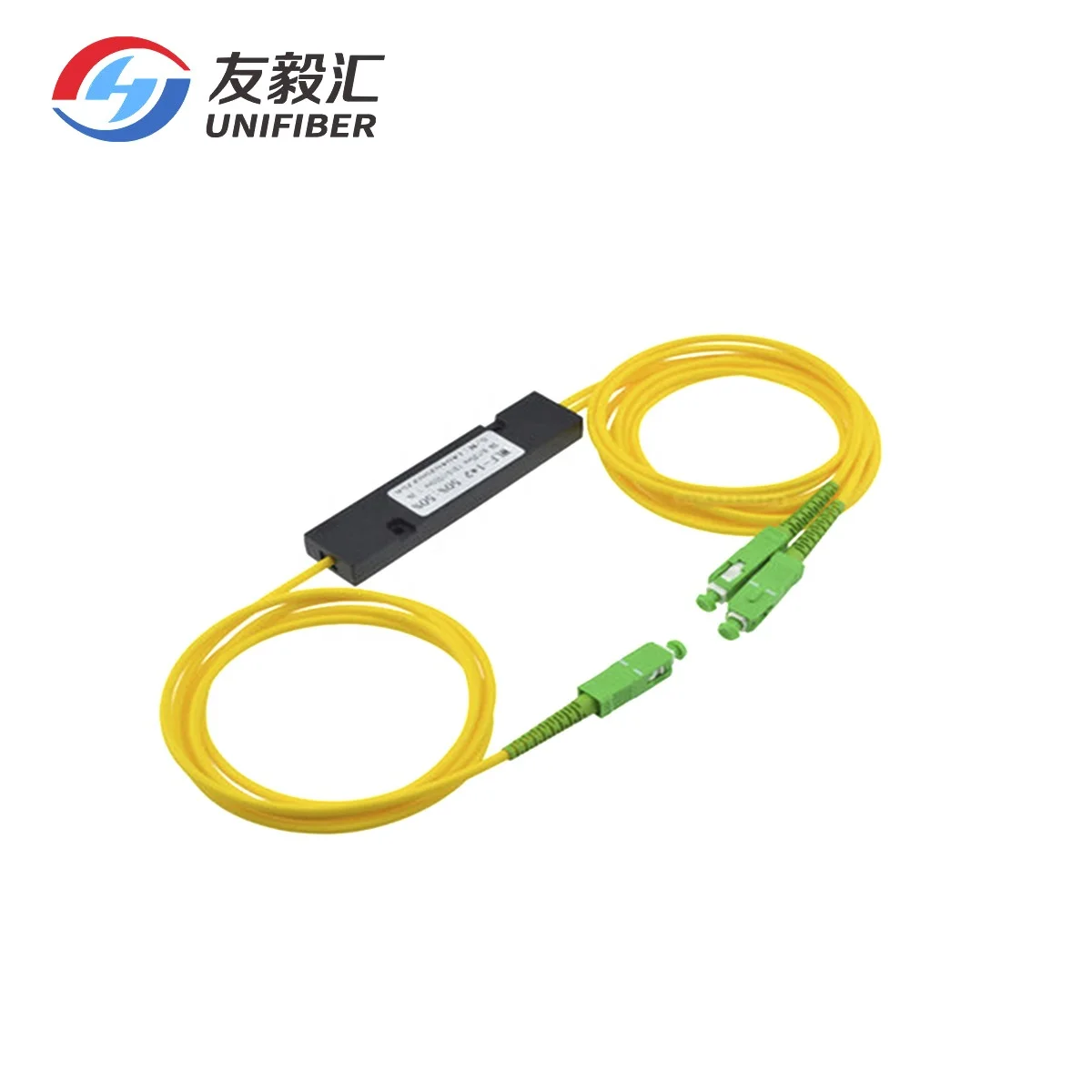

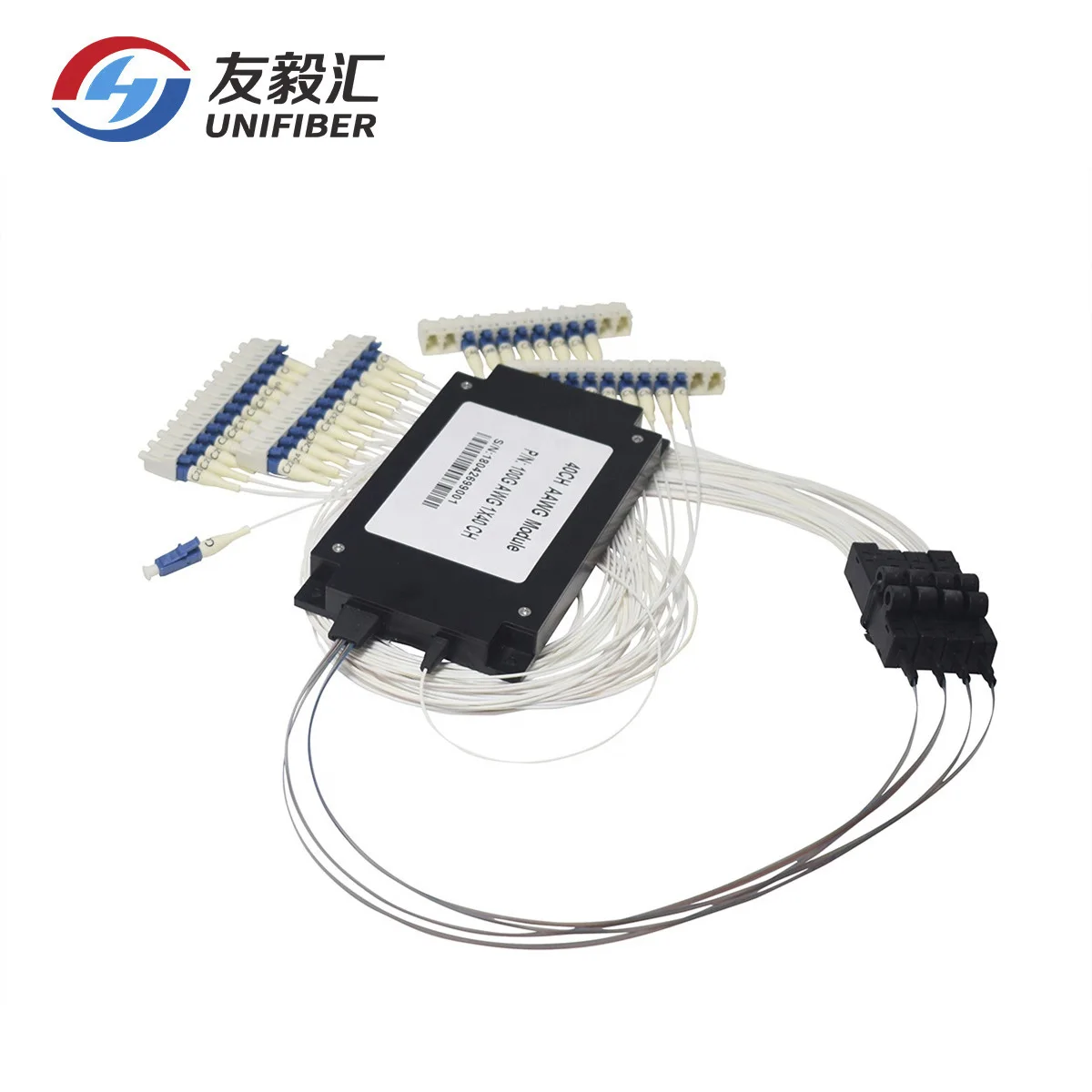

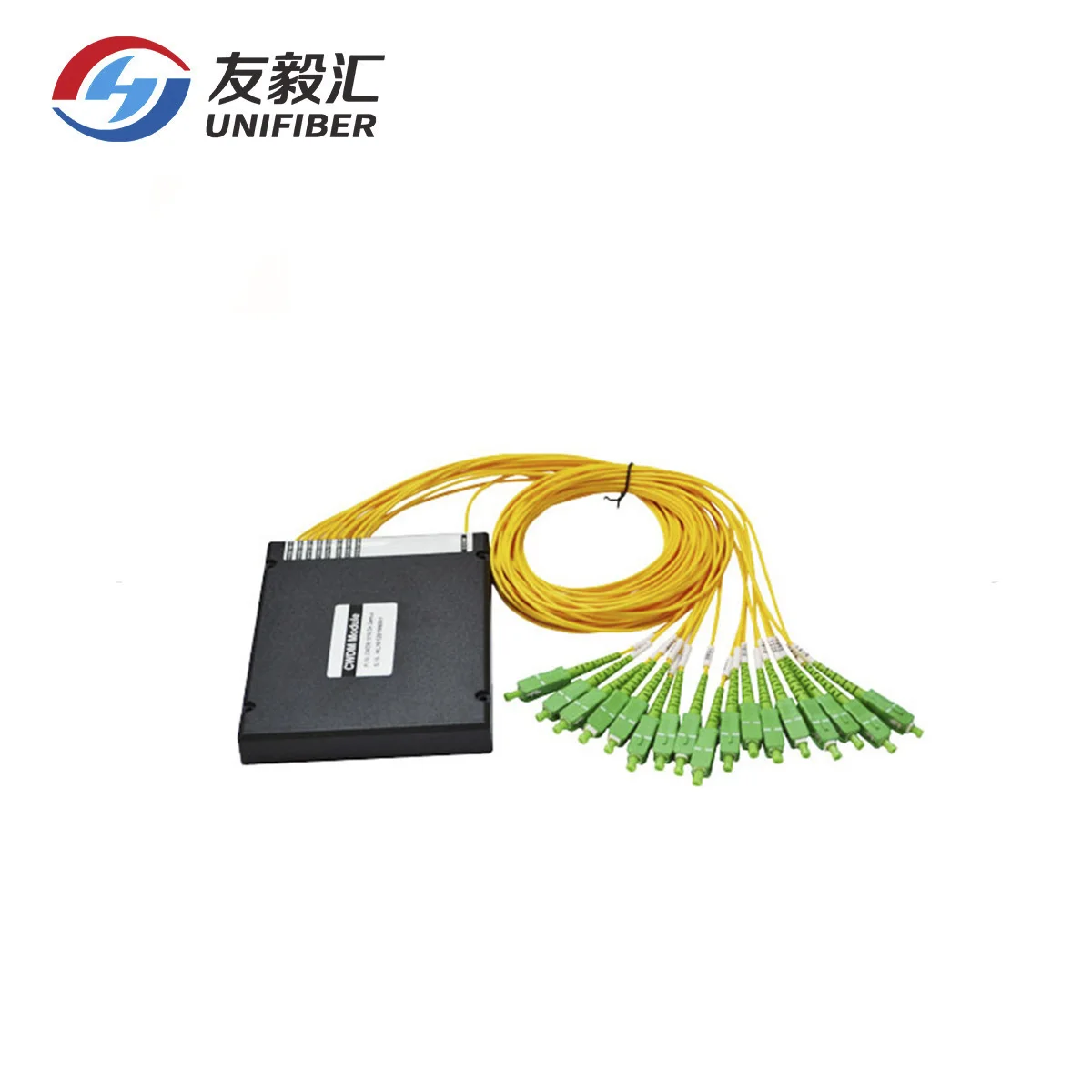

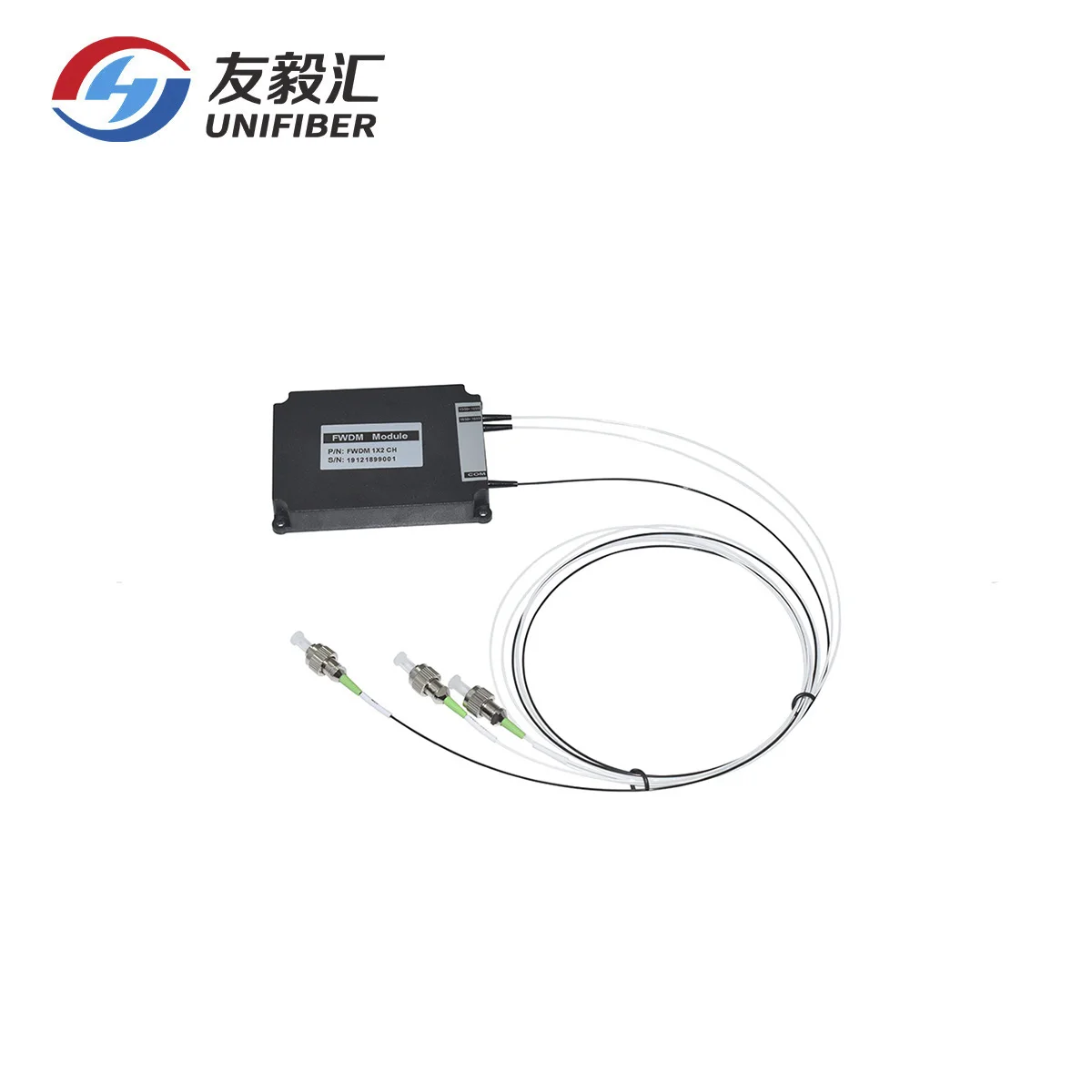

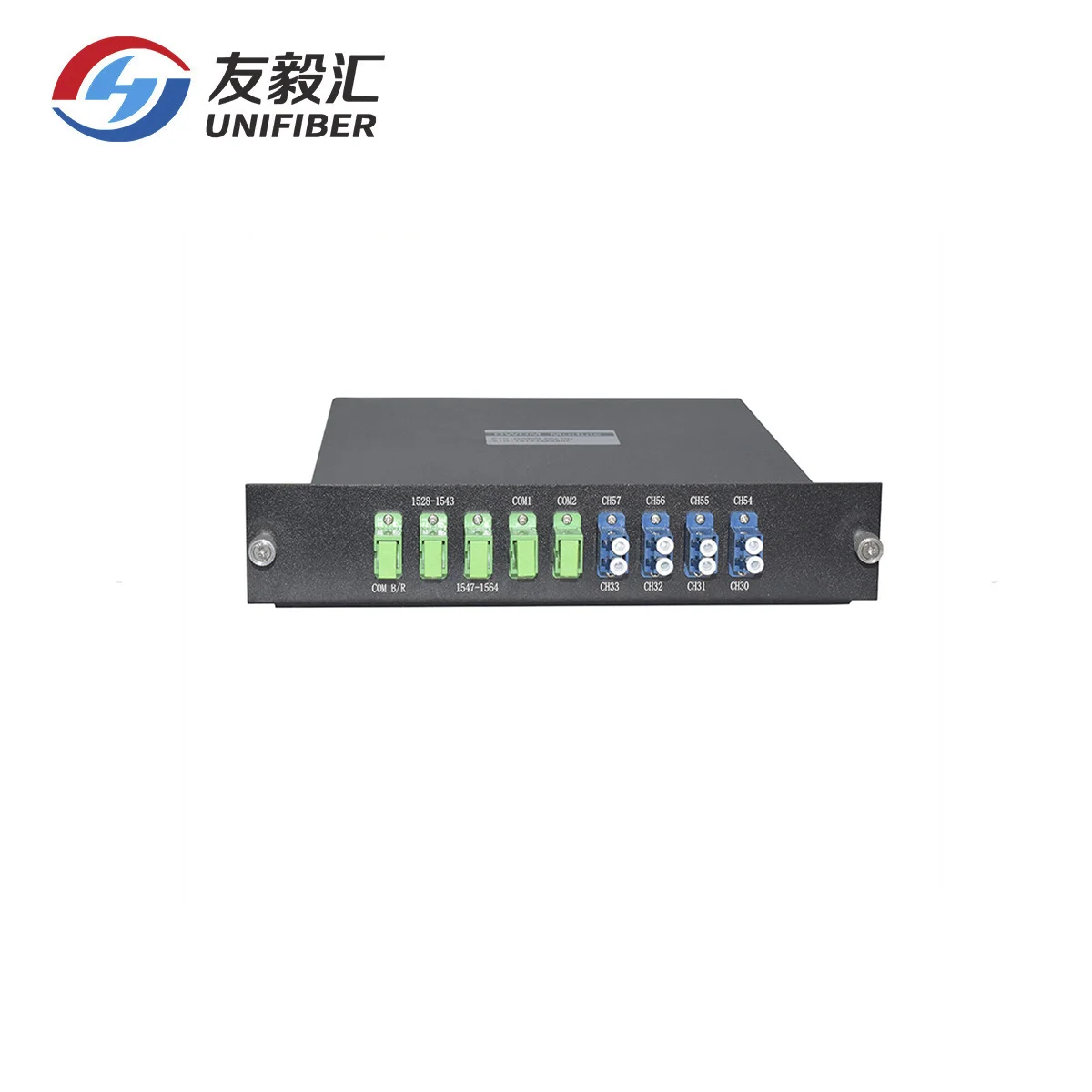

Related Products
Features
Wide operating wavelength range
High channel isolation
Low Insertion Loss
Ultra low PDL & PMD
High stability and reliability
Epoxy free on optical path
Application
Fiber optic Amplifiers
CATV fiber optic link
WDM system
Fiber optic instrument
Specification
Parameter | Single Stage | Dual Stage | |||
Signal Operation Wavelength Range (nm) | C band | 1530 ~ 1565 | |||
Pump Channel Wavelength Range (nm) | 960 ~ 990 | ||||
Isolation (dB) (Over signal wavelength range @23℃, all SOP) | ≥30 | ≥42 | |||
Wavelength Isolation (dB) (3 to 1 @λ signal) | ≥15 | ||||
Wavelength Isolation (dB) (1 to 2 or 2 to 1 @λ pump) | ≥30 | ||||
APC Type | Pump Channel | ≤0.6 | |||
Signal Channel | ≤1.2 | ≤1.3 | |||
Temperature Dependent Loss (dB) | ≤0.25 | ≤0.3 | |||
Wavelength Dependent Loss (dB) | ≤0.4 | ≤0.5 | |||
Return Loss (dB) | ≥50 | ||||
Directivity (dB) | ≥50 | ||||
PDL (dB) | ≤0.1 | ≤0.2 | |||
PMD (ps)(Low PMD Option) | ≤0.25(0.05) | ≤0.05 | |||
Power Handling (mW) | 300 | ||||
Operating Temperature (℃) | -10 ~ +75 | ||||
Storage Temperature(℃) | -40 ~ +85 | ||||
Package Dimension (mm) | Φ5.5 x L38 | ||||
Fiber Type | Corning HI 1060 fiber at common / pump port | ||||
Corning SMF-28e fiber at signal port | |||||

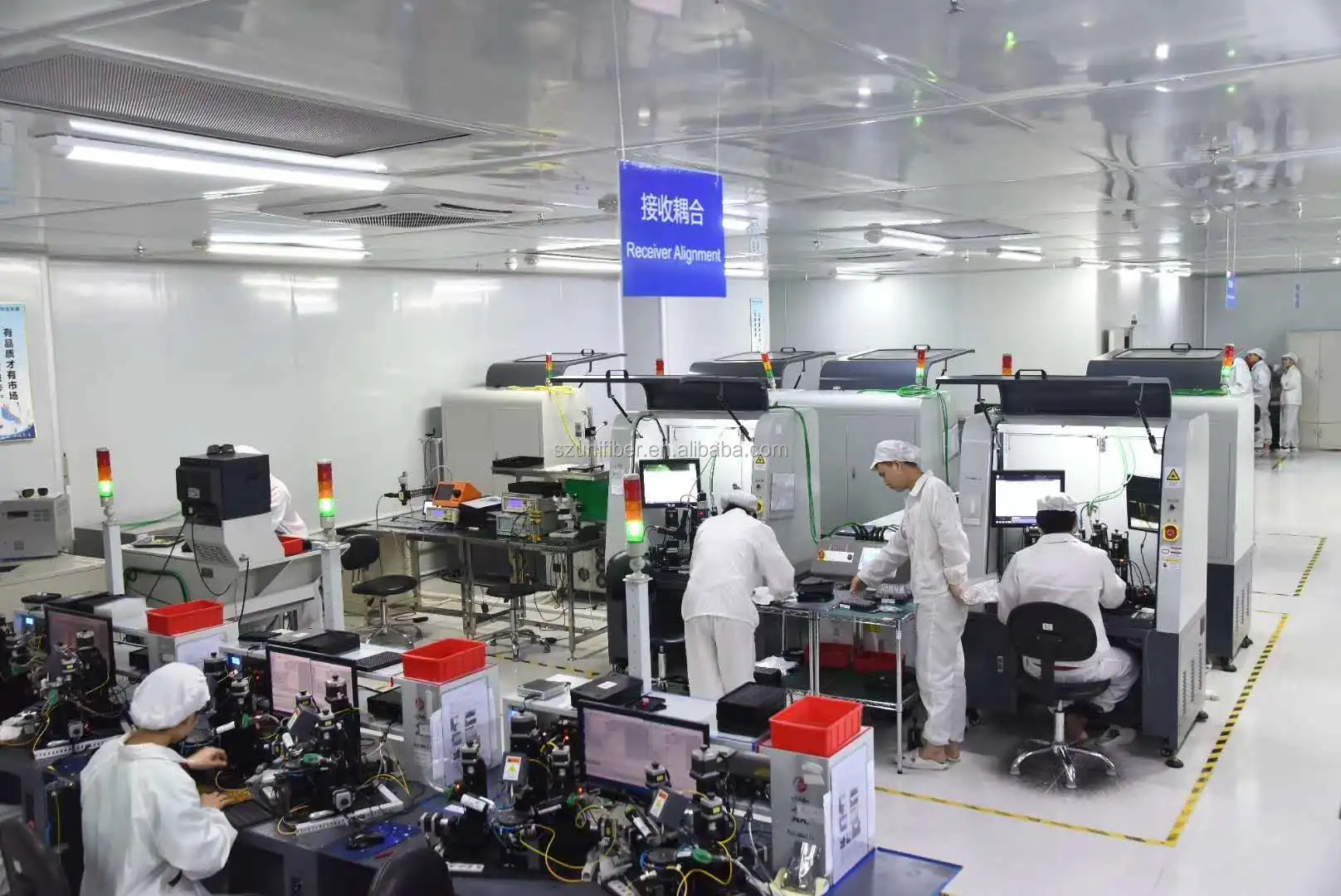

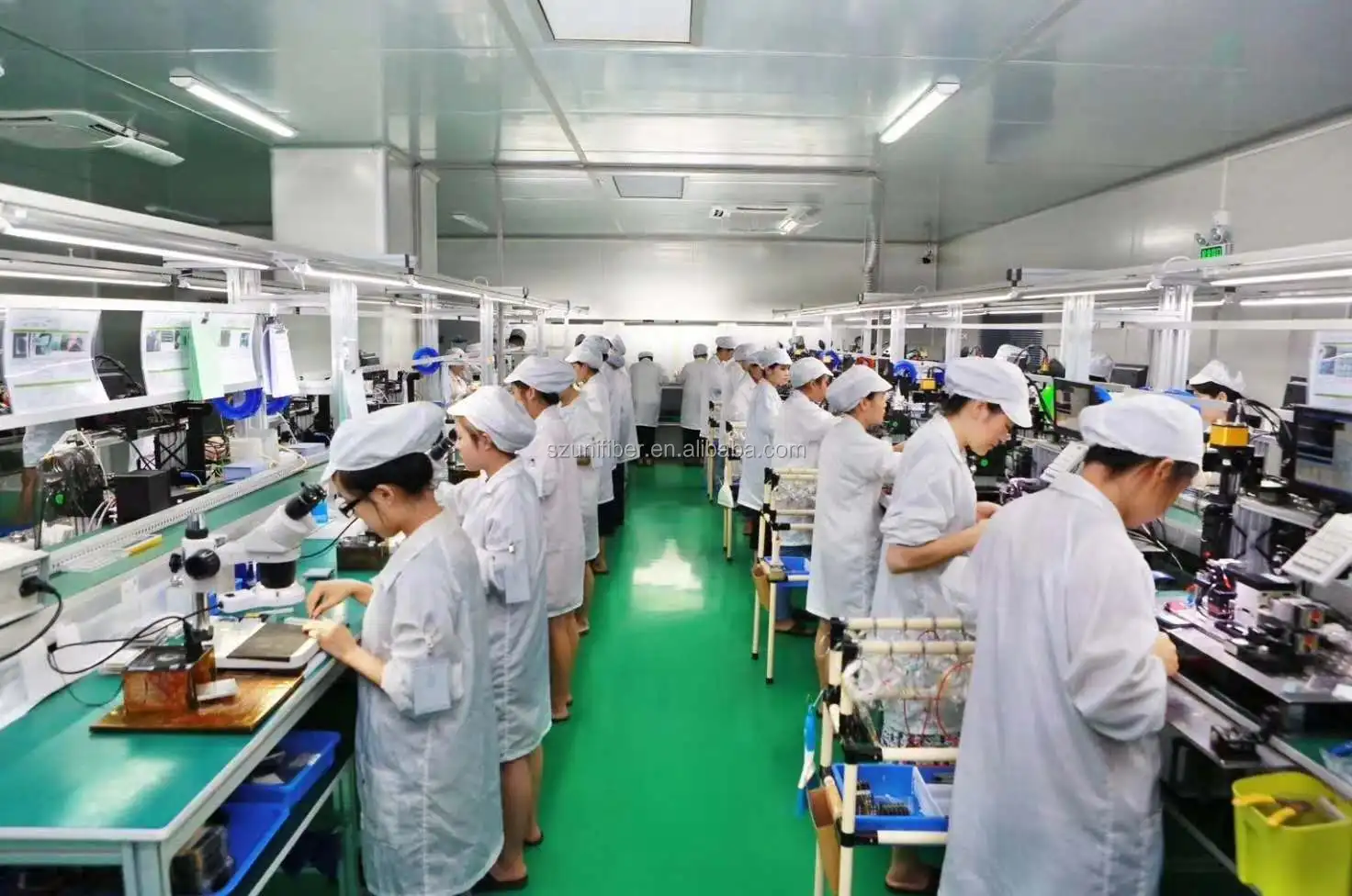

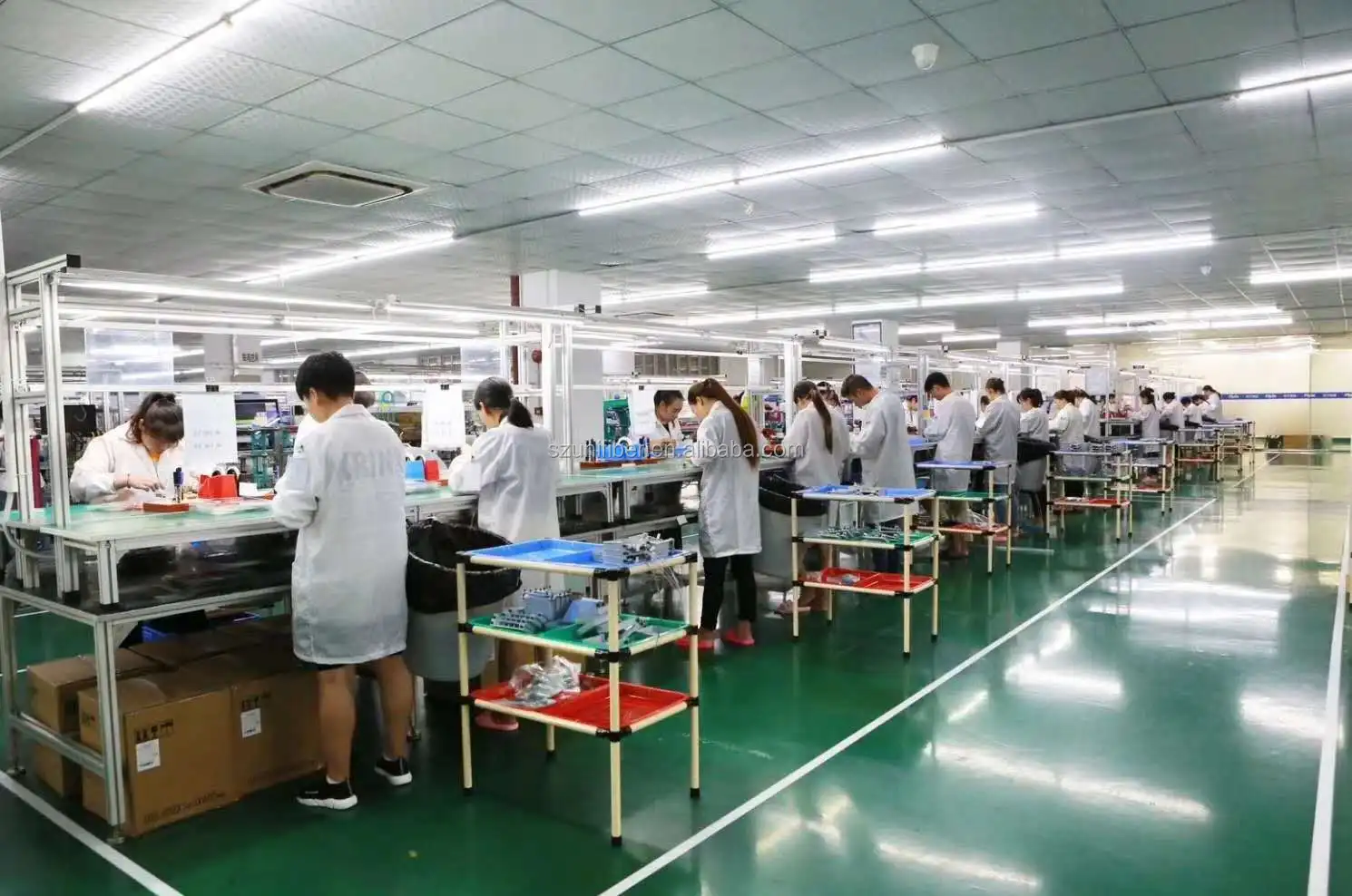

Manufacturing & Equipment
