Portable 3 in 1 welding machine MMA TIG MIG 200A Pulse IGBT STUD Welding Machine Single Phase STUD welding machine price
- Category: >>>
- Supplier: Wenzhou Chiefstone C&T Co. Ltd.
Share on (1700003484075):
Product Overview
Description
Product Description
MIG-200P mini | |||||
Parameters | MIG | MMA | |||
Rated supply voltage (V) | Single phase ~220V±15% | ||||
Rated input capacity (KVA) | 6.3 | 4.8 | |||
Output current adjust range (A) | 5-185 | 5-130 | |||
Output voltage adjust range (V) | 14.75-23.25 | 20.8-25.2 | |||
No-load voltage (V) | 64 | 64 | |||
Duty cycle | 100％ | 110 | 90 | ||
60％ | 140 | 110 | |||
35％ | 185 | 130 | |||
Wire feed speed (m/min) | 2.0-14.6 | ||||
Wire feed type | Built-in | ||||
Post flow time (S) | 0.5 | ||||
Wire (mm) | 0.8-1.0 | ||||
Welding rod (mm) | 1.5-3.2 | ||||
Efficiency (%) | 80 | ||||
Power factor | 0.85 | ||||
Protection grade | IP21S | ||||
Weight (kg) | 12.5 | ||||
Boundary dimension (mm) | 496*212*380 | ||||
Product features:
* Multi-function: MIG/MAG, TIG (Lift TIG) and MMA, 3 in 1
* Mig wire: 5kg spool 0.8-1.0mm solid mig wire and flux-cored wire* Protection: over-heat and over current.
* Material: Aluminum, Stainless steel, Carbon steel.
Application
Material | Sheet thickness (mm) | Stick diameter (mm) | Current range(A) | Model |
Carbon steel Stainless steel Low alloy steel | ≥0.8 | 0.8/1.0 | 50-200 | MIG-200 |
≥0.8 | 0.8/1.0 | 50-250 | MIG-250 | |
≥0.8 | 1.0/1.2 | 60-350 | MIG-350 | |
≥0.8 | 1.0/1.2/1.6 | 60-500 | MIG-500 | |
Carbon steel Stainless steel Low alloy steel Aluminum | ≥0.8 | 0.8/1.0 | 5-185A | MIG-200P |
≥0.8 | 2.5/3.2/4.0/5.0 | 25-350 | MIG-350H | |
≥0.8 | 5.0/6.0/8.0 | 25-500 | MIG-500H |

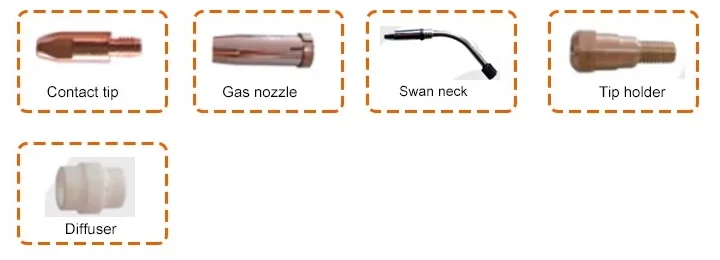

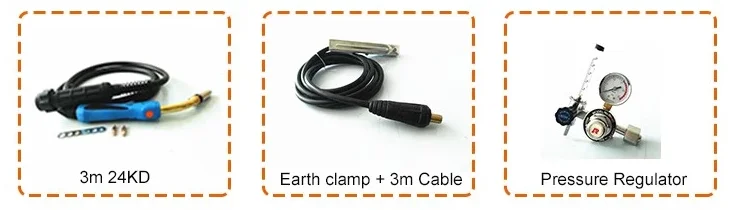

Accessories
