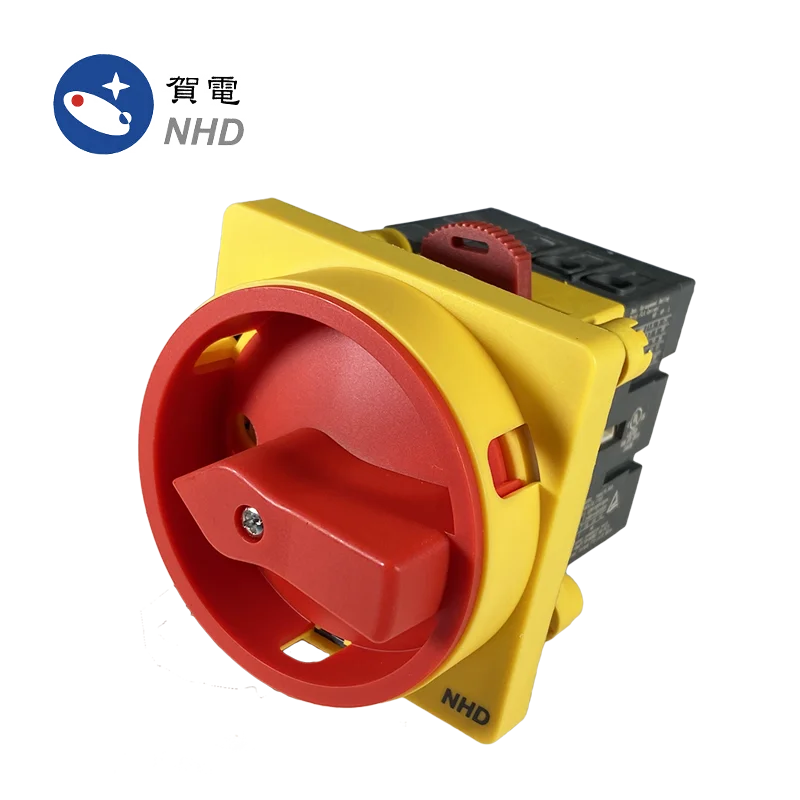

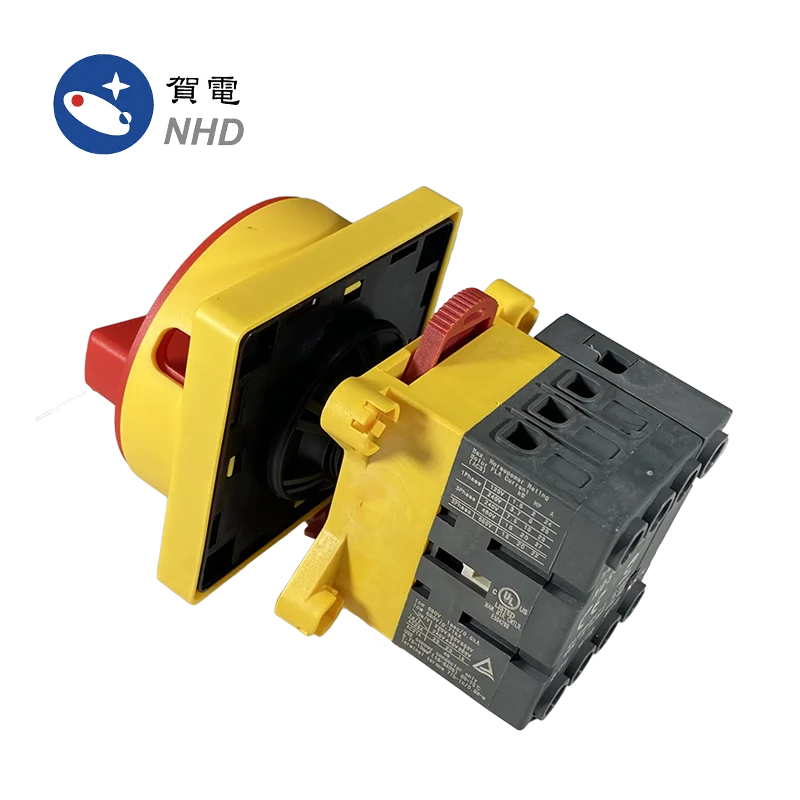

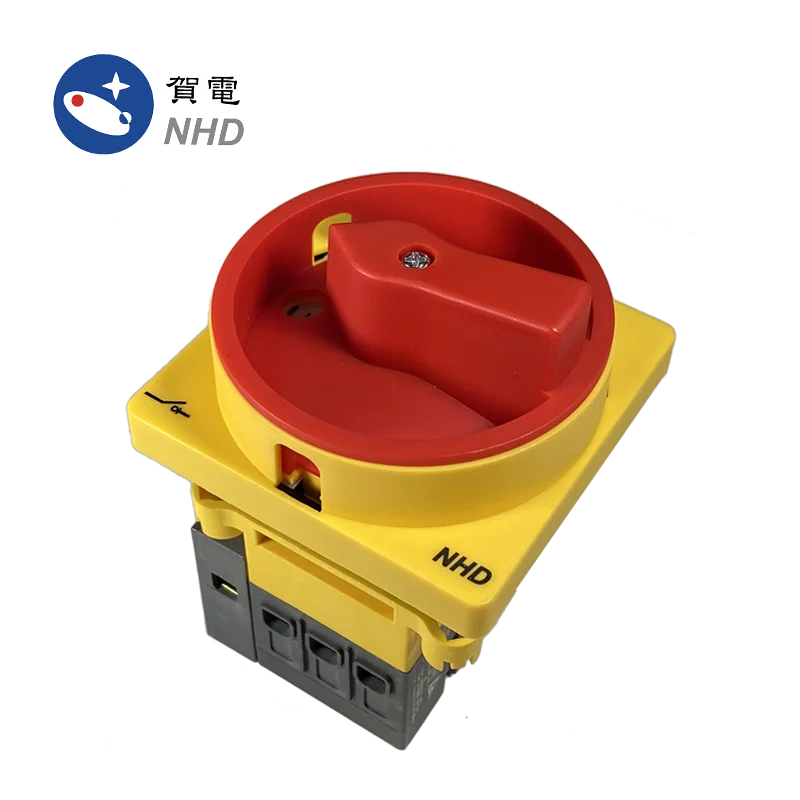

NDS 20/ 30 /40 4PG5P Isolator Switch Cam Switch Switch Disconnector 4 Pole 25A, 32A, 40A, Door mounting
NDS-20/ 30 /40 4PG5P Isolator Switch Cam Switch Switch Disconnector 4 Pole 25A, 32A, 40A, Door mounting
NDS-20/ 30 /40 4PG5P Isolator Switch Cam Switch Switch Disconnector 4 Pole 25A, 32A, 40A, Door mounting
NDS-20/ 30 /40 4PG5P Isolator Switch Cam Switch Switch Disconnector 4 Pole 25A, 32A, 40A, Door mounting
NDS-20/ 30 /40 4PG5P Isolator Switch Cam Switch Switch Disconnector 4 Pole 25A, 32A, 40A, Door mounting

NDS 20/ 30 /40 4PG5P Isolator Switch Cam Switch Switch Disconnector 4 Pole 25A, 32A, 40A, Door mounting

Share on (1700003489757):


Price:

Quantity:


Product Overview

Description



Specification


Product Number
NDS-20/ 30 /40 4G5P
Use
It's used to safely isolate a circuit for maintaining equipment through the rotation of the rotary handle and locking ring. It will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.
Selling point
1. Excellent quality with competitive price
2. Capacity range: 25 Amp to 100 Amp.
3. The handle is with NEMA 4X approval and lockable.
4. Offer two colors of the handle.
5. Easy installation. Mounting on a 22mm hole and lock the fixing ring.
6. N pole, auxiliary contact block, and base mounting type can be chosen from.
7. OEM is acceptable.
Rated Thermal Current (Ith)
25A/ 32A/ 40A
Operation Frequency
1,200 times/ hour
Machanical Durability
20,000 times
Eletrical Durability
10,000 times
Number of Pole
4 Pole
Available Current Ratings
25A/ 32A/ 40A
Degree of Protection
NEMA 4X
Handle Mounting Size
22.5mm
Frame Size
67*67mm
Type
Door Mounting Type
Accessories
N Pole, Auxiliary Contact Block
certification
TUV, CE, cULus
OEM
Accept


Product Description










Company Profile




NHD Industrial, founded in Taiwan in 1979, is a leading manufacturer and exporter of magnetic switches. We are ISO 9001:2015 certified company and have a variety of products including electrical control unit, switch disconnector, cam switch, terminal block, and tower lamp. In addition, we have many certified approvals for our products, such as CE, TÜV, CCC, CSA, and UL. There are some characteristics we have aside from other competitors. We use better fire-proofing materials, own unique features, apply strict quality inspections before every shipment, and much more.
With over 40 years of experience in electrical control units, we are able to develop various products for our customers. Therefore, OEM and ODM orders are also acceptable. We researched and developed all of our products with professional manufacturing techniques. Being a manufacturer, quality is our most important duty to all our customers and future customers. With many years of experience and great products, we have a great reputation in the automation industry.




Exhibition








Packing & Delivery




FAQ


Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?
A2. Our products are high quality and low price.

Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.

Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
