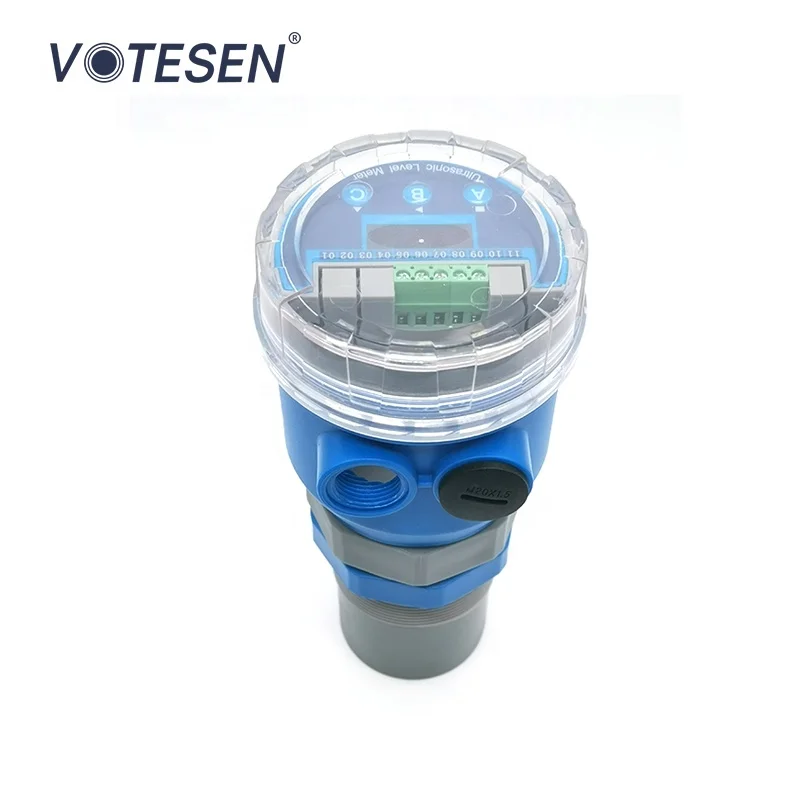

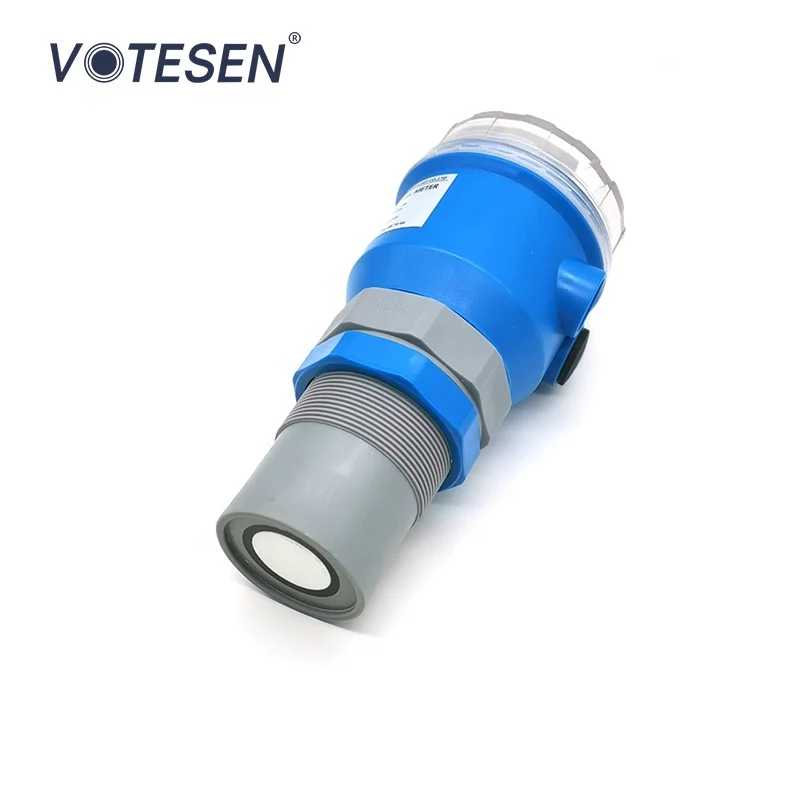

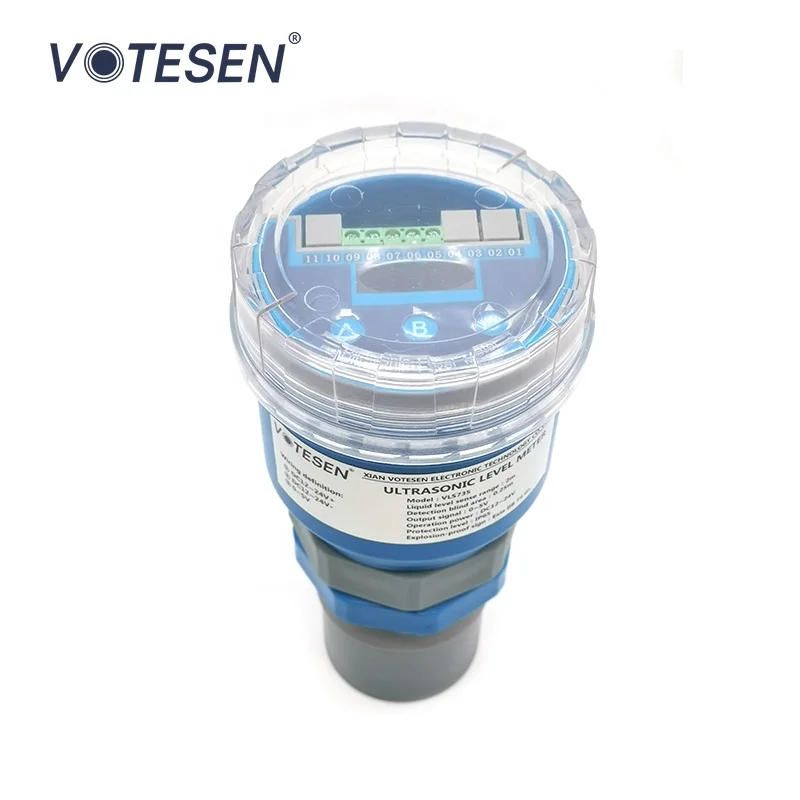

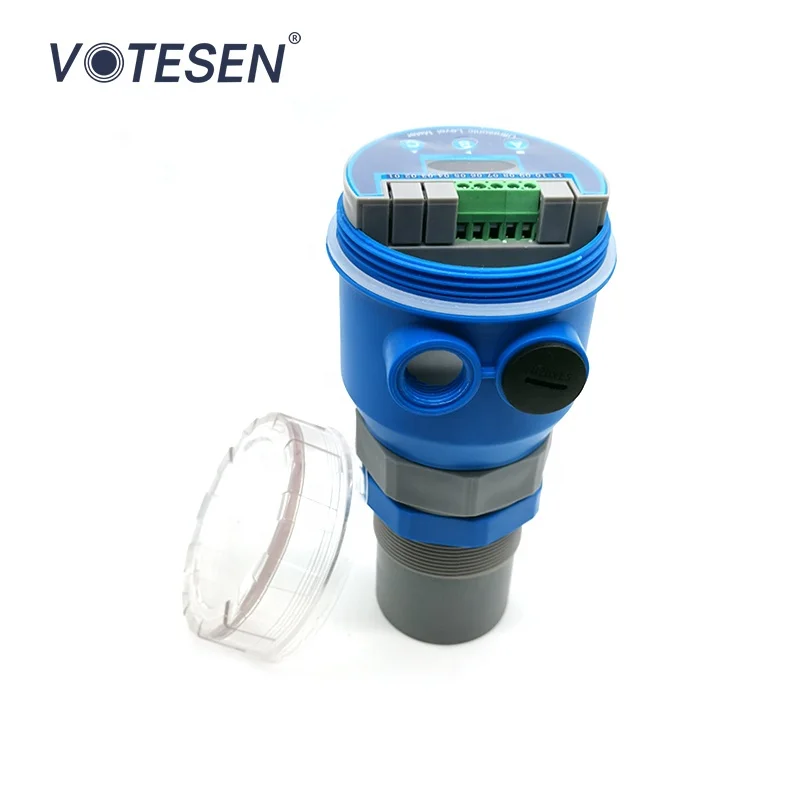

Votesen VLS731 Standard Type Integrative Ultrasonic Level Meter for Normal Temperature Usage
- Category: >>>
- Supplier: Xian Votesen Electronic Technology Co. Ltd.
Share on (1700003501929):
Product Overview
Description
Product Description
Our Votesen VLS731 Standard Type (Normal Temperature) Integrative Ultrasonic Level Meter is a universal level measuring instrument for liquid, solid, and gel. It takes the different advantages of various level measuring instruments. It has perfect level monitoring, data transmission, and man-machine communication. It is fully digital with an on-site display.
It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output, and easy connection with the main unit.
It is manufactured with an engineering plastic ABS waterproof case and a high-quality multi-layer PCB board, designed with a modular circuit. The main chip adopts dozens of related ASICs with import industrial-grade single-chip microcomputer to make it with perfect features of digital temperature compensation and ultra-wide voltage input voltage regulation.
This product can meet most liquid level and material level measurement requirements without contacting industrial media. It can completely solve the shortcomings of traditional measurement methods (Pressure Type, Capacitive Type, Float Type), such as winding, blockage, leakage, medium corrosion, inconvenient maintenance, and other problems.
Therefore, it is applicable to various fields concerning level measuring and monitoring.

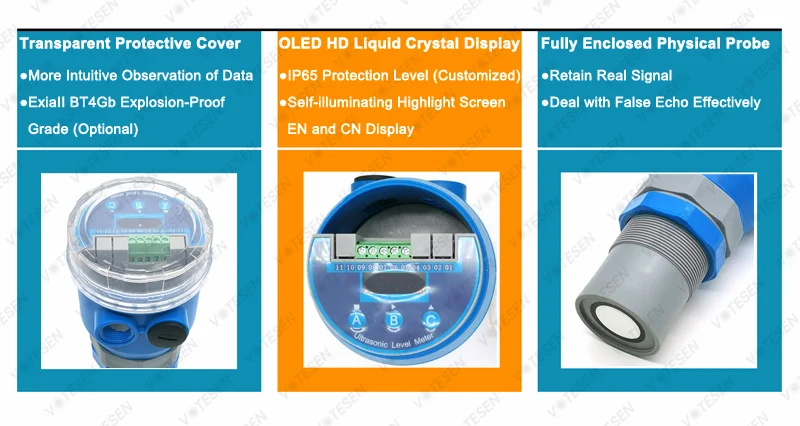

Product Feature & Function
Product Feature
- Strong anti-interference ability, it can be applied to the liquid level measurement in a harsh environment.
- Built-in temperature sensor, it can realize real-time temperature automatic compensation function.
- With value-added/difference ranging selection, it can measure both distance and level.
- Small blind area, it has the leading position in the field of measurement in China.
- Wide range of applications, it can measure solid and liquid level, volume, weight, etc.
- Multiple output types, it can meet different industrial field interface requirements.
- Wide voltage adaptability range, it can work in DC voltage of 12~24V or AC voltage of 220V.
Product Function
- Backup and restore settings function
- Arbitrarily adjusted the analog output function
- Support for custom serial data format function
- Manually set fixed interference filtering function
- Measurable multiple physical quantities function
- With digital filtering and echo recognition function
- With full-scale start and endpoint arbitrary setting function
Product Parameters
Votesen VLS731 Standard Type (Normal Temperature) Integrative Ultrasonic Level Meter | ||
Performance Index (Select upon Purchase) | ||
Measuring Range | 2M、3M、5M、8M、10M、12M、15M、20M、25M、30M 、35M、40M | |
Blind Area | <0.25M ~ 2M（According to Different Measuring Range） | |
Launch Angle | <10°（According to Different Sensor Type） | |
Minimum Display Resolution | 1MM | |
Frequency | 20～2000KHz | |
Accuracy Rate | ±0.3%F.S | |
Temperature Compensation | Automatic Temperature Compensation | |

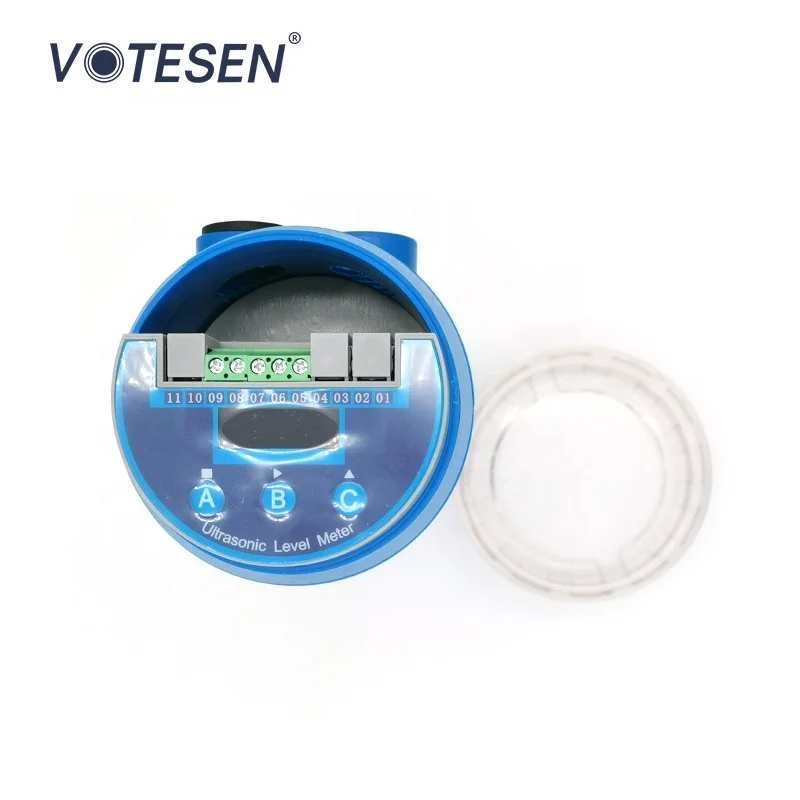

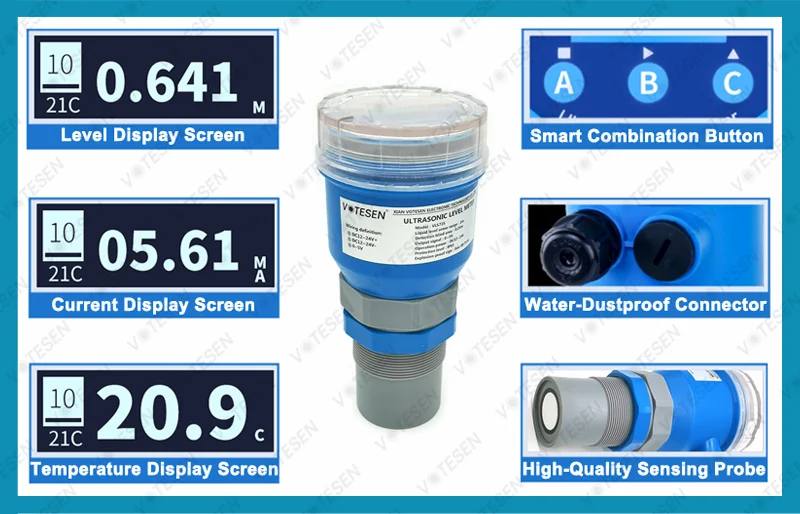

Display | OLED English/Chinese Display | |
On-Site Setting | Complete Through the Keys of the Machine | |
Calibration | Factory Calibration, On-Site Calibration | |
Output Signal (Select upon Purchase) | ||
Analog Output | 4～20mA、0～20mA、0～5V、0～10V | |
Digital Output | RS485/Modbus、HART（Two-Wire System） | |
Switch Output | NPN (with PP pulse output option) 、Relay (AC:5A/250V DC:10A/24V) | |
Wireless Transmission | GPRS, LORA, NB, RF, Bluetooth, Wifi, etc. | |
Power Supply (Select upon Purchase) | ||
Working Voltage | DC12~24V、AC220V、 DC18~32V（Two-Wire System） | |
Power Consumption | <1.5W 、<0.8W（Two-Wire System） | |
Environmental Performance (Select upon Purchase) | ||
Protection Level | IP65 (Customizable) | |
Explosion-Proof Grade | EXiaII BT4Ga (Optional) | |
Working Environment | Normal Temperature and Pressure (Customizable) | |
Storage Humidity | ≤80%RH Without Condensation | |
Physical Properties (Select upon Purchase) | ||
Dimensions | According to Different Measuring Ranges and Sensor Type Selection. Please Contact Us for More Information. | |
Shell Material | ABS, PP, PTFE, Stainless Steel 304 (According to Different Sensor Type) | |
Incoming Cable | Customizable (According to Actual Application Requirements) | |
Electrical Interface | M20X1.5-2 | |
Keyboard | Three-Digit Patch A.B.C Key | |

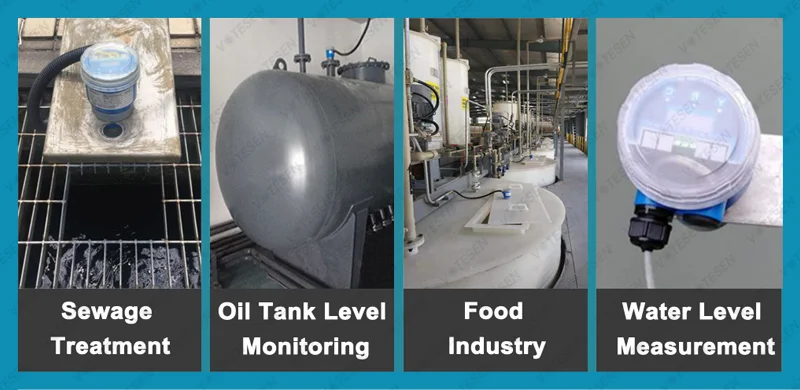

Product Applications
Our Votesen VLS731 Standard Type (Normal Temperature) Integrative Ultrasonic Level Meter can meet most liquid level and material level measurement requirements without contacting industrial media. It is applicable to various fields concerning level measuring and monitoring：

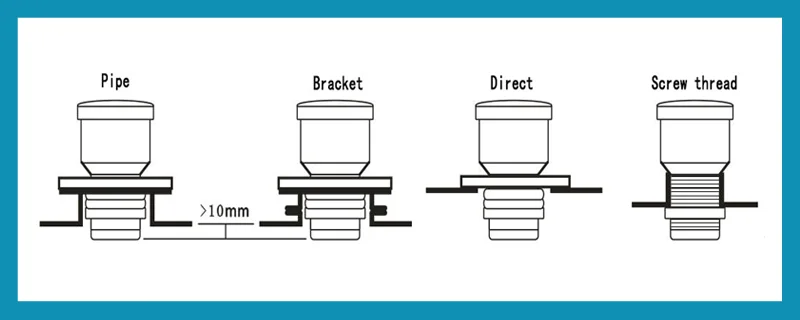

Product Installation

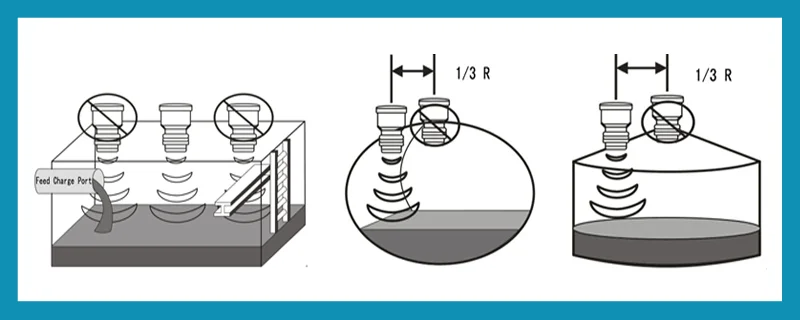

Our Votesen VLS731 Standard Type (Normal Temperature) Integrative Ultrasonic Level Meter should be placed where there is no obstacle between emission surfaces and measured liquid, it also should be far away from feeding throats.
The tank shape should be considered. Some types of containers will bring second echo, especially conical and spherical tanks. A good installation place will solve the problem.

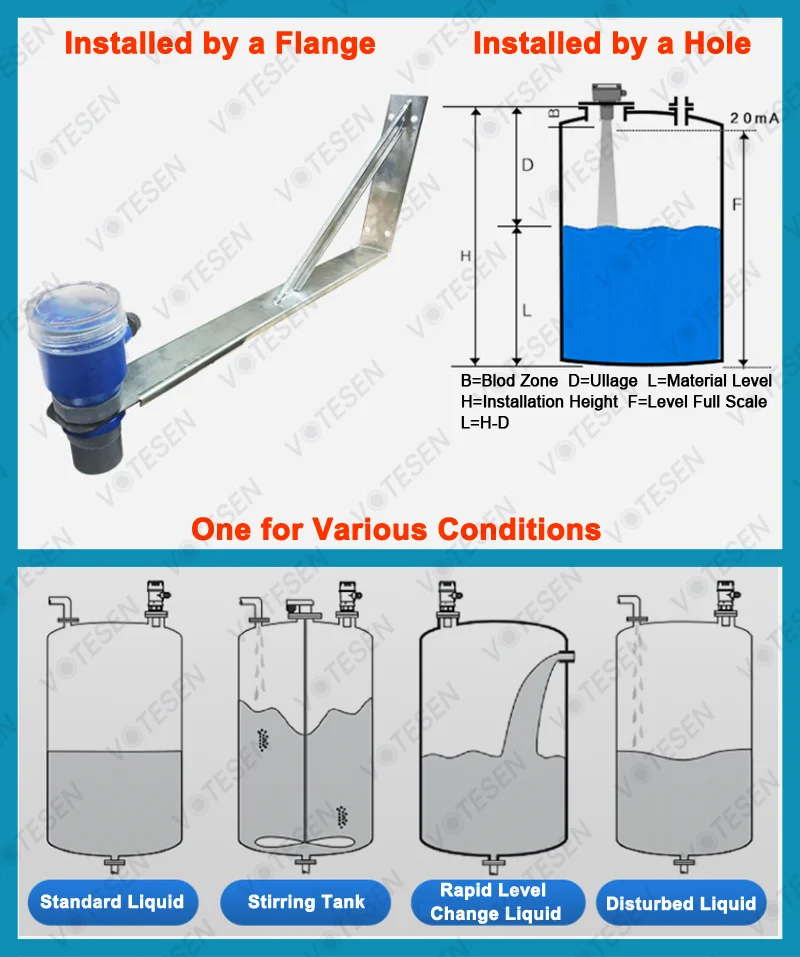

Our Votesen VLS731 Standard Type (Normal Temperature) Integrative Ultrasonic Level Meter can be installed by a flange or hole, whatever installation way, make sure the sensor bottom through the installation hole or flange.
Product Packaging & Shipping
As the client requirement, each unit of our Votesen VLS731 Standard Type (Normal Temperature) Integrative Ultrasonic Level Meter has an individual box and all boxes are packed in standard export packages.
Company Profile & Certifications
XI'AN VOTESEN ELECTRONIC TECHNOLOGY CO.,LTD located in XI'AN CITY, one of the three major sensor industry based in China. We have more than 10 years experience in sensor industry. We are not only the product manufactory, but also a professional technical support team which we can accommodate customer various requirements. We also accept OEM/ODM production order.
Votesen is committed to produce high-quality sensor and measurement instruments. Our mature and advanced production technology ensure your project safety, stable and long lasting operation. Our ultimate goal is to ensure and control the quality of our products in line with the industry standard quality. Our products have been sold to over 40 countries like Australia, USA, Canada, Mexico, Netherland, Germany, Russia, Poland, Korea, India etc.
With Votesen, you will always harvest the best price, passion service and professional guidance. We supply 7*24 hours professional service and your satisfaction is always our priority.
Product FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.
Q: What is your terms of payment ?
A: 100% payment in advance. If you have any other question, please feel free to contact us at below:
