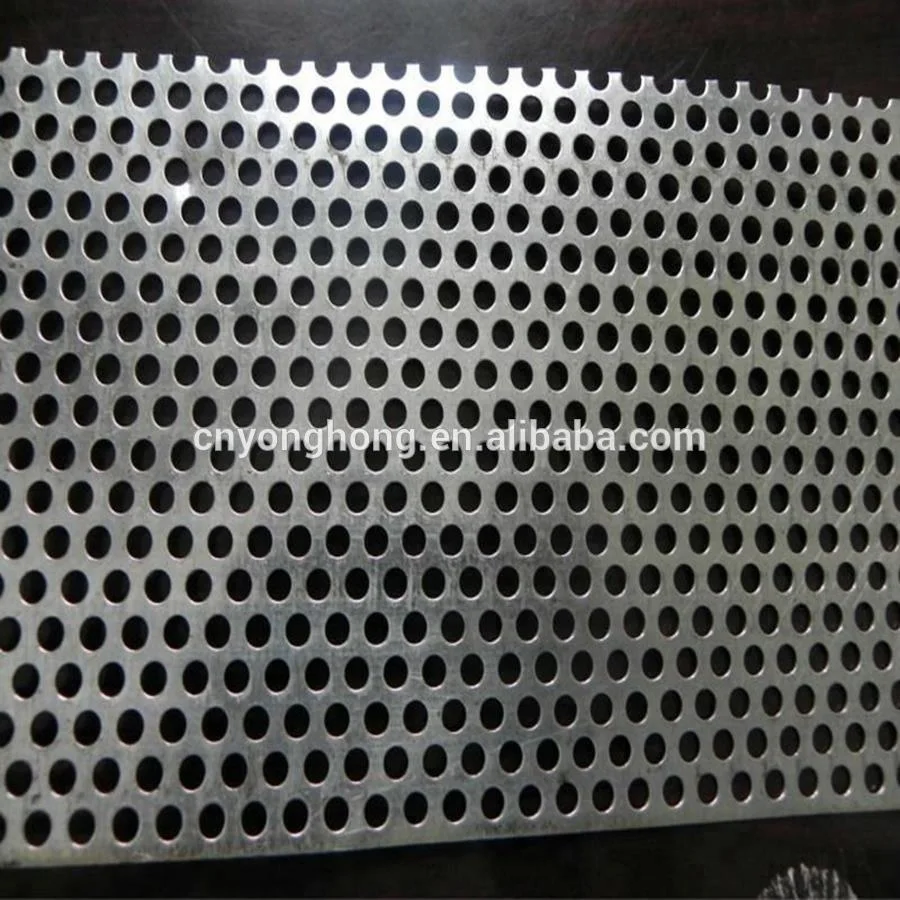

Decorative perforated aluminum metal sheet

Product Overview

Description

Discription of  Perforated aluminum sheet metal used for agriculture equipment
Base Material: aluminium alloy 1100-H24 3003-H14 5005-H34 5052-H32
Thickness: 0.2-25mm

Demension:

The most comment width and length as following

1000mmx2000mm

1220mmx2440mm

1250mmx2500mm

1250mmx6000mm

1500mmx3000mm

1500mmx6000mm

Hole diameter: 0.3-100mm
The parameters needed to quote:

1) Hole shape

2) Hole diameter

3)Hole pattern: staggered or straight

4)Pitch(the distance between two nearest holes' center)

5)Dimension: width and length

6)Drawing if available

7) Surface finish: mill finish, polished, anozided etc

Application: agriculture equipment, audio,automotive & transport, architecture, design, electronics, noise control, pharmaceutical, filtration, etc





Alloy		Application field
1xxx	1050	Insulation, food industry, decoration, lamp, traffic signs etc.
	1060	Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts etc
	1070	Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc
	1100	Cooker, building material, printing, heat exchanger, bottle cap etc
2xxx	2A12 2024	Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts, car parts and various other structural parts.
3xxx	3003 3004 3005 3105	Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard.  Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc
5xxx	5052	Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device, equipment and medical device panel etc.
	5005	Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
	5086	Ship board, deck, bottom and edge panel etc.
	5083	Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board, automotive and aircraft panel, cooling device and automotive molding etc.
	5182
	5454
	5754	Tanker body, marine facilities, pressure container, transportation etc.
6xxx	6061 6083 6082	Railway inside and outside parts, board and bed plate.  Industry molding Highly stressed applications includes Roofing construction, transportation, and marine as well as mould.
	6063	Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products.
7xxx	7005	Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers
	7050	Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment
	7075	Aerospace industry, military industry, electronic etc
