☆ 9W high-power fiber-coupled blue semiconductor laser device MPR450-610AF/AP ☆

【Features】
Wavelength 450nm
Maximum output 9W
6W,9W,12W,20W, 50W, 200W lineup, select according to the target application.
High output enables high-speed machining.
Uses an optical fiber core diameter of φ105 μm and is ideal for microfabrication with a small diameter beam.
High light absorption rate for metal materials such as gold (Au) and copper (Cu), reducing material damage and achieving highly efficient processing.
Output fluctuation within 1% with maximum output continuous drive due to original heat dissipation design ＊type:AP

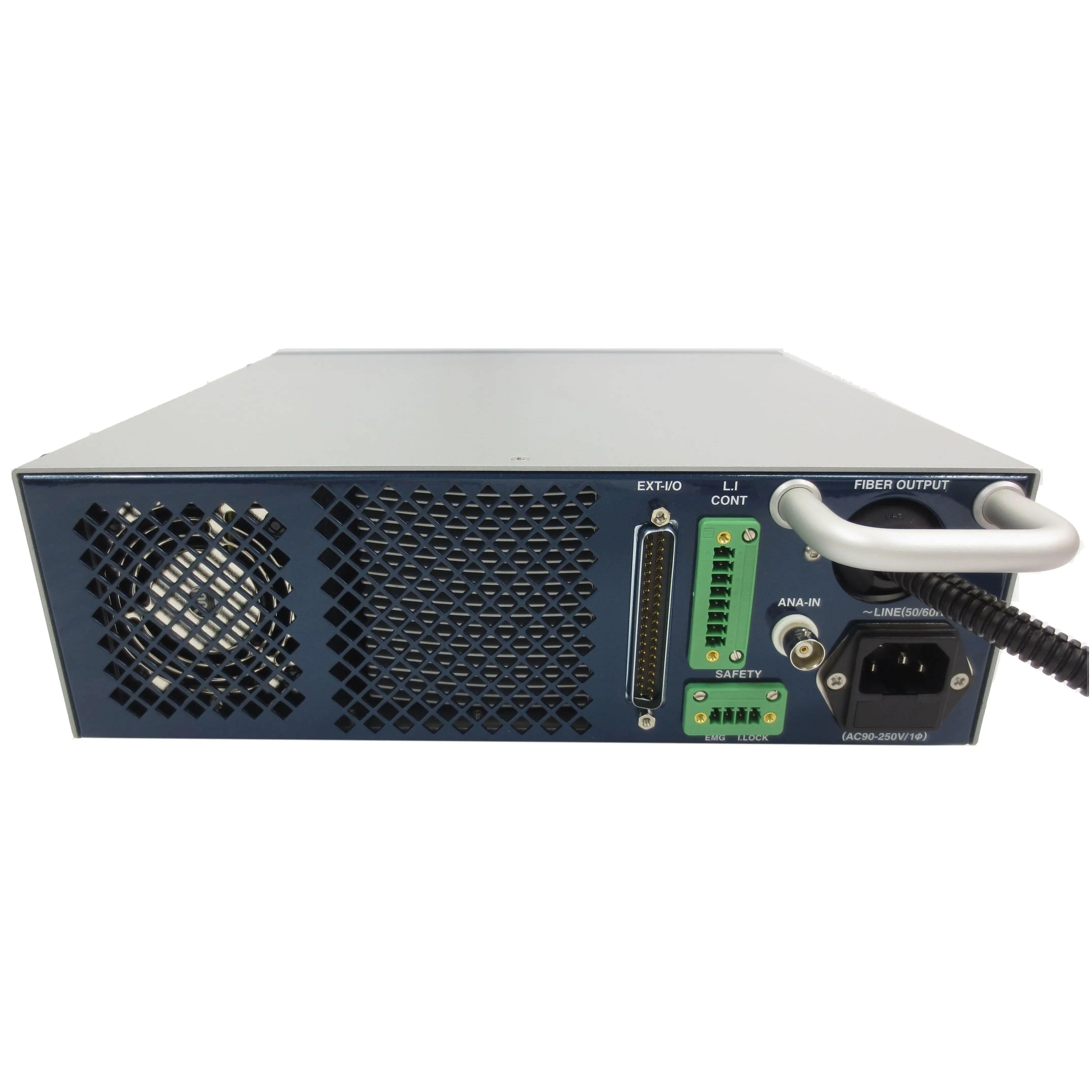

Remote operation, interlock, various interfaces and safety equipment
It is a laser system with high cost performance.
Optical systems (options) such as beam diameter and focal length can be used according to the application.








Product name

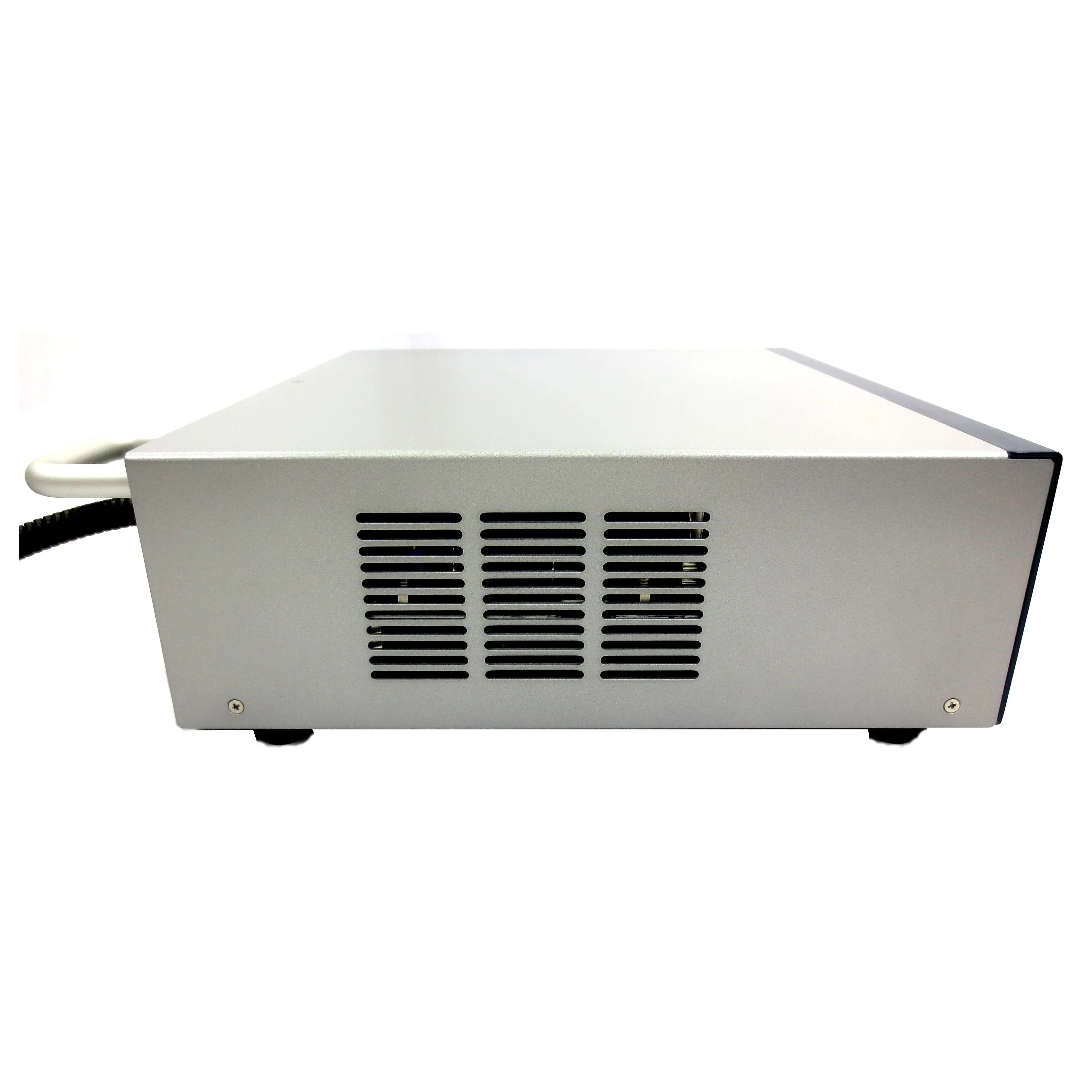

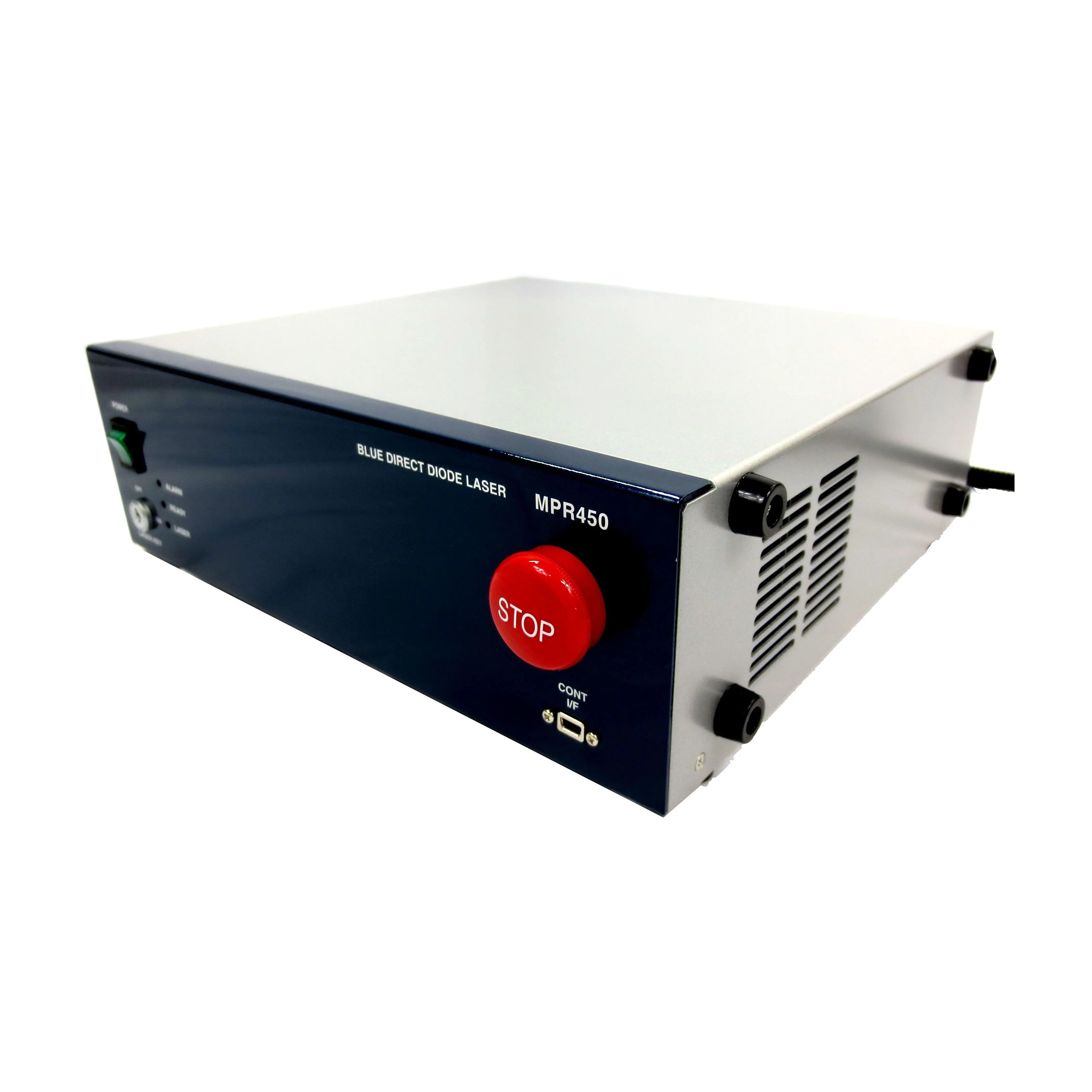

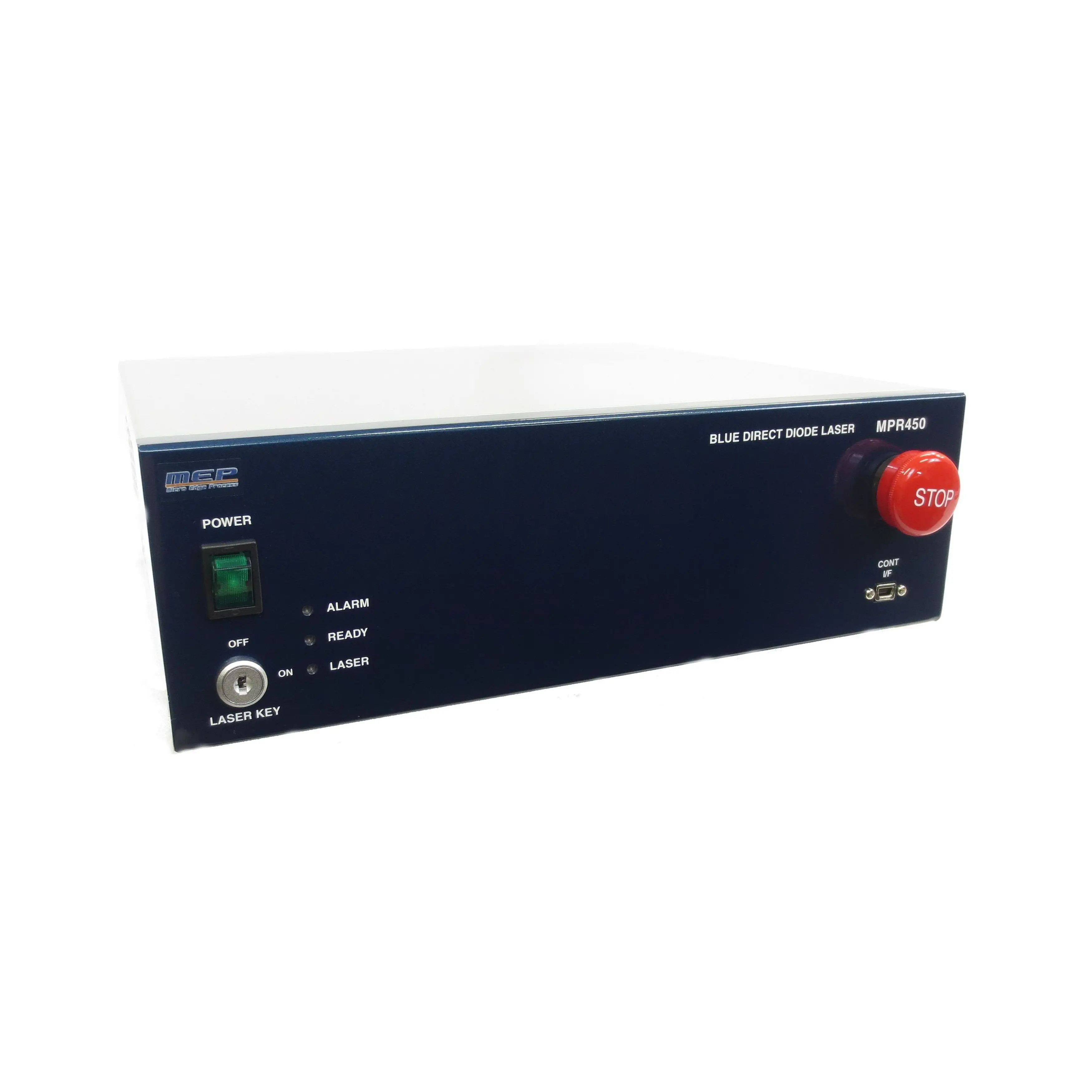

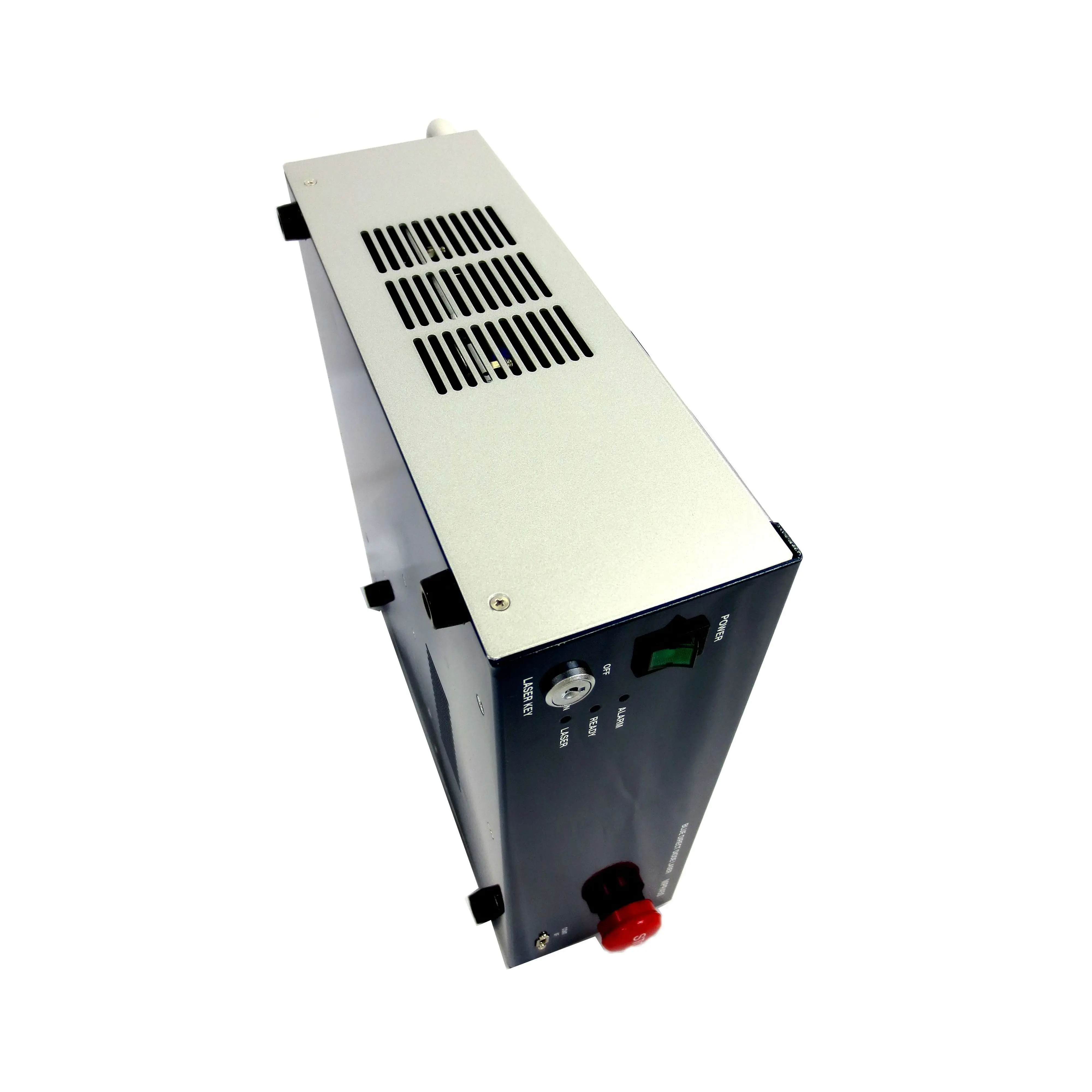

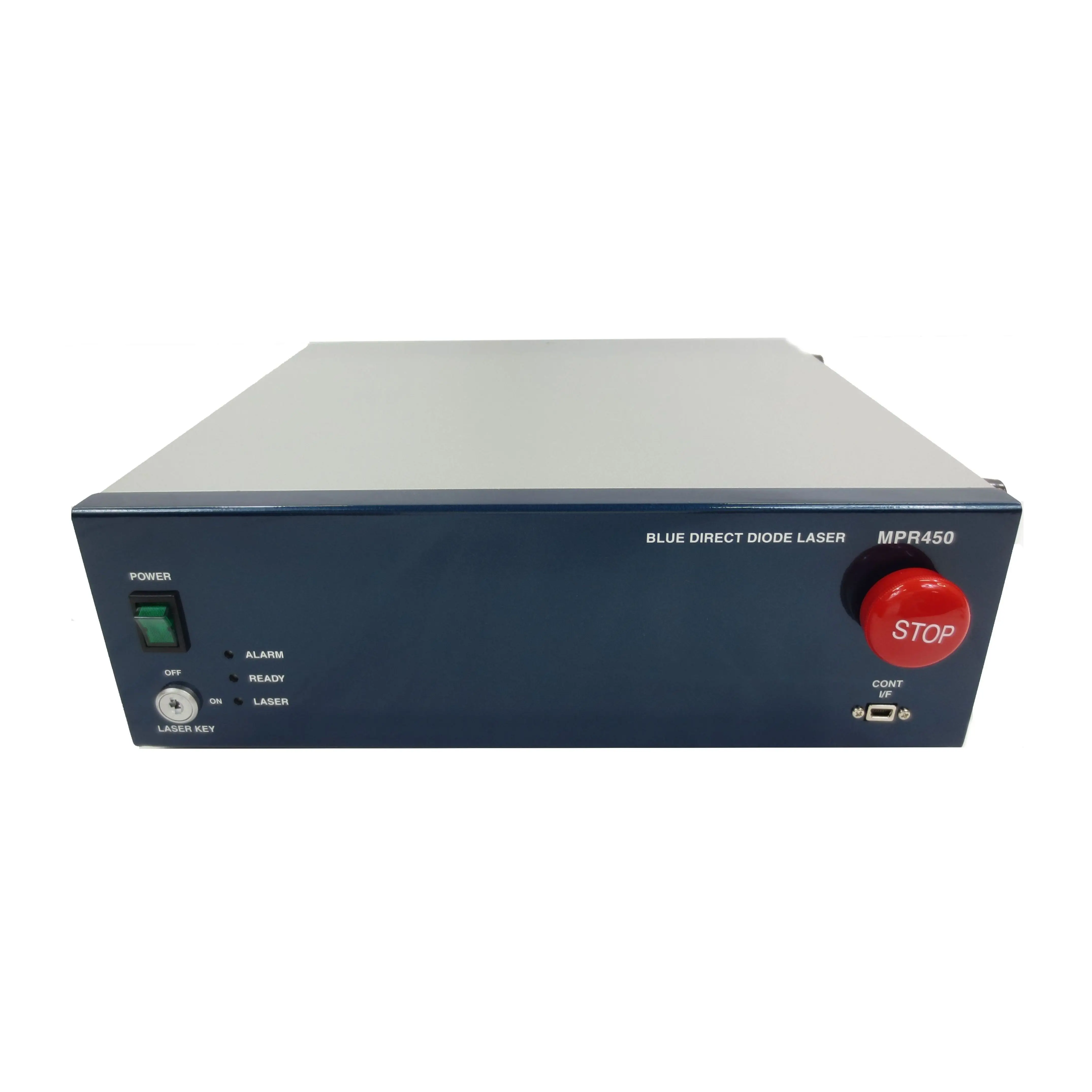

9W high-power fiber-coupled blue semiconductor laser device MPR450-610AF/AP
Brand Name
Micro Edge Process
Place of Origin
Japan
Features
Wavelength
450nm
Maximum output
9W
Applications
Microprocessing
Soldering, welding, welding, fusion, hardening, baking, engraving, etc.
Light source
Evaluation equipment, medical / bio light source
R&D
Material evaluation, analysis, experiments, etc.
General specifications
Power supply voltage
AC90V-AC220V
Maximum power consumption
450VA or less
Operating temperature
15 to 35 ° C (non-condensing) ＊type:AP
Allowable humidity
85% RH or less (non-condensation)
Storage temperature
-10 to 60 ° C (humidity 90% RH or less)
LD cooling method
forced air cooling & TEC, fluid circulation method (LD temperature control) ＊type:AP
Housing structure
Non-dustproof / non-waterproof
External dimensions
280W x 260D x 88H (mm) excluding protrusions
Weight
5.5Kg
Laser specifications
Oscillation wavelength
450±15nm
Maximum output
9W / CW (fiber end / Ta = 25 ℃)
Maximum LD drive current
3A (LD-MOD / Ta = 25 ℃)
LD drive minimum current
0.3A
LD drive voltage
14V (at maximum output)
Transmission fiber
Multi-mode
Length
3±0.2m (standard)
Core diameter
φ105μm (standard)
NA
0.22
Connector
SMA905
Bend radius
100mm
TH
Rt 10KΩ / 25 ℃, β3477 ± 3%
PD output
Yes
