Product Overview
Description

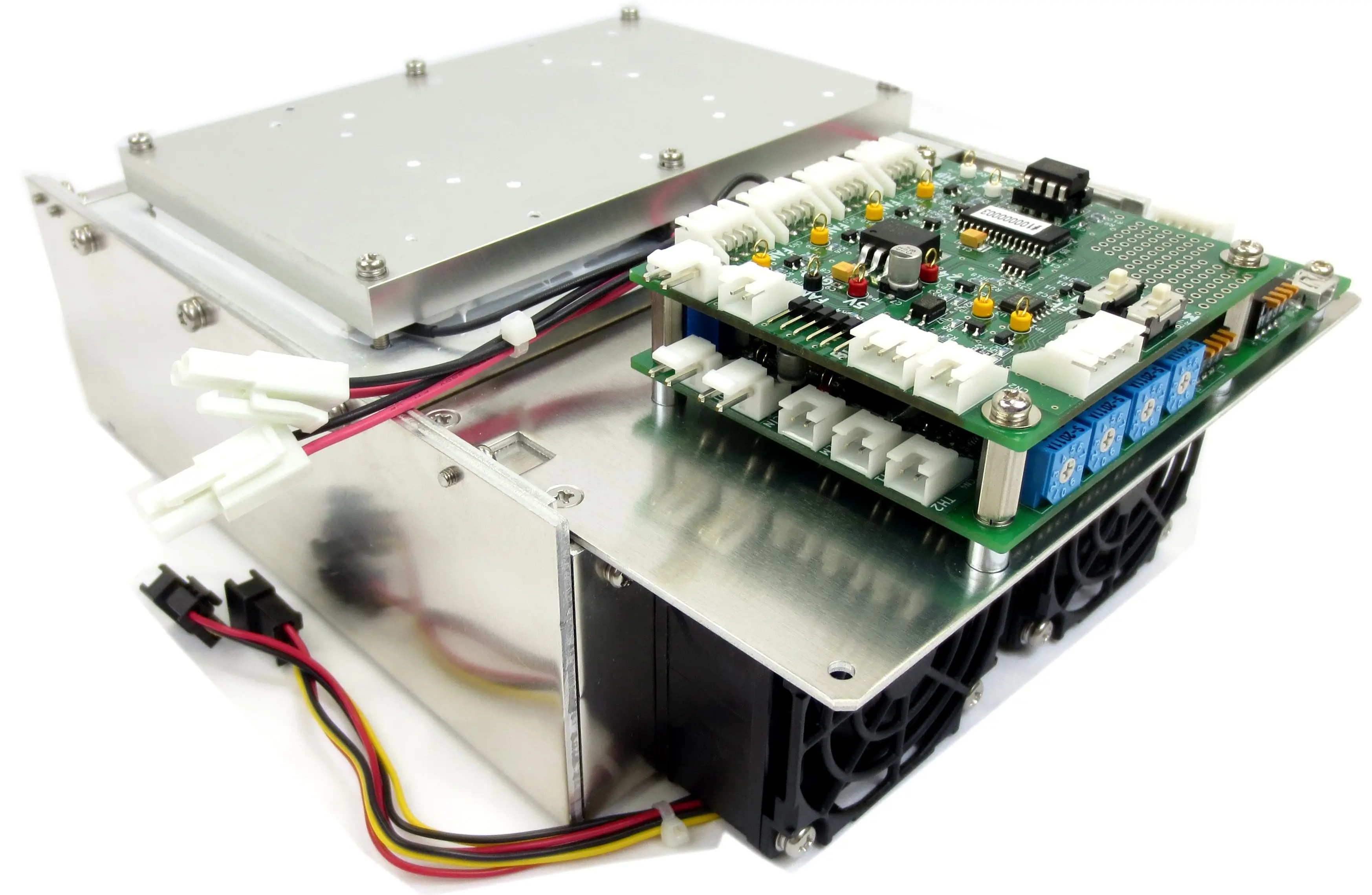

☆ Cooling capacity 150W Air-cooled type plate electronic cooler MPR-C150AP ☆\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
【Features】\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ Cooling capacity 70Watt\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ Electronic cooler with a Peltier module.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ A lineup of cooling capacities of 70W, 150W, and 450W, Can be selected according to the desired application.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ Highly endothermic, compact and lightweight so that this is ideal to install into equipment.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ Highly accurate temperature control is possible with system expansion (optional).\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ It can be used for any purpose, such as cooling laser modules and CPUs.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
Product name | MPR-C150AP Cooling capacity 150W Air-cooled plate-cooled electronic cooler | ||
Brand Name | Micro Edge Process | ||
Place of Origin | Japan | ||
Features | Environment of use | Indoor | |
Cooling method | Peltier device | ||
Heat dissipation | Air cooling | ||
Type of cooling | Plate | ||
Specifications | Model | MPR-C150AP | |
Cooling method | Fan-cooled Plate cooling | ||
Cooling capacity *1 | 150W | ||
Max. temperture difference in cooling *2 | 45K | ||
Rated voltage (Fan/Peltier) | DC24V ±5% | ||
Current consumption *3 | 13A or less | ||
Starting current *4 | 14A | ||
Working temperature | 0 to +60℃ | ||
Working humidity | Max. 80％RH, free from condensation | ||
Max. allowable temeprature for Cooling palte | +80℃ | ||
Max. allowable temeprature for Dissipation fin base | +80℃ | ||
Cooling surface dimensions (mm) | 100×156 | ||
Dimensions (mm) | W176×H85×D235 | ||
Weight | 3.5kg | ||
*1 Nominal value at 30℃ ambient temp. \t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
*2 Temperature difference between ambient air and cooling part when ambient temp. is 30℃ and heat load on plate surface is zero\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
*3 Rated value when the unit runs cooling operation at 30℃ ambient temp. (The value varies depending on temperature )\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
*4 Value at 30℃ ambient temp. (The value varies depending on temperature. )
*2 Temperature difference between ambient air and cooling part when ambient temp. is 30℃ and heat load on plate surface is zero\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
*3 Rated value when the unit runs cooling operation at 30℃ ambient temp. (The value varies depending on temperature )\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
*4 Value at 30℃ ambient temp. (The value varies depending on temperature. )
