PTFE Coated Open Mesh Conveyor Belt For Textiles Dryers in 4*4mm Mesh Size
- Category: >>>
- Supplier: Taixing Kangdalong Composite Material Co. Ltd.
Share on (1700004183003):
Product Overview
Description

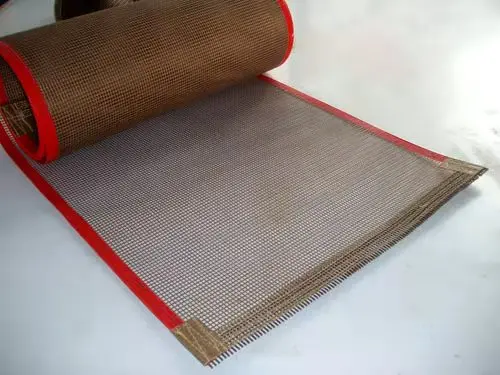

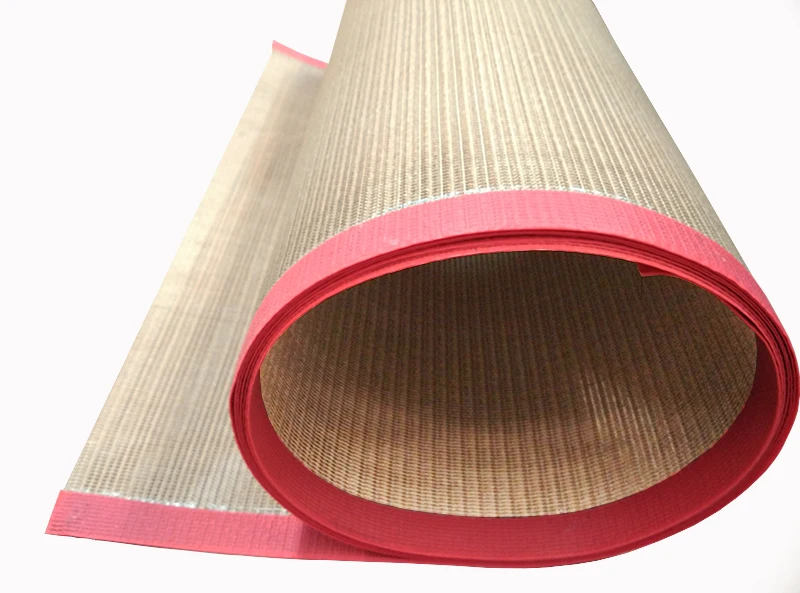

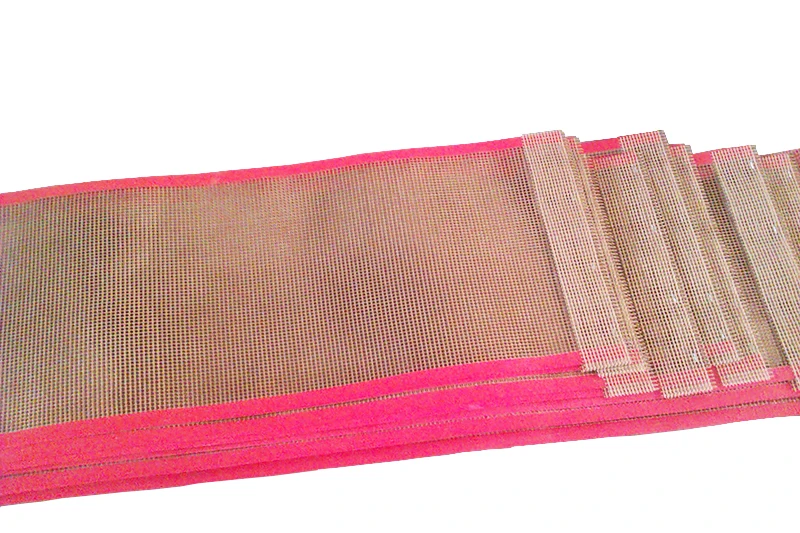

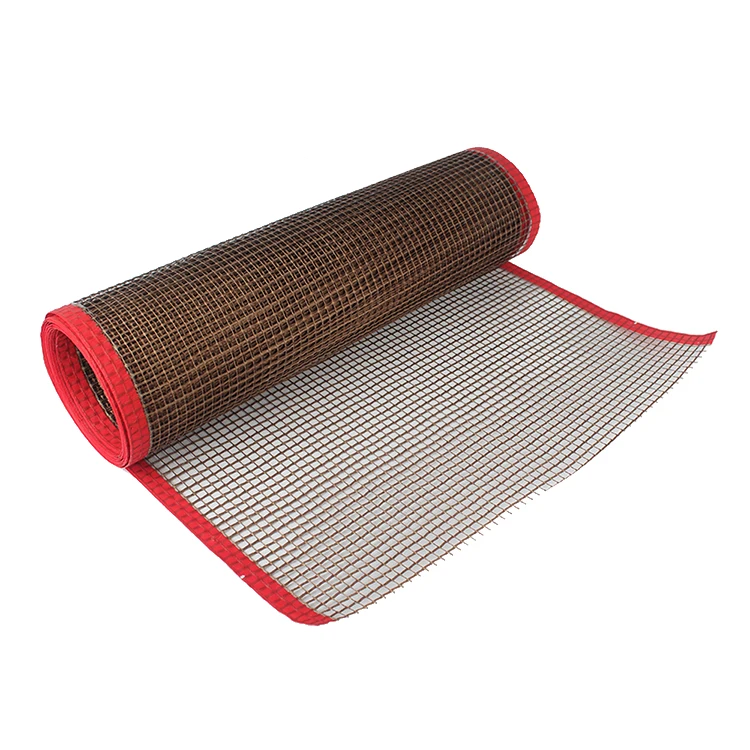

PTFE Coated Open Mesh Conveyor Belt For Textiles Dryers in 4*4mm Mesh Size
PTFE Coated Open Mesh Fabrics are made from high quality open mesh woven fiberglass coated with ptfe resin. The open mesh area allows maximum air flow optimising drying times. Designed to operate in extremes of both temperature and chemical exposure,ptfe mesh belts have been a natural choice for dryer manufactures.It is ideally suited for conveying products and is commonly used in a wide variety of industries,such as gas,electric,infrared(IR),radio frequency(RF),microwave and ultraviolet(UV) conveyorized drying operations. Product name | PTFE Coated Open Mesh Conveyor Belt For Textiles Dryers in 4*4mm Mesh Size |
Material | PTFE+Fiberglass |
Application | conveyor belt for textile,screen printing,UV machine |
Sample | Freely Sample |
MOQ | 10 square meters |
Width | 4m |
mesh size | 1*1mm,2*2.5mm,4*4mm,10*10mm |
Color | Black,Brown |
Delivery Detail | 7-15 days after payment |
Certificates | LFGB,ROHS |
Shipment | Express Delivery,Sea Shipment,Air Shipment |
Model | Mesh Size(mm) | Color | Thickness(mm) | Weight(g/m2) | Tensile Strength(N/5cm) | Notes | ||
wrap | weft | |||||||
K011 | 1*1 | Brown/Black | 0.5 | 440 | 1800 | 1650 | Single weft single warp | |
K0225 | 2*2.5 | Brown | 0.7 | 520 | 2000 | 1450 | Single weft double warp | |
K044S | 4*4 | Brown/Black | 1 | 480 | 1350 | 1700 | Single weft double warp | |
K044W | 4*4 | Brown/Black | 570 | 1800 | 3000 | double weft double warp | ||
K044KW1 | 4*4 | Brown | 410 | 3200 | 2050 | Single Kevlar weft double Kevlar warp | ||
K044KW2 | 4*4 | Brown | 570 | 3200 | 2300 | double Kevlar weft double Kevlar warp | ||
K1010 | 10*10 | Brown | 430 | 1400 | 1000 | double weft double warp | ||
2)Resistant almost all chemical,such as corrective agent and others
3)Operating temperature range from -70~260 degrees
4)Superior non-stick surface,easy to clean and release
5)Any size could be made,the maximum width is 4m
6)Exceptional strength and dimensional stability
7)Food grade,can touch food directly
8)Light weight,easy to install
9)Resist to UV IR and HF
10)High dielectric strength
4).Could be Anti-static
4).Could be Anti-static
To enhance the tracking and belt life,we offer you various kinds of edge reinforcements and joints to choose:

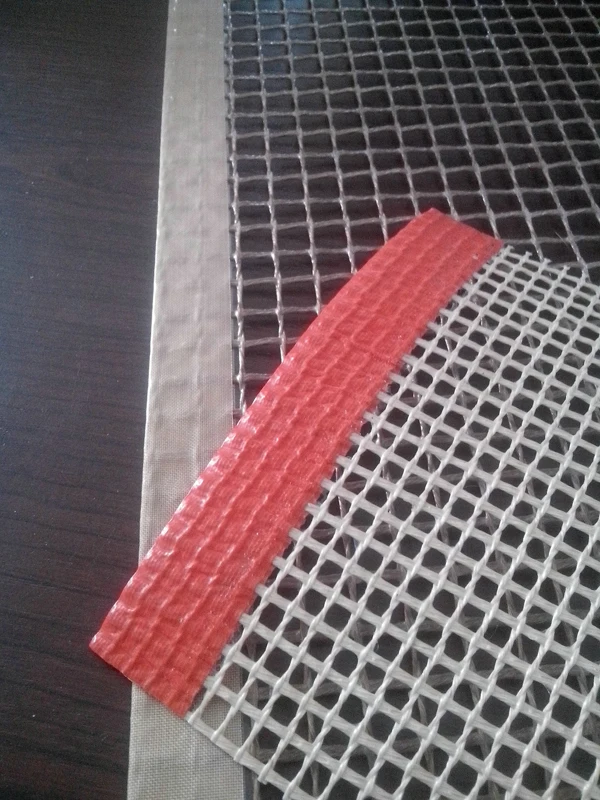

Edge reinforcements:
1.PTFE film Edge Reinforcement(Heat-Sealed)
2.PTFE-Glass Edge Reinforcement(Heat-Sealed)
3.PTFE-Kevlar Edge Reinforcement(Heat-Sealed)
2.PTFE-Glass Edge Reinforcement(Heat-Sealed)
3.PTFE-Kevlar Edge Reinforcement(Heat-Sealed)

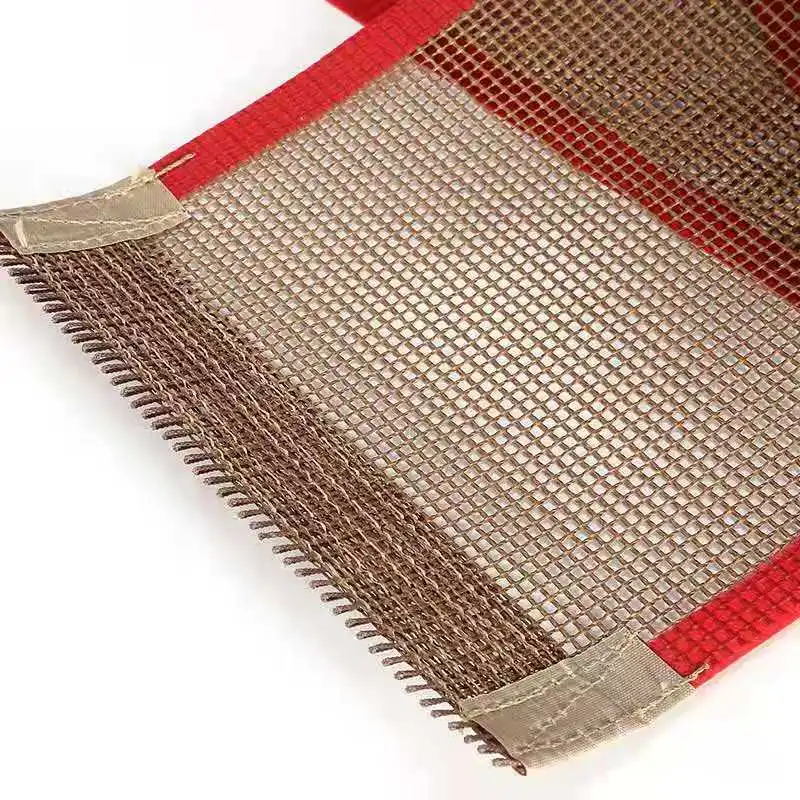

Joints:
Bullnose joint,Overlap joint,Alligator/Clipping Joint,Castellated joint
If you have doubts about the edge reinforcement and joints,please contact us to choose a best for your specific application.

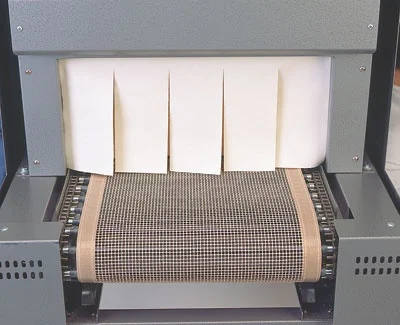

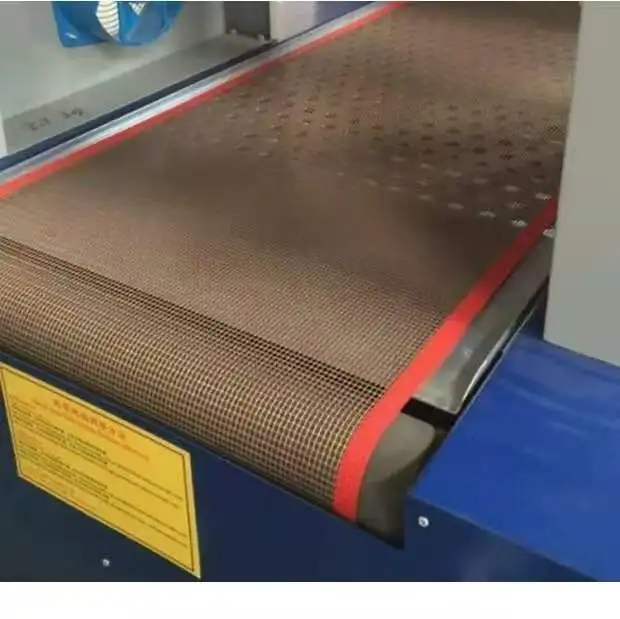

-Drying machine for non-woven textile,textile printing,silk-printing and dyeing machine.
-Shrinking machine for garment fabric,high-frequency and UV dryer.
-Conveyor belt for hot-air dryer,various of food baking,quick-frozen machines.
-Oiling machine for paper glazing and waxing, plant engineering.
-Separating sheet for hardboard production etc.
-Release mesh for laminated glass vacuum bag.
-Grill mesh for non-stick and easy clesn BBO grilling.
Q1:What products do you produce?
A:PTFE grill mat,grill mesh mat,grill mesh bag, PTFE oven sheet liner ,gas stove
protector,toaster bag,silicone baking mat ,PTFE heat resistant fiberglass cloth,PTFE
adhesive tape, PTFE conveyor belt, Seamless belt,Silicone fiberglass fabric,etc .
Q2:What is your MOQ?
A: Mostly no MOQ. Sample Order is available.
Q3: Can we customize the size we need?
A: Of course you can. We can customize any size according to our
customers' requirements.
Q4:Can I get some free samples?
A: Yes, but clients should pay shipping freight themselves.
Q5:What about the delivery time?
A: We have some material in stock, which can make sure to delivery the goods out
quickly for small quantity orders. For customized orders, the delivery time is usually
within 15 working days after receiving the payment.
Q6:Can we print LOGO on the mat?
A: The surface of the BBQ grill mat is very smooth, so it's unable to print LOGO on
the mat. But you can use LOGO sticker,or you can print LOGO on the color box and
some other package.
Q7:What's the package you can provide?
A: Our regular package is opp bag and cartons.But if you have special requirements
such as colourful box,envelop bag or others,we can help you to customize.
A:PTFE grill mat,grill mesh mat,grill mesh bag, PTFE oven sheet liner ,gas stove
protector,toaster bag,silicone baking mat ,PTFE heat resistant fiberglass cloth,PTFE
adhesive tape, PTFE conveyor belt, Seamless belt,Silicone fiberglass fabric,etc .
Q2:What is your MOQ?
A: Mostly no MOQ. Sample Order is available.
Q3: Can we customize the size we need?
A: Of course you can. We can customize any size according to our
customers' requirements.
Q4:Can I get some free samples?
A: Yes, but clients should pay shipping freight themselves.
Q5:What about the delivery time?
A: We have some material in stock, which can make sure to delivery the goods out
quickly for small quantity orders. For customized orders, the delivery time is usually
within 15 working days after receiving the payment.
Q6:Can we print LOGO on the mat?
A: The surface of the BBQ grill mat is very smooth, so it's unable to print LOGO on
the mat. But you can use LOGO sticker,or you can print LOGO on the color box and
some other package.
Q7:What's the package you can provide?
A: Our regular package is opp bag and cartons.But if you have special requirements
such as colourful box,envelop bag or others,we can help you to customize.
