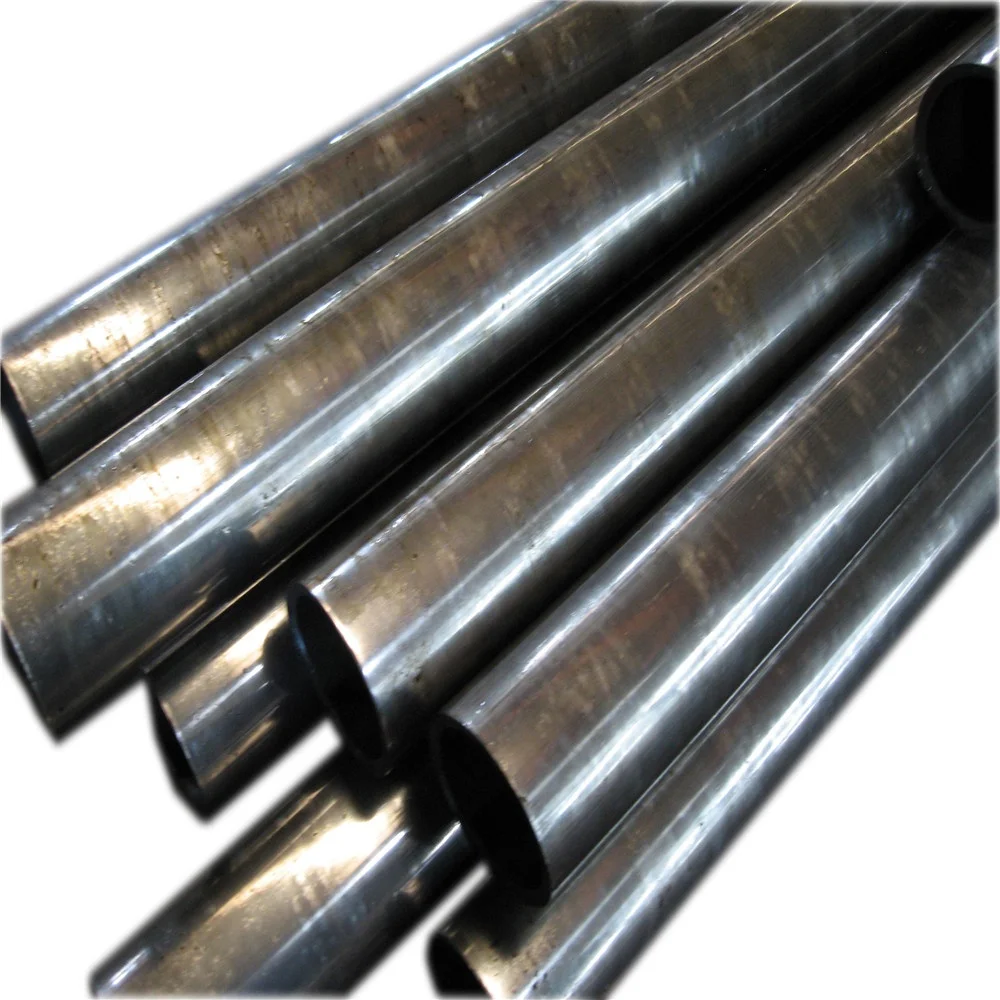

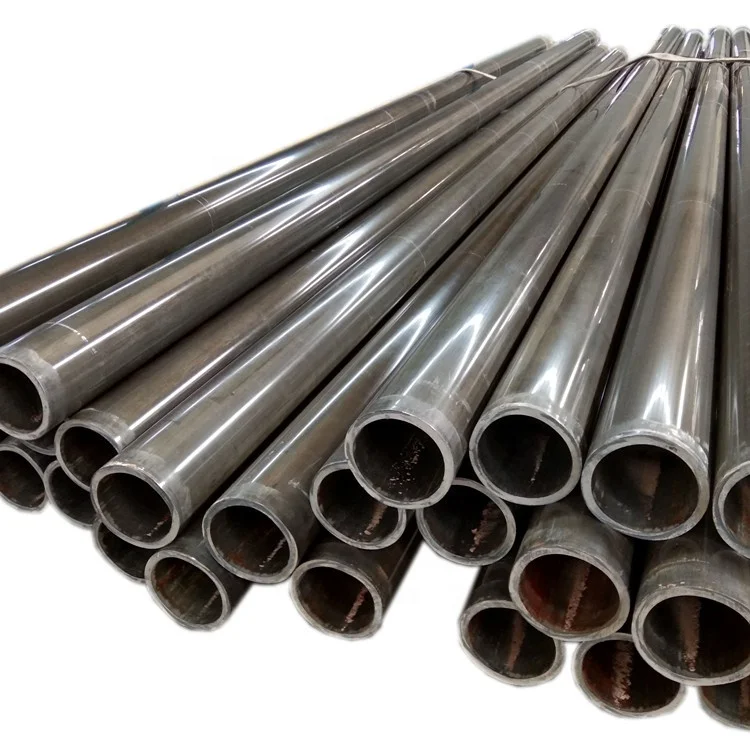

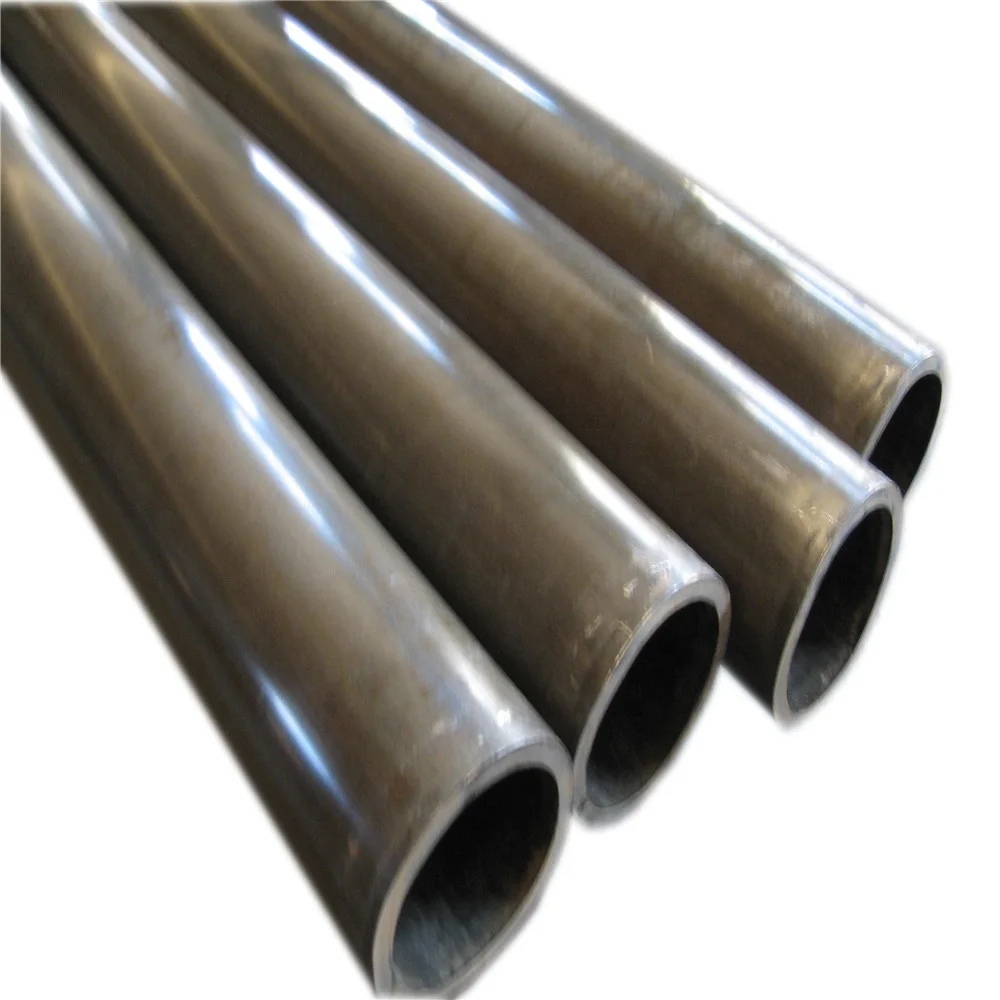

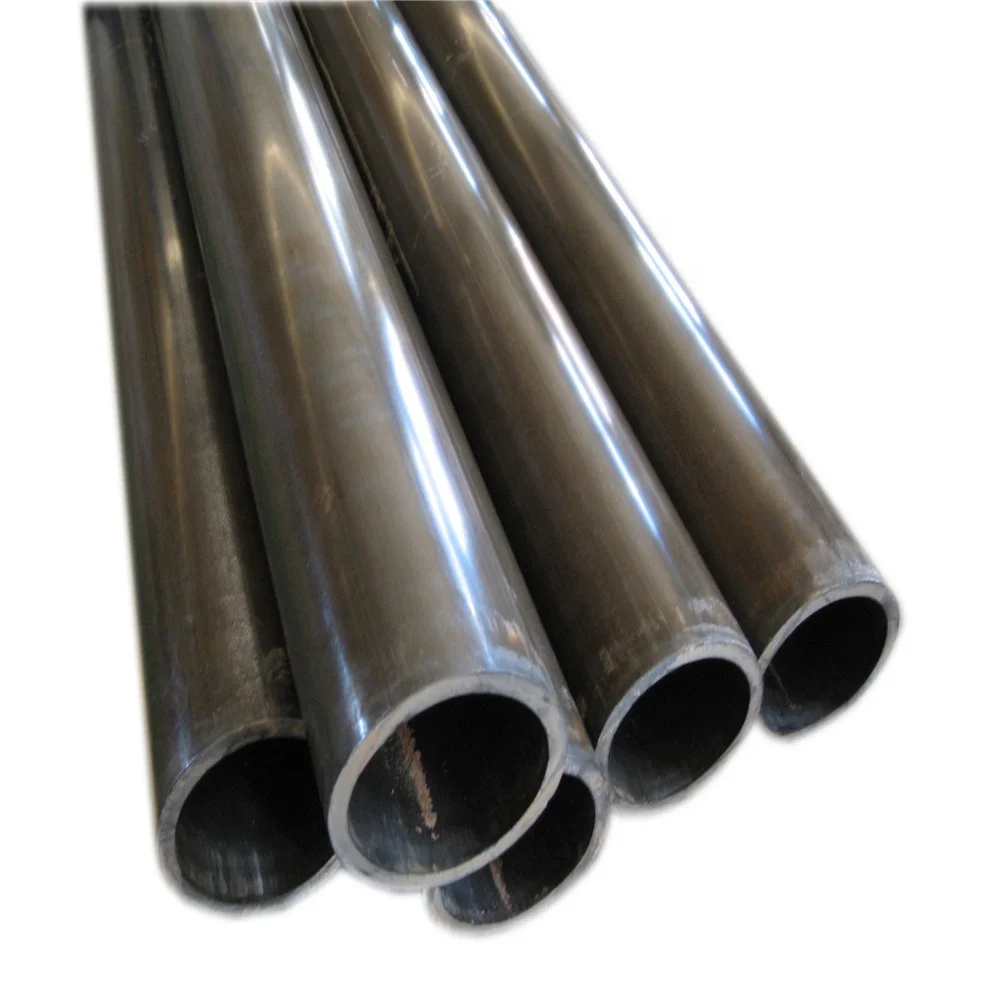

Bike Frame Using CK45 S45C Cold Drawn Tube Seamless Pipe

Product Overview

Description



Bike Frame Using CK45 S45C Cold Drawn Tube Seamless Pipe

1.Product Name: Bike Frame Using CK45 S45C Cold Drawn Tube Seamless Pipe

2.Outer Diameter: 30-300mm

3.Wall Thickness: 2-30mm
4.Material Grade: 20# 45# 16Mn 25Mn 27SiMn E355 ST52 CK45 STKM13A STKM13C S45C SAE4130 4140

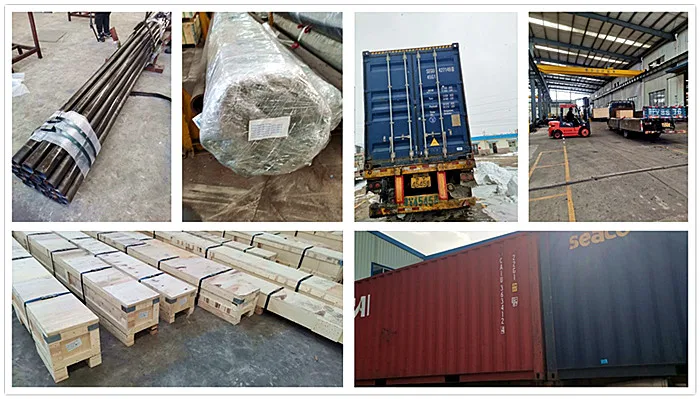

5.Package: Standard export packing or as client’s request
6.Delivery Condition: BK/BKW/BKS/GBK/NBK
7.Delivery Time: Within 20-30 days after receiving payment or as client’s request
8.Trade Terms: FOB Yantai, Qingdao, or as client’s request
9.Payment Terms: T/T or L/C or as client’s request
10.Supply Ability: 500 metric tons/per month

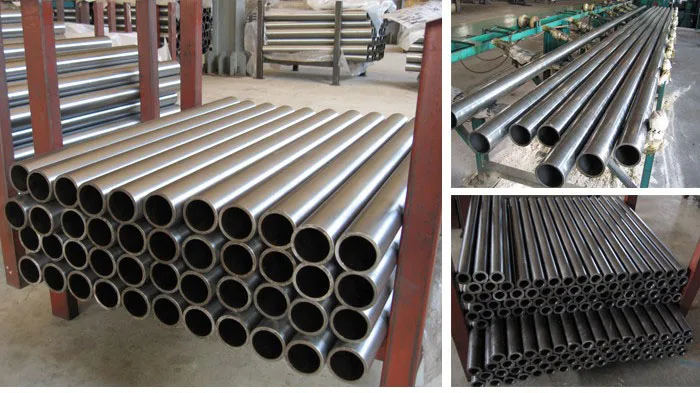

11.What we can provide are seamless pipe, cold drawn pipe, cold rolled pipe, honed tube, and so on.

seamless tube, carbon tube, cold drawn steel tube, cold rolled steel tube, honed steel pipe, hydraulic tube, cylinder tube, etc.

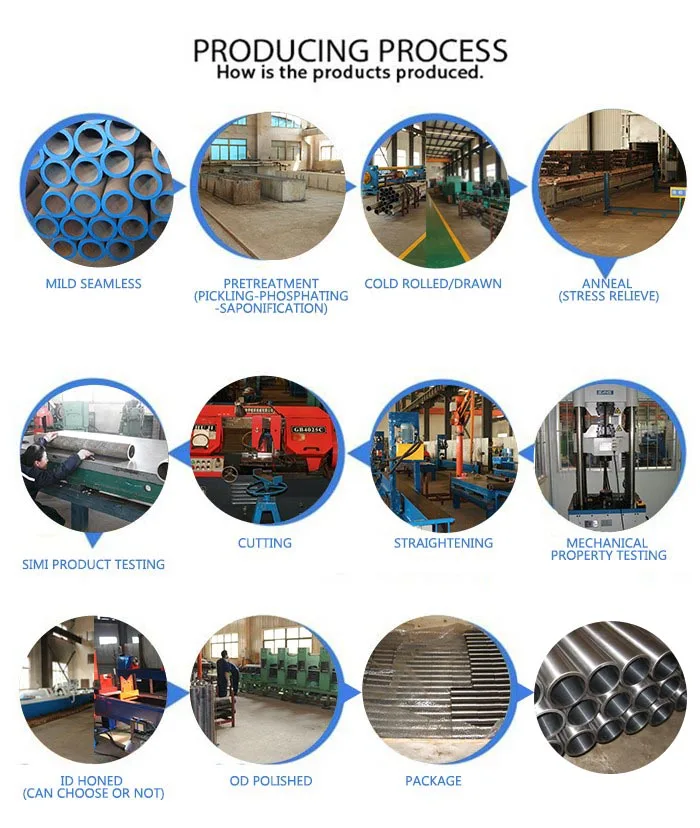

1.cold drawn pipe, cold rolled pipe

After pickling, phosphating, our seamless pipe can do deep work such as cold drawn, or cold rolled.

This process can change the size of OD, ID, WT and the mechanical property of the carbon tube.

Roughness: ra1.6-3.2

Straightness: 1:1000mm



2.honed tube,SRB tube

A:  ID Honed



Utilize an abrasive stone,which turns while being moved in and out of the work piece.

The honing process makes :
1)Smooth surface finishes inside bores
2)Hold precise tolerances on bore diameters

ID H8 H9 H10
ID roughness 0.4-0.8μm

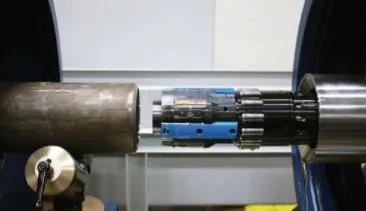

B:  ID Skiving and roller burnishing

Two thin chips are cut at high feed rate while the tool passes through the workpiece,

producing mirror inner,with a bore precise tolerance .

ID H8 H9 H10
ID roughness 0.2-0.8μm
ID max 250mm

*****************************************************************************************************************************************************

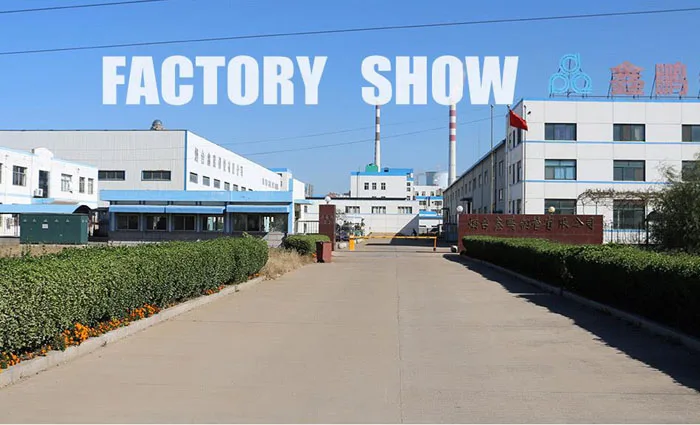

1.Our History

In 1992,Yantai Xinpeng steel pipe established.

In 2000,Xinpeng is equipped with JLB250T cold drawn machine set, LD120 precision cold rolled machine set, straightening machine, box heat treat furnaces(8000-10000mm)

In October 2002, Shandong Penghui Hydraulic Cylinder Co,. LTD. Was established.

In 2012, Xinpeng have equipped the CNC Skive and roller burnished machine set (6000mm)

In 2013, Xinpeng equipped several powerful honing machines. Combined cold drawn , cold rolling, heat treatment and SRB and honing process together to product the best quality products.



What we can provide are seamless pipe, hot rolled pipe, cold rolled pipe, cold drawn pipe, honed pipe, hydraulic cylinder pipe, and so on.



Also called cold finished tube, cold drawn tube, cold rolled tube, honed tube, SRB tube, hydraulic barrel, etc.



Size ID*OD (mm)  length can be fixed  biggest 6M
40*50	90*110	140*170	190*215
40*55	95*110	145*170	190*220
50*60	95*115	150*170	190*225
50*65	100*110	150*175	200*220
55*70	100*114	150*180	200*225
60*70	100*115	155*180	200*230
60*75	100*120	160*175	200*245
60*78	100*125	160*180	200*250
63*73	105*125	160*185	220*250
63*75	110*125	160*190	220*270
63*76	110*130	160*195	225*250
63*78	115*130	165*190	240*273
65*80	115*135	165*205	250*290
70*80	120*140	170*200	250*300
70*82	125*140	180*200	200*213
70*85	125*145	180*205	200*216
70*90	125*150	180*210	250*266
75*90	130*150	180*215
80*92	130*155	180*220
80*95	130*160	185*205
