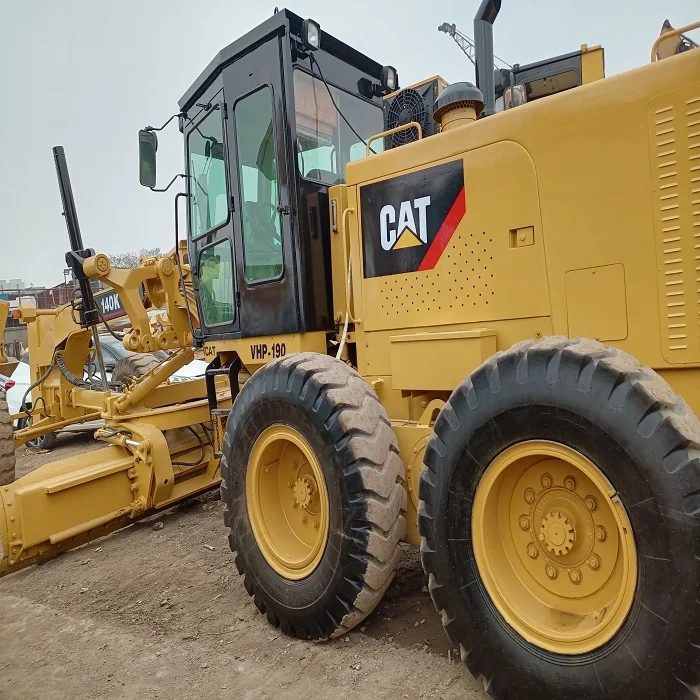

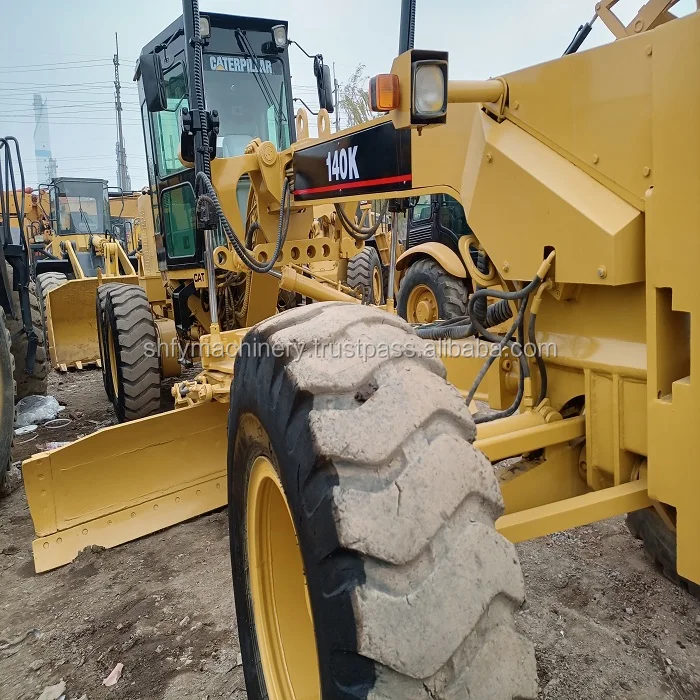

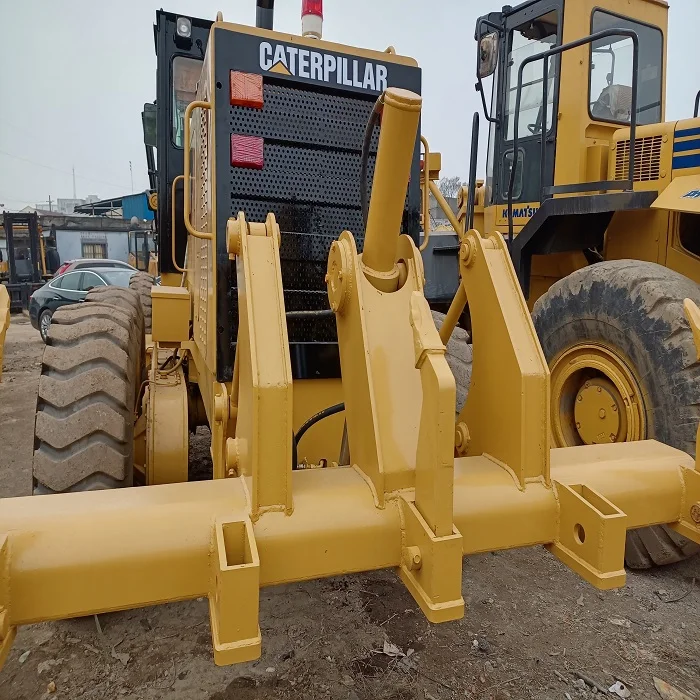

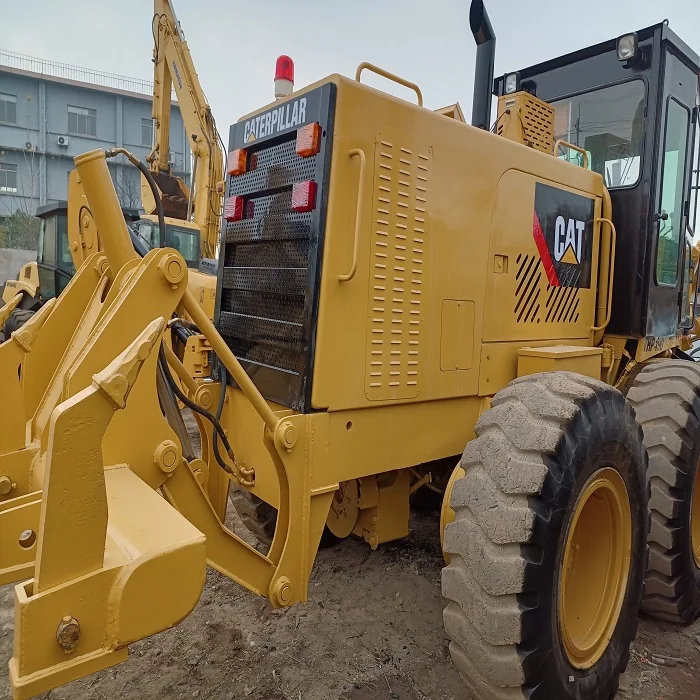

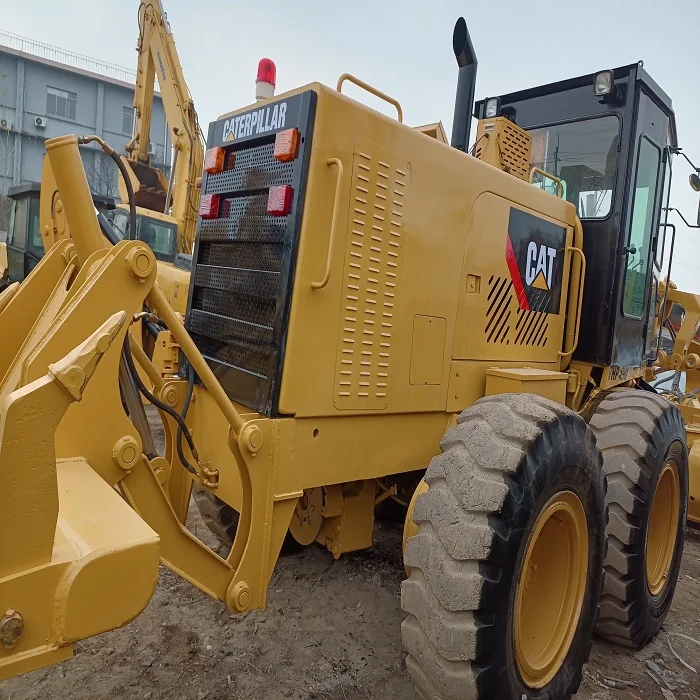

Grader 140K Vell Maintenance Free Spare Parts 1 Year Warranty on Sale

Basic power (1st gear)-net power

108 kW

Engine model

Cart C7

Displacement

7.2 l

Bore

105 mm

Stroke

127 mm

High temperature environment work ability

50 °C

Torque reserve

50%

Maximum torque

881 N·m

Power derating altitude

3048 m

Number of cylinders

6

Blade width

3.7 m

Arc radius

413 mm

Interdental space

120 mm

Scraper-thickness

22 mm

Blade width

152 mm

End edge-thickness

16 mm

Blade thickness

16 mm

Scraper-height

610 mm

End edge-width

152 mm

Scraper side shift-left

512 mm

Turntable center shift-right

728 mm

Scraper side shift-right

663 mm

Maximum blade length extending outside the tire-left

1859 mm

Maximum lifting height above the ground

480 mm

Turntable center shift-left

752 mm

Maximum blade length extending outside the tire-right

1809 mm

Maximum digging depth

735 mm

Blade tipping range-backward

5°

Blade tipping range-forward

40°

Rotation-outer diameter

1530 mm

Front axle-wheel tilt-left/right

18°

Front axle-total swing per side

32°

Total vehicle weight-typical configuration

16791 kg

Gross vehicle weight-basic-front axle

3820 kg

Gross vehicle weight-typical configuration-front axle

4497 kg

Gross vehicle weight-basic-rear axle

10450 kg
