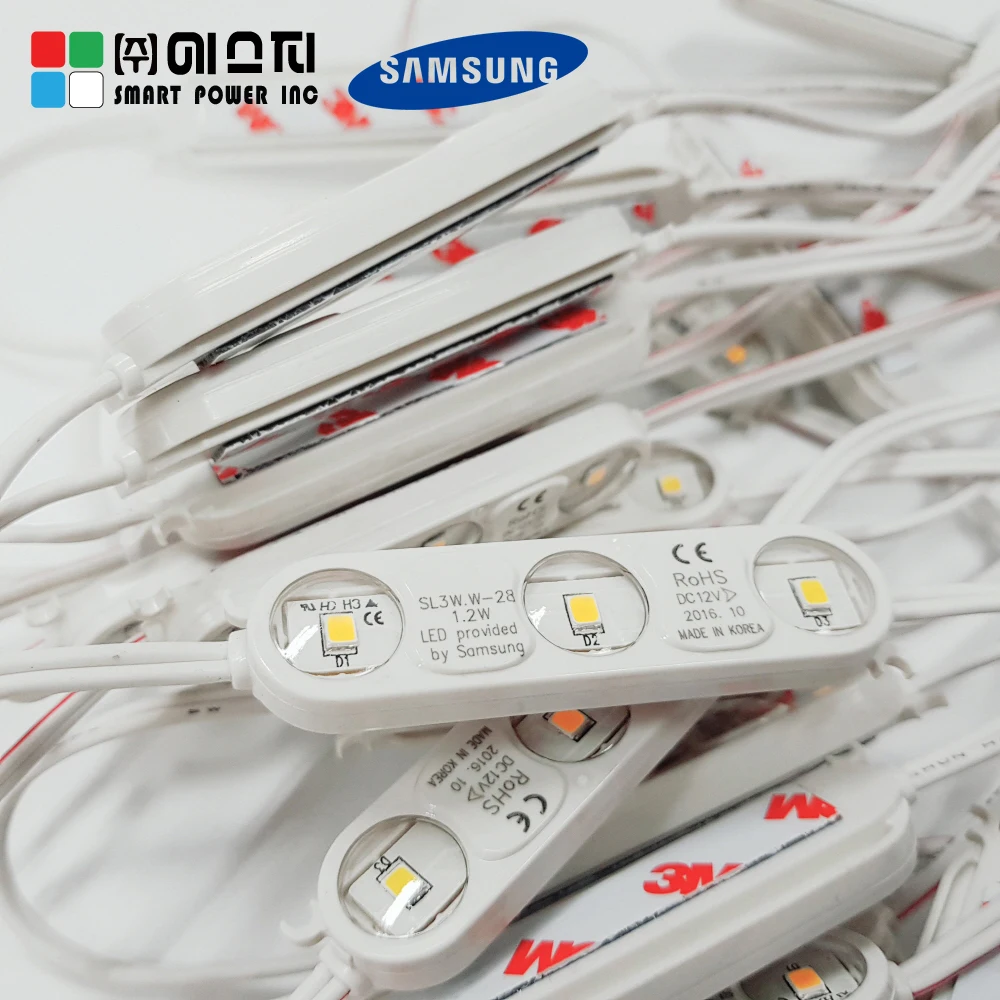

Korea Samsung led modules white 3 dot 3528 for outdoor advertising signange made in Korea

Share on (1700004907786):


Price:RUB 19.78 - RUB 24.31

Quantity:


Product Overview

Description

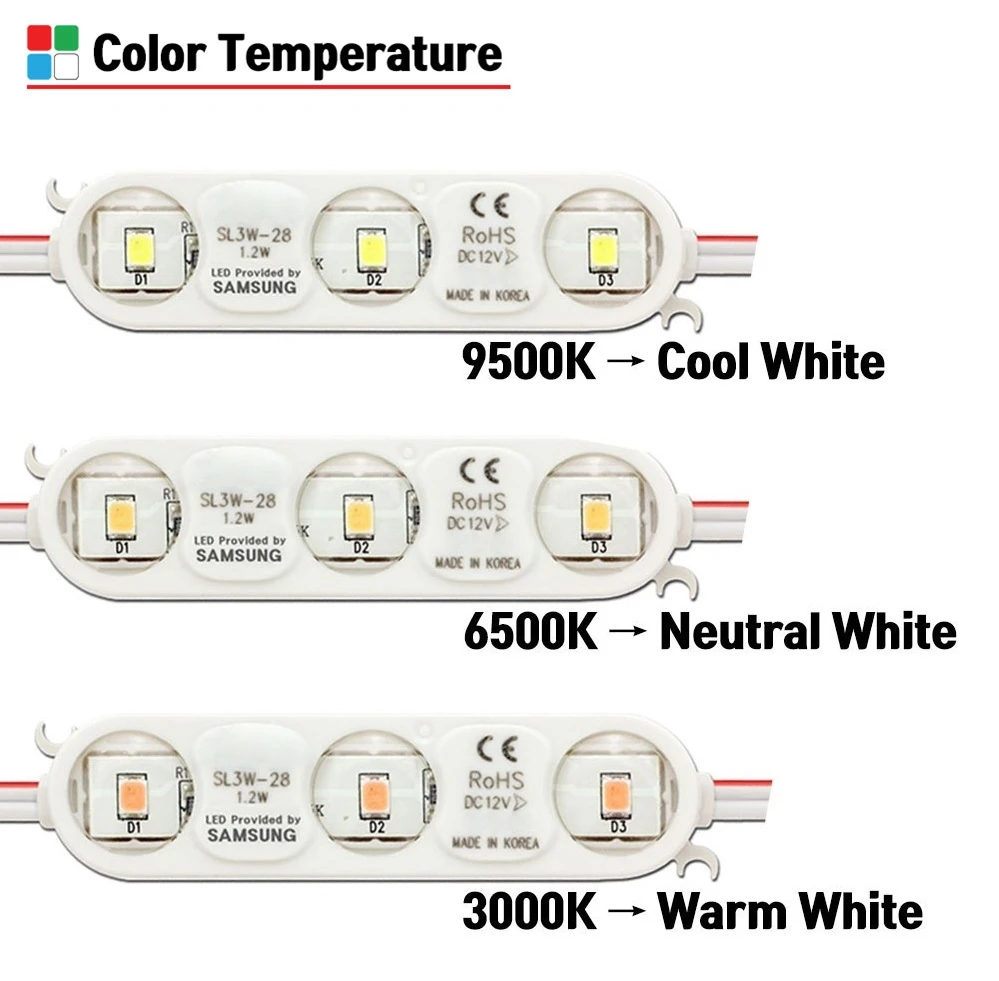

color temperature(CCT) guide
1. 9000K~10000K cool/ cold white color.
2. 5000K~6500K neutral/ natural white color.
3. 2500K~3000K warm white color.
01. Made in Korea
When you choose the product, you have to check the place of origin of it. You probably know that Korea's semiconductor technology is the best in the world. Our LED module is from "Korea". That means it is high-quality. Don't forget to check "Made in Korea" label on it. "Designed in Korea" is not original from Korea.
02. Samsung LED
Samsung is one of the best groups which has high technology in the world. And also develops & manufactures LED chips. These LED chips have high luminous efficiency and brightness but low heat and using low power. So it is a little bit more expensive than the others but it's worth it. You are definitely satisfied with it.
03. Waterproof IP68
Our LED module got the highest waterproof grade IP68. That means it is safe from dust and water. You can use it such as channel letter, commercial standing lighting, light box, sign letter etc.

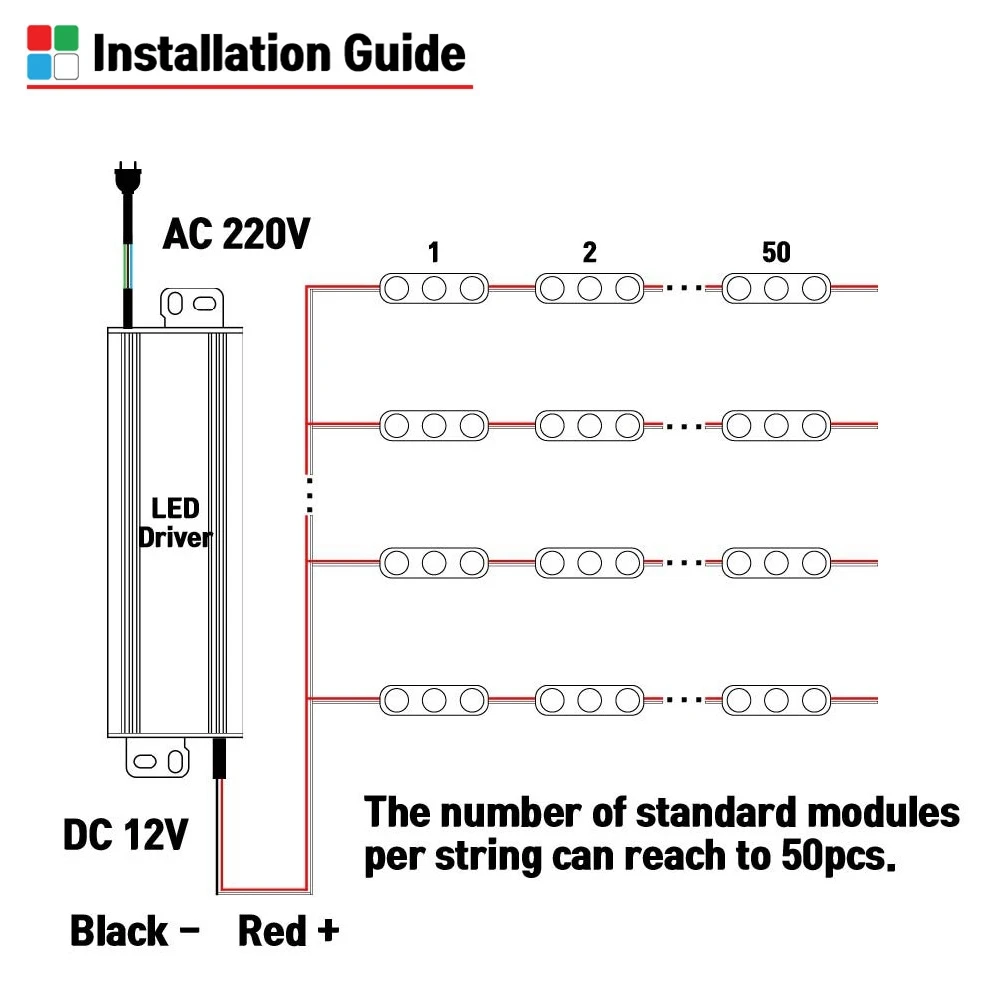

It is easy to install. The 3 dot LED module needs the LED driver for installation. Connect DC 12V output lines of LED driver with DC 12V input lines of LED module. Never change +, - line. Red line is +, Black line is -. The number of standard modules per string can reach to 50pcs.
You can check detail specification of LED driver here. We have AC 220V input / DC 12V 30W, 60W, 100W, 200W and 300W output LED driver. Click the picture below.
↓↓↓↓↓↓↓↓

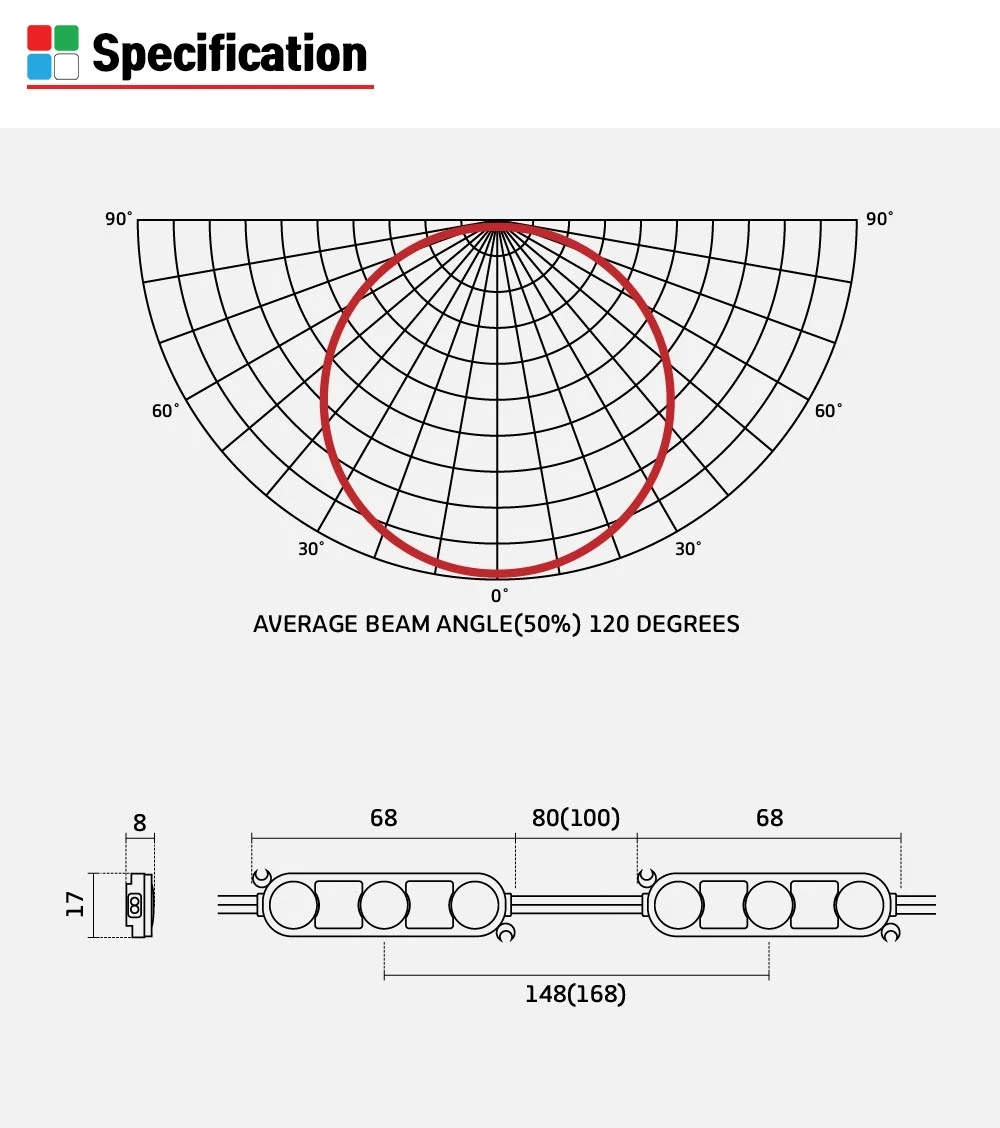

Specification
item
value
Model Number
SL3W-28C
Color Temperature
9500K / 6500K / 3000K
Emitting Color
Cool White / Neutral White / Warm White
Power Dissipation
0.72W, 1.02W, 1.2W each color
Input Current
60mA, 85mA, 100mA
Input Voltage(V)
DC 12V
Luminous Flux(lm/pcs)
72/ 97/ 108
Luminous Efficiency(lm/W)
100/ 95/ 90
IP Rating
IP68
Warranty(Year)
2-Year
Life Time
50000hr
LED Specification
Samsung LED 2835 pkg
Cable
UL-AWM2468-AWG18
Case Material
ABS Housing & PC cover
Case Type
Double Injection Cover Type
Viewing Angle(°)
120
Color Rendering Index(Ra)
≥80
Operating Temperature(℃)
-30~+50℃
Module Pitch
148(168)mm, ±5mm
Dimensions
17*68*8(W*L*H)mm
Wire Length
80(100)mm
Piece Weight
10g
Place of Origin
South Korea
Certifications
CE, RoHS
Packing & Delivery
PackageShield Pack Packing for Shipment
C/T box 1,000pcs in it, Weight 11kg (C/T box size : 370x360x420mm)

Delivery
You can choose overseas shipping options.
01. Flight - Depart from Incheon Airport.
02. Ship - Depart from Incheon Port/ Pyeongtaek Port/ Busan Port.

We usually use EMS, DHL for express delivering, but please let us know if you have a preferred shipping company. Over 200kg of total weight will be delivered by ship.

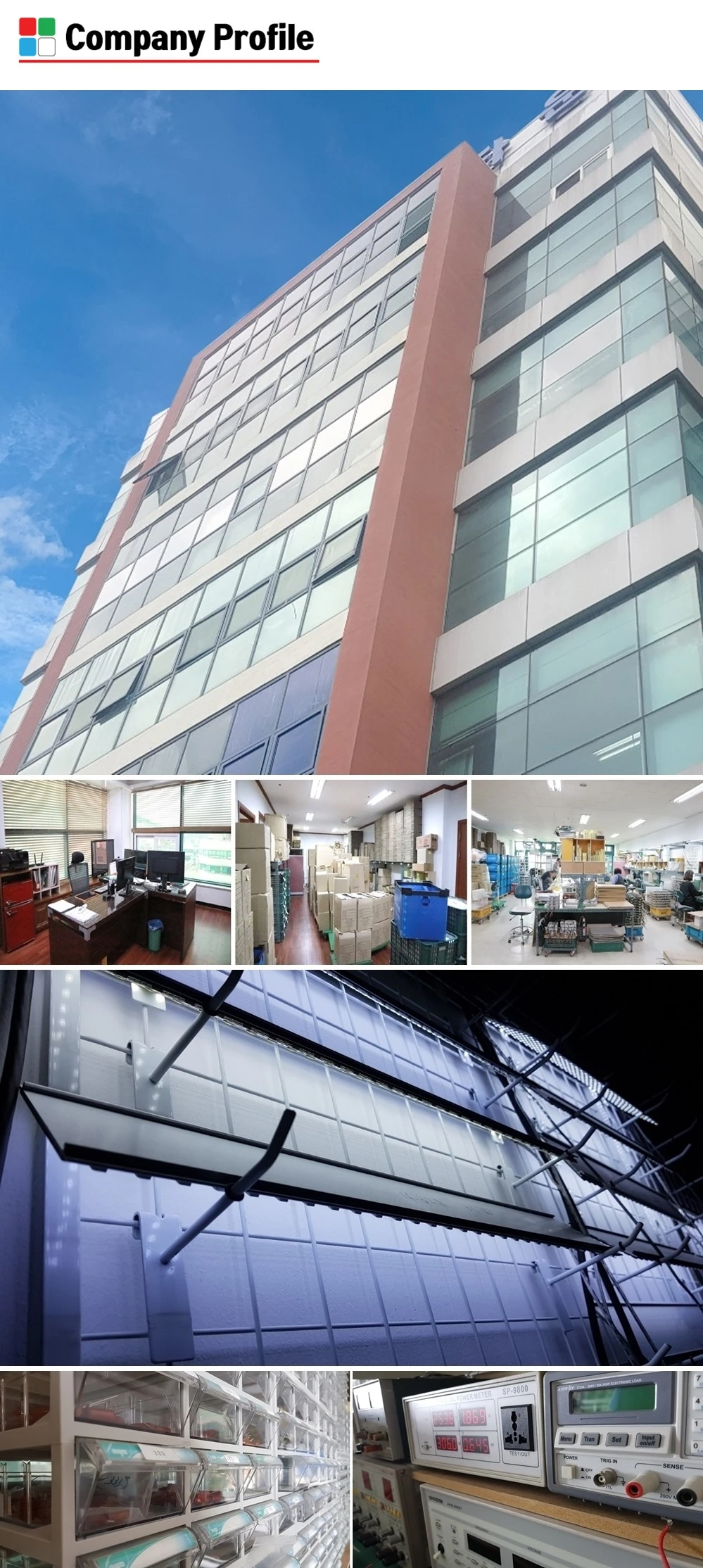

Company Profile
Smart Power inc. is located in South Korea, is a professional manufacturer specialized in the production and export of LED and LED lighting products. Our main products are LED Modules and LED Drivers can be used indoor and outdoor also. We have global conglomerates like Samsung as partners. We have been exporting our products to countries such as Europe, Saudi Arabia and Vietnam.

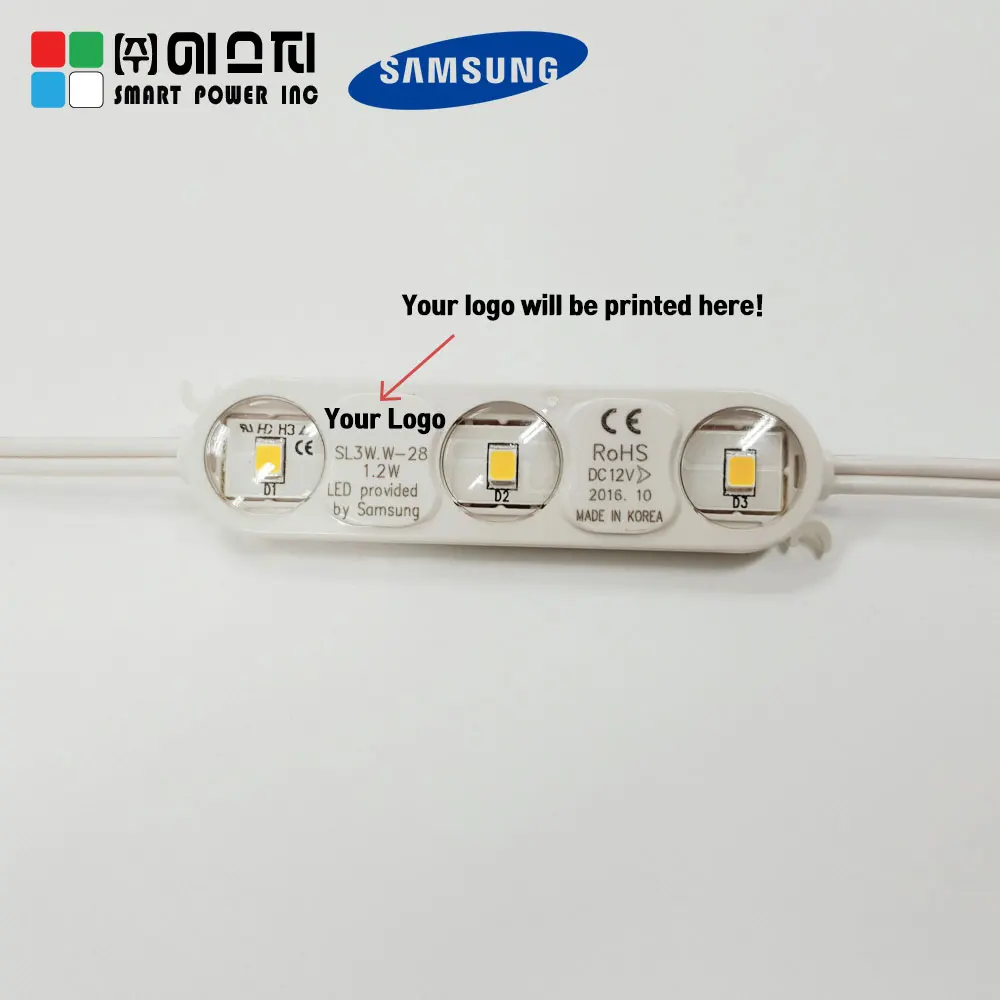

KOWITH is a combination of "Korea" and "With". It means Korea and Korean Products always be with you. people all over the world love and want to buy K-products. We provide high quality Korean products at reasonable prices. You also can order OEM
products. You just use them without any problems. We have a professional quality control team as well as R&D team. We are confident to fulfill your volume orders with the best quality. If there is any problem with our product within the warranty period, we will give you a refund or exchange the product. For more details on how we can accommodate your OEM orders, contact us immediately!
