Product Overview

Description





Product Information




The ITO Functional Valve - Various lineup for LPG installations

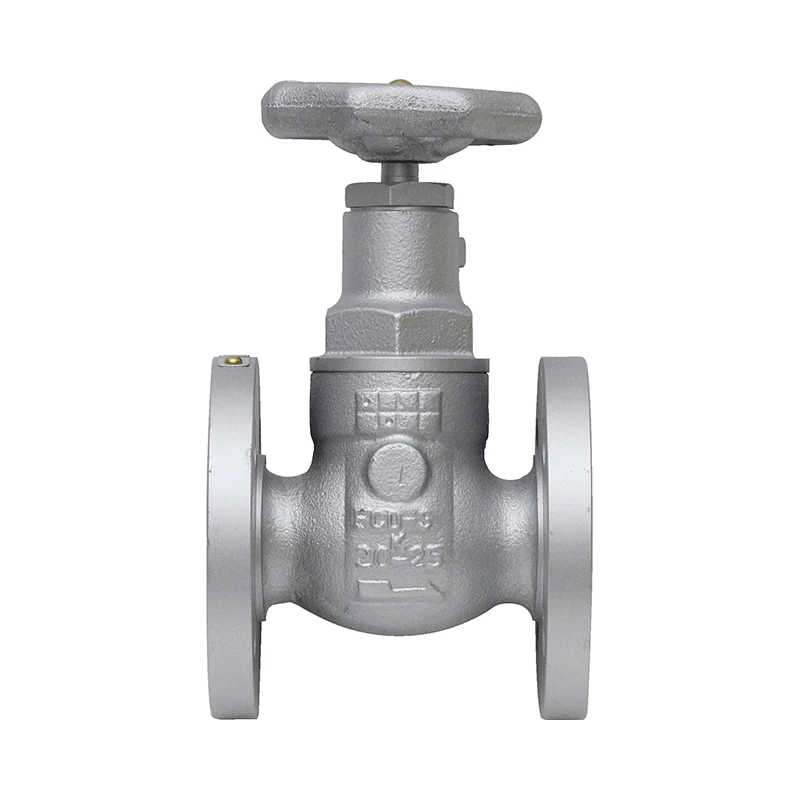

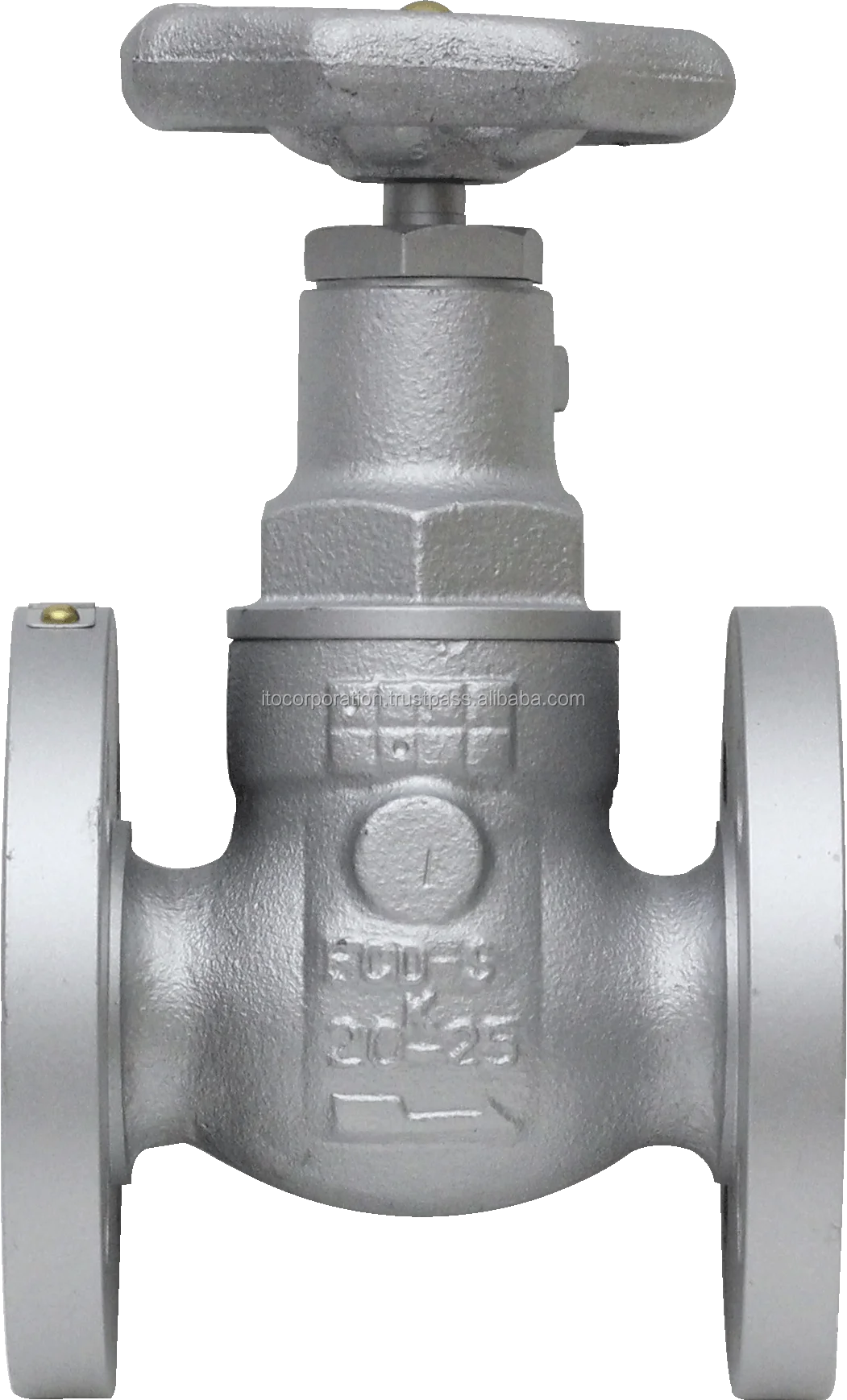

The D1 Range is flanged type globe valve for high pressure use made by ductile cast iron. Wide range of connection from 15A up to 50A. Highly versatile product commonly used in LPG supplying system. It is sometimes called a "stop valve" because it is excellent at regulating the flow of fluid through it, and at the same time, it has the ability to tightly stop the flow of fluid. The threaded type IV Range is also available.

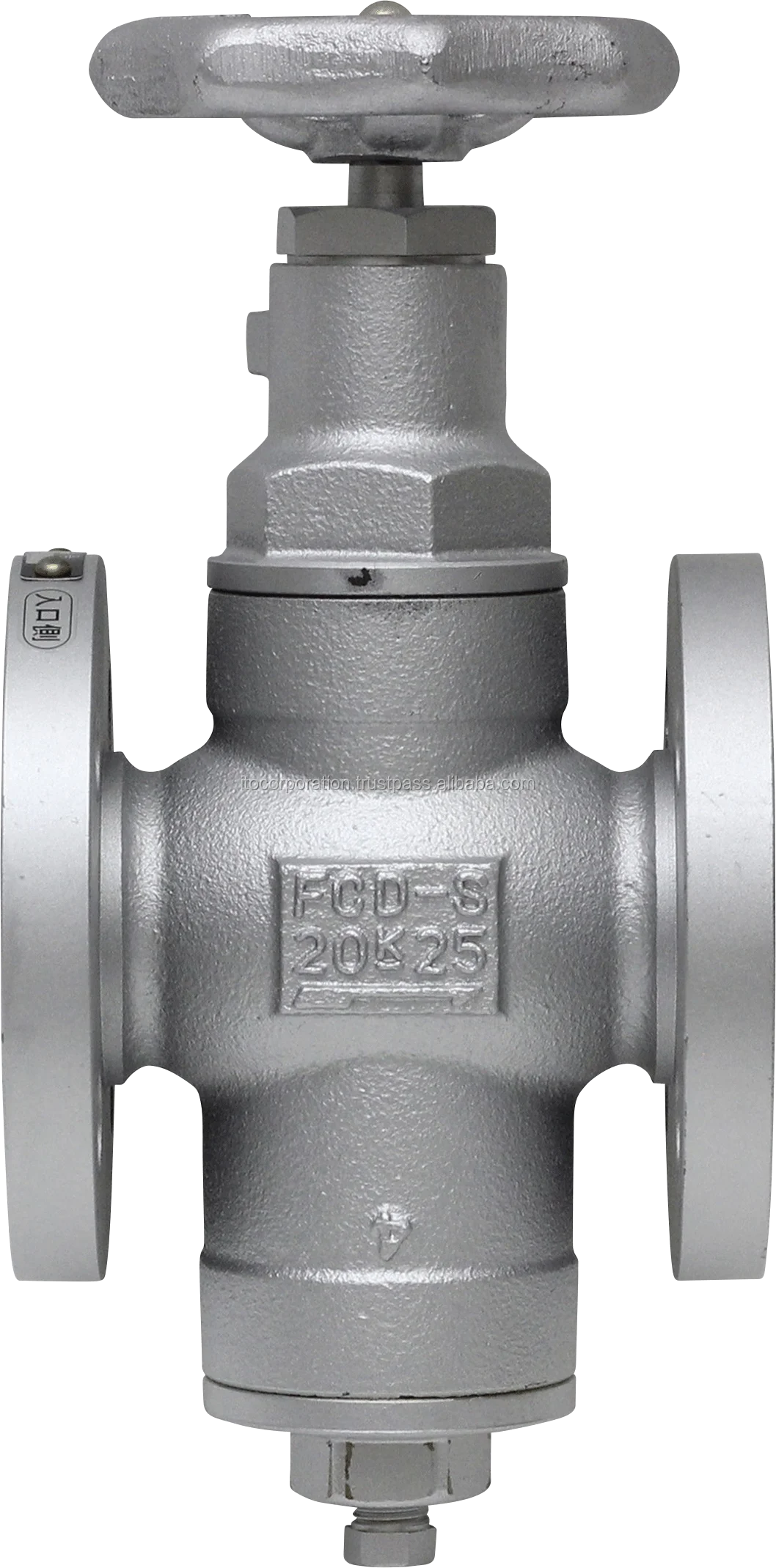

The D7 Range is flanged type strainer incorporated valve. The connection is from 15A up to 25A for high pressure use. The gas flowing through various piping lines can contain foreign substances in the fluid, corrosion in the piping, and debris caused by hackles from gaskets, etc. If left unchecked, they can damage the valve seats of various valves installed in the piping lines and shorten their service life, as well as prevent normal operation of various equipment and damage the equipment. In order to prevent these problems, the strainer plays an important role in the piping line by separating and removing foreign substances from the fluid.

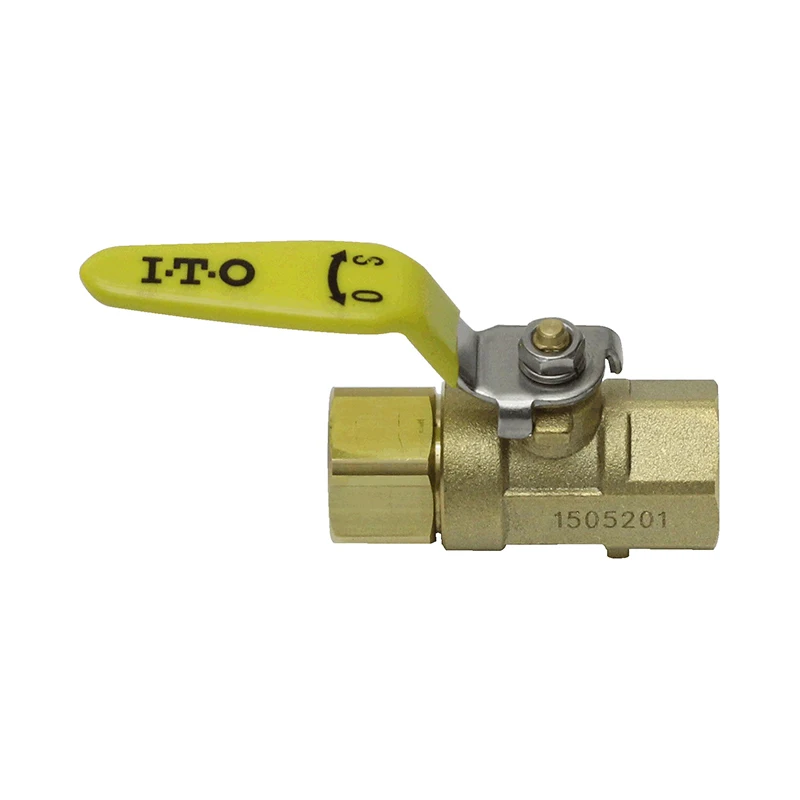

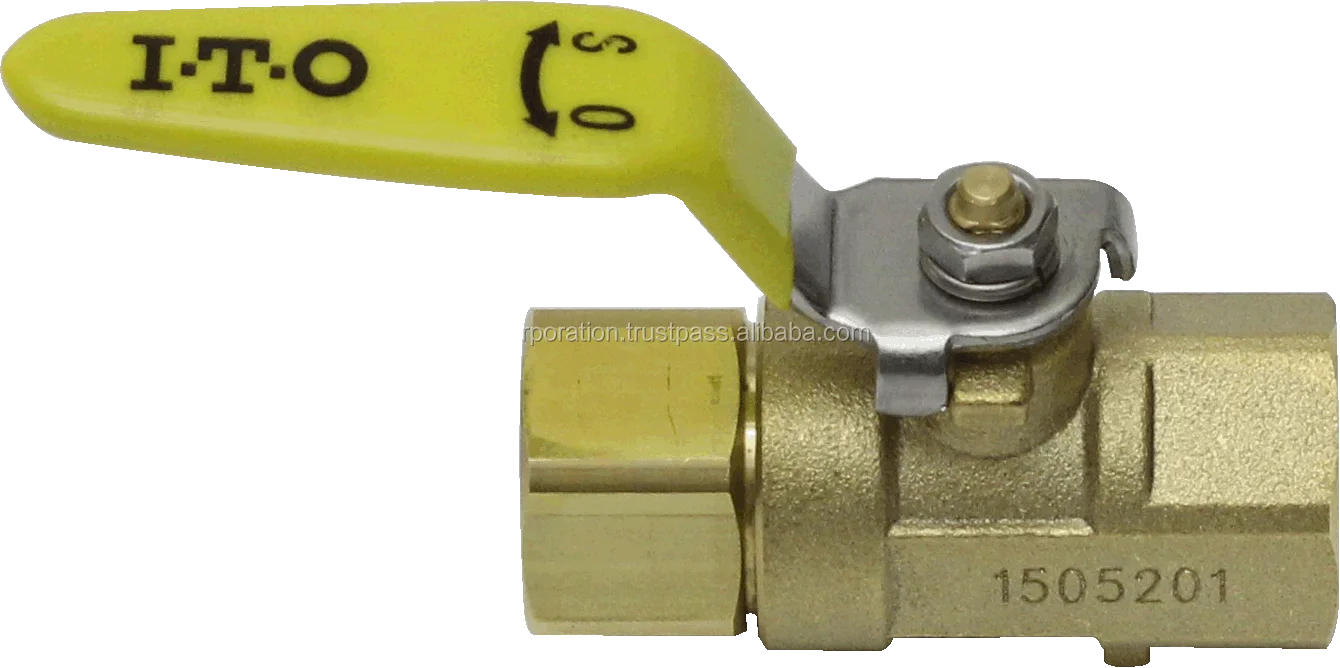

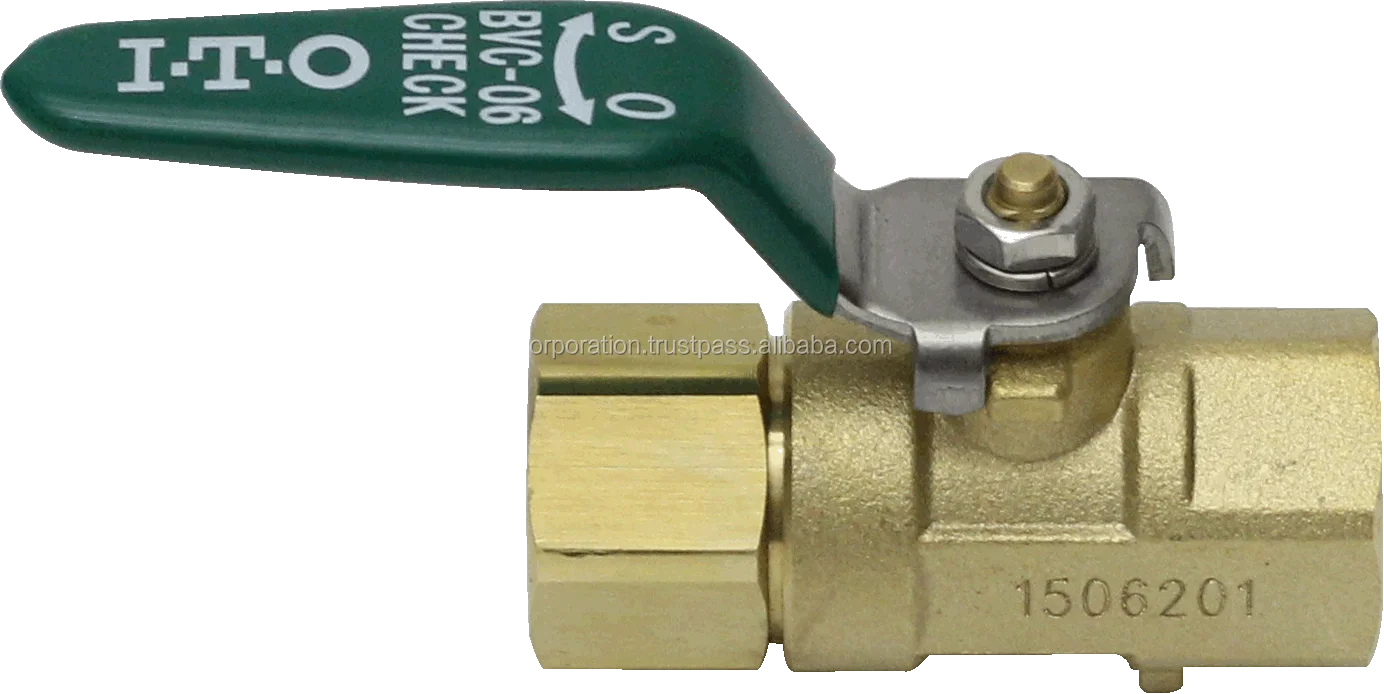

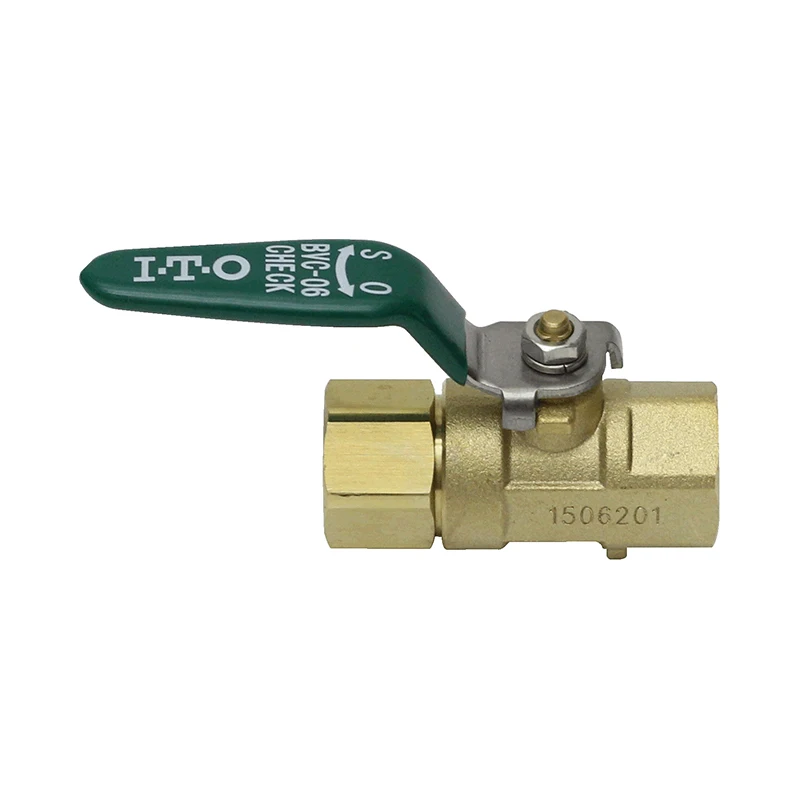

The BV Range is threaded type ball valve with the connection size Rc 1/4. BVC-06 is incorporated with check valve. Widely used for high pressure manifolds to prevent the backflow from the outlet side.





*Features*
Highly Versatile Product - Widely used in LPG installation, multi-purpose and selections.
Protection for Other Devices - Strainer valve protects other devices on the pipeline from foreign substances.


Glove Valve


Model
Connection
D1-15F
JIS20K15A Flange
D1-20F
JIS20K20A Flange
D1-25F
JIS20K25A Flange
D1-40F
JIS20K40A Flange
D1-50F
JIS20K50A Flange


Strainer Incorporated


Model
Connection
D7-15F
JIS20K15A Flange
D7-20F
JIS20K20A Flange
D7-25F
JIS20K25A Flange


As Stop Valve


Model
Connection

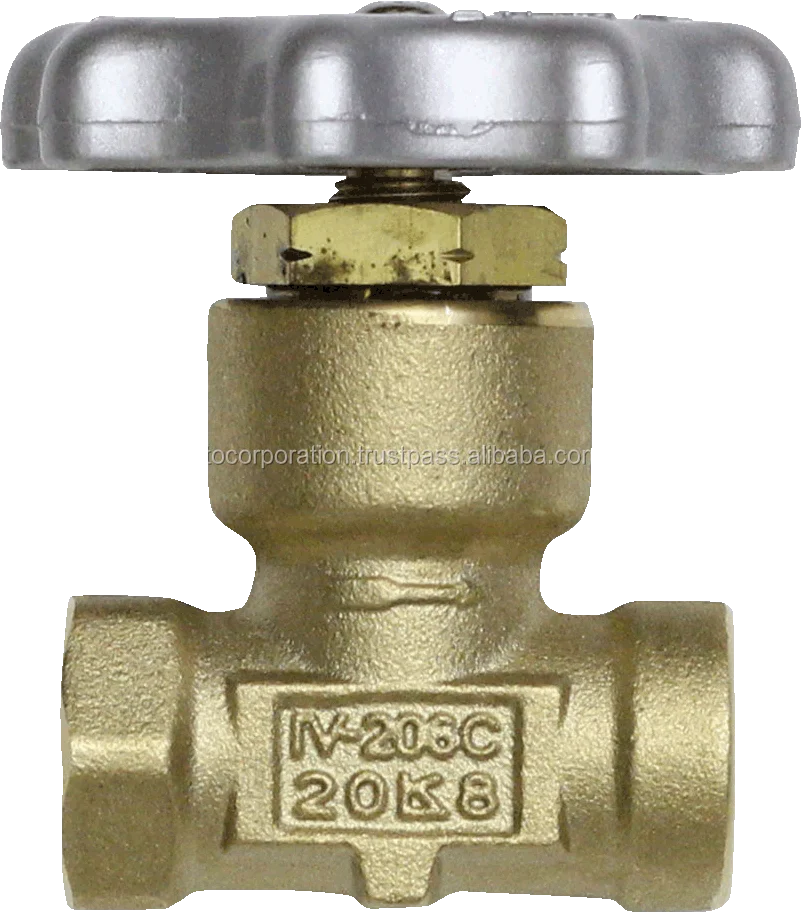

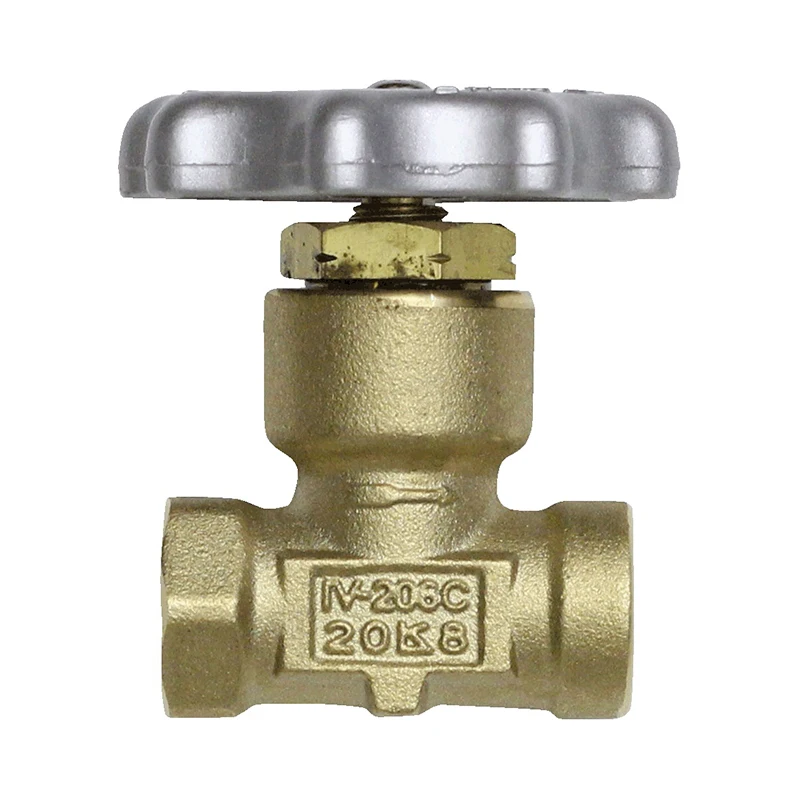

IV-206C
Rc 1/4

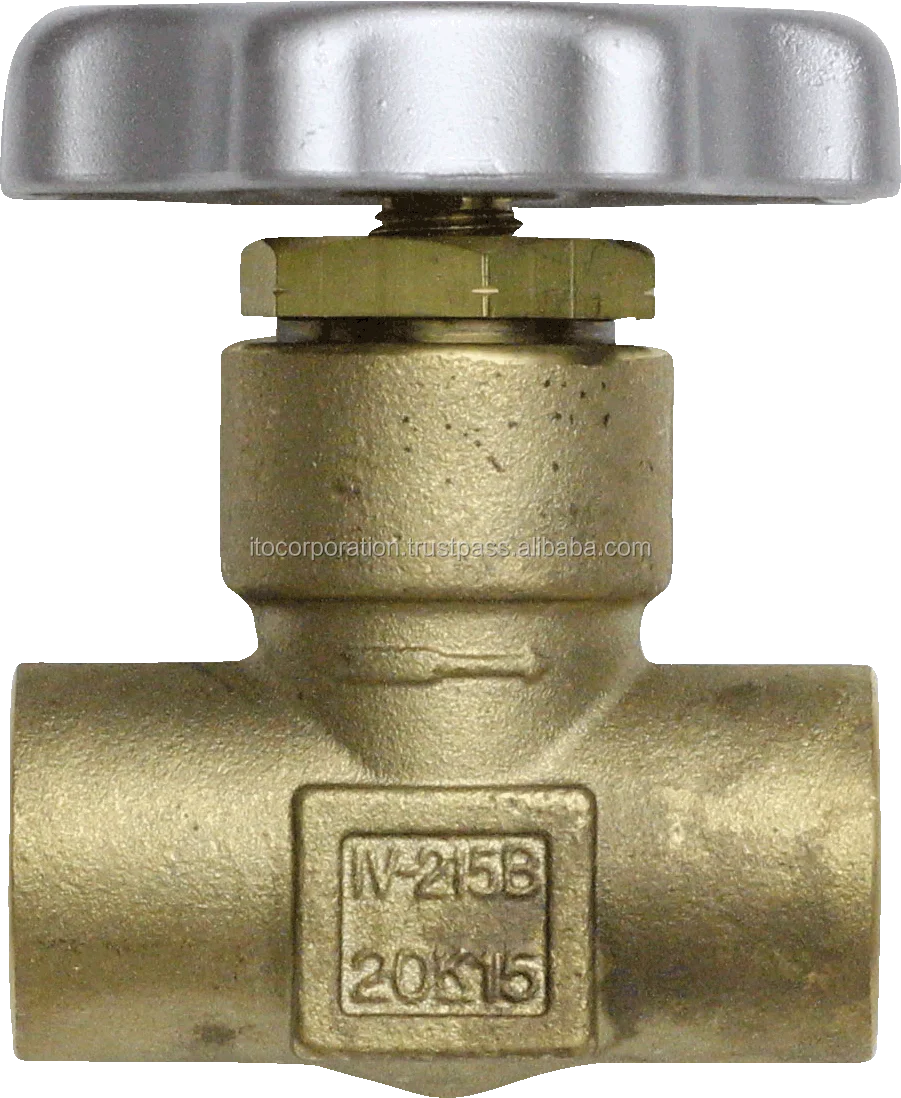

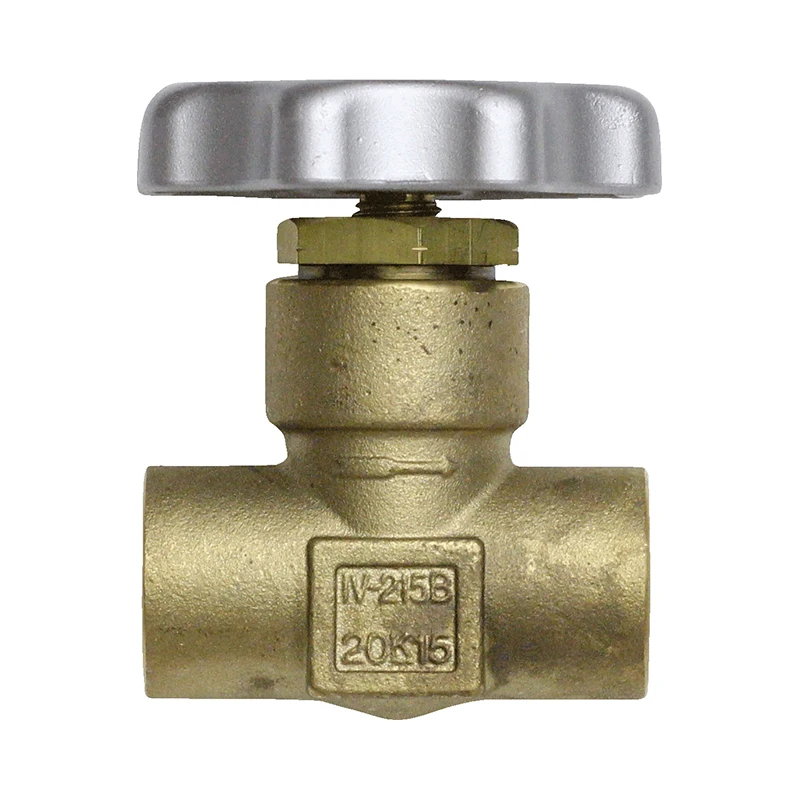

IV-215B
Rc 1/2


Ball Valve, Inc Check Valve


Model
Connection
BV-206
Rc 1/4
BVC-06
Rc 1/4


※NPT connection is also avaliable.


Company Information




ITO is a leading Japanese manufacturer of gas equipment, with a global supply network. Founded in 1953, we have maintained a Quality-First philosophy. Our Earthquake-Proof Shut Off Device & PA System were introduced in the Doha GTC where we won the 2012 WLPGA Innovation Award & our Eco-Friendly Air-Heating Vaporiser was runner-up at WLPGA 2014.


ITO offers unique products, such as our New PA Mixer, which has an operating system designed for end-user ease. The key to achieving on-going quality is to take advantage of these award-winning R&D capabilities & our outstanding production technology. ITO stands for Innovation; Innovation is what we do.
