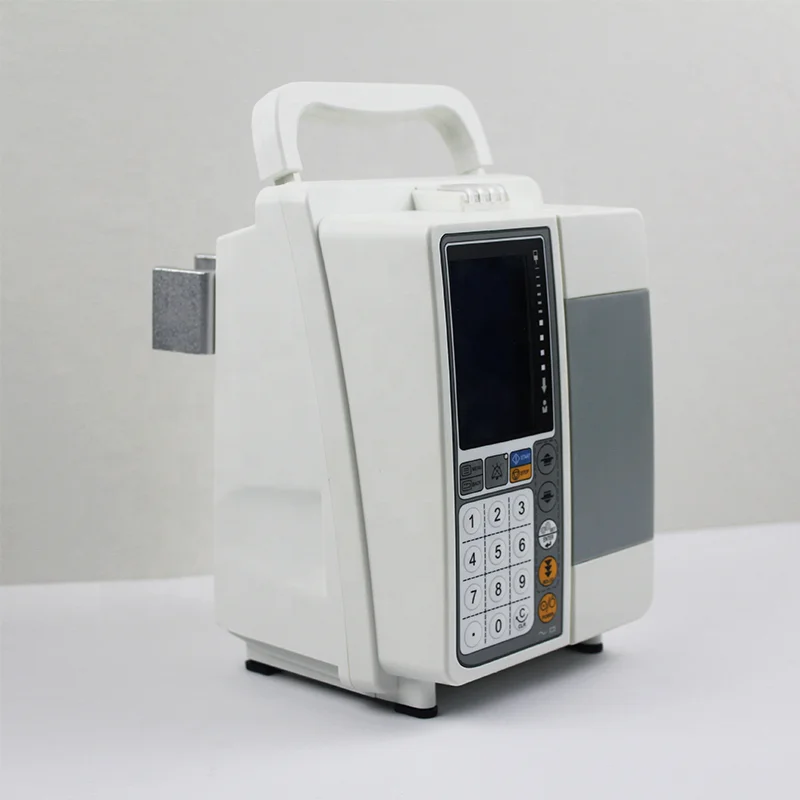

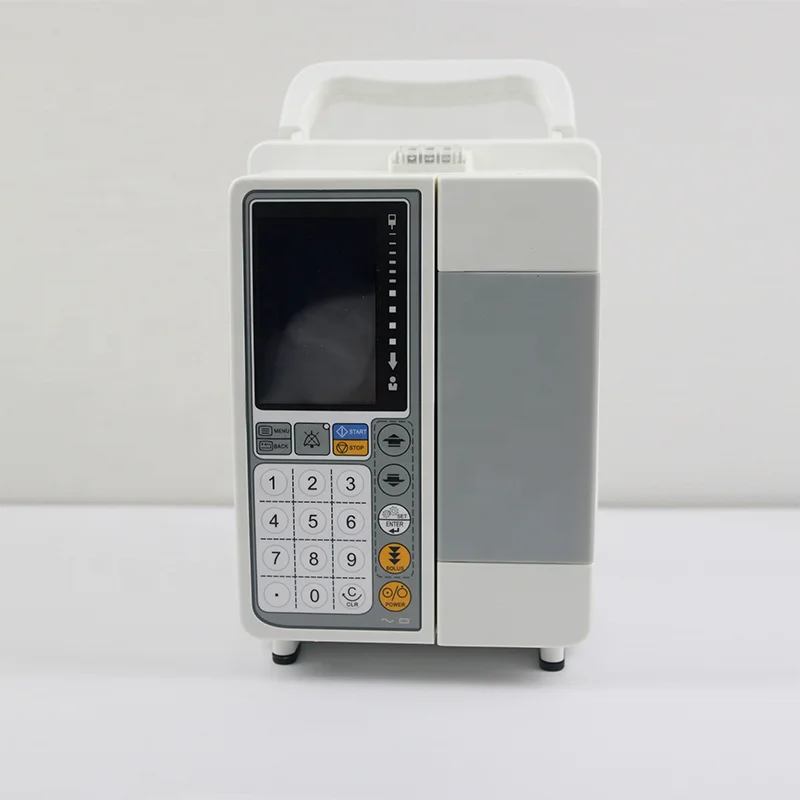

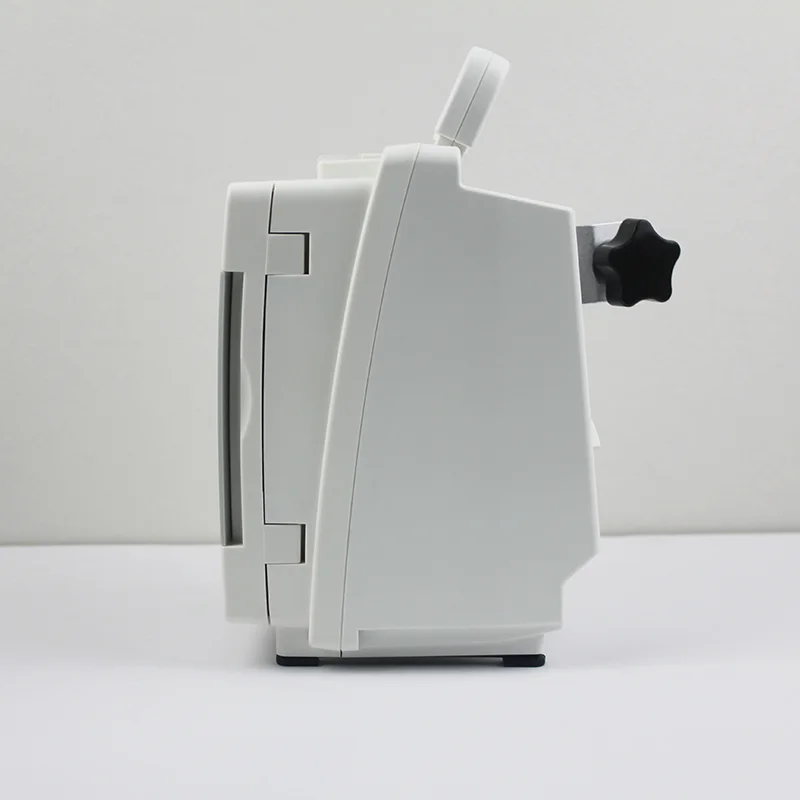

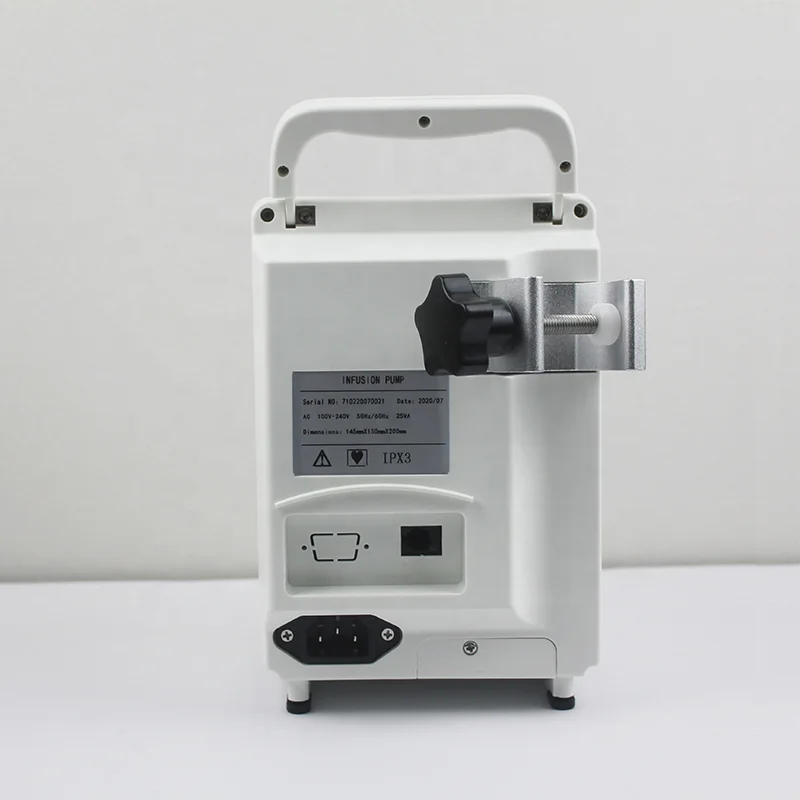

Automatic Single Channel Pump Smart Veterinary Infusion Pump for Cats, Dogs GM SY V100
- Category: >>>
- Supplier: Shanghai Giantman Technology Co. Ltd.
Share on (1700005115622):
Product Overview
Description
Product Description
Product Name | Automatic Single Channel Pump Smart Veterinary Infusion Pump for Cats, Dogs GM-SY-V100 |
Product details-feature
* Breakthrough Half-pressing technique, do not damage molecules in fluid, good for medical solution, blood and plasma.
* Patented“Double Pulse” compensation technique ensures very good linearity even at low delivery rates.
* Double CPU system, makes the running status super safe. Delivery will be cut off even control circuit is powered off and machine will alarm. Rechargeable Back-up Battery supports at least 4 hours continuous operation.
* Different modes: Delivery rate, delivery time, Patient Weight,Dripping Rate.
* Historical record function, easy to recall operation data. 6.Alarm for door open, low battery, occlusion, end program, malfunction, etc.
Details Images
Infusion Mode | Volume Mode, Time mode, Drug Mode, Bolus Mode, Drip Mode |
Rate Unit | Ml/h, volume/time, d/min |
IV Sets | Standard single use IV sets(20 and 60d/ml, with diameter 3.4~4.5mm) |
Flow Rate | 1.0ml/h~1200ml/h; 1.0d/min~400/min |
Increment | 1.0-99.9ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h |
Flow Rate Deviation | <±5%(after calibration) |
VTBI | 0.1~9999ml |
Infused Volume | 0~999ml |
Time Setting | 1 min to 99h59min |
Purge Rate | 600ml/h, displaying purge volume |
KVO | 0.1ml/h~5.0ml/h, adjustable |
Keypad | Numeric Keypad, user friendly |
BOLUS Mode | Available for Bolus mode, flow rate adjustable |
Night Mode | Night mode, No operation for 5mins, LCD brightness lower automatically |
Occlusion Pressure Detection | Upstream and downstream pressure detection, detection range: 40-130Kpa, 0~9 levels adjustable, dynamic pressure value display |
Air bubble Detection | Ultrasonic detection, ≥50μL , Single bubble volume: 50~300μL , 0~9 levels adjustable |
Alarm &Volume | 0~9 levels adjustable |
Anti-reverse Function | Anti-reverse function on motor to prevent upstream |
IV Set Management | Open System, Can accept all kinds of IV Set after calibration |
Self-Testing | Self-Testing when start up and during infusing |
Screen | 3.2” Brightness LCD |
Power Supply | AC:100V~240V, 50Hz/60Hz,≤25VA |
Battery | Rechargeable Lithium battery: DC11.1V, 3000mAh, life:≥10 hours@25ml/h, displaying remaining battery |
Classification | Type CF, Class I, IPX3, ISO13485, CE, IEC60601 |
Dimension | 145mm*150mm*200mm |
Weight | 1.7KG |
Application
More Product
Company Profile
Certifications
Packjing&Shipping
FAQ
1) Our Vision & Our Strategy:
Excellent Quality, Mutual Benefit
To be the bridge Chinese medical equipment to your country
2)What is your main products?
Shanghai giantman is a leading company with years experience in medical equipment export business. We specialize in medical equipment
3) what is your company’s advantage?
(1) Better Quality with Lower Price
We always supply the better price on the same quality level, and try our best to save the client’s every cent. Also offer good after service, never ignore the instruments problem since we establish.
(2) located
We are in Shanghai ,which is biggest business center in CHINA. The quality made in shanghai is the best in CHINA ,also very easy to have a ticket to shanghai all over the world, welcome to visit our company.
(3)Export experts
As we have a favorable frame and stable quality control, our products can be found in nearly all continents. Years of export experience, deliver goods by different means: truck, rail, air and sea containers. We know all the country ‘s customs rules, will notice customer in advance ,if the instruments allow import or not, also if need certificate for import and how much import tax will be, have method to save import tax if buyer need.
4) What is your delivery time? What is the payment terms?
The time of delivery is 4-7 days after received your payment, by fast express.15~35 days by sea.2~6 days by air to buyer’s nearest air port.
Excellent Quality, Mutual Benefit
To be the bridge Chinese medical equipment to your country
2)What is your main products?
Shanghai giantman is a leading company with years experience in medical equipment export business. We specialize in medical equipment
3) what is your company’s advantage?
(1) Better Quality with Lower Price
We always supply the better price on the same quality level, and try our best to save the client’s every cent. Also offer good after service, never ignore the instruments problem since we establish.
(2) located
We are in Shanghai ,which is biggest business center in CHINA. The quality made in shanghai is the best in CHINA ,also very easy to have a ticket to shanghai all over the world, welcome to visit our company.
(3)Export experts
As we have a favorable frame and stable quality control, our products can be found in nearly all continents. Years of export experience, deliver goods by different means: truck, rail, air and sea containers. We know all the country ‘s customs rules, will notice customer in advance ,if the instruments allow import or not, also if need certificate for import and how much import tax will be, have method to save import tax if buyer need.
4) What is your delivery time? What is the payment terms?
The time of delivery is 4-7 days after received your payment, by fast express.15~35 days by sea.2~6 days by air to buyer’s nearest air port.
We accept T/T, L/C, Western Union, or “ALIBABA secured online buying with via credit card”. And small amount by “paypal” ,below 500 USD.“ alibaba Trade Assurance” you’re covered for: If we does not meet the requirements in your contract, Alibaba.com will refund your covered amount.
5) How about the customs declaration amount ? who pay the custom duty ?
If refuse to pay import duties and cause the product return. All liability to the buyer. all expenses for goods retu need paid by the buyer, including return freight and tariffs.we appreciate if the buyer can confirm receiving the goods and give good feedback,within 3 days .our customer service dept will add you into our VIP list and get a discount in future order.
If refuse to pay import duties and cause the product return. All liability to the buyer. all expenses for goods retu need paid by the buyer, including return freight and tariffs.we appreciate if the buyer can confirm receiving the goods and give good feedback,within 3 days .our customer service dept will add you into our VIP list and get a discount in future order.
