Product Description




Product name
Manufacturer CNP MSS100 60 HZ Light Stainless Steel Horizontal Single-Stage Centrifugal Pump For Water Treatment
Material
Stainless Steel(Except Flow Passage Components)
Packaging
Wooden case or carton box will be provided.




Product Description




Operating condition
Liquid temperature: -10C~+85℃
Ambient temperature:up to +40℃
Altitude: up to 1000m
Max.pressure of the system is 8bar
Motor
TEFC motor, 2-pole
Protection class: IP 55
Insulation class: F
Standard voltage：1x220v
3x380V/3x220V

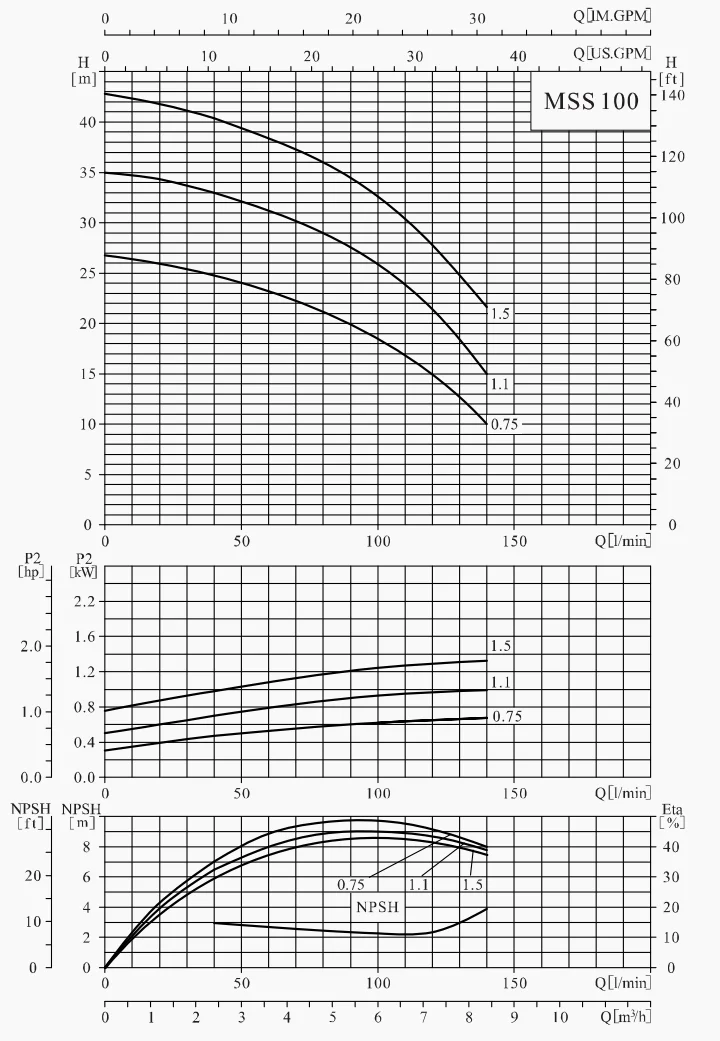

Curves
Include performance curve in the technical data:
All curves are based on the measured values of 60Hz:constant motor speed 3450r/min，
Measurement is done with 20℃ air-free water, kinematic viscosity of 1mm²/sec. Curve tolerance inconformity to ISO9906：2012 Grade 3B
The operation of pump shall refer to the performance region to prevent overload of motor due to too large flow rate.

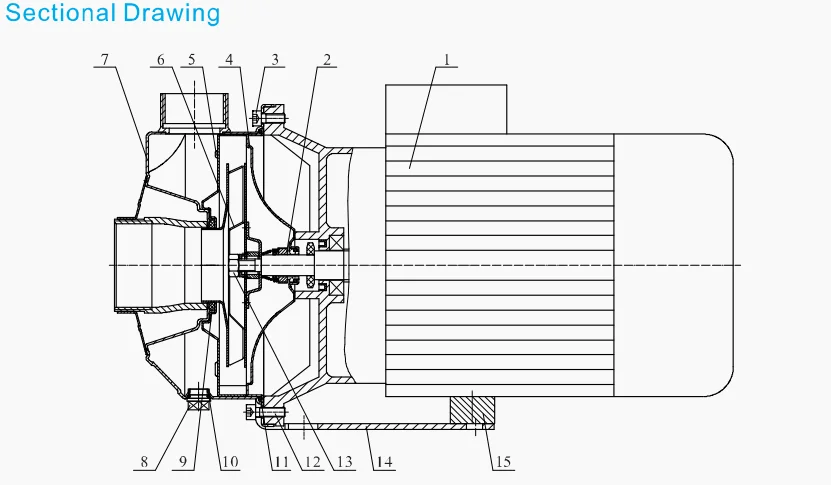

No
Parts
Name
Material
1
Motor


2
Mechanical seal
Carbon/Silicon

3
M6x 15/Screw
Stainless steel
AISI 304
4
Seal base
Stainless steel
AISI 304
5
Diffuser
Stainless steel
AISI 304
6
lmpeller
Stainless steel
AISI 304
7
Pump body
Stainless steel
AISI 304
8
Vent
Stainless steel
AISI 304
9
0-Ring
F4

10
0-Ring
NBR

11
0-Ring
NBR

12
M 6*20/Screw
Stainless steel
AISI 304
13
Nut M 10
Stainless steel
AISI 304
14
Base
Steel
A570
15
Support foot
NBR



Performance Curve





Model
Driving Motor


Q(l/min)
40
60
80
100
120
140
(kw)
(hp)
Q(m3h)
2.4
3.6
4.8
6
7.2
8.4
MSS100/0.75KW
0.75
1



H(m)
25

23
21
17
15
10
MSS100/1.1KW
1.1
1.5
33
31
29
25
21
15
MSS100/1.5KW
1.5
2
40
38
36
32
27
22
