USB Injection Molding Moulding Machine Vertical Machine Molding Injection USB USB Charger Cable Making Injection Molding Machine
- Category: Injection Molding Machines >>>
- Supplier: Guangdong,Min-Hui,Intelligent,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Details

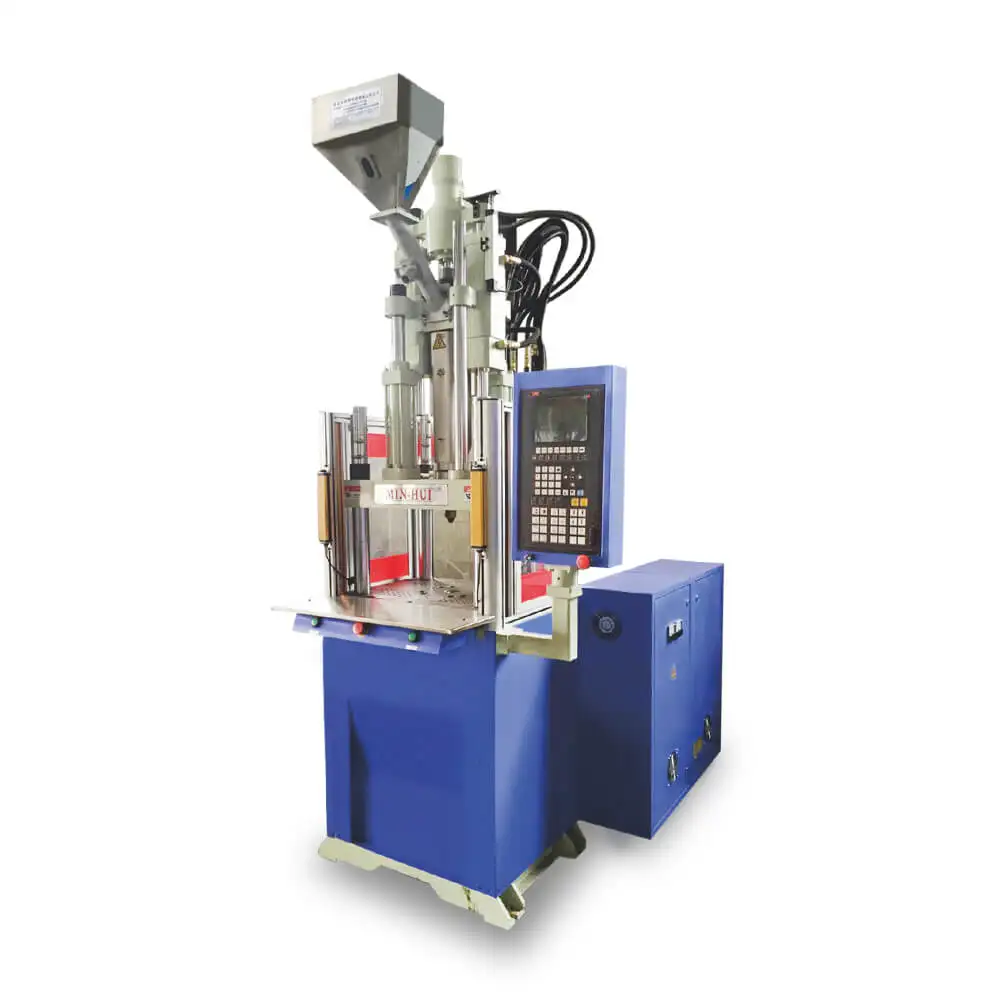

Standard Injection Molding Machine 45T
1. MH standard machine, suitable for insert molding of available electrical plugs and electronic parts.
2. Two-stage or three-stage temperature control, step-less adjustment of injection speed, back pressure, etc., are more suitable for precision plastic parts molding.
3. Fast mold clamping/low-pressure, slow mold closing. When the mold lock is abnormal, the mold will be opened automatically. This particular safety design can protect the mold.
4. The lower mold is fixed, the upper mold is movable, which has a good positioning of the molded insert in the mold. The finished product has a hydraulic ejector device, which is very convenient and easy to take out.
Details Images
Product Paramenters
MODEL | UNIT | MH-45T | ||||||
INJECTION UNIT | Screw Diameter | mm | Φ25 | Φ28 | Φ32 | |||
Theoretical Injection Volume | cm³ | 63.8 | 80 | 104 | ||||
Injection Weight(PS) | g(oz) | 59.3(2.1) | 74.4(2.6) | 96.7(3.4) | ||||
Max.Injection Pressure | Mpa(kgf/cm²) | 192(1960) | 153(1563) | 117(1195) | ||||
Injection Rate | cm³/s | 53 | 87 | |||||
Injection Speed | mm/s | 110 | ||||||
Speed Promote | mm/s | 220↑(horsepower↑) | ||||||
Screw Speed Rotation | r.p.m | 0~240 | ||||||
Nozzle Out From Platens | mm | ≧45 | ||||||
CLAMPING UNIT | Clamping Force | KN(tf) | 441(45) | |||||
Clamping Stroke | mm | 200 | ||||||
Clamping Stroke | mm | 150(200) | ||||||
Max.Opening | mm | 350(400) | ||||||
Distance Between Tie Bars（H*V） | mm | 410*250 | ||||||
Max.Mould Size（L*W） | mm | 400*350 | ||||||
Ejector Distance | mm | 40 | ||||||
Ejector Force | KN(tf) | 26.5(2.7) | ||||||
OTHERS | System Pressure | Mpa(kgf/cm²) | 13.7(140) | |||||
Oil Tank Capacity | L | 200 | ||||||
Electric Power | KW(HP) | 7.5(10) | ||||||
Machine Dimensions(L*W*H) | M | 1.7*1.3*2.7 | ||||||
Machine Weight | tf | 2.1 | ||||||

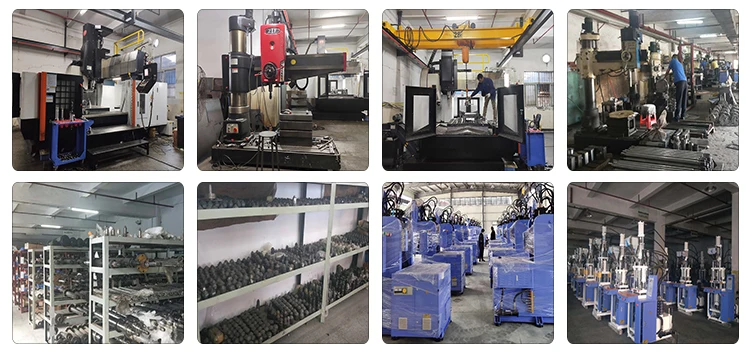

Our Factory
Industry Applications
Exhibition
PACKAGING LOGISTICS
FAQ
Are you a manufacturer or Trade Company?
We are a professional vertical injection machinery manufacturer
We are a professional vertical injection machinery manufacturer
Under normal circumstances, the following information must be collected before purchasing a vertical injection molding machine,
and the more detailed, the better.
1. Mold size (length, width, and height), weight, exceptional design, etc., mold guide post-stroke, with or without hot runner and
thimble device.
2. The characteristics of using plastics.
3. The size and weight of the injection product.
4. Molding requirements, including the production cycle of a few (a few holes in a mold), product quality requirements, product
appearance, size requirements, etc.
What is the clamping force of Min-Hui vertical injection molding machines?
The clamping force of the product ranges from 15 tons to 500 tons.
What industries can use Min-Hui vertical injection molding machines?
Automobile manufacturing, medical equipment industry, cosmetics industry, knives, sanitary ware, furniture, toys, daily
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
necessities, baby products, electronic connectors, optical lenses, backlight boards, watch movement gears, shoe soles, color
plates, hoses, rigid tubes, etc. Production of plastic products in various industries.
