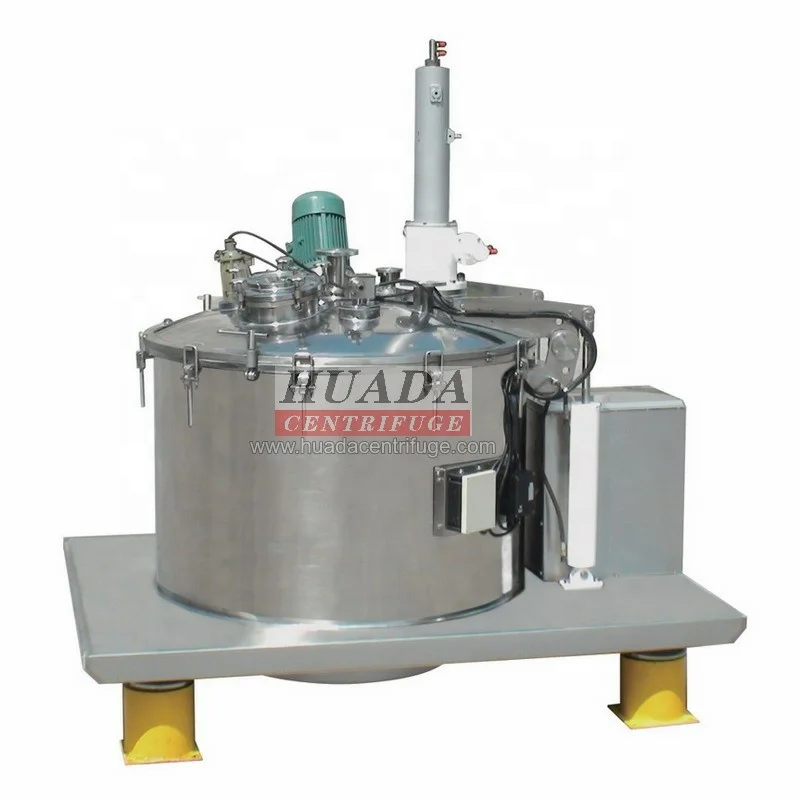

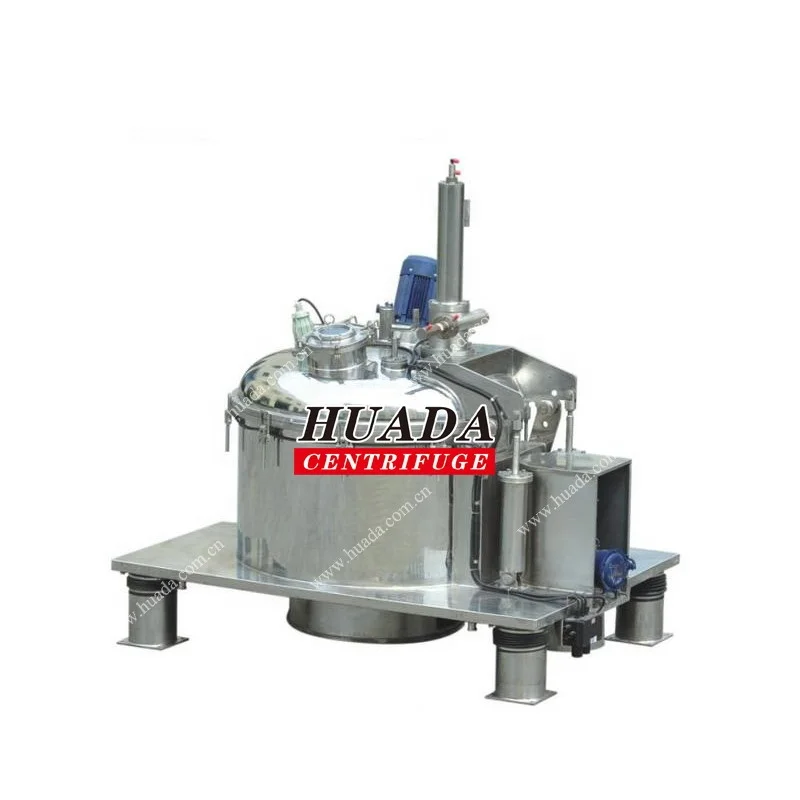

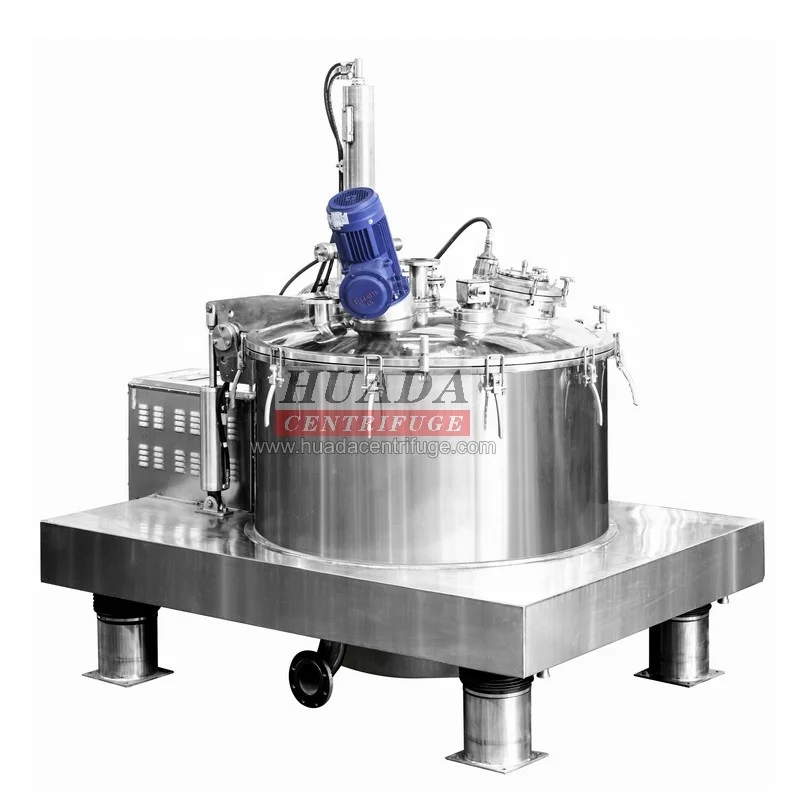

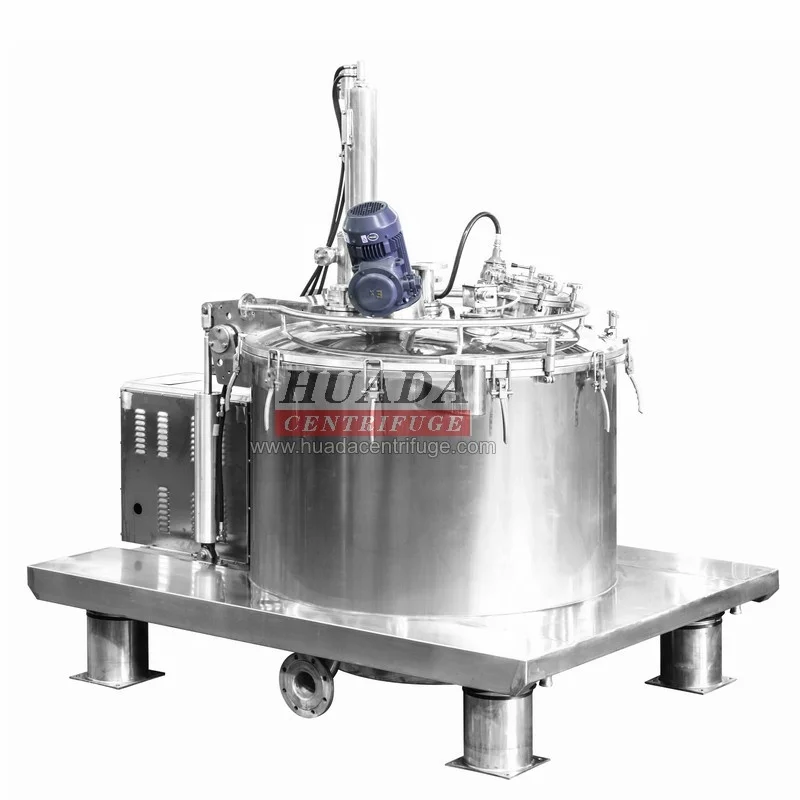

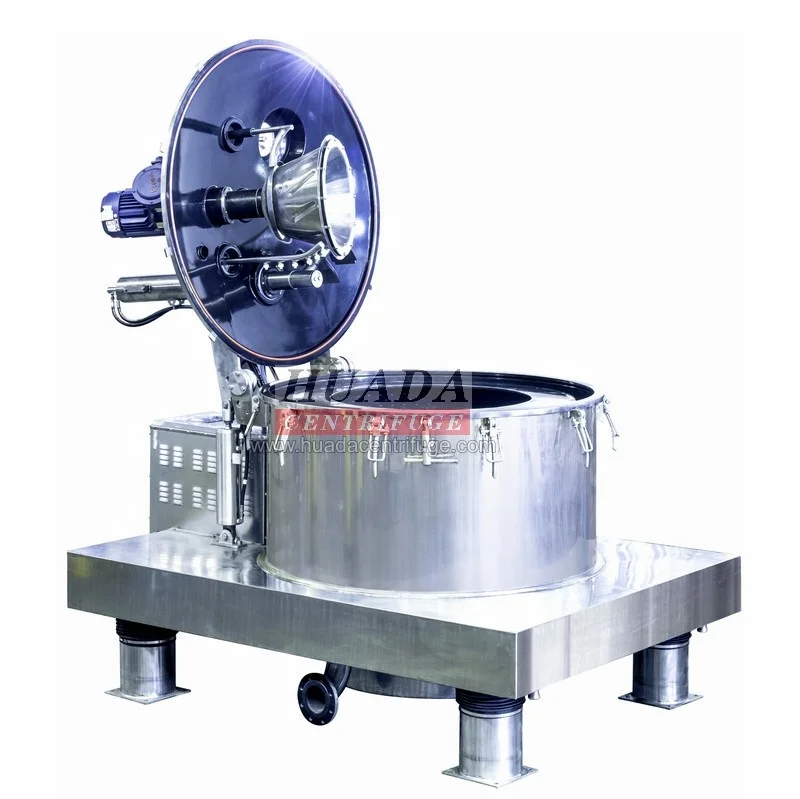

LGZ Vertical Bottom Discharge Scraper Centrifuges used for Sodium carbonate monohydrate
- Category: >>>
- Supplier: Jiangsu Huada Centrifuge Co. Ltd.
Share on (1700005890421):
Product Overview
Description
Product Description
LGZ series centrifuge is a kind of fully automatic and highly technical centrifuge with scientific structure design, large
handling capacity and simple operation and maintenance.
It is suitable for solid-liquid separation of fibrous material with solid-containing content of 5%~40%, suspension, materials with
high viscosity and fine particle size of 10μm~a few millimeters, and toxic, flammable and explosive materials. It is featured by
aseptic sanitation, airtight explosion-proof performance and multiple safety protection, and can operate in plateau working
condition. Moreover, it has been widely used in pharmaceutical, fine chemical, new energy, food and other industries.
handling capacity and simple operation and maintenance.
It is suitable for solid-liquid separation of fibrous material with solid-containing content of 5%~40%, suspension, materials with
high viscosity and fine particle size of 10μm~a few millimeters, and toxic, flammable and explosive materials. It is featured by
aseptic sanitation, airtight explosion-proof performance and multiple safety protection, and can operate in plateau working
condition. Moreover, it has been widely used in pharmaceutical, fine chemical, new energy, food and other industries.
SCOPE OF APPLICATION
360〫Huada Factory Virtual Tour
https://world-port.made-in-china.com/viewVR?comId=cqEmRdJkvlWt
https://world-port.made-in-china.com/viewVR?comId=cqEmRdJkvlWt
It is mainly used for solid-liquid separation of the suspension with various kinds of solid particles and fibrous materials,
especially toxic, flammable and explosive materials and those materials with high viscosity and fine particle size. For example, medical products such as antibiotics, vitamins and medical intermediates, food such as salt, monosodium glutamate, food additives, starch, sugar and chemical seasoning, chemical materials, such as ammonium sulphate, gypsum, mirabilite, copper sulphate, potassium chloride, borax, dye, pigment, resin and pesticide, and materials related to mining, metallurgy and environmental protection industries, etc. The centrifuge can achieve remote control, with high automation and large handling capacity.
especially toxic, flammable and explosive materials and those materials with high viscosity and fine particle size. For example, medical products such as antibiotics, vitamins and medical intermediates, food such as salt, monosodium glutamate, food additives, starch, sugar and chemical seasoning, chemical materials, such as ammonium sulphate, gypsum, mirabilite, copper sulphate, potassium chloride, borax, dye, pigment, resin and pesticide, and materials related to mining, metallurgy and environmental protection industries, etc. The centrifuge can achieve remote control, with high automation and large handling capacity.
MAIN ADVANTAGES
It has scientific structure design, low center of gravity, smooth operation, and no foundation installation, convenient for
installation and maintenance of the machine
The liquid damping shock absorber system is adopted, with good vibration absorption and better vibration isolation and vibration attenuation.
The CIP online cleaning system is configured to conduct thorough cleaning and disinfection inside the machine to prevent cross contamination.
The fully-enclosed structure prevents the material from being contaminated, and achieves the nitrogen filling protection of the machine chamber, bearing seat, scraper chamber and distribution chamber.
The feeding system with inclined feeding and cake layer control device is adopted to control the distribution and make it uniform, and realize automatic control.
Gas recoiler and roller scraper device can effectively remove cake residue for cloth regeneration.
DCS control interface and automatic man-machine interface control can realize intelligent remote control.
Independent transmission assembly is convenient for assembly/disassembly, and a double seal of labyrinth and oil seal is applied between spindle and basket to make spindle completely isolated from corrosive gas.
installation and maintenance of the machine
The liquid damping shock absorber system is adopted, with good vibration absorption and better vibration isolation and vibration attenuation.
The CIP online cleaning system is configured to conduct thorough cleaning and disinfection inside the machine to prevent cross contamination.
The fully-enclosed structure prevents the material from being contaminated, and achieves the nitrogen filling protection of the machine chamber, bearing seat, scraper chamber and distribution chamber.
The feeding system with inclined feeding and cake layer control device is adopted to control the distribution and make it uniform, and realize automatic control.
Gas recoiler and roller scraper device can effectively remove cake residue for cloth regeneration.
DCS control interface and automatic man-machine interface control can realize intelligent remote control.
Independent transmission assembly is convenient for assembly/disassembly, and a double seal of labyrinth and oil seal is applied between spindle and basket to make spindle completely isolated from corrosive gas.

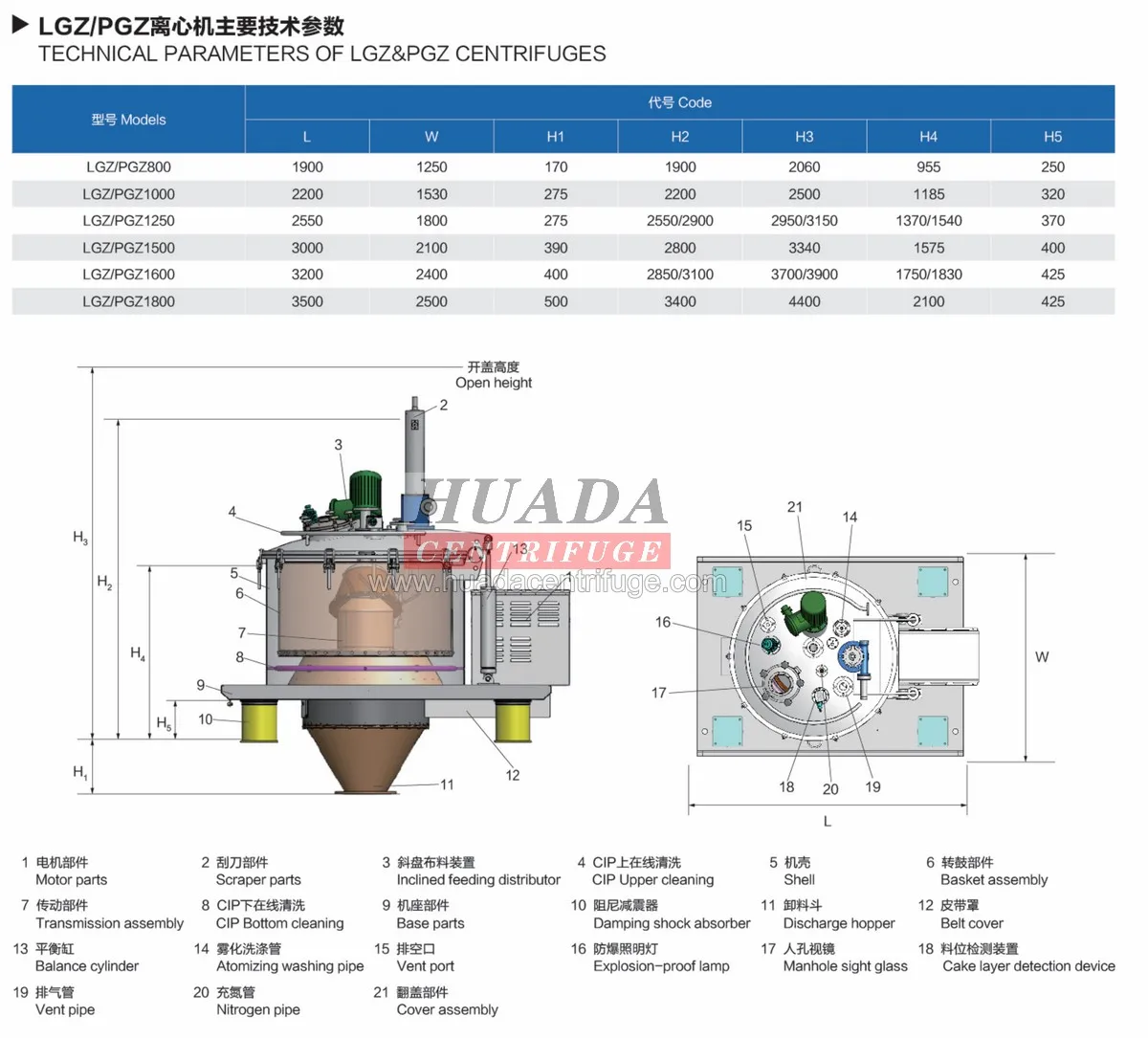

MAIN STRUCTURE

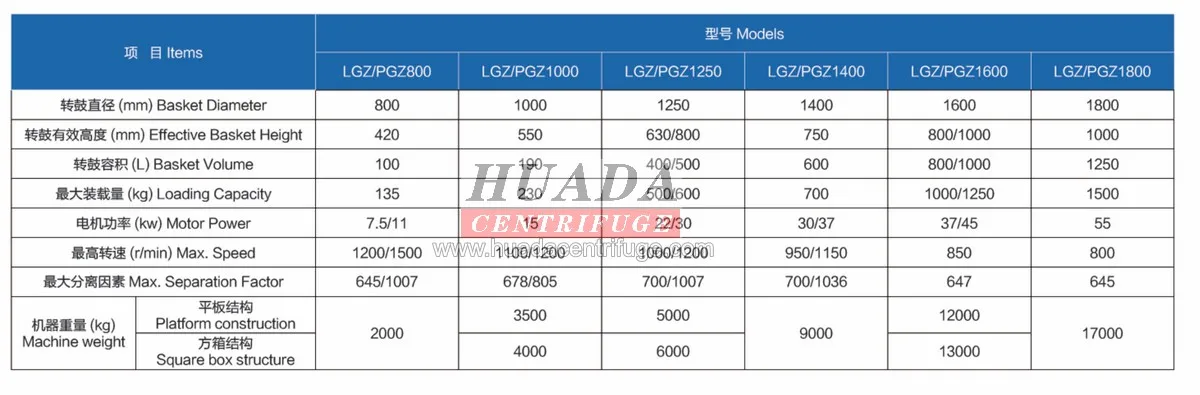

MAIN TECHNICAL PARAMETERS

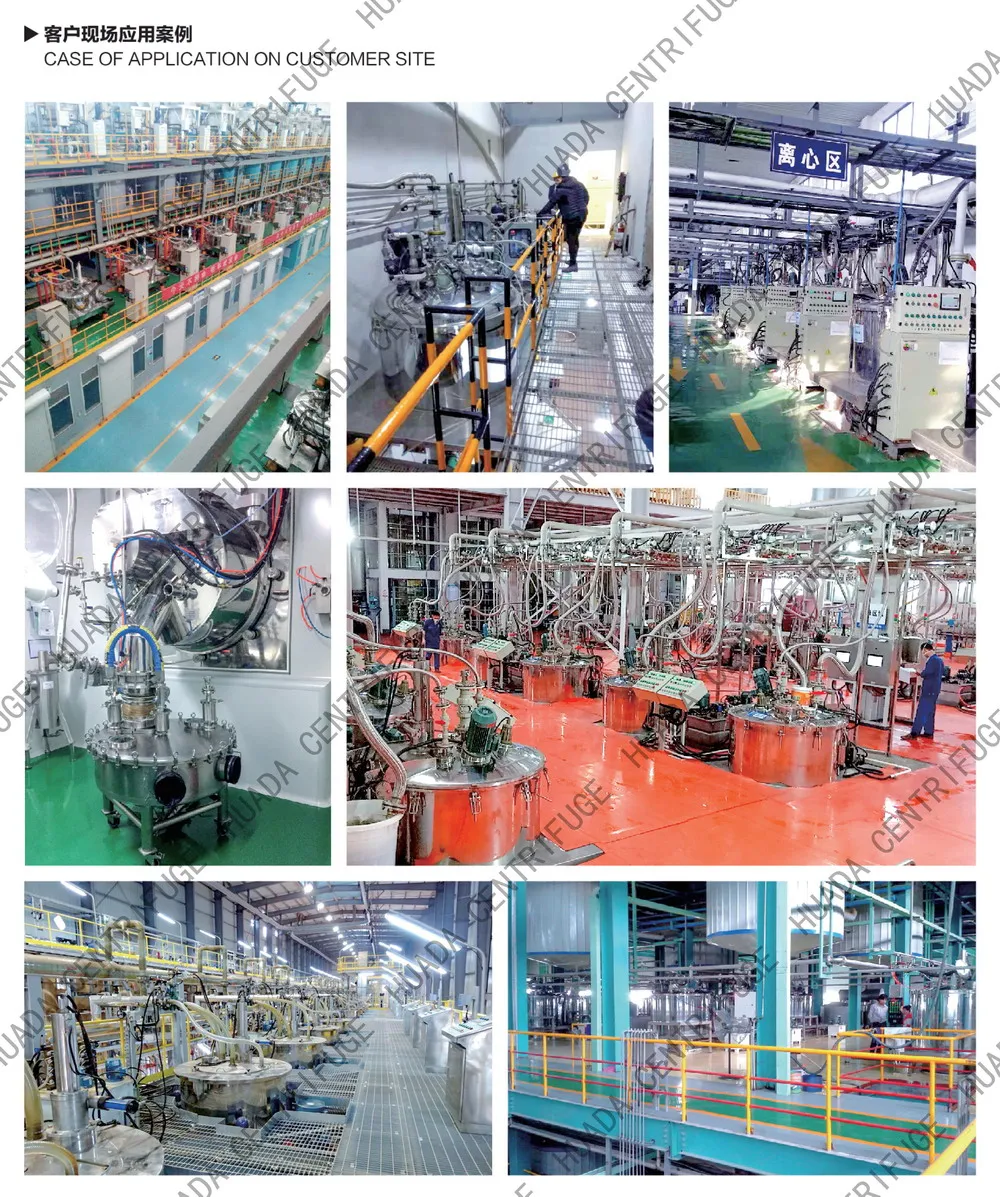

PRODUCTION SITE
About us
Found in 1993, Jiangsu Huada Centrifuge Co., Ltd. is located at Zhangjiagang City, an emerging port city in China, which is situated in China’s most economically advanced Yangtze River Delta region, with convenient traffic and beautiful environment.
Over 20 years. Huada had always been being devoted to research and development, production and marketing of filtration and separation machinery. With technical innovation as driving force of the enterprise to participate in market competition, we have developed series of centrifuges with high technical content, to meet the market demand; to gain the market by serving customers, we have accumulated extensive experience in application through years of technical research and development and sales application and can provide perfect pre-sale, sale and after-sale service; we ensure product quality with lean management and improve product reliability.
Huada is a member of Technical Committee for Standardization of Chinese Separation Machinery, a vice president of Separation Machinery Branch of China General Machinery Association, a drafter of national and industrial standards on centrifuges, a high-tech enterprise in Jiangsu Province and a key high-tech enterprise for national torch plan. In 1998, our centrifuges acquired national safety certification. Huada is one of enterprises in domestic filtration and separation machinery industry which is the largest in scale, the most complete in product varieties and series, the most competitive and the most influential.
Huada has a large number of engineers and technical personnel who account for over one third of total number of employee. It owns an engineering technology research center of Jiangsu Province and establishes multiple professional teams of technical research and development, technical application, process design, inspection and testing, lean production management, etc. and we have made great achievements. We have successfully developed multiple new products and technologies having proprietary intellectual property rights and, national invention patent which include vertical pull-bag automatic discharge centrifuges, horizontal preconcentration filtering centrifuge, intelligent remote control system technology and so on, as well as obtained good market application; we have resolved difficult problems on filtration and separation for users.
Huada currently has two production bases, covers floor area of 100000 square meters and plan area of 45000 square meters, as well as owns more than 500 sets of various mechanical processing equipment among which there are over 50 sets of numerical control equipment and more than 100 sets of various testing equipment.
Our business philosophy is scientific and reasonable design, more perfect manufacturing, professional and standard service. We will provide service to our customers with constant technical innovation, perfect products and professional experience in application.
