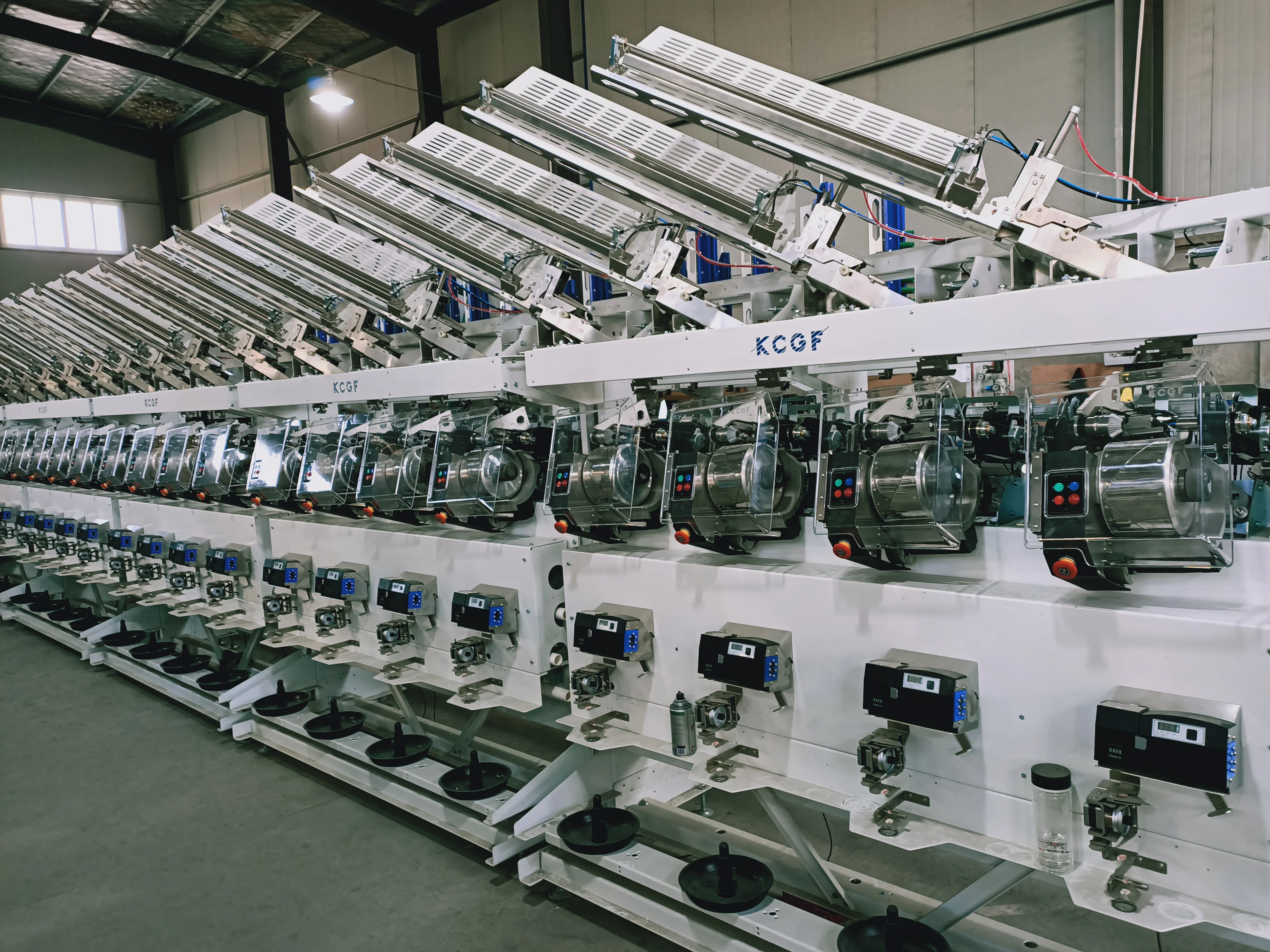

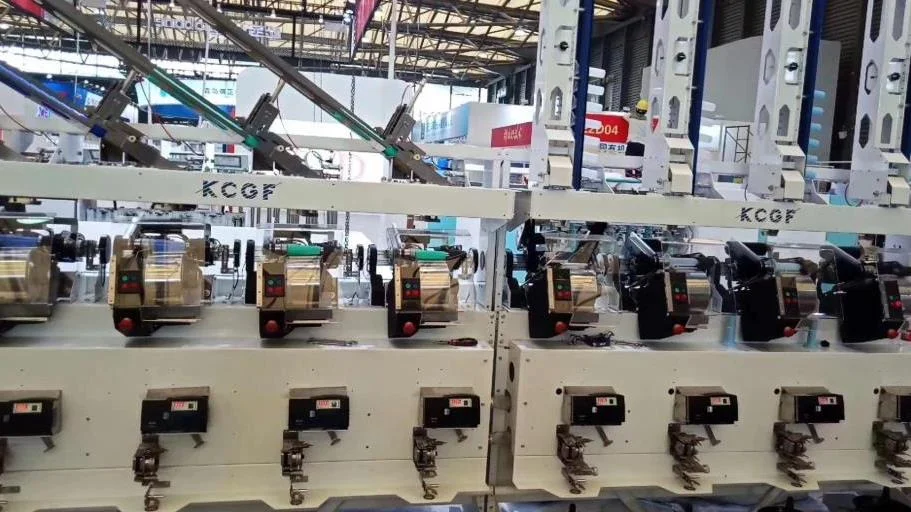

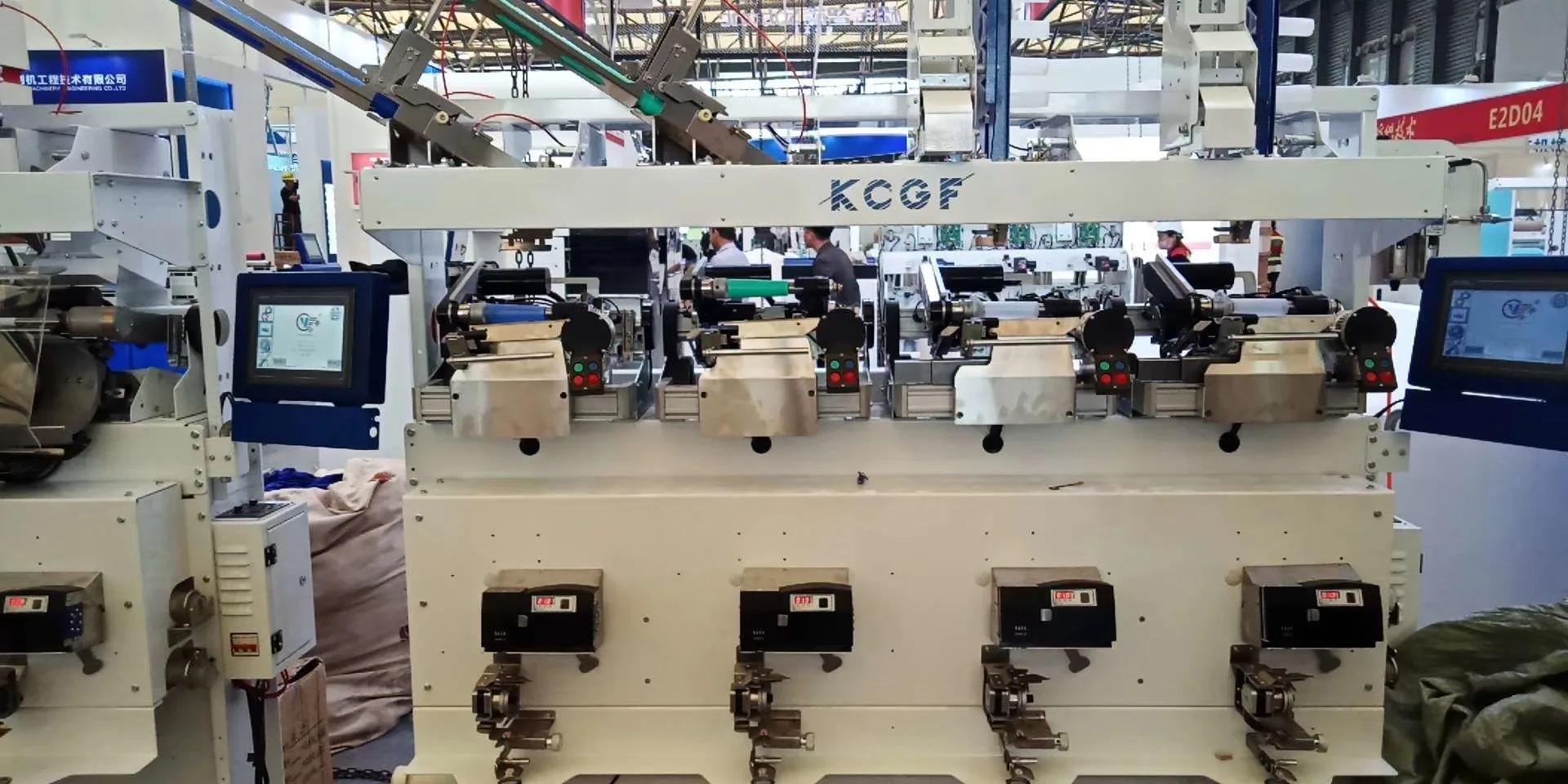

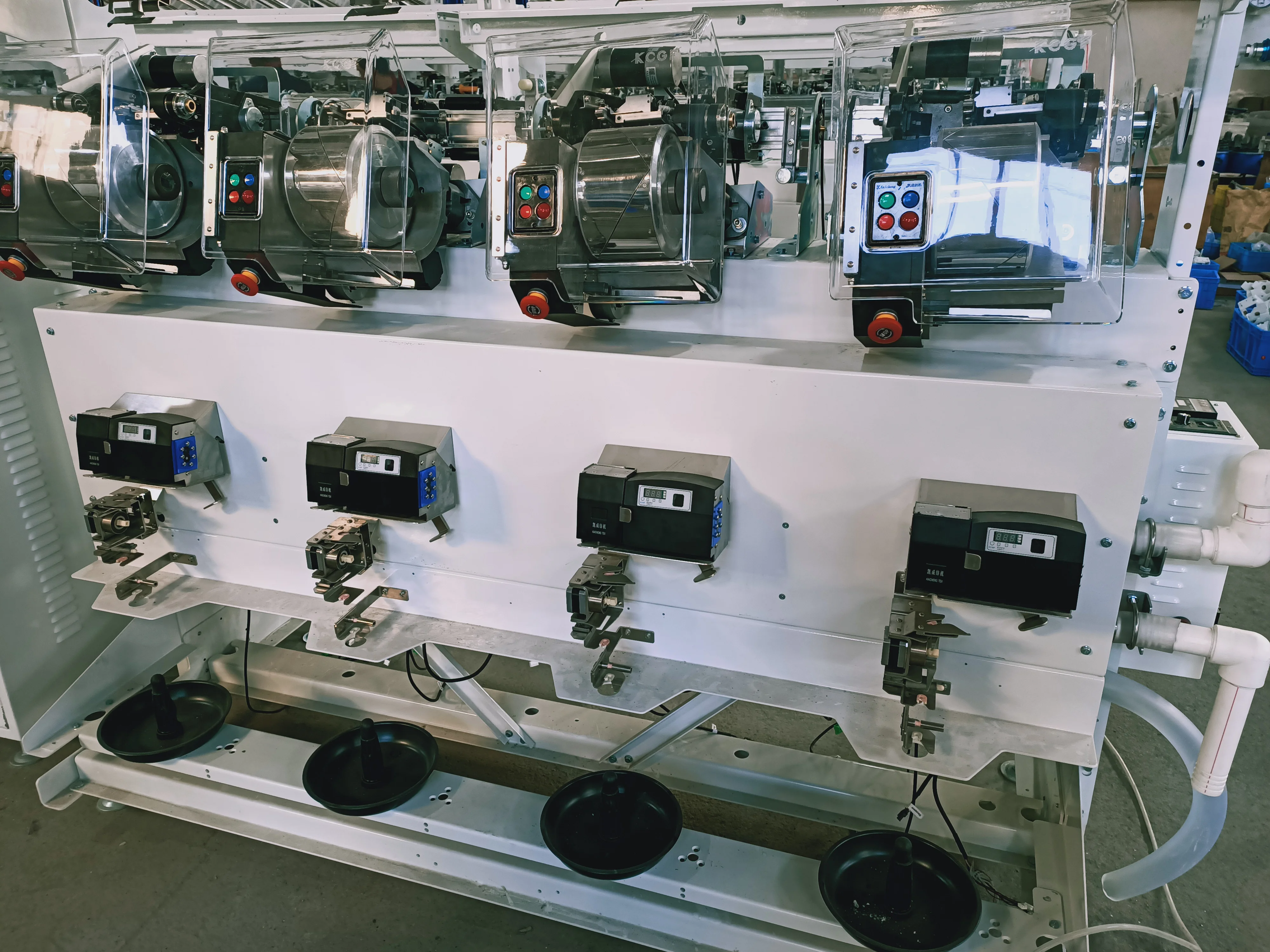

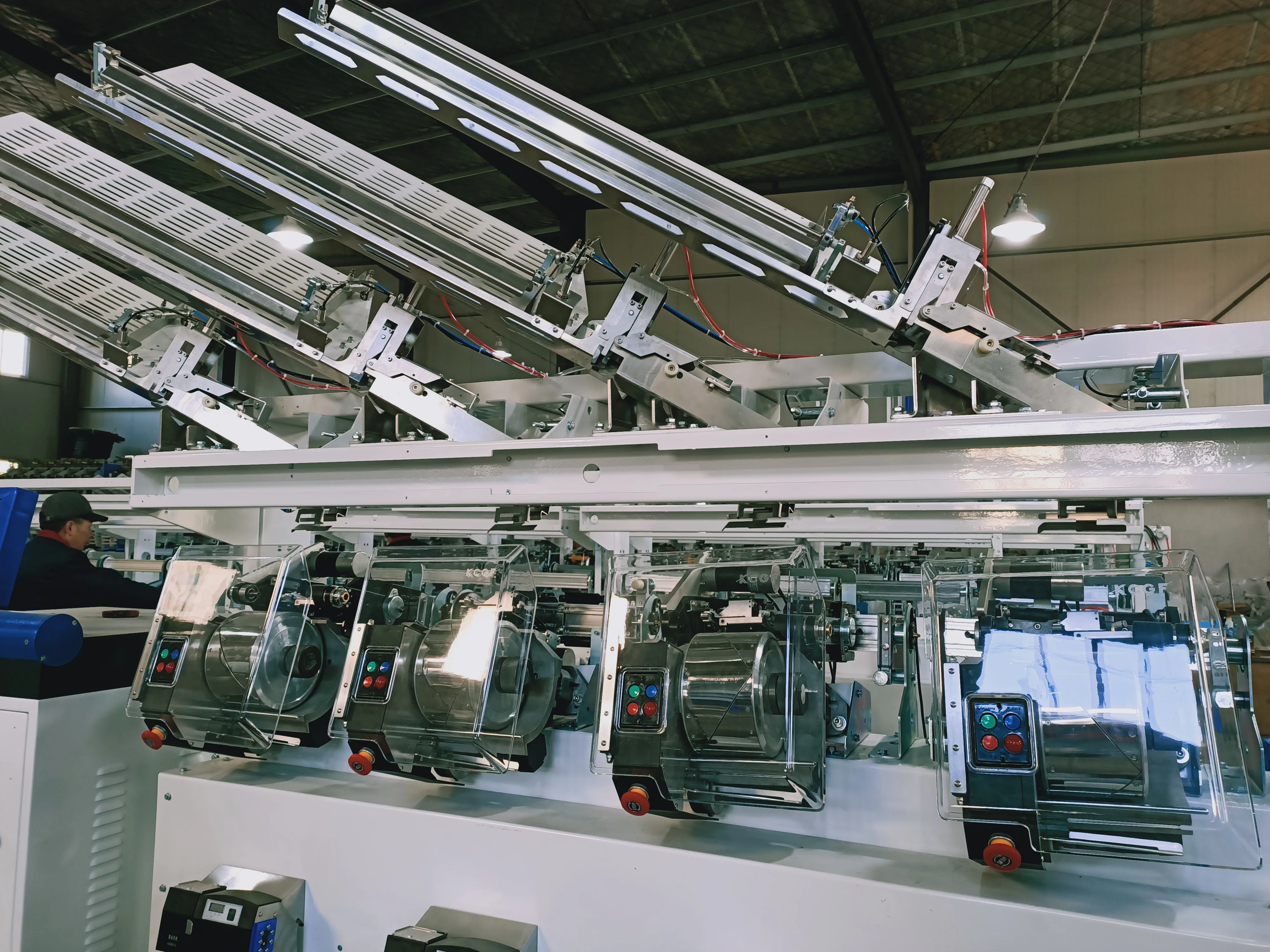

KC522 High speed Sewing thread winding machine
- Category: >>>
- Supplier: Zhejiang Kaicheng Intelligent Machinery Co. Ltd.
Share on (1700005961378):
Product Overview
Description
Product Description
Used for A-tube, Y-tube (King-tube), cylinder tube production, be suitable for the production which need exchange a variety specifications.
Mainly suitable for winding of spun sewing thread、embroidery thread、corn spun、textured filament、industrial yarn、special yarn and etc.
Features
Intelligent and constant temperature oil feeding device, can stop automatically when out-of oil or oil shortage, and can follow the leaner speed to change the amount of oil supply automatically, which achieve accurate refueling and perfect ensure the oil amount.
Features
Intelligent and constant temperature oil feeding device, can stop automatically when out-of oil or oil shortage, and can follow the leaner speed to change the amount of oil supply automatically, which achieve accurate refueling and perfect ensure the oil amount.
Machine structure | Single side, single layer |
Spindle gauge | 460mm |
Min./Max. No. of spindles | 4/20 (Max. number of spindles per oil feeding system:20) |
Type of winding | Precision cross winding |
Take-up tubes | A tube:cones (cones with conicity from 3°30′ to 5°57′; cylindrical or cone king spool up to 2°; tip diameter ≥ 18mm） |
Traverse | Y tube: King spool (cylindrical or cone king spool up to 2°; tip diameter |
Linear speed | Up to 1100m/min (depend to the process parameters) |
Traverse | 76mm~152mm (± 3.5mm, depend on the tank size, there are certain limitations) |
Yarn count | Up to 3300D |
Take-up package diameter | Up to 105mm (85-105mm, depend on the tank size, there are certain limitations) |
+Our Services
①Training how to install the machine, training how to use the machine.
② Inquiry and consulting support.
③Support sample yarn testing on our machine.
④Online visiting our Factory when you can't come here during COVID-19 pandemic.
⑤Provide photos & videos of our machine running
⑥ Making Sample Yarns as per customer's technics
⑦ Free spare parts
⑧ Online Technical Service , Online aftersale Service Field maintenance and repair service, training
⑨ OEM SERVICE supporting customizing goods as per buyer‘’s need
Technical Service:
1) If buyer need us technician to your place to install machine ,the buyer takes all charges of cost about technician’s
flight tickets, traveling expenses, lodging fee, and insurance premium , and also his salary 50usd per day during the business
travelling,
2)And also our engineer should be given cares by being picked up from airport when he arrives there and being sent off to the
airport when he comes back to China.
①Training how to install the machine, training how to use the machine.
② Inquiry and consulting support.
③Support sample yarn testing on our machine.
④Online visiting our Factory when you can't come here during COVID-19 pandemic.
⑤Provide photos & videos of our machine running
⑥ Making Sample Yarns as per customer's technics
⑦ Free spare parts
⑧ Online Technical Service , Online aftersale Service Field maintenance and repair service, training
⑨ OEM SERVICE supporting customizing goods as per buyer‘’s need
+Machine producing standard :
Machine producing standard according to the manufacturer ‘s machine technology standard which has put on records in manufacturer
local TSB (technology supervision bureau )
Machine warranty period: One Year
Break contract liability: According to Economic Contract Law of the People's Republic of China.
Sample Trials on our machine:we can make trails here for you and send back packaging bobbin to you if you want to make trial use
of our machine and send yarn & packaging bobbin samples to our factory ,
Machine producing standard according to the manufacturer ‘s machine technology standard which has put on records in manufacturer
local TSB (technology supervision bureau )
Machine warranty period: One Year
Break contract liability: According to Economic Contract Law of the People's Republic of China.
Sample Trials on our machine:we can make trails here for you and send back packaging bobbin to you if you want to make trial use
of our machine and send yarn & packaging bobbin samples to our factory ,
Technical Service:
1) If buyer need us technician to your place to install machine ,the buyer takes all charges of cost about technician’s
flight tickets, traveling expenses, lodging fee, and insurance premium , and also his salary 50usd per day during the business
travelling,
2)And also our engineer should be given cares by being picked up from airport when he arrives there and being sent off to the
airport when he comes back to China.
OEM Service
Packaging &Transportation
Certifications
About us
Zhejiang Kaicheng Intelligent Machinery Co.,Ltd
Specialized in manufacturing and researching of intelligent textile machinery
Devoted to build up a leading-brand KAICHENG winder & twister in China
Zhejiang Kaicheng Intelligent Machinery Co., Ltd. is a state-level high-tech enterprise which integrates automatic control
software, intelligent high-end textile machinery equipment research and development and production.
We have developed our own automation control hardware, software, electronic control device, including detection sensors,
intelligent controllers, high-performance motors and intelligent, high-end textile mechanical equipment.
Our Markets:
At present our machines (twisting machine and winding machine) and spare parts have been sold to more than 30 countries and areas,
for example, Brazil, Peru, El Salvador, Argentina, Turkey, Egypt,India, Pakistan, Malaysia, Vietnam, Indonesia, South Africa,etc.
Our Patents:
Our company set up the New Product Research and Development Center in 2011 with a strong research and development technical team
of 16 persons. Until 2016, the company has declared 154 national patents, 134 utility model patents, 8 invention patents.
Our products have obtained 232 national patent certificates, including 12 invention patents. 14 products won the title of
“Provincial New Product”, and 2 products reached the “International Advanced” level in 2011 and 2015 respectively. (Certificate
No. 20110030, 20160005) The continuous investments and developments on new products help us to be a top leading technology company
in China.
Warmly welcome to visit our factory and open up the boundaries of communication.
Thank you!
Hot Products
Exhibition
FAQ
Q:What is the payment term you can accept?
A:Usually we prefer T/T;but other payment term may be accepted by negotiation.
Q:How about the quality?
A:Our company is specialized in producing twisters and winders.Many of our technologies are up to the international advance level.
Q:Did you produce all pares of the machine?
A:We have the technology to produce the core component ,such as core control panel,system,motor,intelligent oil refueling
box,tension sensor,angular sensor,yarn break sensor and so on.
Q:Do the machines and accessories come with a warranty?
A:The machine and accessories are guaranteed for 1 year.
Q:Do you provide installation service?
A:If the buyer needs, we can provide technical personnel to its location for installation and debugging, during which the expenses incurred by the technical personnel shall be borne by the buyer.
A:Usually we prefer T/T;but other payment term may be accepted by negotiation.
Q:How about the quality?
A:Our company is specialized in producing twisters and winders.Many of our technologies are up to the international advance level.
Q:Did you produce all pares of the machine?
A:We have the technology to produce the core component ,such as core control panel,system,motor,intelligent oil refueling
box,tension sensor,angular sensor,yarn break sensor and so on.
Q:Do the machines and accessories come with a warranty?
A:The machine and accessories are guaranteed for 1 year.
Q:Do you provide installation service?
A:If the buyer needs, we can provide technical personnel to its location for installation and debugging, during which the expenses incurred by the technical personnel shall be borne by the buyer.
