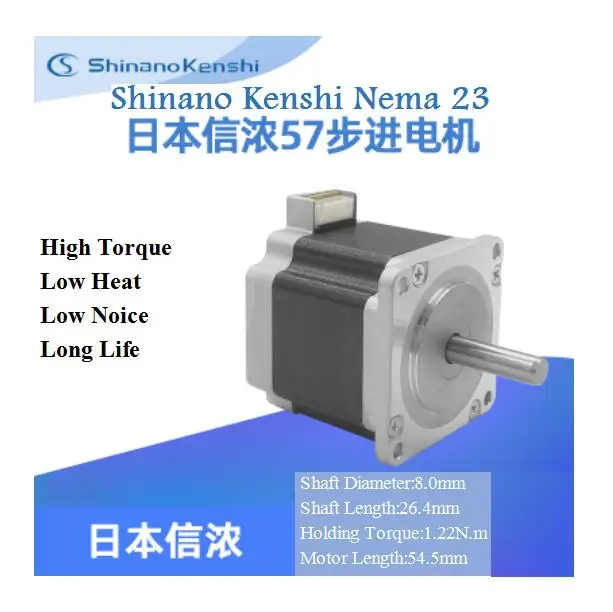

Shinano Kenshi STP 59D3074 3 1.22Nm 2 phase micro hybrid direct plug in 4 wire nema 23 stepping motor 8mm shaft diameter

Product Overview

Description

All Products Link:

https://szmelike.en.alibaba.com/productlist.html?spm=a2700.shop_index.88.7.688e185dhZuaeN





Shinano Kenshi STP-59D3074-3 1.22Nm 2 phase micro hybrid direct plug-in 4 wire nema 23 stepping motor 8mm shaft diameter



                                        Product Detail

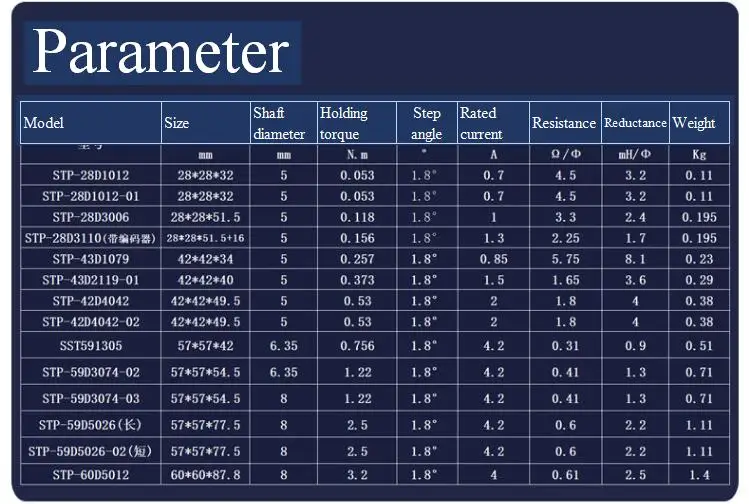

Feature:

Brand	Shinano Kenshi
Model No	STP-59D3074-3
Step angle	1.8°
No of phases	2
Rated voltage	1.7V
Rated current	4.2A
Resistance	0.41ohm   (AT 20°C)
Inductance	1.3mH
Holding torque:	1.22N.m(oz.in)
Shaft diameter	8mm
Shaft Length	26.4mm
Insulation resistance:	100 MΩ
Dielectric strength:	500V A.C
Temperature rise:	80K (Max)
Operation ambient temp	Operation ambient temp:-20°C~+50°C
Operation ambient hum	15%~90%
Life	5000Hours
Weight	0.71Kg
Motor Length	49.5mm



  Product Description





Dimensions (Unit:MM)

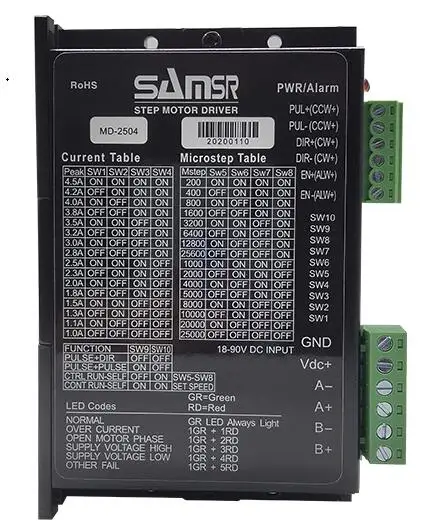

Configuration and Option driver:MD-2504





Related Products:Nema 8/11/14/23/34/42/54  2 phase stepper motor

---Click following picture to check the corresponding product information

        Nema 14(35mm)                      Nema 23(57mm)                     Nema 24(60mm)



      Nema 34(86mm)





Packaging & Shipping



Company Informtion





FAQ

1. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-15 days.



2. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.



3. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.



4. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
