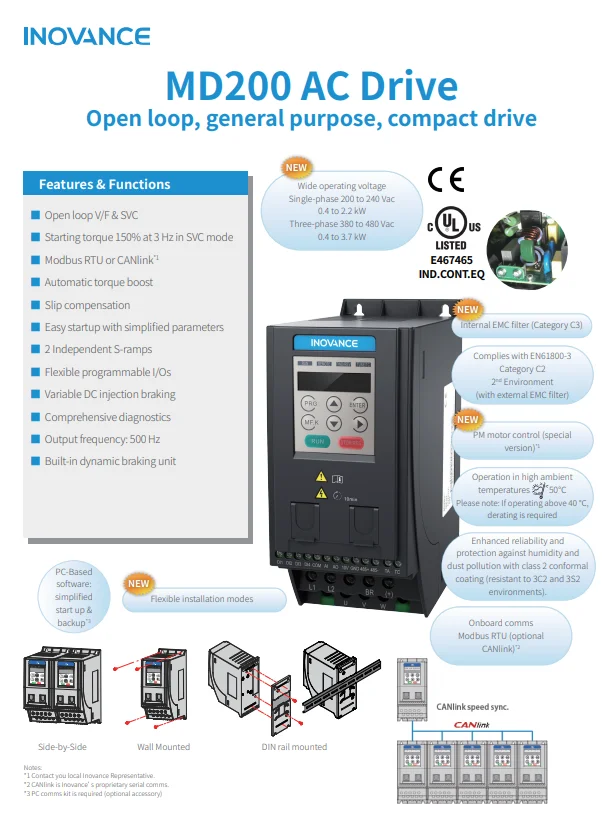

Inovance inverter MD200 flexible AC drive

• General Info.

Open loop, single phase, 220V, 0.4-2.2kW

•  Open loop V/F control
•  Starting torque of 150% at 3Hz
•  Communication options:
    • Modbus
    • CANlink
•  Automatic torque boost
•  Slip compensation
•  Simplified parameter for easy start up
•  2-Independent S-Ramps
•  Flexible programmable I/O connection
•  Variable DC-injection braking
•  Comprehensive trip diagnostics
•  Output frequency 500Hz
•  In-Built Dynamic braking unit
