item | value |

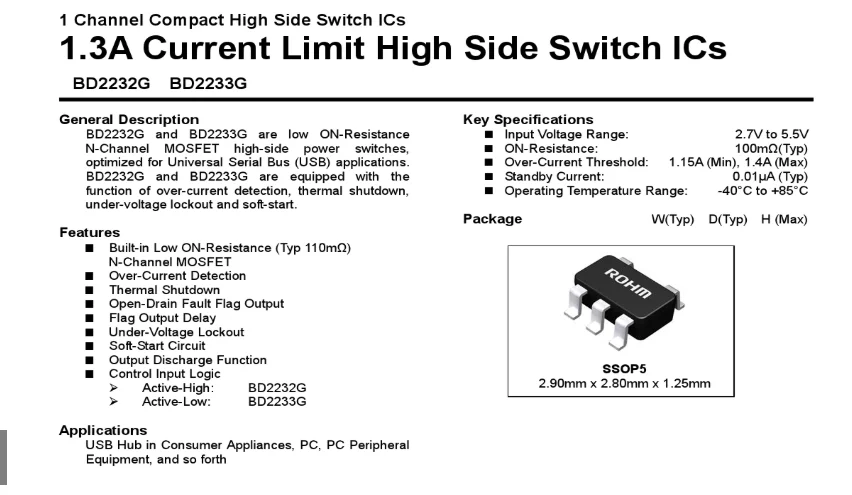

Model Number | BD2232G/BD2233G |
Type | integrated circuit |
Brand Name | Original |
Place of Origin | Japan |
D/C | newest |
Package | SSOP-5 |
Description | Switch IC |
Operating Temperature | -40C to +85C |
Mounting Type | SMT/SMD |
Voltage - Supply (Min) | 2.7V |
Voltage - Supply (Max) | 5.5V |
Current - Output / Channel | 1 output |
Applications | USB Hub in Consumer Appliances, PC, PC Peripheral |
FET Type | datasheet |
Current - Output (Max) | Over-Current Threshold:1.15A (Min), 1.4A (Max) |
Current - Supply | datasheet |
Voltage - Supply | 5V |
Function | datasheet |
Current - Output High, Low | 500 mA |
Current - Peak Output | datasheet |
Output Type | 1 output |
Current Transfer Ratio (Min) | datasheet |
Impedance | ON-Resistance:100mΩ(Typ) |
LO Frequency | no |
Input Range | no |
Specifications | 172.055 mg SSOP-5 |
Size / Dimension | datasheet |
Resistance (Ohms) | datasheet |
Over-Current Detection | 1275mA(Typ) |
