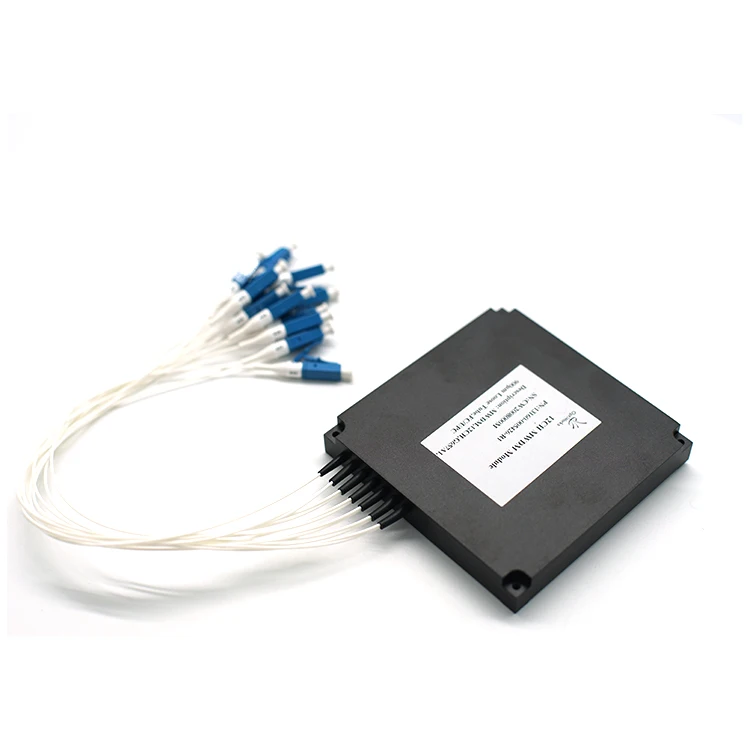

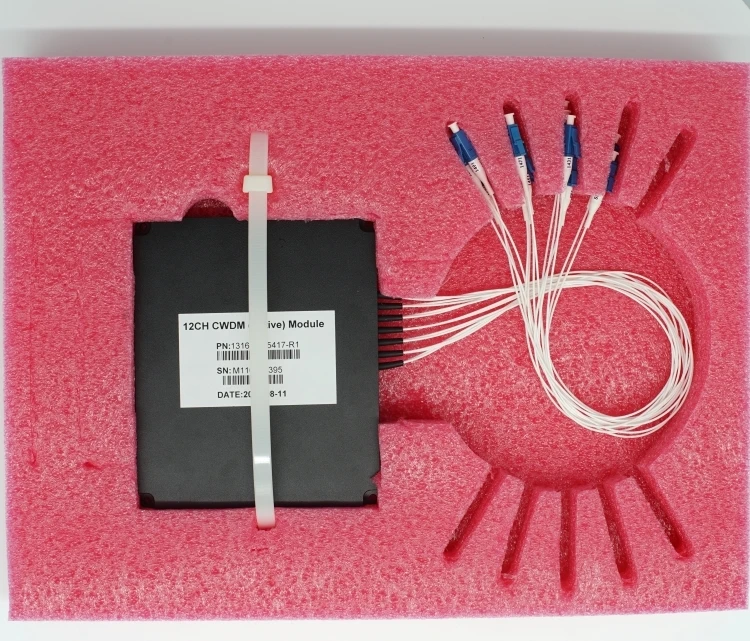

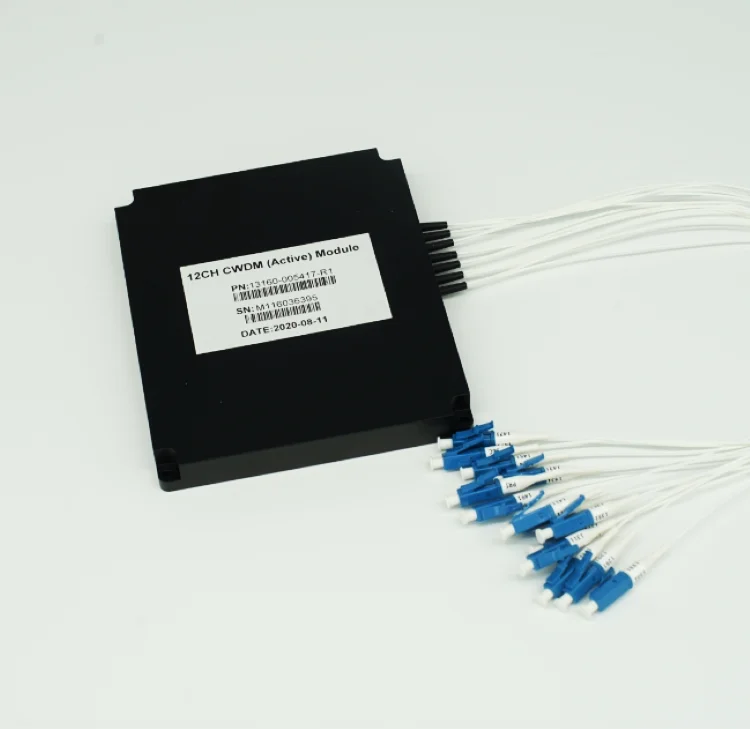

Filter FWDM/ DWDM/ WDM/ CWDM Fiber MUX DEXUX Module Optic Equipment

Price:RUB 15,335.06

Quantity:

Key Features
♦ Low Insertion loss

♦ Standard ITU channel

♦ High channel isolation

♦ Epoxy-free Optical path

♦ Stable performance

Applications

♦ DWDM System

♦ CATV networks

Specification

Parameters	Units	1 Channels	4 Channels	8 Channels	16 Channels
Insertion Loss（Add/Drop）	dB	≤0.7	≤1.8	≤2.8	≤3.8
Ripple	dB	≤0.5	≤0.5	≤0.5	≤0.5
Polarization Dependent Loss	dB	≤0.2	≤0.2	≤0.2	≤0.2
Dimension	mm	80 x 58 x 8	80 x 58 x 8	100 x 80 x 10	120 x 80 x 18
Channel Center Wavelengths	mm	1271 - 1611
Channel Spacing	GHz	20
Channel Passband	nm	λc ± 6.5
Isolation-Adjacent	dB	≥30
Isolation-Non-adjacent	dB	≥40
Return Loss	dB	≥45
Directivity	dB	≥50
Notes : The above specs exclude connector loss, each pair of connecter adds 0.2dB
