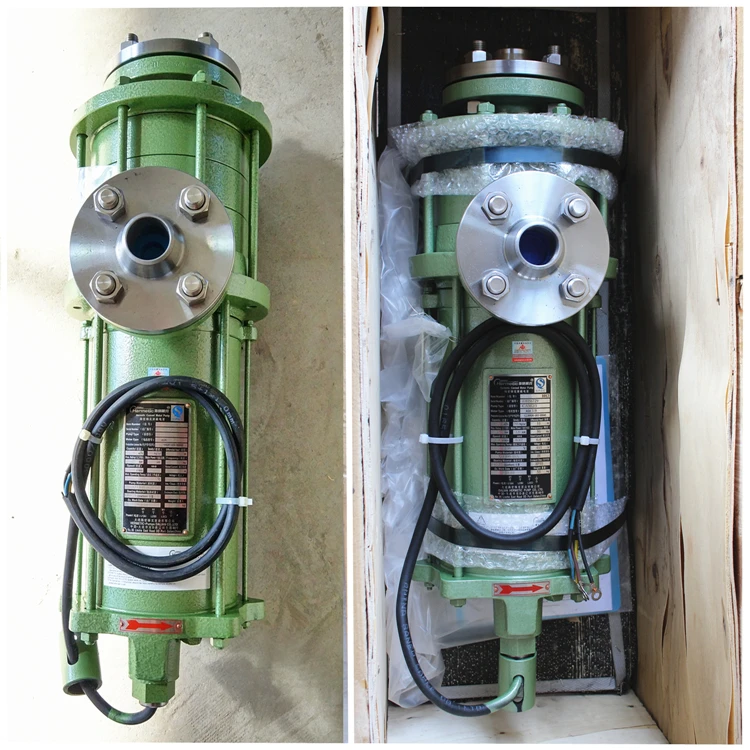

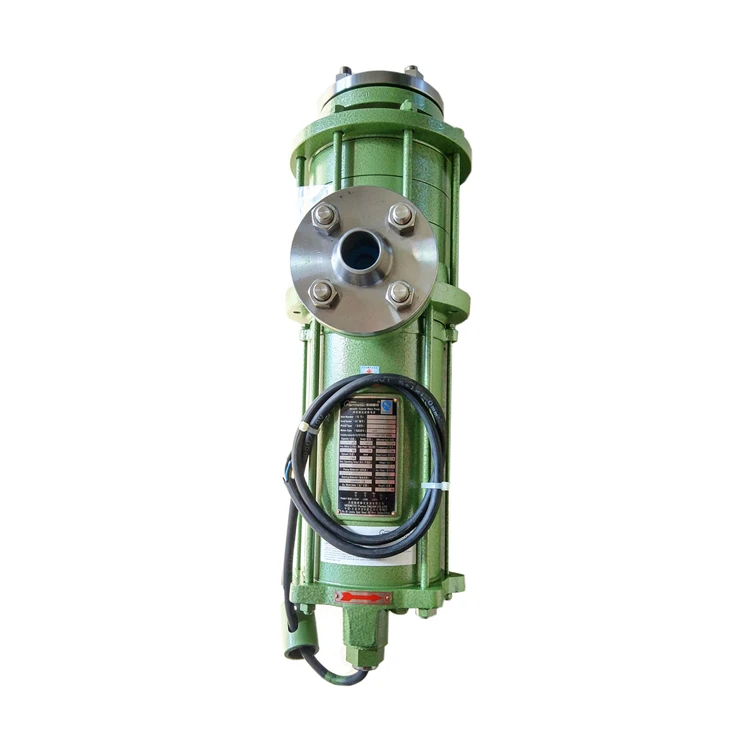

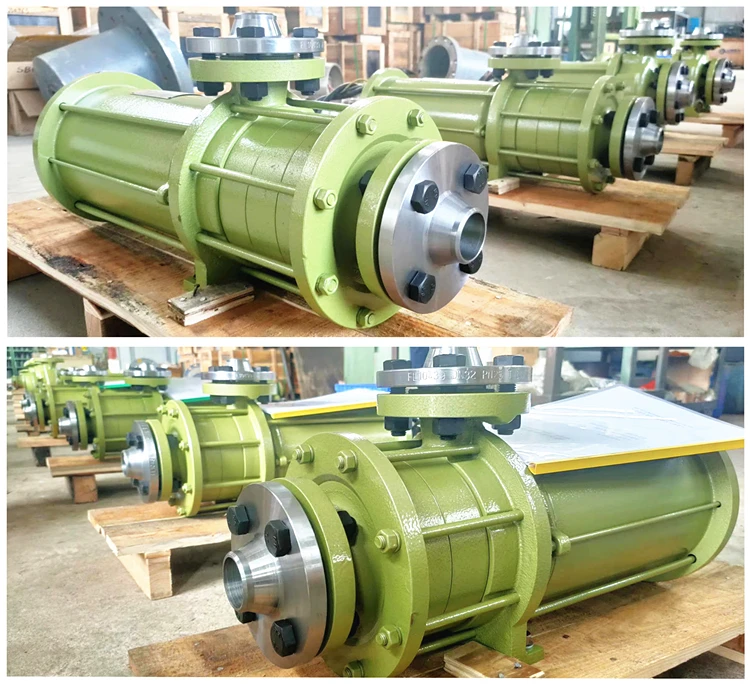

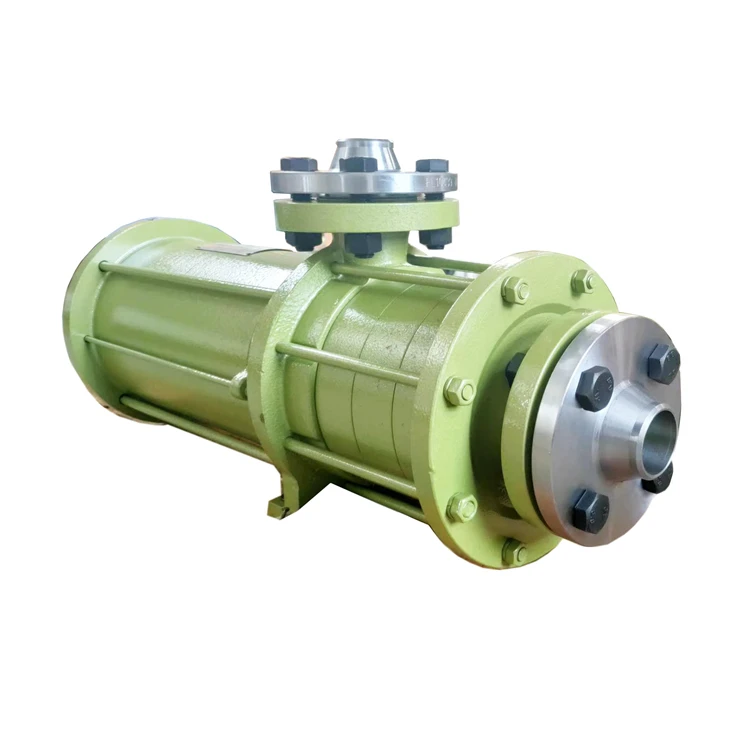

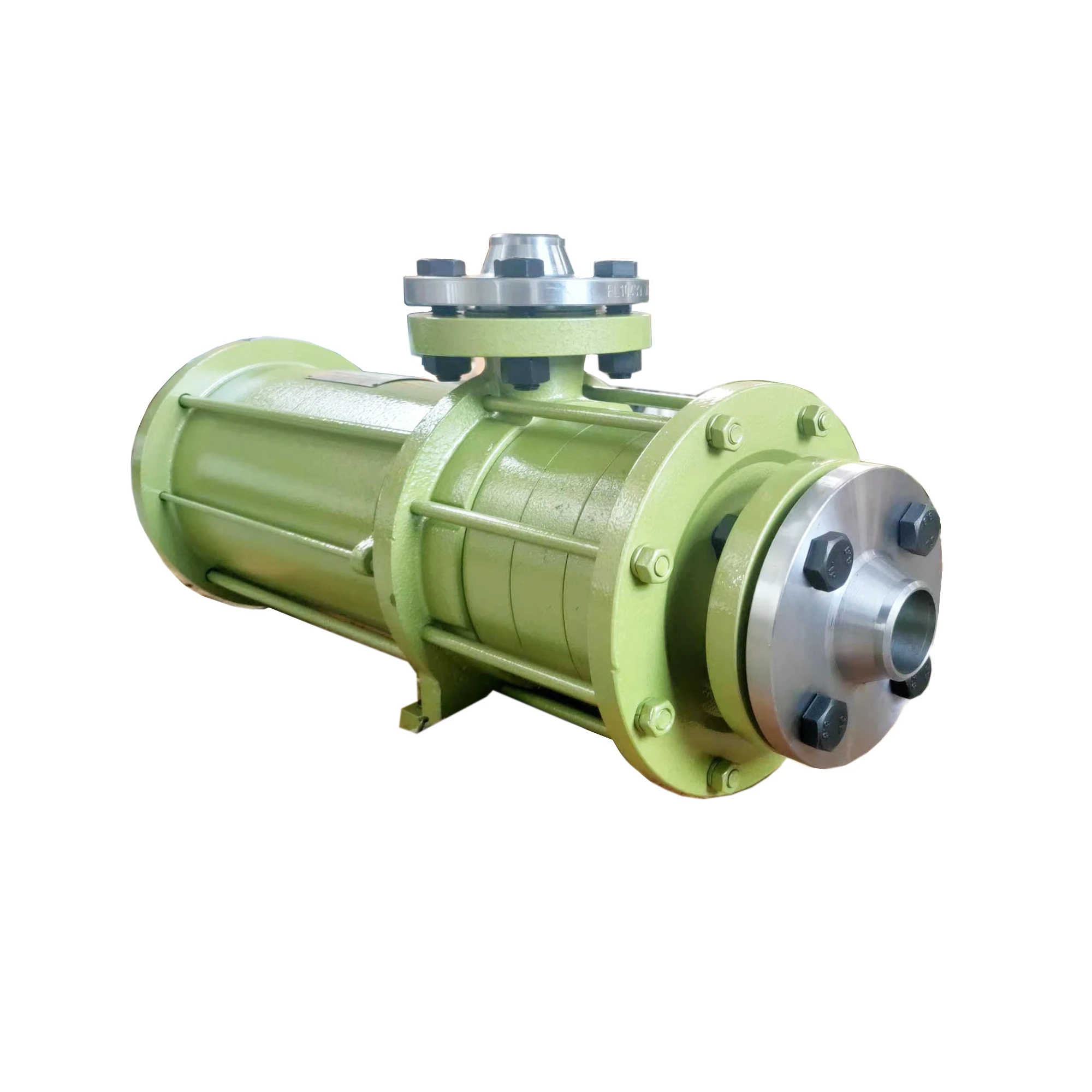

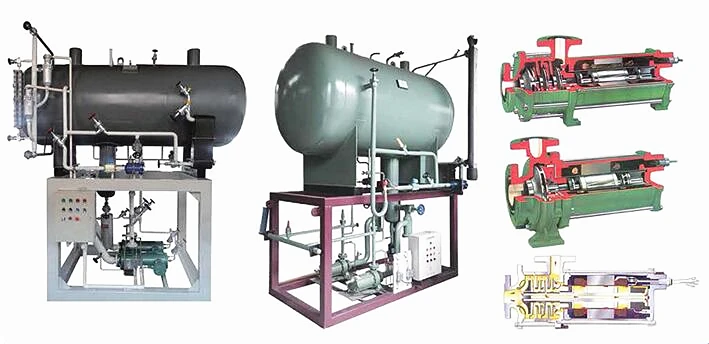

Refrigeration Ammonia Hermetic Pump
- Category: >>>
- Supplier: Shandong Bestworld Refrigeration Equipment Co. Ltd.
Share on (1700006776602):
Product Overview
Description
Product Description
Product Model
Performance of Hermetic pump CAM2 Type
Type | Impeller | Capacity | Head | Proportion r=0.7 (ammonia) | Proportion r=1.42 (Freon) | ||||||||
Stage | Q m3/h | H m | KW | Type | Speed r/min | KW | Type | Speed r/min | |||||
CAM2 | 2 | 3 | 27 | 3.0 | AGX3.0 | 2675 | 3.0 | AGX3.0 | 2675 | ||||
6 | 25 | 3.0 | AGX3.0 | 2675 | 3.0 | AGX3.0 | 2675 | ||||||
3 | 3 | 38 | 3.0 | AGX3.0 | 2675 | 3.0 | AGX3.0 | 2675 | |||||
6 | 33 | 3.0 | AGX3.0 | 2675 | 3.0 | AGX4.5 | 2692 | ||||||
4 | 3 | 49 | 3.0 | AGX3.0 | 2675 | 3.0 | AGX4.5 | 2692 | |||||
6 | 45 | 3.0 | AGX3.0 | 2675 | 3.0 | AGX6.5 | 2700 | ||||||
5 | 3 | 61 | 3.0 | AGX3.0 | 2675 | 3.0 | AGX6.5 | 2700 | |||||
6 | 57 | 3.0 | AGX3.0 | 2675 | 3.0 | AGX6.5 | 2700 | ||||||
6 | 3 | 73 | 3.0 | AGX3.0 | 2675 | 3.0 | AGX6.5 | 2700 | |||||
6 | 66 | 3.0 | AGX3.0 | 2675 | 3.0 | AGX6.5 | 2700 | ||||||
Performance of Hermetic Pump CNF Type
Type | Impeller | Capacity | Head | Proportion r=0.7 (ammonia) | Proportion r=1.42 (Freon) | ||||||||
Stage | Q m3/h | H m | KW | Type | Speed r/min | KW | Type | Speed r/min | |||||
CNF | 32-160 | 6.25 | 33 | 3.0 | AGX3.0 | 2675 | 4.5 | AGX4.5 | 2692 | ||||
10 | 32 | 3.0 | AGX3.0 | 2675 | 4.5 | AGX4.5 | 2692 | ||||||
32-200 | 10 | 52 | 4.5 | AGX4.5 | 2692 | 8.5 | AGX8.5 | 2837 | |||||
15 | 49 | 4.5 | AGX4.5 | 2692 | 8.5 | AGX8.5 | 2837 | ||||||
40-160 | 8 | 32 | 3.0 | AGX3.0 | 2675 | 4.5 | AGX4.5 | 2692 | |||||
20 | 31 | 4.5 | AGX4.5 | 2692 | 6.5 | AGX6.5 | 2700 | ||||||
40-200 | 10 | 51 | 4.5 | AGX4.5 | 2692 | 8.5 | AGX8.5 | 2837 | |||||
25 | 47 | 6.5 | AGX6.5 | 2700 | |||||||||
50-160 | 20 | 33 | 4.5 | AGX4.5 | 2692 | 8.5 | AGX8.5 | 2837 | |||||
50 | 29 | 6.5 | AGX6.5 | 2700 | |||||||||
Specification
For pumping any media applied in refrigeration industry: ammonia,freon,silicone oil etc.

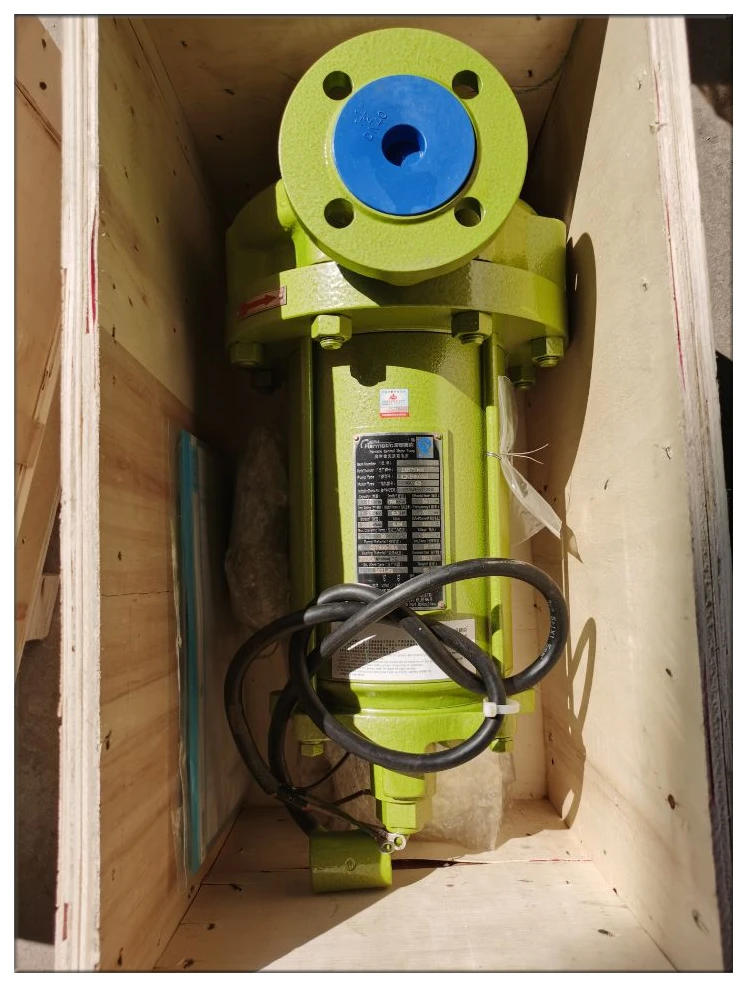

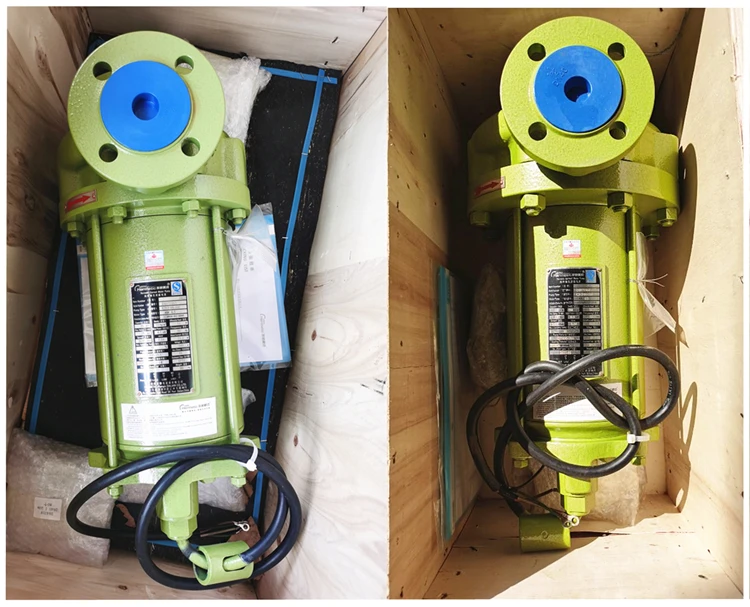

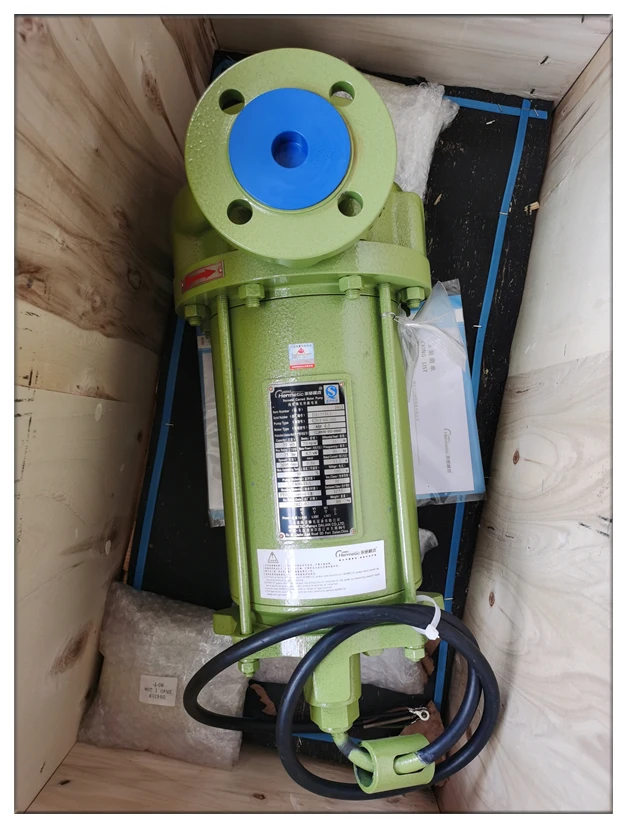

Packing & Delivery
