Product Overview
Description
Products Description
The single-side fastening method of the POP NutⓇ makes quick installation possible.Compared to the weld nut method,the burring and tapping method,the bolt and nut method,and other conventional methods,the single-side fastening method of the POP NutⓇ contributes to cost reduction by enabling fast,easy assembly,even for beginners.The POP NutⓇRoulette has knurling on its outer peripheral surface.This knurling digs into the prepared hole of the workpiece when fastened to produce stable,high strength.The POP Evo Nut™ is a reduced-weight POP NutⓇ for bicycle panels that was created by reducing the weight of the POP NutⓇRoulette and improving shear strength by hardening the body.The POP NutⓇ is RoHS compliant.Since it can still be installed after surface treatment without scratching the workpiece,it can be installed during the final step of product assembly.It is also excellent for automating the assembly line.In order to ensure proper fastening,please select the POP NutⓇ according to the strength,functionality,corrosion resistance,and other specifications required after checking the materials, board thickness,prepared hole diameter,and other conditions of the workpiece.
Product Name | POP Evo Nut™,POP Nuts®Roulette POP Nut |
Brand Name | POP |
Place Of Origin | Japan |

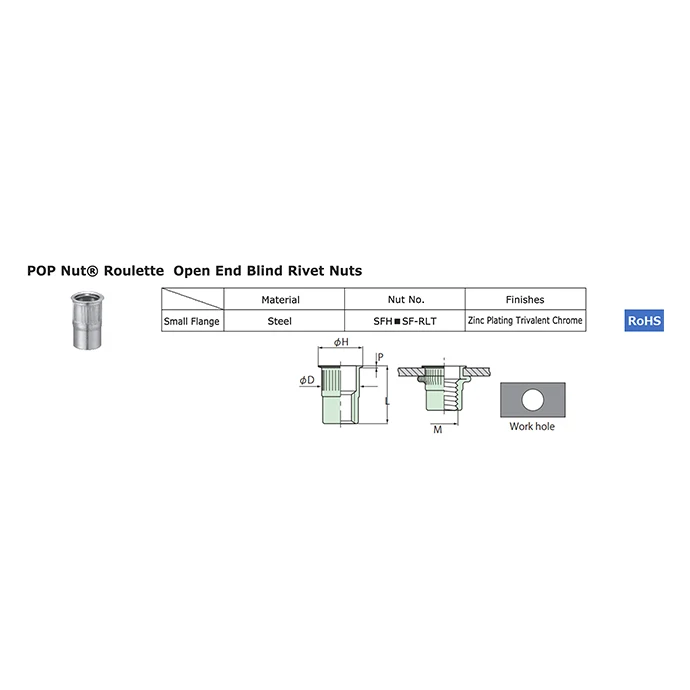

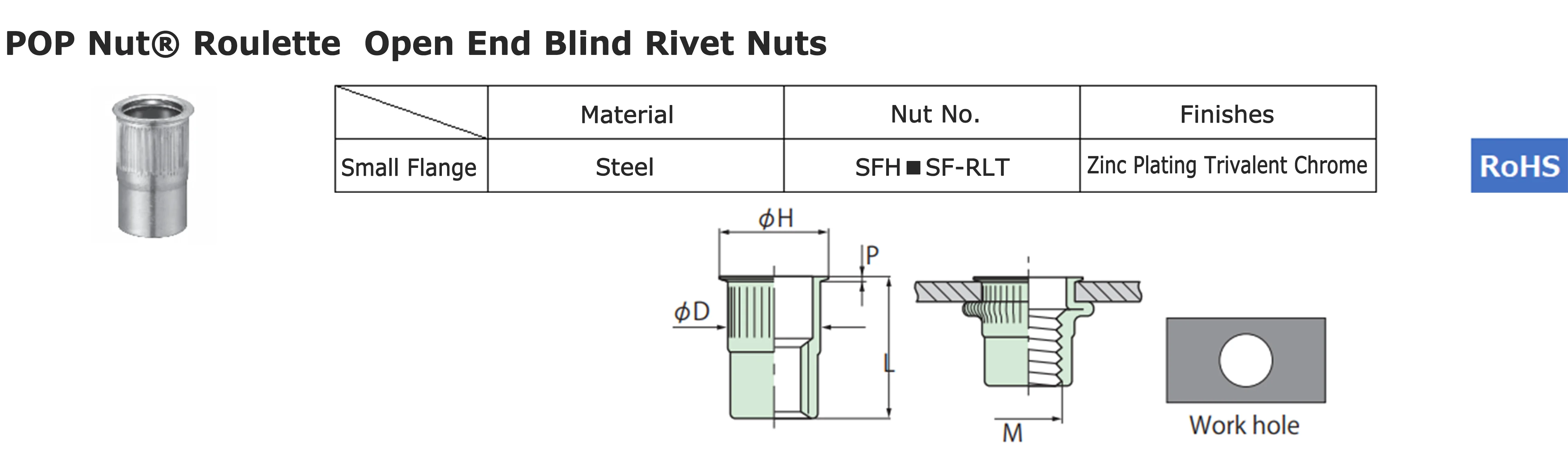

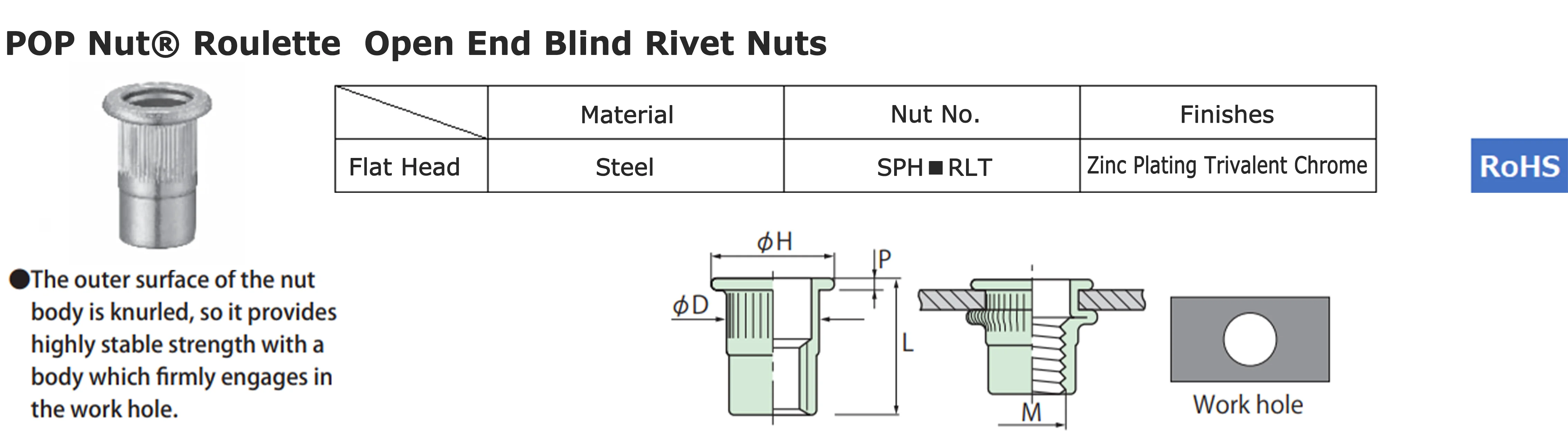

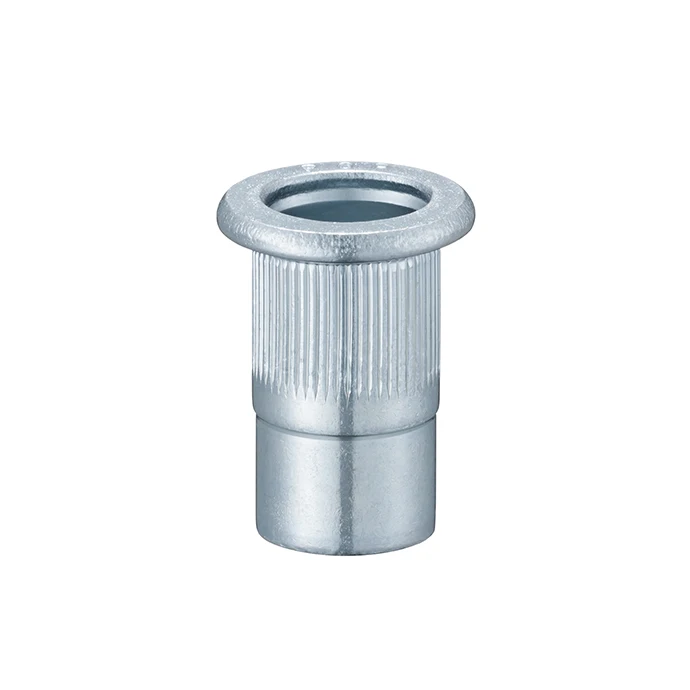

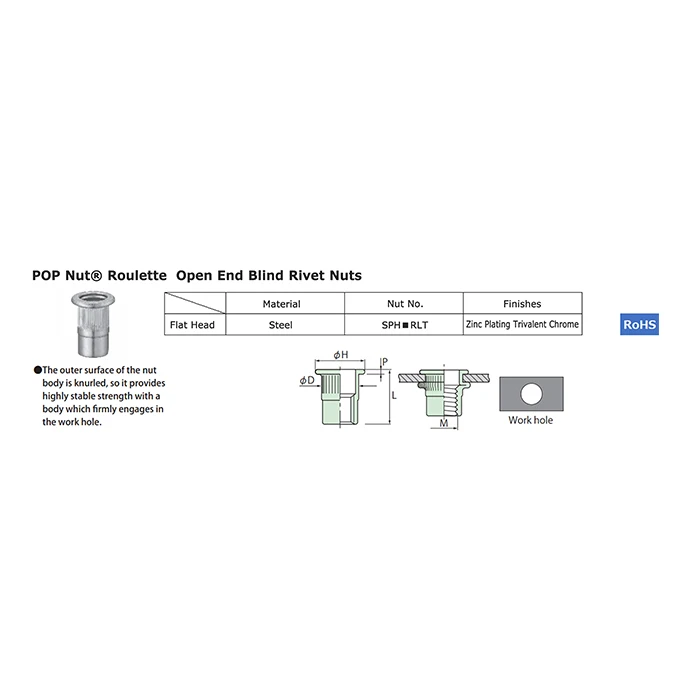

●The POP NutⓇRoulette has knurling on its outer peripheral surface.This knurling digs into the prepared hole of the workpiece when fastened to produce stable,high strength.

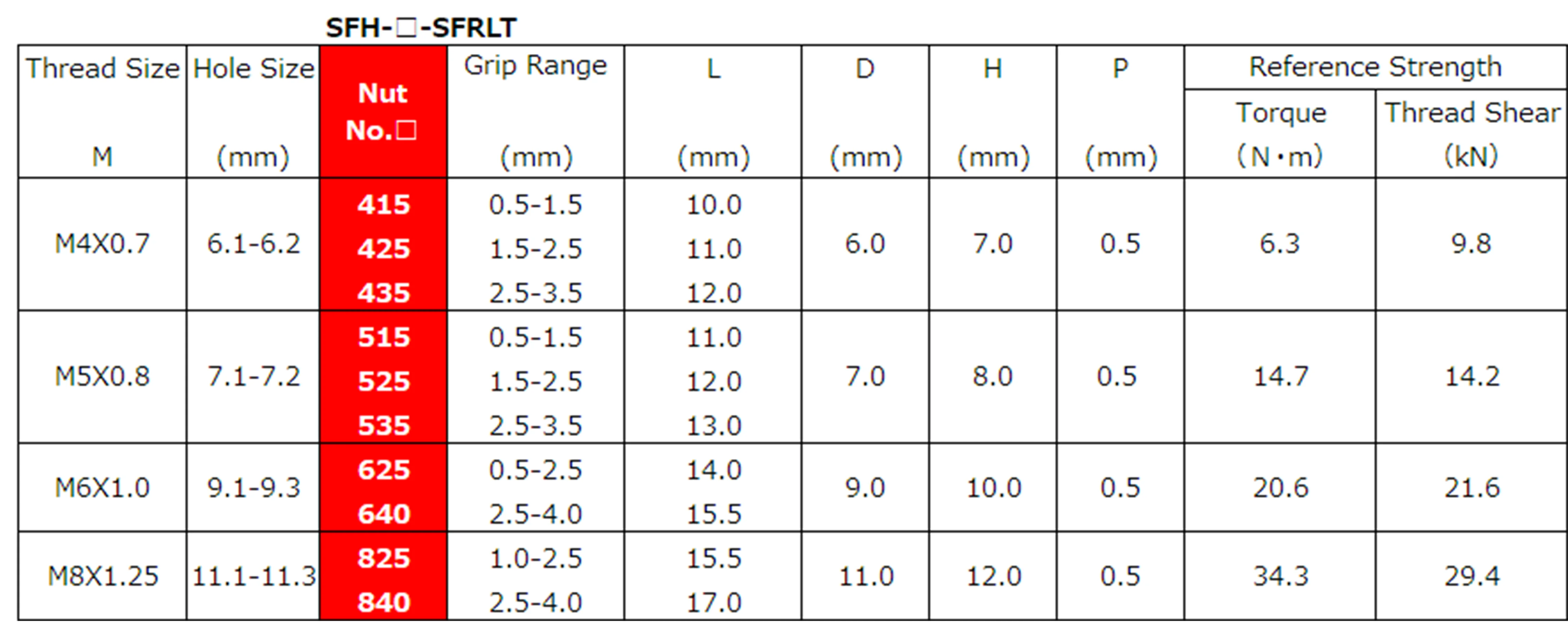

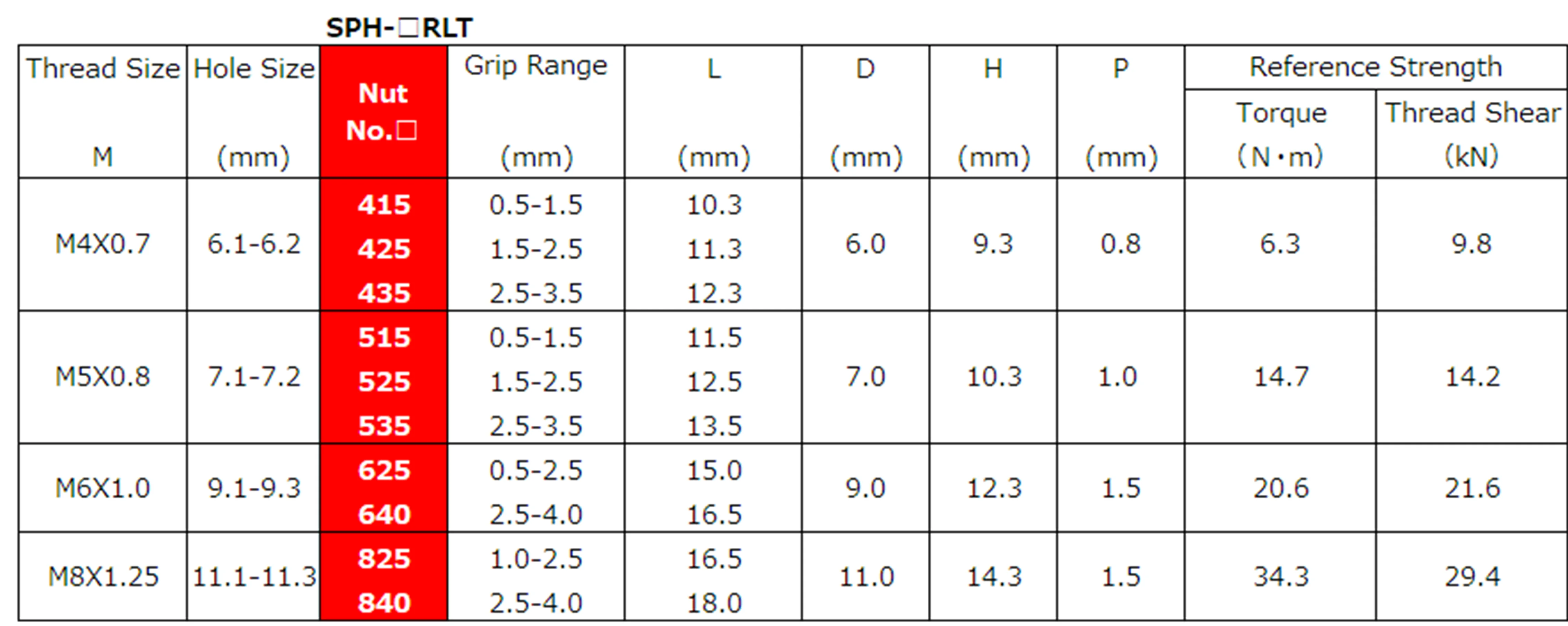

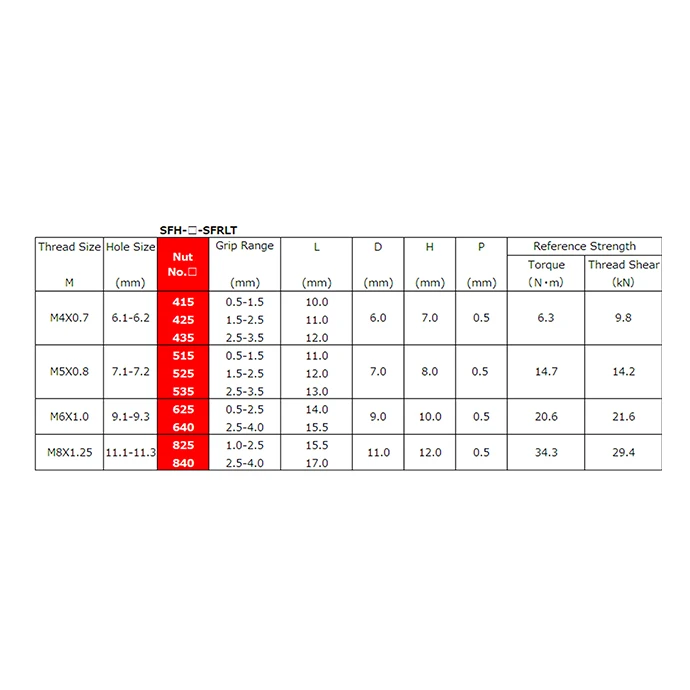

●Nominal diameter of the thread（POP NutⓇRoulette POP Nut）：M4、M5、M6、M8
●Materials:Steel

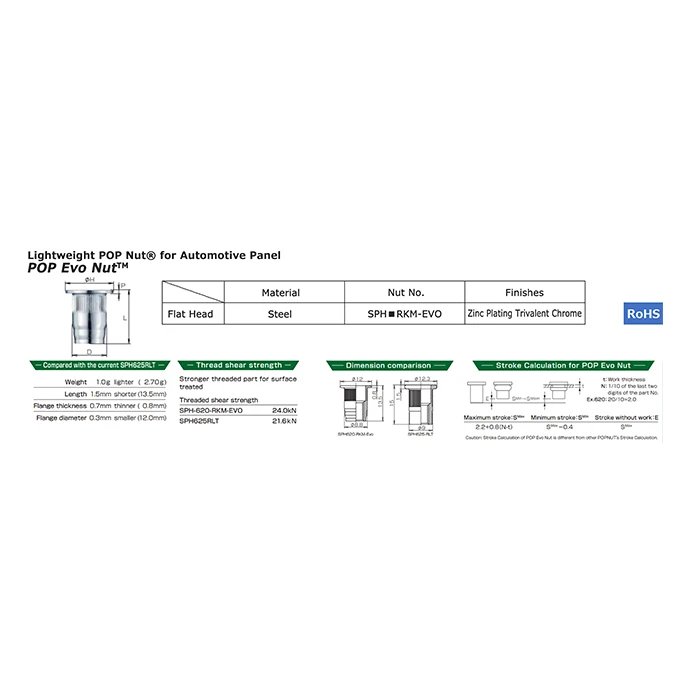

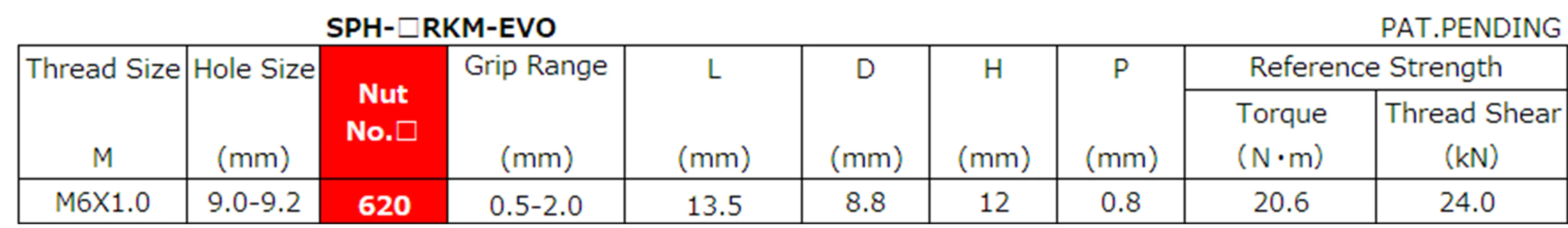

●The POP Evo Nut™ is an evolved version of the POP NutⓇRoulette POP Nut with 1g (27%) reduced from its individual weight.
●As a result of hardening the body,the thread strength property class is 6.
●The standard punch of 9.0mm is all right for the prepared hole diameter for the workpiece.
●Nominal diameter of the thread（POP Evo Nut™）：M6
●Materials:Steel
●Our products are exported in units of 1,000 pieces.
●Please feel free to contact us if you need any samples.
Company Profile
"What are the items essential for your production needs?" We supply items that genuinely serve your needs.
Nikkei Sangyo Co., Ltd. has been a distributor for Nippon Pop Rivets and Fasteners Ltd. (POP®) for around 50 years, during which we have supported the production needs of many manufacturers in Japan with the motto of "facilitating fast, secure, and convenient fastening work." We carry a wide range of POP® products in our inventory and are committed to the prompt supply of POP® products
for your production needs, including the manufacturing of automobiles, electronic appliances, housing materials, and other general industrial goods. Please feel free to get in touch with us if you require any services from prototyping to mass production.
for your production needs, including the manufacturing of automobiles, electronic appliances, housing materials, and other general industrial goods. Please feel free to get in touch with us if you require any services from prototyping to mass production.
