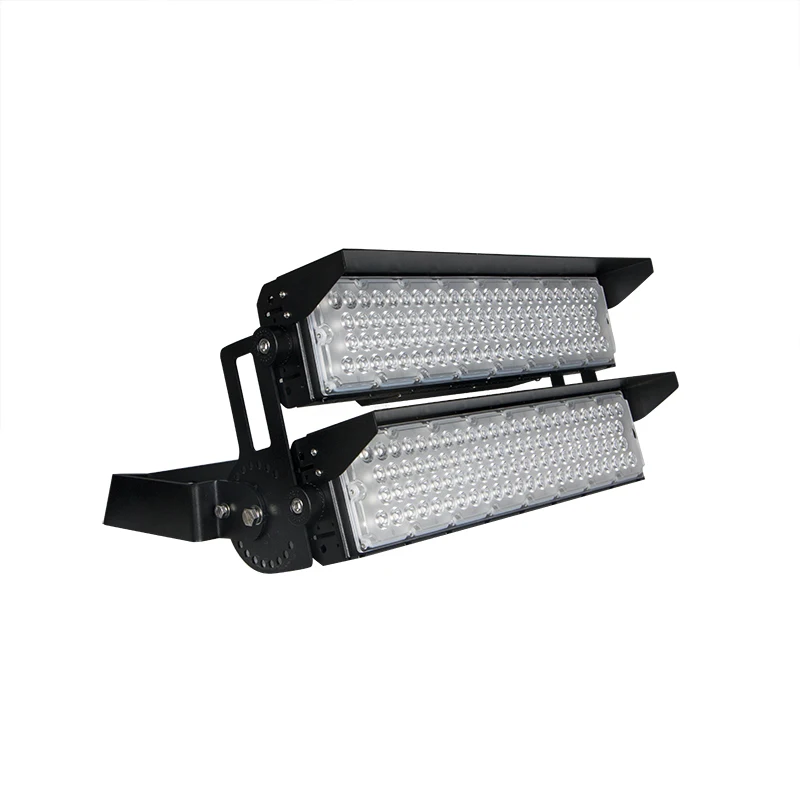

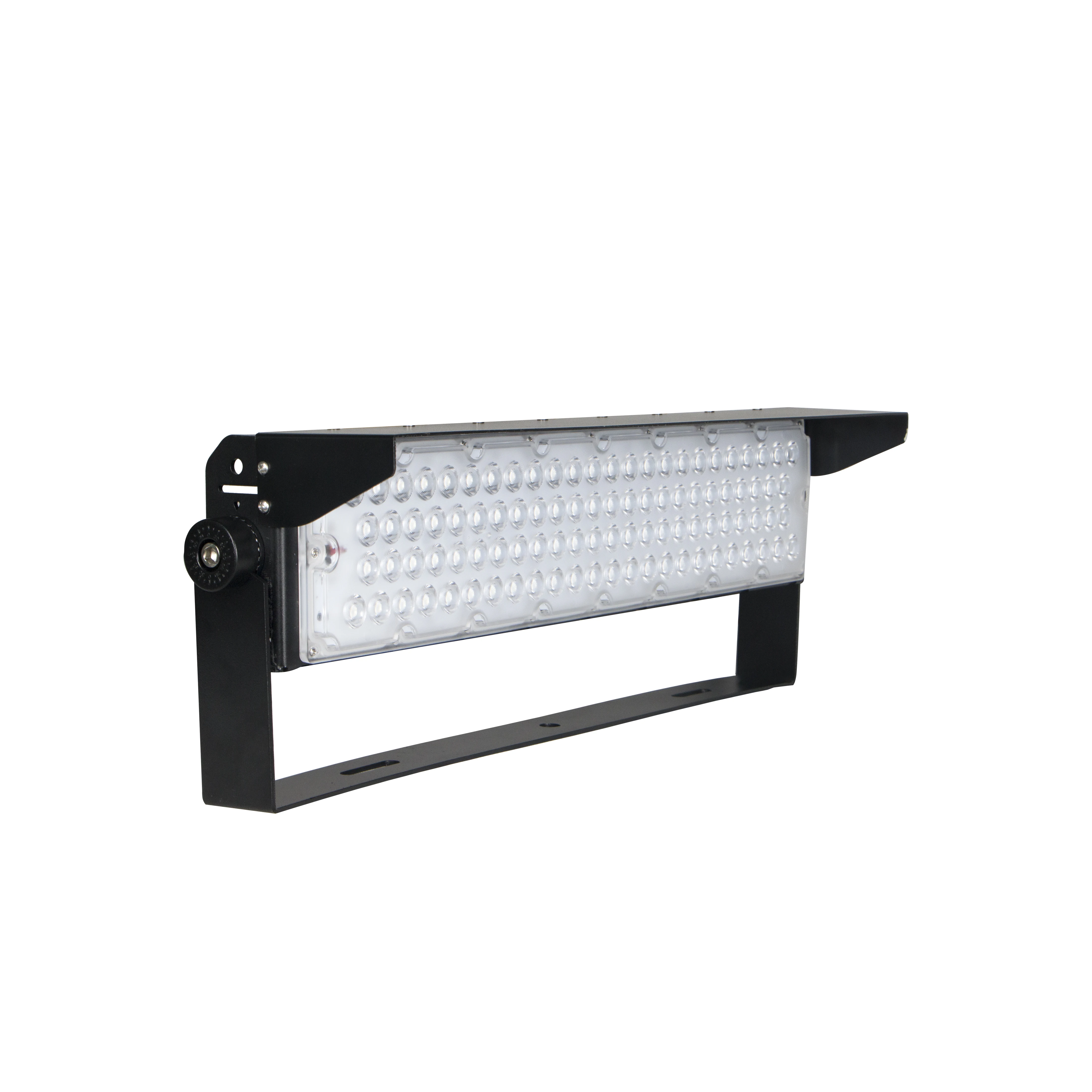

1000w 1200w led Sports high mast light 1500w led stadium light 500w led Sports lighting
- Category: Commercial & Industrial Lighting >>>
- Supplier: Shenzhen JHC Lighting Co. Ltd.
Share on (1700006876007):
Product Overview
Description
Shenzhen JHC Technology CO., Ltd
Contact person：Jason Whatsapp/Wechat:+8613600180092 E-mail:jason@jhc-led.com
Add:West, 2nd floor, building D,Guangshengde Industrial Zone ,Fenghuang ,Fuyong Street, Bao'an District, Shenzhen
1000w 1200w led Sports high mast light 1500w led stadium light 500w led Sports lighting
Details Images
Product information
Product name | led high mast light | ||||||||
Part No | JHC-LTL-250W | JHC-LTL-500W | JHC-LTL-1000W | JHC-LTL-1200W | JHC-LTL-1500W | ||||

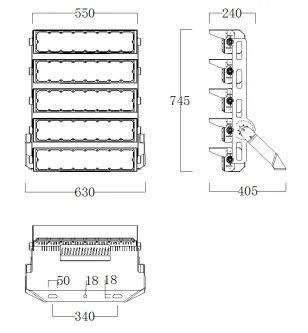

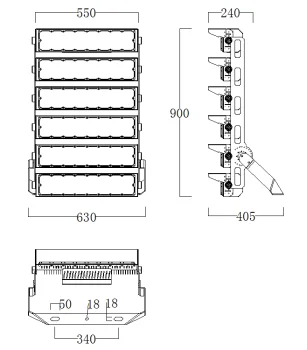

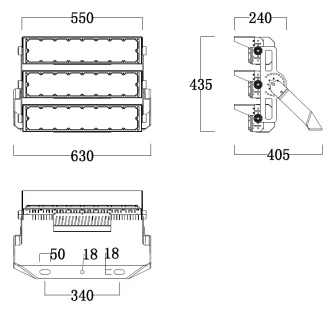

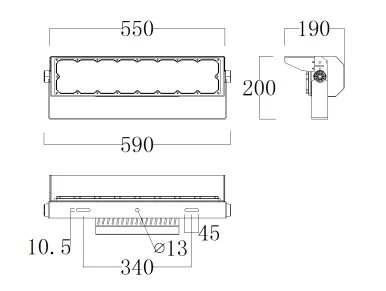

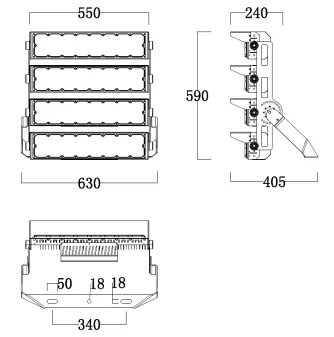

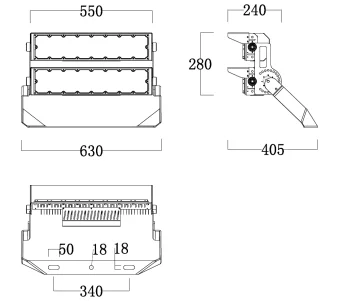

Dimension | 590*200*190MM | 630*240*280MM | 630*240*590MM | 630*240*745MM | 630*240*900MM | ||||
CCT | 2700-6500K | ||||||||
CRI | >80 | ||||||||
Lumen Efficacy | 140lm/W | ||||||||
Input Power | 250 W | 500 W | 1000 W | 1200 W | 1500 W | ||||
Input Voltage | AC85-305V 50/60Hz | ||||||||
Viewing Angle | 10/20/40/60° | ||||||||
PFC | >0.9 | ||||||||
Waterproof Rating | IP65 | ||||||||
Housing | Aluminum+lens | ||||||||
Application | Outdoor/Indoor | ||||||||
Safety Certification | CE/ROHS | ||||||||
Warranty Time | 5 Years | ||||||||

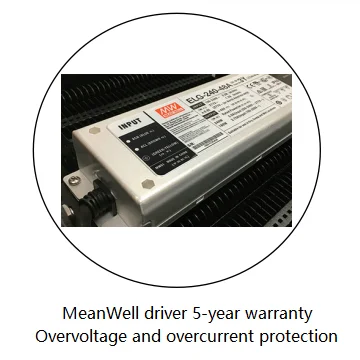

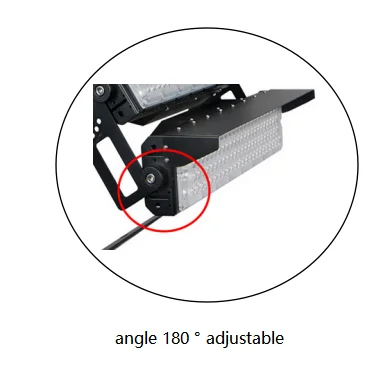

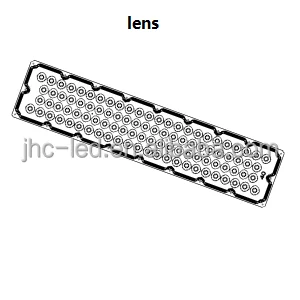

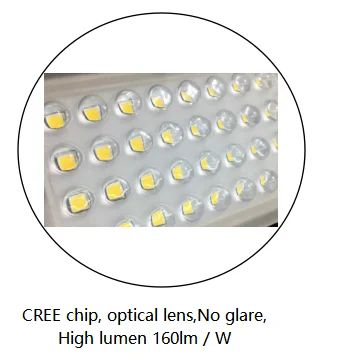

Product parts

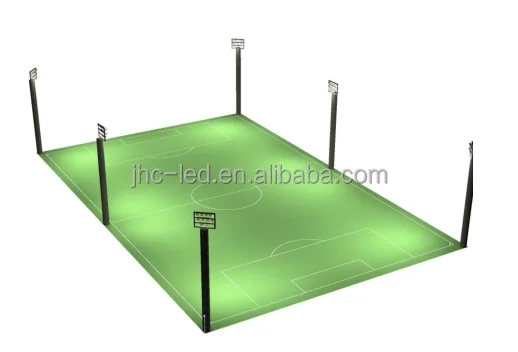

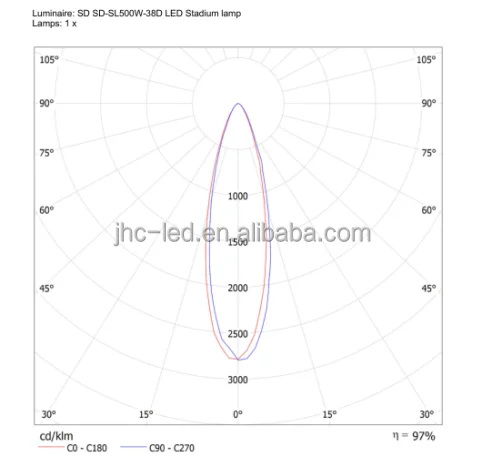

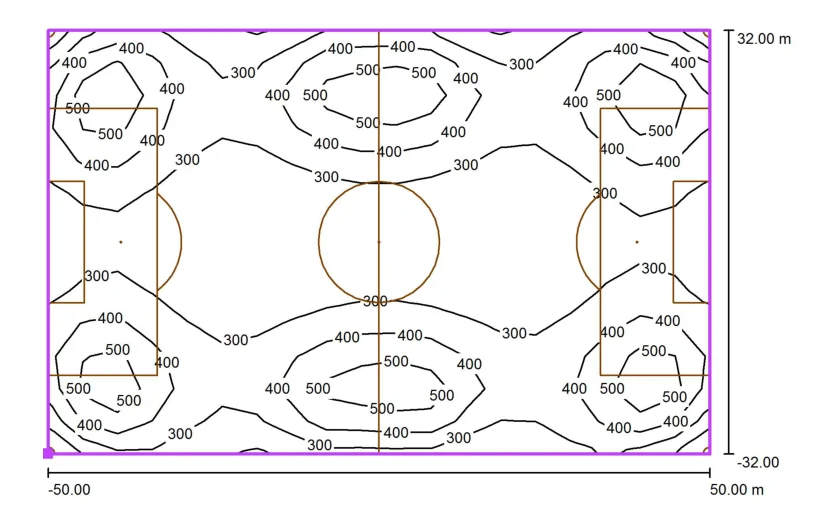

IES data and football field simulation diagram

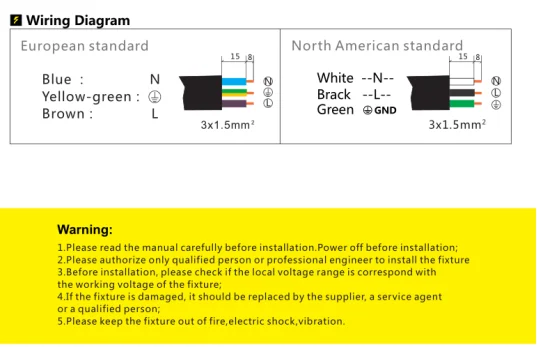

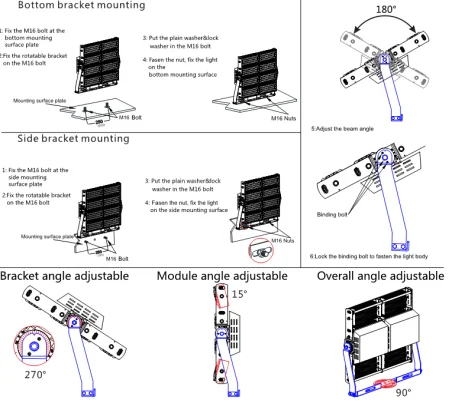

Installation Instructions

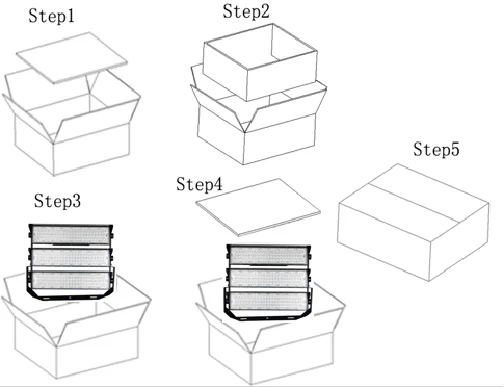

Product Packing Specification
Part NO | Watt | Net Weifht/light | Cross Weight/light | QTY Per box | CTN Size |
JHC-LTL-250W | 250W | 5.6kg | 6.5kg | 1pcs | 645*255*240mm |
JHC-LTL-500W | 500W | 14.6kg | 15.5kg | 1pcs | 645*390*275mm |
JHC-LTL-750W | 750W | 18.2kg | 19.8kg | 1pcs | 645*545*275mm |
JHC-LTL-1000W | 1000W | 21.3kg | 23.5kg | 1pcs | 645*700*275mm |
JHC-LTL-1200W | 1200W | 25.6kg | 28kg | 1pcs | 645*855*275mm |
JHC-LTL-1500W | 1500W | 31.2kg | 33.5kg | 1pcs | 645*1010*275mm |
