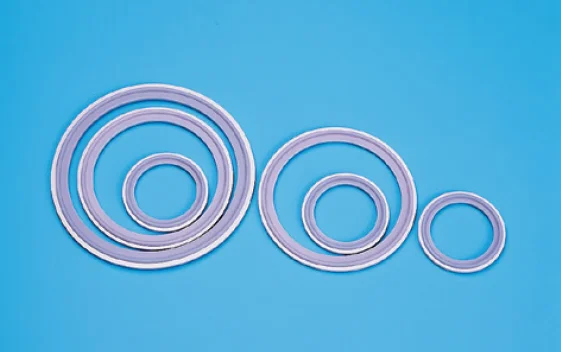

Sanitary gasket for beverage production line High chemical resistance with PTFE TOMBO No.9014 Saniclean
- Category: Gaskets >>>
- Supplier: NICHIAS Corporation
Share on (1700007160031):
Product Overview
Description
Products Description

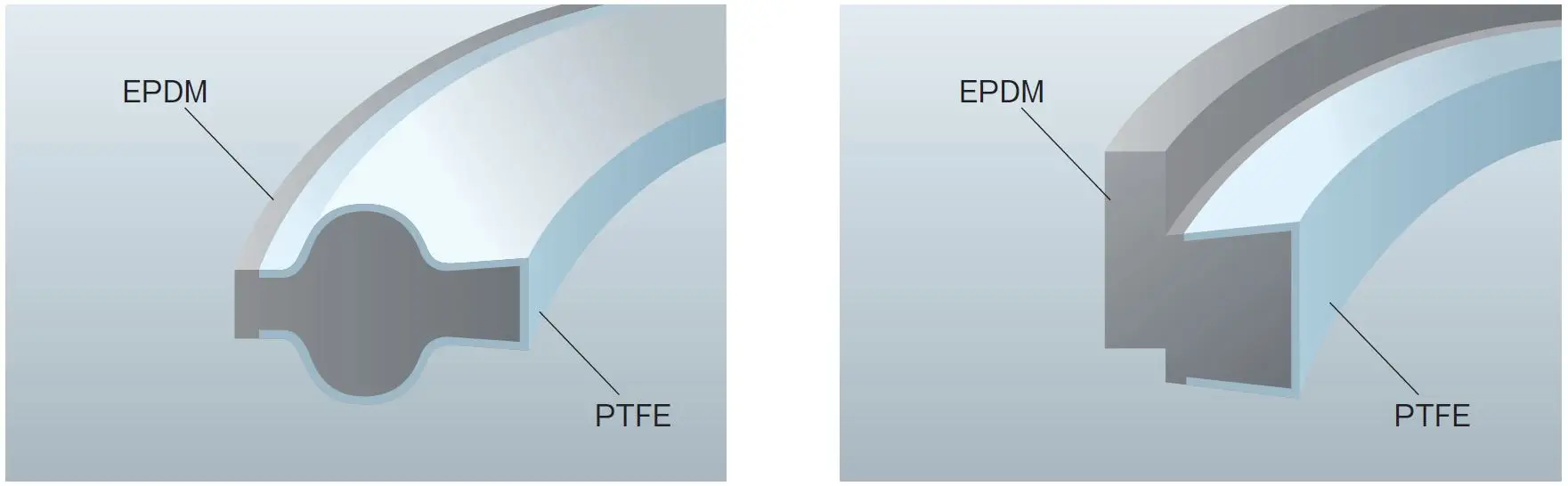

This sandwiched type combination gasket is an elastomer sanitary gasket covered with PTFE film, realizing excellent resistance against chemicals,heat,and contamination.
Product Name | TOMBO No.9014 SANICLEAN™ Food Grade Gasket for ferrule and screw coupling |
Brand Name | TOMBO |
Place Of Origin | Malaysia |
■Characteristics
・Excellent chemical resistance and low-flavored due to applied PTFE lining
・High cost performance
・ Long-term sealing performance due to rubber elasticity
・PTFE film approved by USP(US Pharmacopoeia) and Food Sanitation Act
・Service temperature range: -30～150℃
・Maximum service pressure: 1.0MPa
●Because the entire face in contact with the fluid is made of PTFE(1),the surface is not degraded by hot water, hot caustic fluid, or chlorine water used in a sanitation(2),process.
●Because the entire face in contact with the fluid is made of PTFE, there is little adhesion or penetration of liquid, so these gaskets are effective for preventing contamination of flavor during a flavor change(3).
●The use of these gaskets reduces the duration of the sanitation process during a flavor change, contributing to improved productivity.
＊The method of using these gaskets is basically the same as conventional elastomer sanitary
gasket, and is easy, however it is necessary to carry out additional tightening work.
・Excellent chemical resistance and low-flavored due to applied PTFE lining
・High cost performance
・ Long-term sealing performance due to rubber elasticity
・PTFE film approved by USP(US Pharmacopoeia) and Food Sanitation Act
・Service temperature range: -30～150℃
・Maximum service pressure: 1.0MPa
●Because the entire face in contact with the fluid is made of PTFE(1),the surface is not degraded by hot water, hot caustic fluid, or chlorine water used in a sanitation(2),process.
●Because the entire face in contact with the fluid is made of PTFE, there is little adhesion or penetration of liquid, so these gaskets are effective for preventing contamination of flavor during a flavor change(3).
●The use of these gaskets reduces the duration of the sanitation process during a flavor change, contributing to improved productivity.
＊The method of using these gaskets is basically the same as conventional elastomer sanitary
gasket, and is easy, however it is necessary to carry out additional tightening work.
Note:
(1) PTFE used on the fluid contact surface of TOMBO™ No.9014 (SANICLEAN™ gasket) has passed the elution test for plastic implement, container and package specified in 3-D-2 of the standard covering foodstuffs and additives, etc.(Public Notice No.370, 1959).
(2) Sanitation: This is cleaning work carried out using tap water, chlorine water, hot water or hot caustic fluid.
(3) Flavor change: This is a change of a production item on a beverage production line, such as a product filler line, which is shared among several kinds of beverages
(1) PTFE used on the fluid contact surface of TOMBO™ No.9014 (SANICLEAN™ gasket) has passed the elution test for plastic implement, container and package specified in 3-D-2 of the standard covering foodstuffs and additives, etc.(Public Notice No.370, 1959).
(2) Sanitation: This is cleaning work carried out using tap water, chlorine water, hot water or hot caustic fluid.
(3) Flavor change: This is a change of a production item on a beverage production line, such as a product filler line, which is shared among several kinds of beverages
■Performance

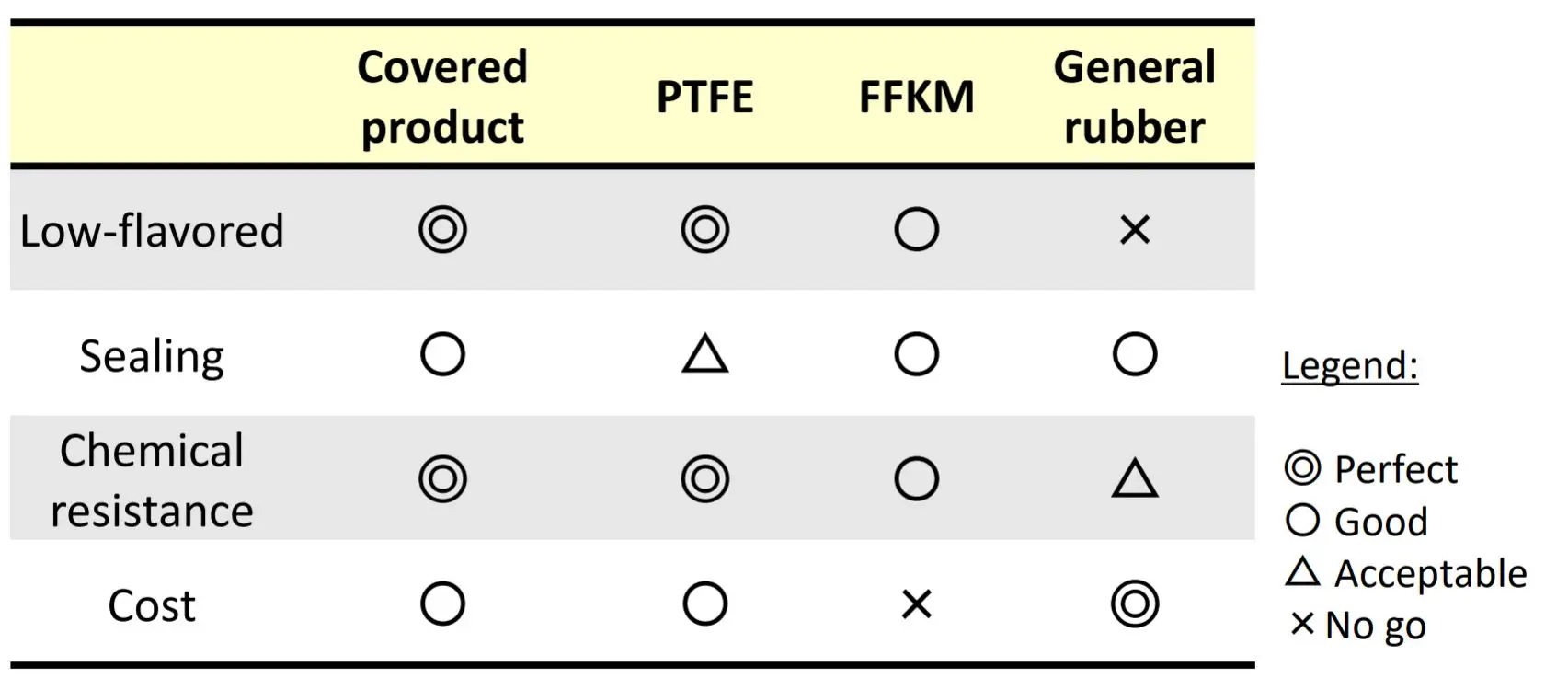

1) Performance comparison
1) Performance comparison

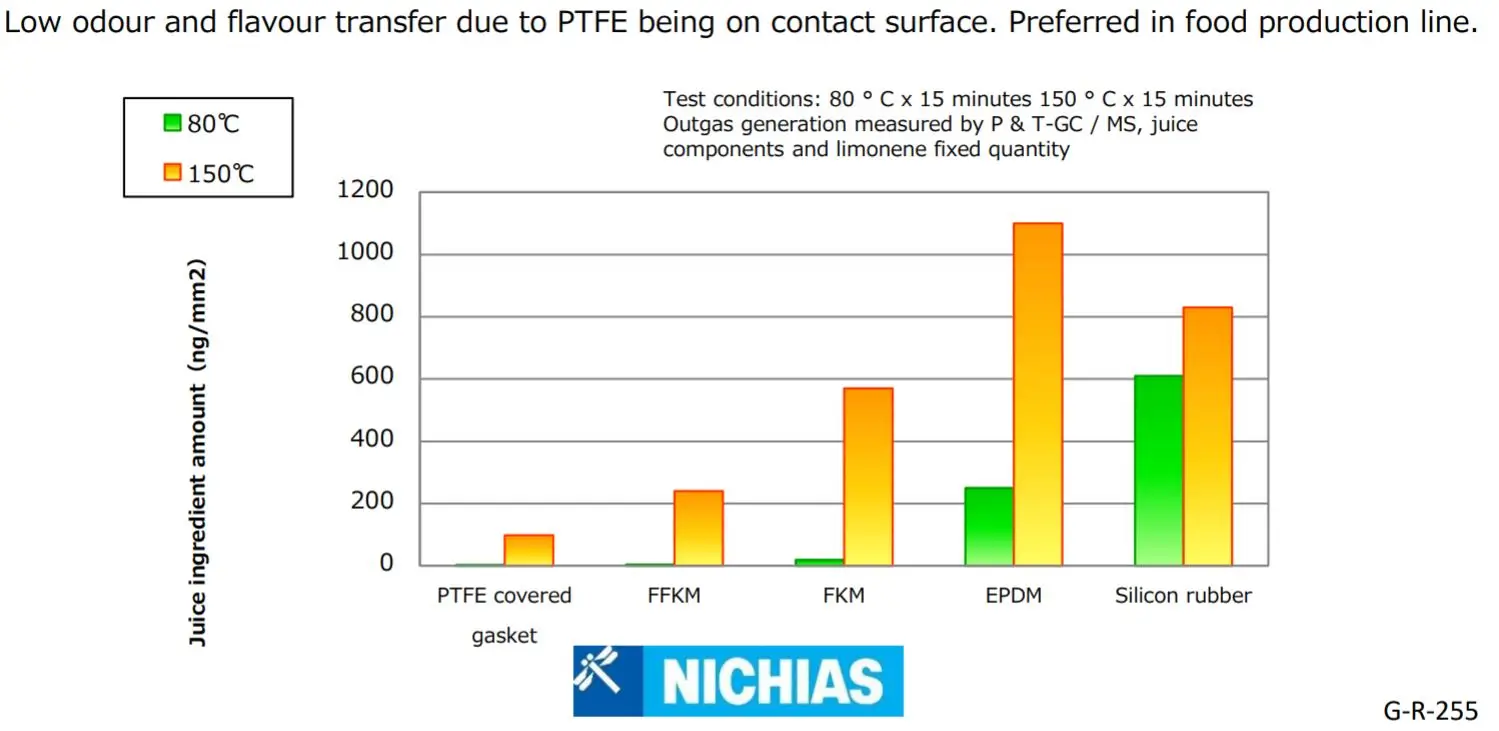

2) Odour and flavour transfer
■Lineup

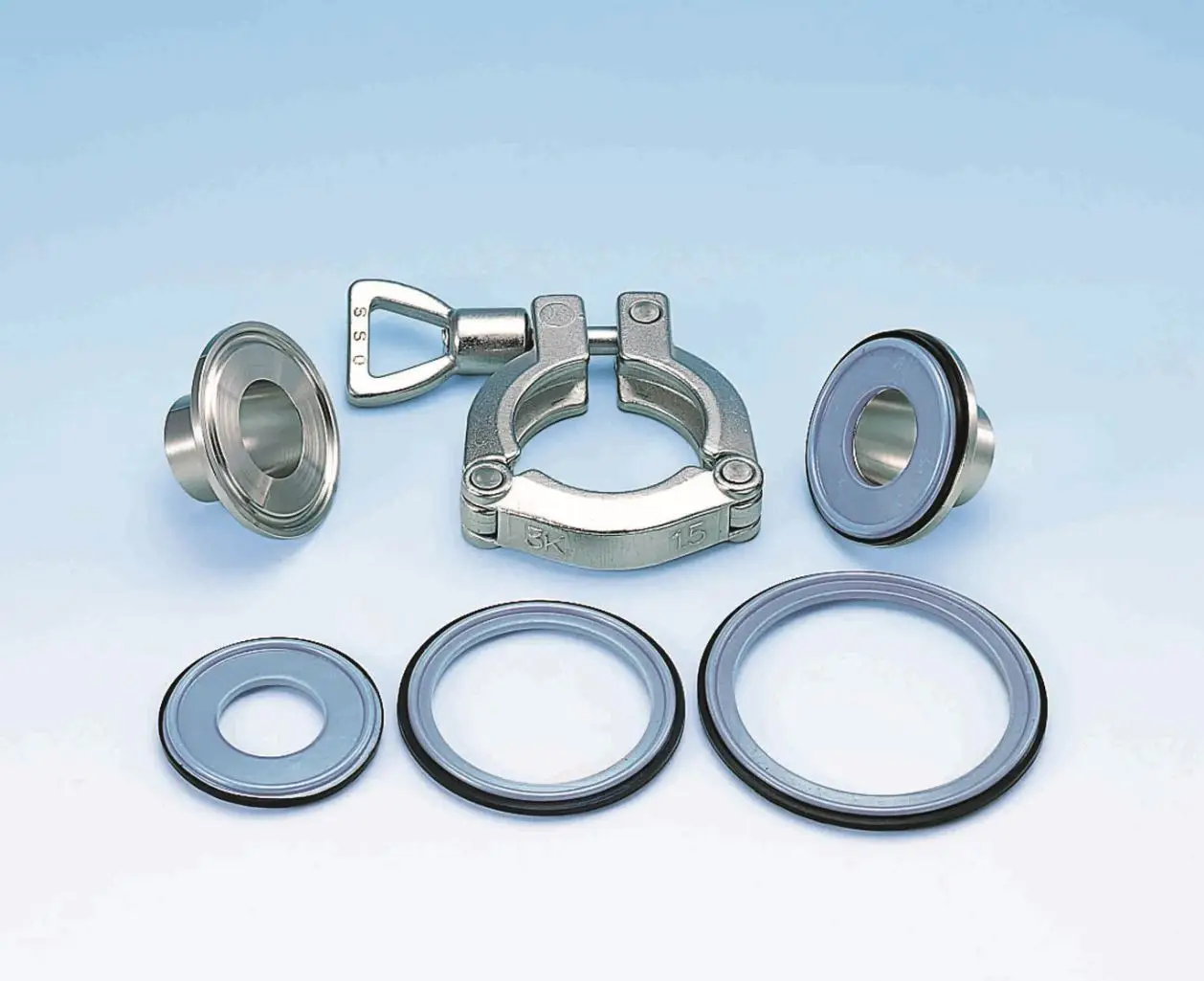

For ferrule :
TOMBO™ No.9014-B ( Black EPDM)
TOMBO™ No.9014-BW (White EPDM)

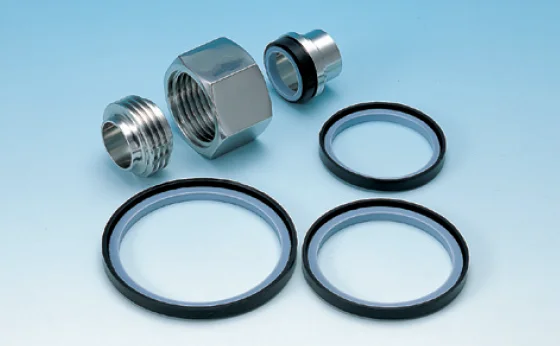

For screw coupling :
TOMBO™ No.9014-A (Black EPDM)
※ For other rubber material, please consult us.
For ferrule :
TOMBO™ No.9014-B ( Black EPDM)
TOMBO™ No.9014-BW (White EPDM)
For screw coupling :
TOMBO™ No.9014-A (Black EPDM)
※ For other rubber material, please consult us.

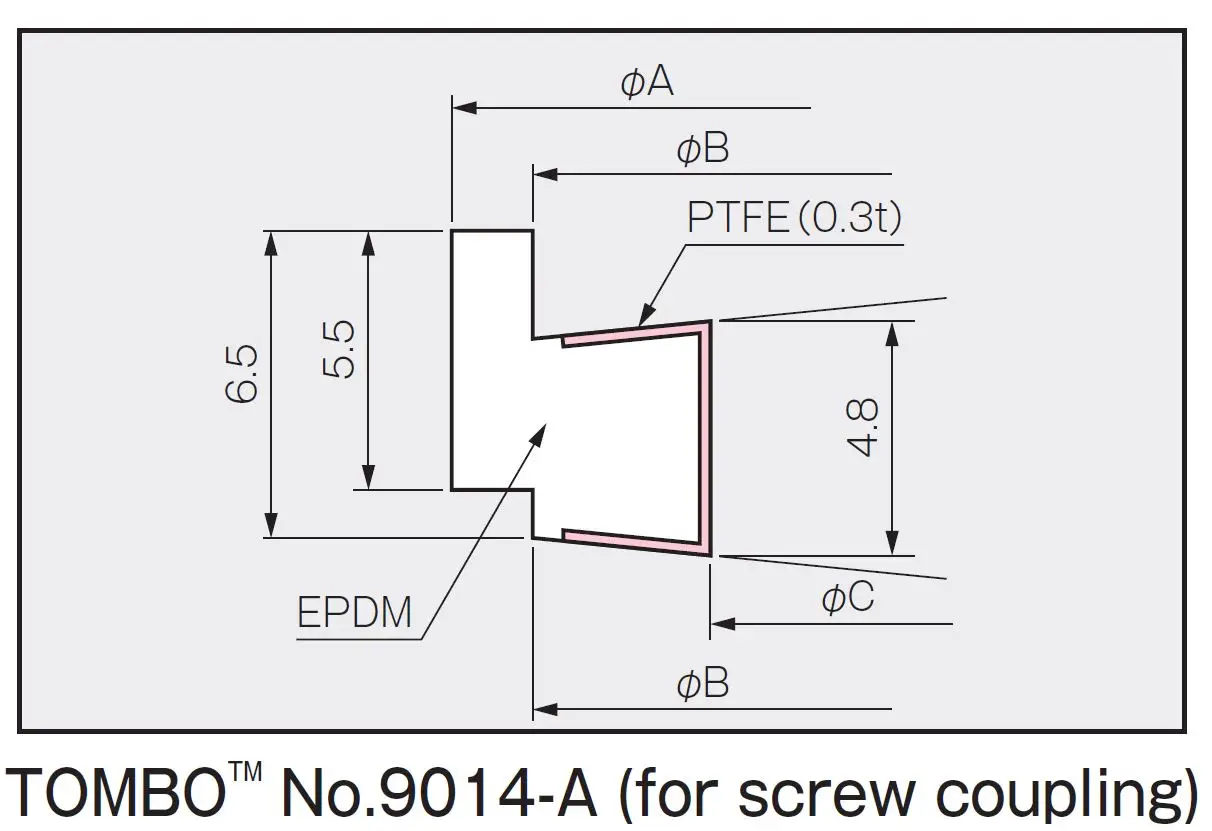

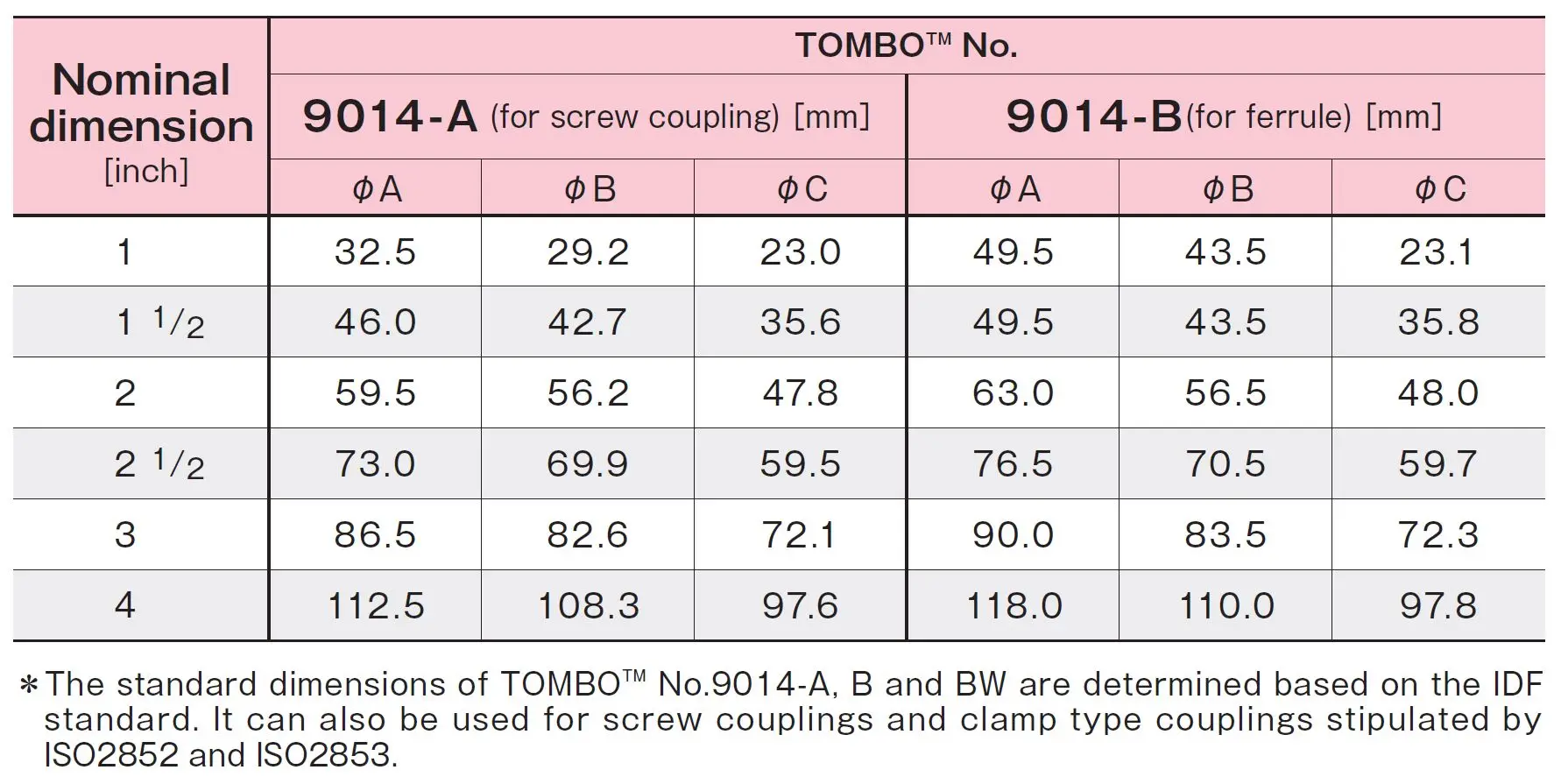

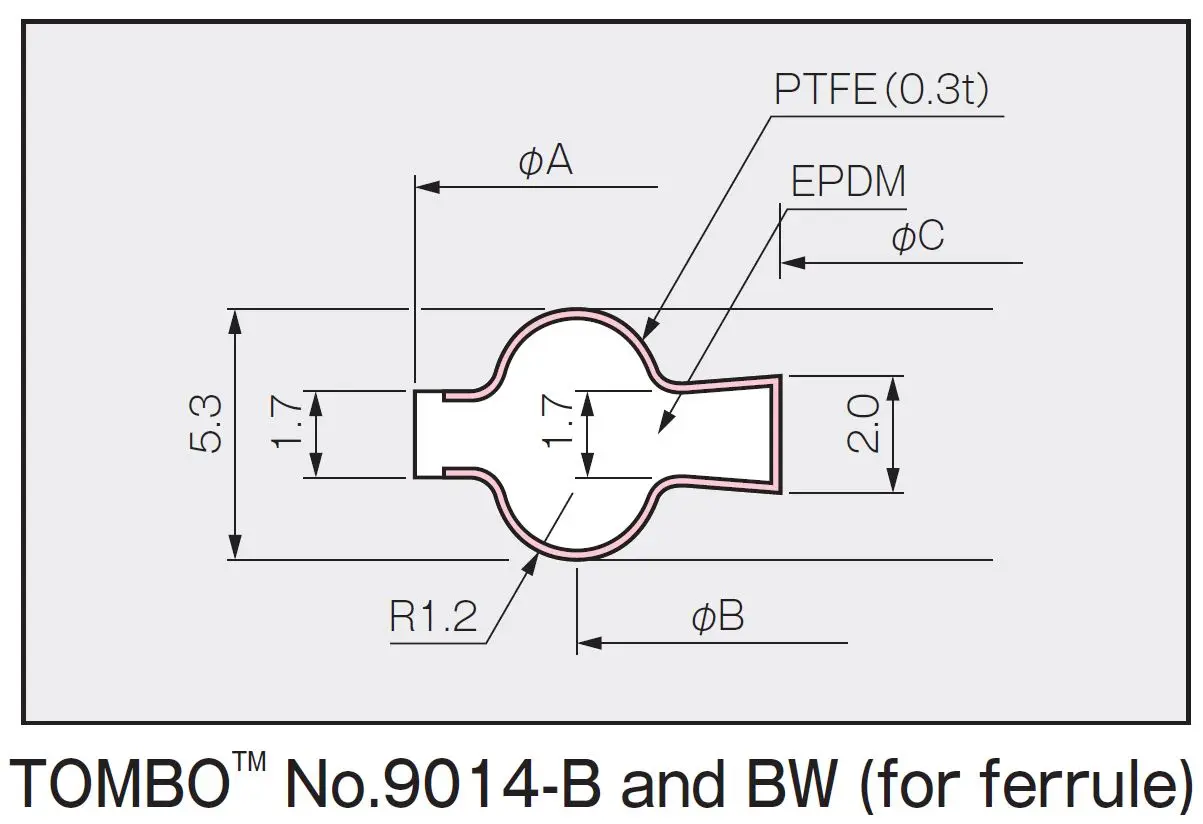

■Dimensions
This product is manufactured in Japan or Malaysia.
