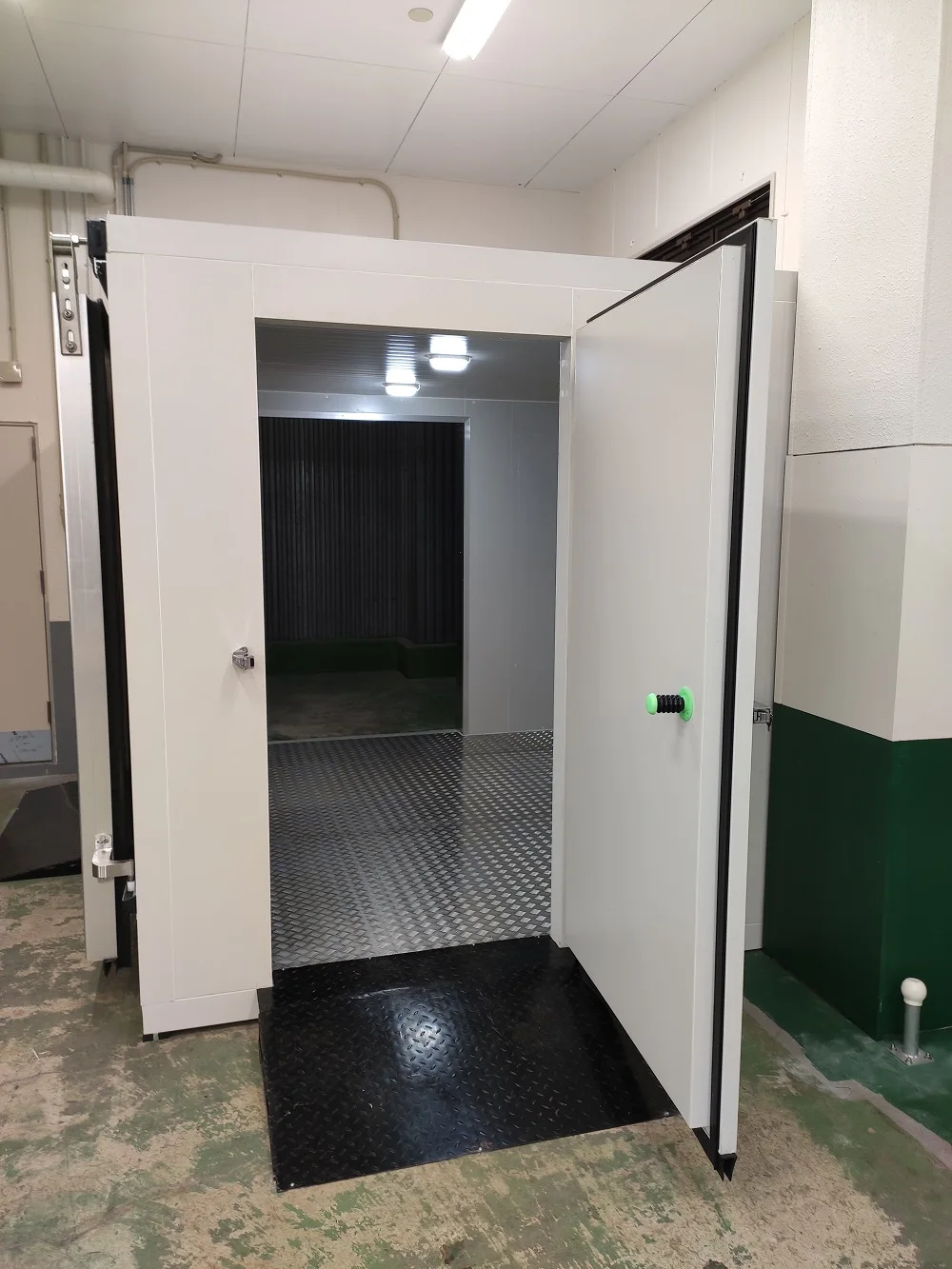

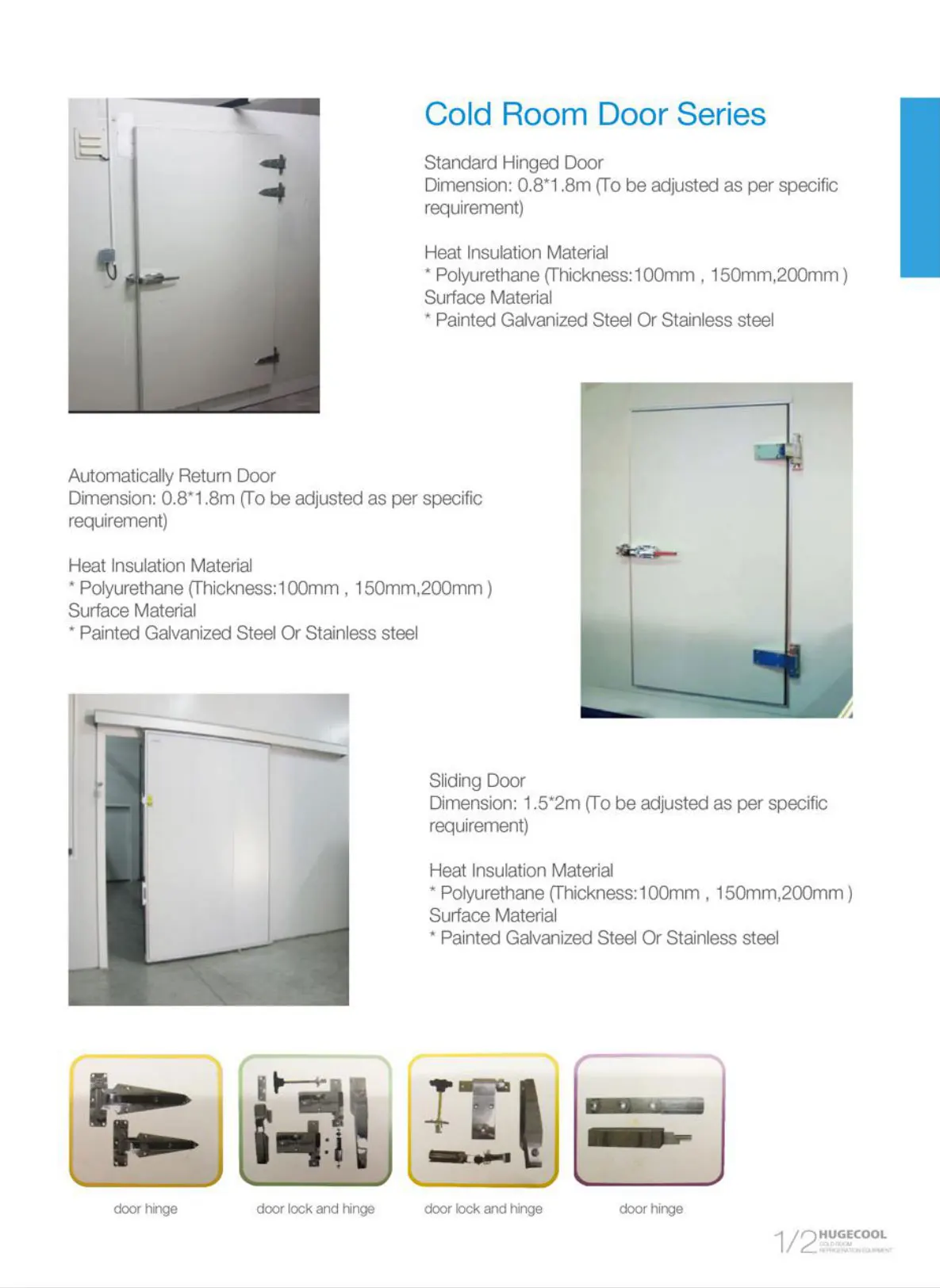

Cold Storage Hinged Swing Door for Cold Room
US $199.00-$229.00

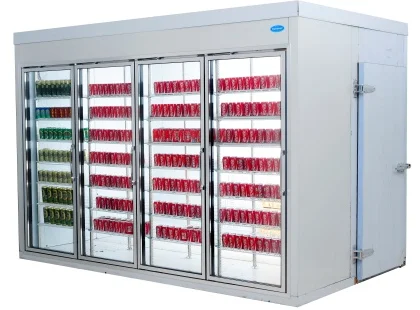

Customized supermarket display cold room/commercial walk in cooler with glass doors(3,4,5,6,7,8 doors etc.)
- Category: Cold Room >>>
- Supplier: Qingdao Huicheng Mechanical & Electrical Equipment Co. Ltd.
Share on (1700007363127):
Product Overview
Description
Features:
1 High-grade heating coated glass door , auto defrost frame , good display.
2. Microcomputer control , automatic temperature controlling and defrosting , easy operation , and accurate temperature control .
3. High density overwall polyurethane insulation , heat perservation and energy saving ,durable using .
4. Aluminum alloy frame design , easy to clean, not deformation , beautiful appearance
| Model | Size(mm) | Temp. (℃) | Unit price USD (FOB China) | CONFIGURATION |
| 3 Glass Doors | 2312×1800×2200 | 0~10 | 3086 | One hinged door, glass doors sales shelves, lighting, warehouse body (excluding shelves in back storage, refrigeration equipments, ball skateboards) |
| 4 Glass Doors | 3083×1800×2200 | 0~10 | 3724 | |
| 5 Glass Doors | 3855×1800×2200 | 0~10 | 4540 | |
| 6 Glass Doors | 4625×1800×2200 | 0~10 | 5720 | |
| 7 Glass Doors | 5396×1800×2200 | 0~10 | 6354 | |
| 8 Glass Doors | 6166×1800×2200 | 0~10 | 6980 | |
| Optional Wire mesh shelves | 71*56 | layers | 14.2 | |
| Optional Ball Skateboard | layers | 35 |
Description
 |
|
Specification
Sizes of Panel | Length(m) | less than 30m |
Width(mm) | 960mm | |
Thickness(mm) | 50, 75 ,100 ,120 ,150 ,200mm | |
Heat Conductivity(W/mk) | 0.022 | |
Compressive Strength(N/cm2) | more than 196 | |
Tensile Strength (N/cm2) | more than 24.5 | |
Bending Strength (N/cm2) | more than 24.5 | |
Water Absorption(g/100cm2) | 3 | |
Flame Resistance (only for panels added flame retardant agent) | Self-extinguishing within 3 seconds after taking away flame | |
Material of covering steel | Color painted steel Stainless steel Galvanized steel | |

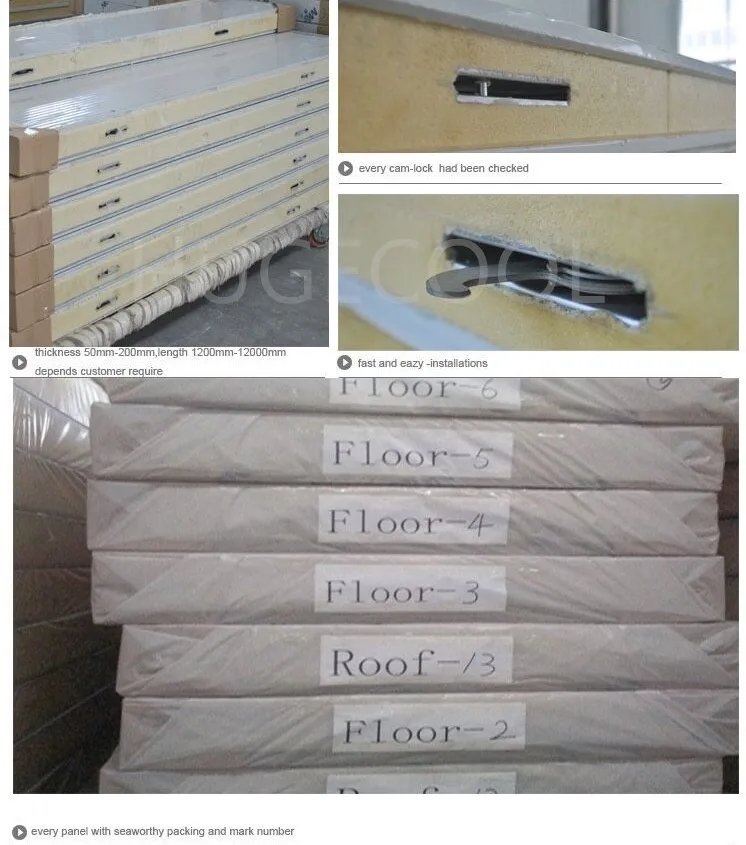

Walk In Freezer Pu Panel Details:
1. Our Pu Panel Standard width is 960mm , The length can be customized according to your requirements .
2. PU panel is B2 fire proof grade, keep best insulation effect and safety.
3. Durable zinc-coated cam lock, very easy to install, anti-corrosion effect is very good.
4. 40-42 kg/m3 density PU foam, the insulation effect is good . In other words , can save your electricity cost .
5. CFC FREE raw material , environmental friendly.
After placing order ,our designer will design an exact drawing for your cold room , you can install it easily .
Cold room temperature | Thickness of panel |
5~15 degree | 75mm |
-15~5 degree | 100mm |
-15~-20 degree | 120mm |
-20~-30degree | 150mm |
Lower than -30degree | 200mm |
Features and advantages
1.Convex structure: Panels are joined together by means of tongue and groove and locked together by cam- lock on each side of the panel to ensure air tight joints. There’s no need of rivets, thus reduce the cost and save the time.
2.Easier and faster installation,can be expended or removed in the future.
3.Perfect heat insulation: High density thermo insulated PUR foam up to 38kg/m³or above for perfect cold-room heat insulation efficiency.
4.Various surface steel choices: Color steel sheet/Stainless steel sheet/ Embossed aluminum sheet,The standard metal sheets are all smooth. Standard color of steel sheet is white-gray, others are natural metallic.
5.Low flammable: Low flammable PUR foam is used in the cold room panel, with fire retardant B2 grade.
6.Highly hermetical: Silica gel are used on the panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool room or moisture inside the PU insulated panel for the best refrigeration and frozen storage result.
7.Load bearing: The compressive strength is150kpa above, people can walk on the floor panels and allow trolleys can go in and out.
FAQ
1.What's your MOQ for this model?
Our MOQ is 1 set for this model
2.What's your delivery time?
20 to 30 working days after down-payment confirmation.
3. What's your payment term?
L/C at sight or T/T(Down-payment 30%, balance arrange by T/T before shipment).
